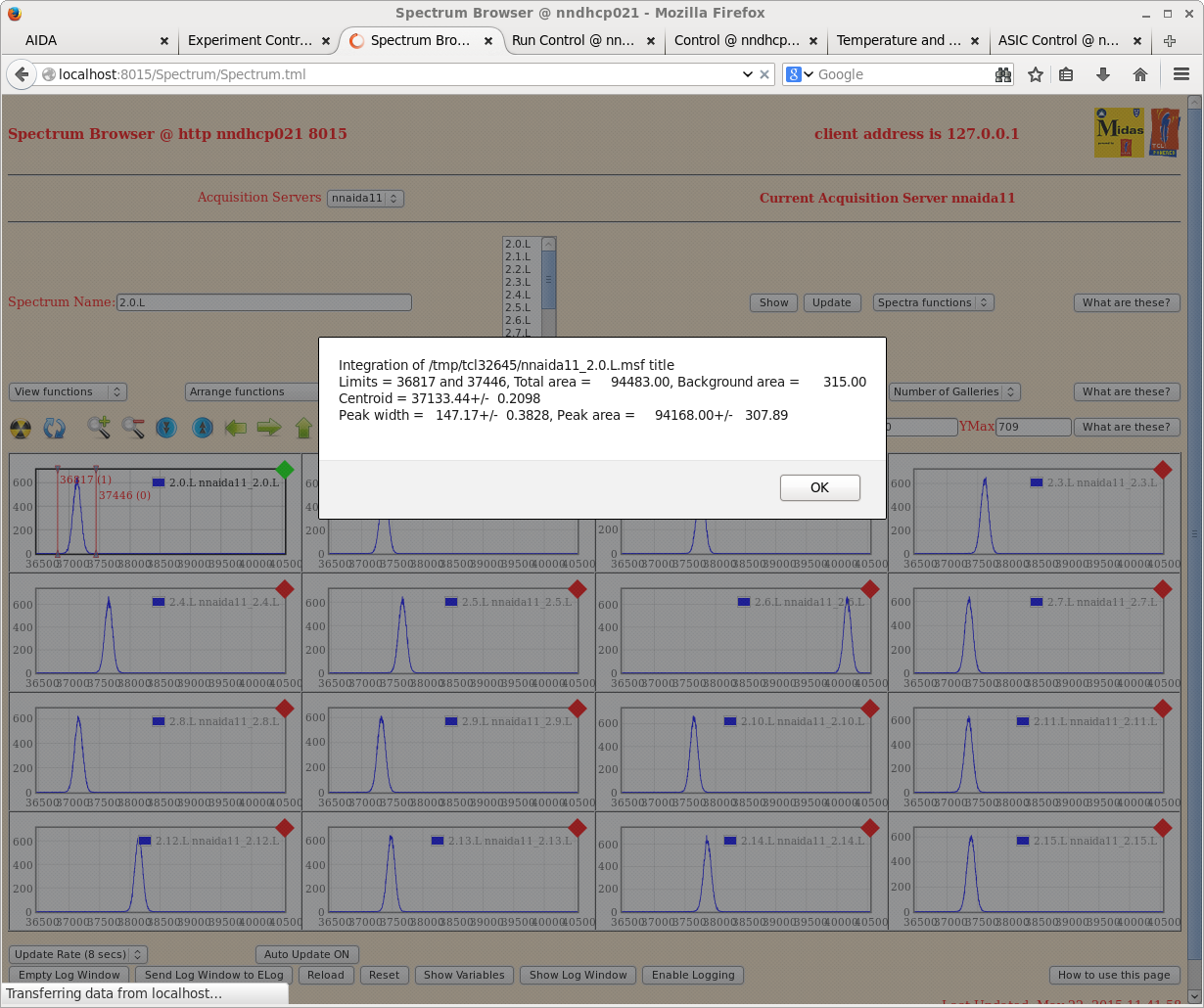

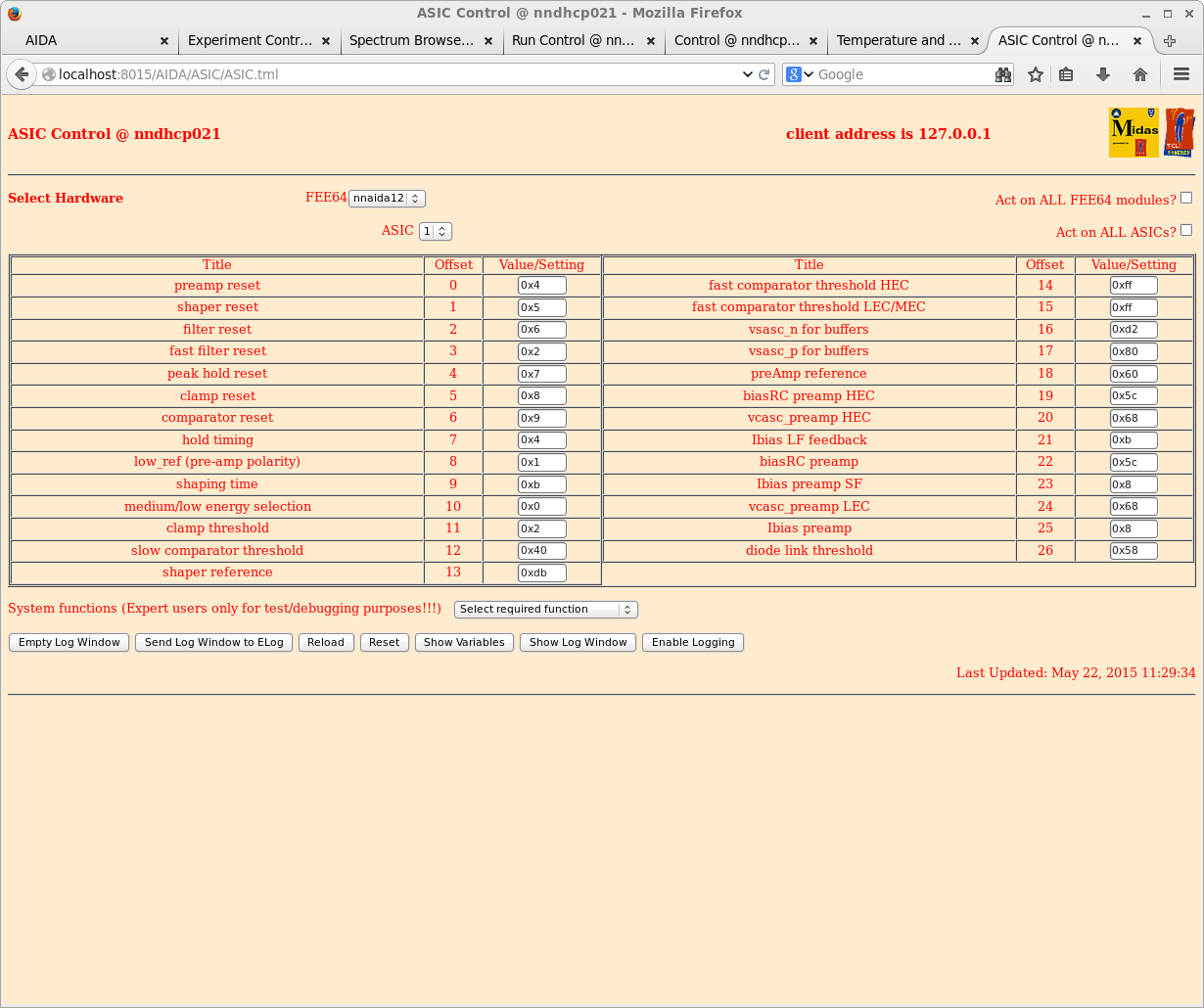

MSL type BB18 serial 2998-22 CAEN N1419B floating HV bias +150V I_L +4.255uA (bias network locally grounded at AIDA adaptor PCB connected to p+n junction strips) ASIC settings attachments 1-4 BNC PB-5 Pulser Amplitude 0.50V Attenuator x1 Polarity - (output split to Cooknell SA2 to provide + polarity signals) Decay time 1ms Frequency 50Hz Unable to replace PCL Kapton PCBs with FCT Kapton PCBs. FCT Kapton PCBs exhibited either a high resistance short (15v/50uA) or expecte diode response as voltage increased from zero until ~20-30V when leakage curent abruptly increased to CAN N1419B OVC limit (curremtly 50uA). Return FCT Kapton PCBs to Edinburgh for continuity/short tests in the automated tester in the electronics workshop. MSL type BB18 serial 2998-20 CAEN N1419B floating HV bias +200V I_L +5.705uA
