#include <bitset>
#include <fstream>
#include <iostream>
#include <stdio.h>
#include <sstream>
#include <string>

#include <TFile.h>
#include <TTree.h>
#include <TH1.h>
#include <TH2.h>
#include <TCanvas.h>
#include <TGraph.h>
#include <TRandom3.h>

//#include "Common.h"


//using namespace std;




//variables sorted in decreasing oredr of size: from TTree.html

/*
 * struct struct_entry_midas{
  unsigned long tm_stp_lsb;
  unsigned long info_field;

  //  unsigned short sample_data[4];
  unsigned short adc_data;
  unsigned short sample_lenght;

  unsigned char type;
  unsigned char mod_id;
  unsigned char ch_id;
  unsigned char adc_range;
  unsigned char info_code;

};
*/



//void Plot(string runNum, int Nskip=1, long long Nmax=-1, double ts_0= 0, double ts_1= 20e12, double t_ext_0= 0, double t_ext_1= 10e10, double offset_z=20e12, double t_ext_0_z=0, double t_ext_1_z=10e10){
void Plot(int run0, int Nrun, int Nskip=1, long long Nmax=-1, double kentry_max=1000, double ts_0=0, double ts_1= 500000, int Nskip2= 100){

  /***********
  struct dssd_hits{
    Long64_t t;
    Long64_t t_ext;
    int x;
    int y;
    int z;
    int ex;
    int ey;
    int flag;
  };

  struct calib_data_struct{

    double time_aida;
    double time_disc;
    double time_external;
    double adc_energy;
    int adc_data;
    int dssd;
    int strip;
    unsigned char adc_range;
    unsigned char side;
    unsigned char module;
    unsigned char channel;
    unsigned char data_type;
    unsigned char info_code;
    bool corr_flag; //if we have a good calculation of offset EXT->AIDA
    bool disc_flag; //if we have good DISC value for ADC hit
  };



  struct unpack_data_struct{
    unsigned long tm_stp;
    unsigned long corr_scaler;
    unsigned long tm_stp_lsb;  //least significant bits timestamp
    unsigned long info_field;
    unsigned int adc_data;
    unsigned int sample_length;
    unsigned char data_type;
    unsigned char fee64_id;
    unsigned char ch_id;
    unsigned char adc_range;
    unsigned char info_code;
    bool sync_flag;
  };
  ******************/

  TFile* input_file1;
  TFile* input_file2;
  TFile* input_file3;

  TTree * tree1;
  TTree * tree2;
  TTree * tree3;

  //  unpack_data_struct unpack_data;
  //  calib_data_struct calib_data;
  //  dssd_hits event_data;


  Long64_t delta_long64;
  double delta_double;

  Long64_t offset_long64;
  //offset_long64= offset_z;



  //  TFile* input_file;
  //  TTree * input_tree;


  //TH1I * hTs;
  //TH2I * hFeeAdc;
  //TH2I * hFeeCh;
  //TH1I * hAdc[24];
  //TH2I * hTsAdc[24];
  //  TH1I * Hdt_ext;



  //  TCanvas * c0;
  //  c0= new TCanvas("c0","c0"); c0->Divide(4,4); //deltaunp


  //  for(int i=0;i<16;i++){
  //
  //    char my_title[256];
  //    char my_name[256];
  //    sprintf(my_name,"hDeltaUnp%d",i);
  //    sprintf(my_title,"#Delta time-stamp !FEE%d;t_{CORR. SCALER} - t_{AIDA}",i+1);

    //  hDeltaUnp[i]= new TH1I(my_name, my_title, 2048, t_ext_0, t_ext_1);
  //  }






  ULong64_t my_tm_stp;
  UInt_t my_bit;
  Float_t my_Z;

  ULong64_t a_tm_stp[1];
  UInt_t a_bit[1];
  Float_t a_Z[10];

  string runName;
  string path="/Disk/ds-sopa-personal/aestrade/rootfiles/AIDA/May2015/";


  char pid_file[1024];

  //number of data points in TTree
  long long n_entries;
  long long n_max;
  long long n_entries_sum=0;
  long long delta_ts;


  double t3[10001];
  double x3[10001];
  double t2[10001];
  double x2[10001];
  int n3=0;
  int n2=0;

  //  int Nskip2=100; //take 1/100 points for any trigger type

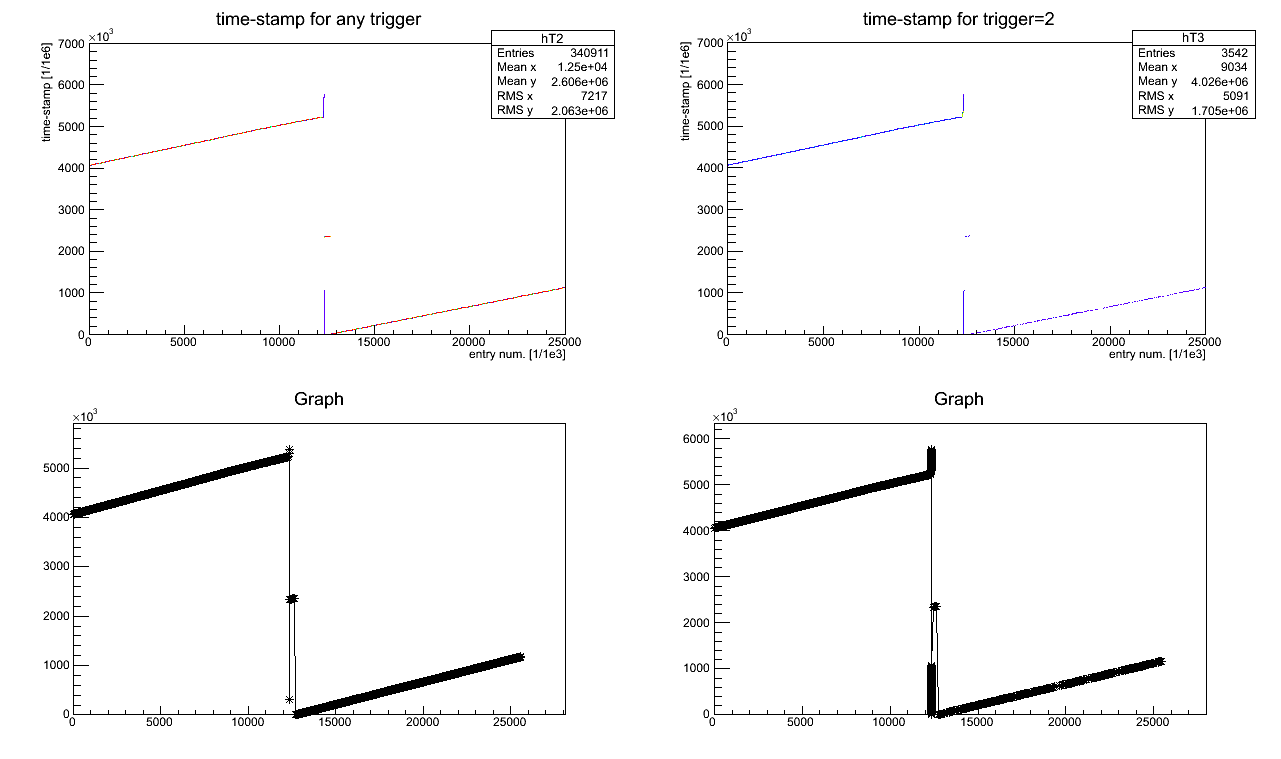

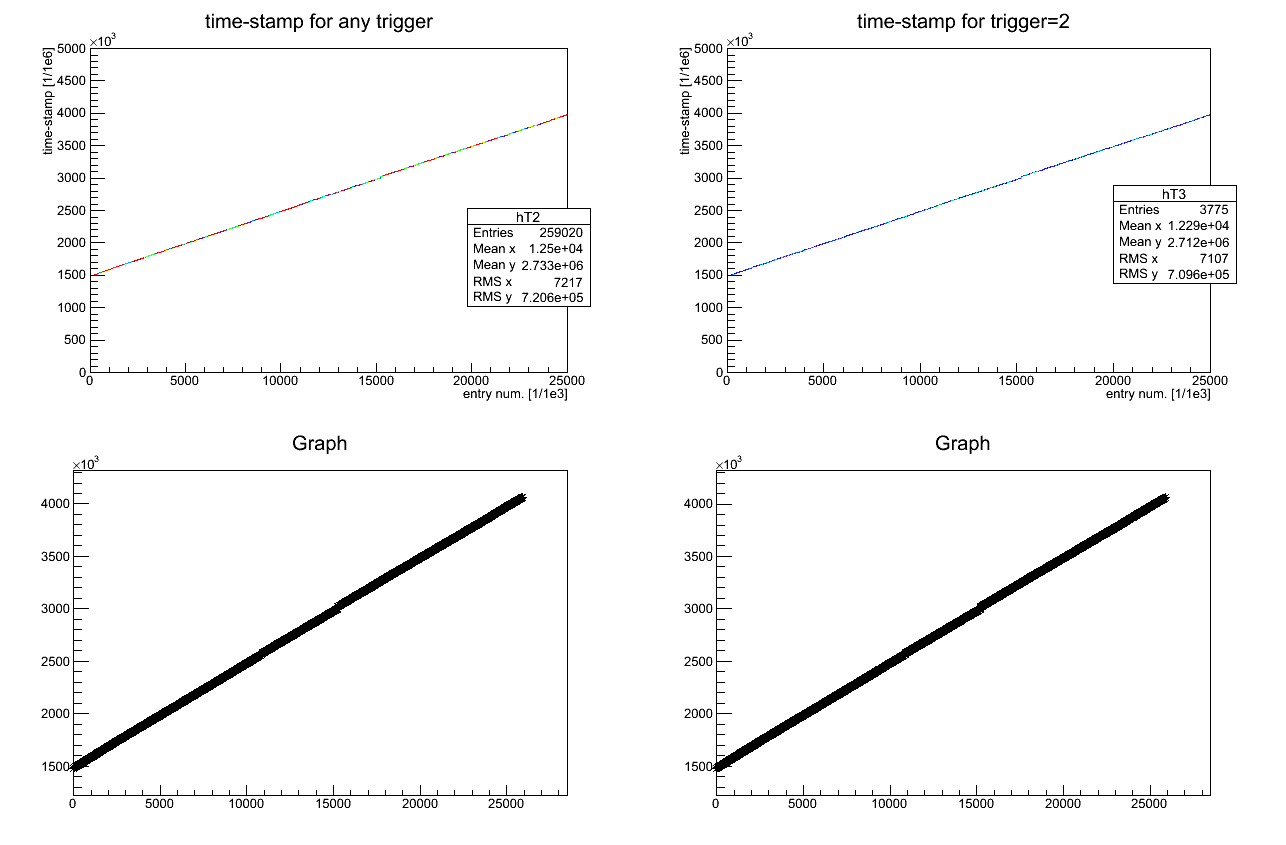

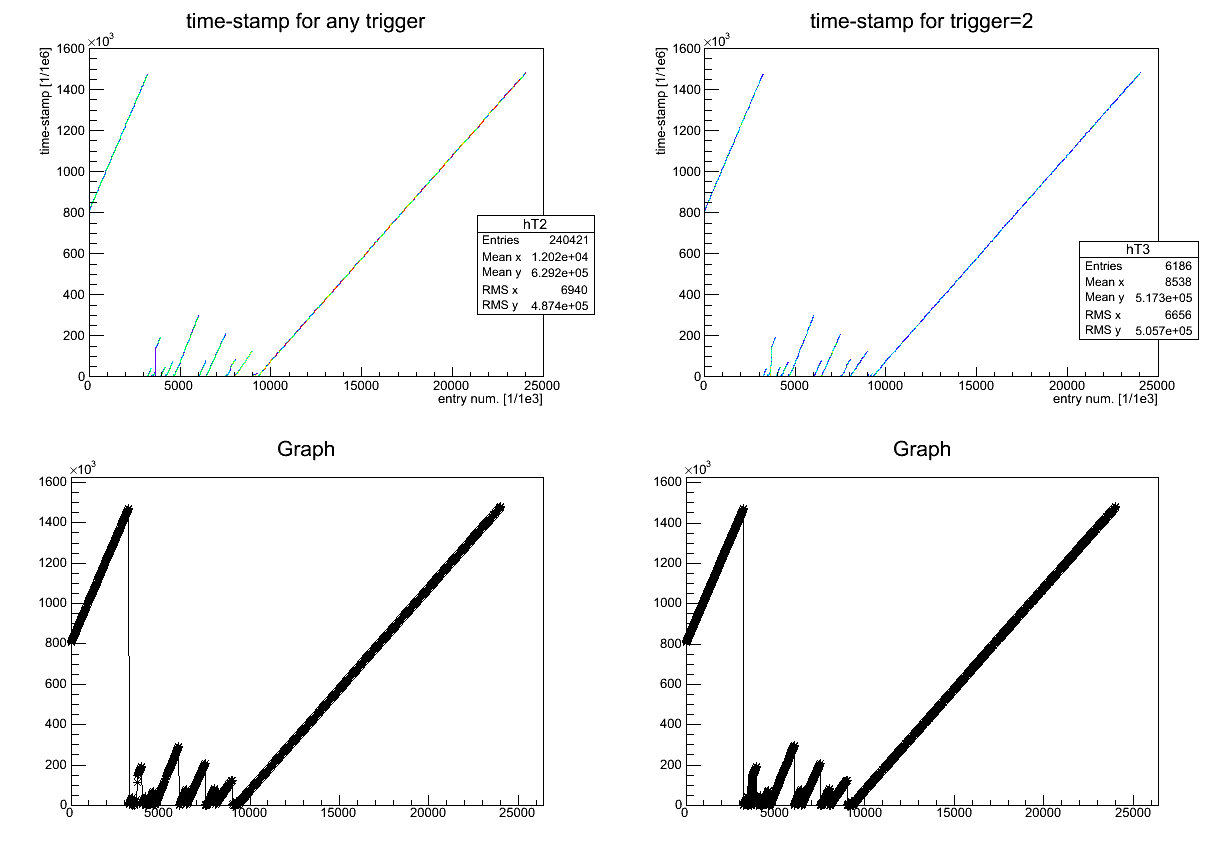

  TH2I * hT3= new TH2I("hT3","time-stamp for trigger=2;entry num. [1/1e3];time-stamp [1/1e6]",1000,0,kentry_max,1000,ts_0,ts_1);
  TH2I * hT2= new TH2I("hT2","time-stamp for any trigger;entry num. [1/1e3];time-stamp [1/1e6]",1000,0,kentry_max,1000,ts_0,ts_1);

  /********/
   const Int_t kMaxEventInfo = 1;
   const Int_t kMaxBigRIPSRaw = 10;


   Int_t           EventInfo_;
   Int_t           BigRIPSRaw_;

   ULong64_t       EventInfo_timestamp[kMaxEventInfo];   //[EventInfo_]
   UInt_t          EventInfo_fBit[kMaxEventInfo];   //[EventInfo_]
   Float_t         BigRIPSRaw_Zed_F11[kMaxBigRIPSRaw];   //[BigRIPSRaw_]

   TBranch        *b_EventInfo_;   //!
   TBranch        *b_BigRIPSRaw_;   //!

   TBranch        *b_EventInfo_timestamp;   //!
   TBranch        *b_EventInfo_fBit;   //!
   TBranch        *b_BigRIPSRaw_Zed_F11;   //!

   cout << endl << endl;

  for(int k=0;k<Nrun;k++){

    sprintf(pid_file,"/Disk/ds-sopa-group/np/RIKEN/May2015/PID_data/go4_%d.root",run0+k);
    input_file1 = new TFile(pid_file,"read");

    tree1= (TTree*) input_file1->Get("tree");
    if(!tree1){
      cout <<"\n\nNOOOOOOOOOOOO TREEEEEEEEEEEEEEEEEEEEEEEEE"<<endl;
      return;
    }

    //   tree1->Print();
    tree1->SetMakeClass(1);  // important!

    tree1->SetBranchAddress("EventInfo", &EventInfo_, &b_EventInfo_);
    tree1->SetBranchAddress("BigRIPSRaw", &BigRIPSRaw_, &b_BigRIPSRaw_);

    //    tree1->SetBranchAddress("EventInfo.timestamp",&my_tm_stp,0);
    //    tree1->SetBranchAddress("BigRIPSRaw.Zed_F11",&my_Z,0);
    //    tree1->SetBranchAddress("EventInfo.fBit",&my_bit,0);

    //    tree1->SetBranchAddress("EventInfo.timestamp",a_tm_stp,0);
    //tree1->SetBranchAddress("BigRIPSRaw.Zed_F11",a_Z,0);
    //    tree1->SetBranchAddress("EventInfo.fBit",a_bit,0);

    tree1->SetBranchAddress("EventInfo.timestamp", EventInfo_timestamp, &b_EventInfo_timestamp);
    tree1->SetBranchAddress("EventInfo.fBit", EventInfo_fBit, &b_EventInfo_fBit);
    tree1->SetBranchAddress("BigRIPSRaw.Zed_F11", BigRIPSRaw_Zed_F11, &b_BigRIPSRaw_Zed_F11);

    //  tree1->SetBranchAddress("EventInfo.timestamp", EventInfo_timestamp, 0);
    //    tree1->SetBranchAddress("EventInfo.fBit", EventInfo_fBit, 0);
    //tree1->SetBranchAddress("BigRIPSRaw.Zed_F11", BigRIPSRaw_Zed_F11, 0);

    //    tree1->SetBranchAddress("EventInfo.timestamp", EventInfo_timestamp, 0);
    //    tree1->SetBranchAddress("EventInfo.fBit", EventInfo_fBit, 0);
    //    tree1->SetBranchAddress("BigRIPSRaw.Zed_F11", BigRIPSRaw_Zed_F11, 0);

    //tree1->SetBranchStatus("EventInfo.timestamp",1);
    // tree1->SetBranchStatus("BigRIPSRaw.Zed_F11",1);
    //    tree1->SetBranchStatus("EventInfo.fBit",1);


    n_entries = tree1->GetEntries();
    //  n_entries_sum+= n_entries;

    cout << "Number of entries in PID tree= " << n_entries << " for file "<< pid_file<< " (accumulated= "<<n_entries_sum+n_entries<<")"<<endl;

    //  int module;

    if(Nmax>0 && Nmax<n_entries) n_max= Nmax;
    else n_max= n_entries;

    int i2=0;

    //  cout << "\nBIT  : TS  : Z"<<endl;
    for(long long i=0; i< n_max; i=i+Nskip){
      //tree1->LoadTree(i);

      //      cout << "loaded..."<<endl;
      tree1->GetEntry(i);

      hT2->Fill((i+n_entries_sum)/1e3,  EventInfo_timestamp[0]/1e6);
      if(n2<10000 && (i2%Nskip2) ==0){
	x2[n2]=(i+n_entries_sum)/1e3;
	t2[n2]=  EventInfo_timestamp[0]/1e6;
	n2++;
      }
      i2++;


      if(EventInfo_fBit[0]==3){
	hT3->Fill((i+n_entries_sum)/1e3,  EventInfo_timestamp[0]/1e6);
	if(n3<10000){
	  x3[n3]=(i+n_entries_sum)/1e3;
	  t3[n3]=  EventInfo_timestamp[0]/1e6;
	  n3++;
	}
      }
      else if(EventInfo_fBit[0]!=2){
	cout<< "i: "<<i<<" \t"<<     EventInfo_timestamp[0]<<" \t";   //[EventInfo_]
	cout<<     EventInfo_fBit[0]<<" \t";   //[EventInfo_]
	cout<<     BigRIPSRaw_Zed_F11[0]<<endl;   //[BigRIPSRaw_]
      }

      /***************
      if(i < 33){
	cout<< "i: "<<i<<" \t"<<     EventInfo_timestamp[0]<<" \t";   //[EventInfo_]
	cout<<     EventInfo_fBit[0]<<" \t";   //[EventInfo_]
	cout<<     BigRIPSRaw_Zed_F11[0]<<endl;   //[BigRIPSRaw_]
      }

      if(EventInfo_fBit[0] != 2){
	cout<< "i: "<<i<<" \t"<<     EventInfo_timestamp[0]<<" \t";   //[EventInfo_]
	cout<<     EventInfo_fBit[0]<<" \t";   //[EventInfo_]
	cout<<     BigRIPSRaw_Zed_F11[0]<<endl;   //[BigRIPSRaw_]
      }
