Entry time:

Tue Dec 15 11:17:05 2015

Author*:

Subject*:

BNC PB-5 Pulser

Fall time 1.0ms
Rate 100Hz
Delay 250ns
Ampl 5.0V
Polarity +
Pulse Top Tail
Atten 10x
PB-5 Pulse ON
Clamp ON

- polarity via Cooknell SA1 Summing Amplifier

nnaida11 & 12 AIDA adaptor rev C (280114) LK1 jumper fitted
nnaida13 & 14 AIDA adaptor rev B (180713)

Heavy duty Cu braid and large clips connect BNC connectors of
cabling to test inputs of both adaptor PCBs.

Heavy duty Cu braid connects Cu mezzanines of nnaida11 & 14

Standard ASIC settings
nnaida11 & 12 - input, nnaida13 & 14 + input
shaping time 8us
fast discriminators 0xff
slow comparator 0x40

***

Zero input load

nnaida11 nnaida12 nnaida13 nnaida14
1.4.L    14.63    14.88    15.95    13.03
1.6.L    14.35    15.01    13.47    12.62
1.8.L    14.86    14.54    12.88    13.43
1.10.L   14.67    13.76    13.03    13.43

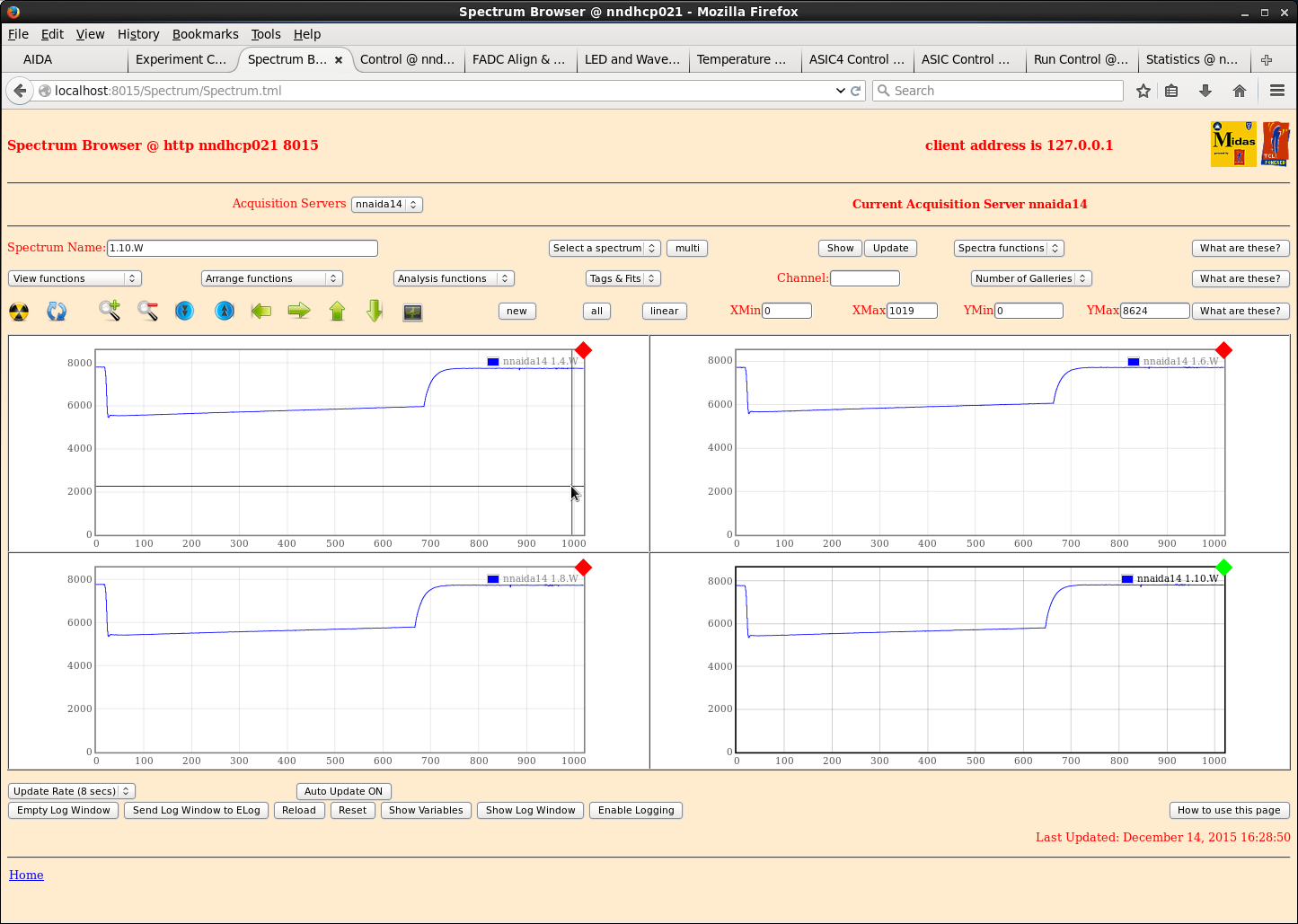

See attachments 1-3

***

Left hand coupler (011215) nnaida11 & 14 (only)
No EMC shielding or grounding

nnaida11 nnaida12 nnaida13 nnaida14
1.4.L    33.64    16.02    15.34    18.74
1.6.L    23.92    14.92    12.98    14.00
1.8.L    17.09    14.36    13.07    13.63
1.10.L   16.66    14.67    13.27    13.92

Left hand coupler (011215) nnaida11 & 14
No EMC shielding or grounding

***

Left hand coupler (011215) + 1x 45cm 34-way ribbon cable nnaida13
Left hand coupler (011215) + 1x 90cm 34-way ribbon cable nnaida12
No EMC shielding or grounding

nnaida11 nnaida12 nnaida13 nnaida14
1.4.L    30.37    19.41    23.02    21.15
1.6.L    21.64    16.99    17.73    15.82
1.8.L    16.85    16.43    14.14    14.78
1.10.L   16.31    16.70    13.07    13.75
3.4.L    16.13    650      122.61   14.76
3.6.L    15.98    710      140.07   14.32
3.8.L    16.53    610      111.10   14.36
3.10.L   17.05    630      121.59   14.26

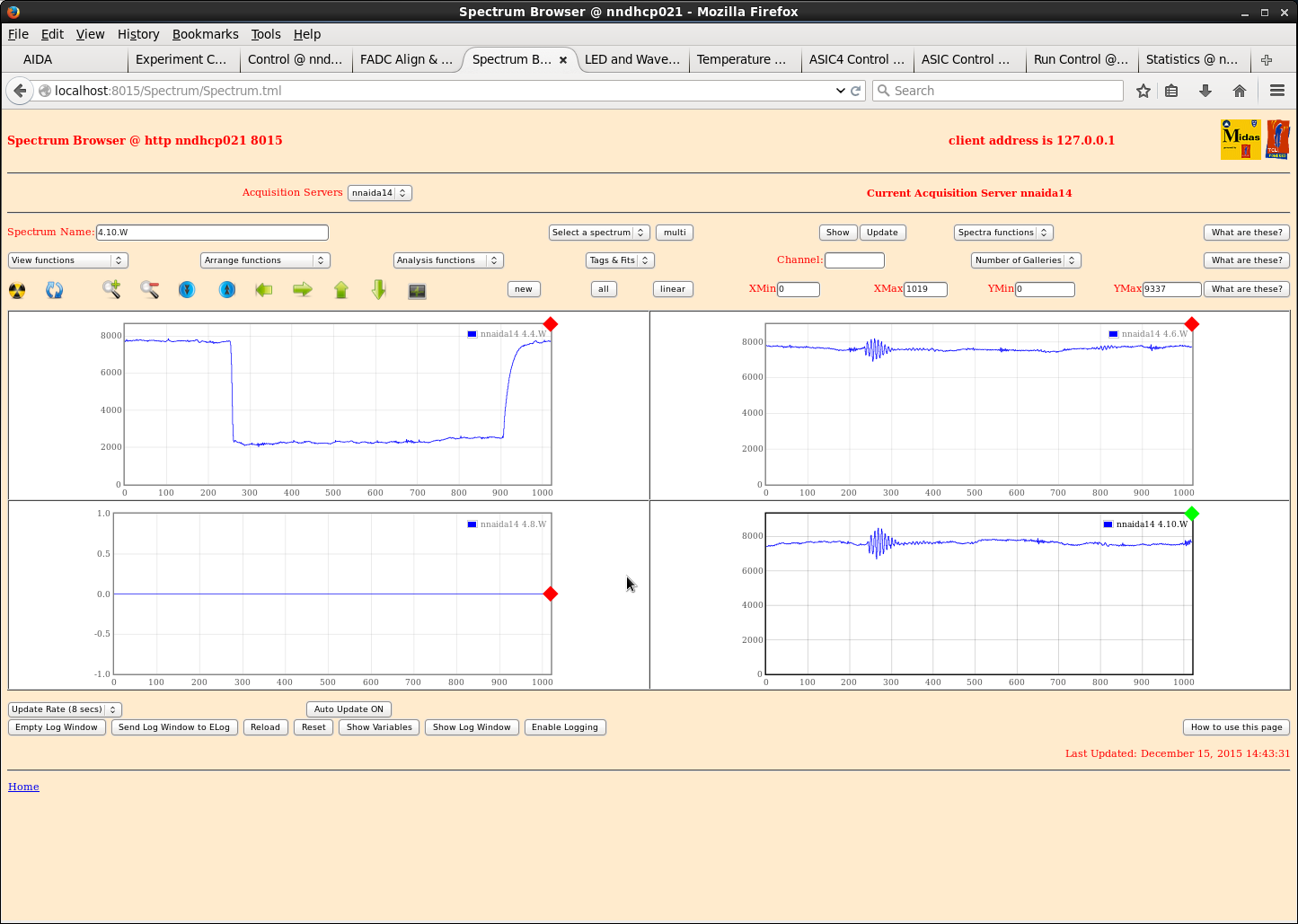

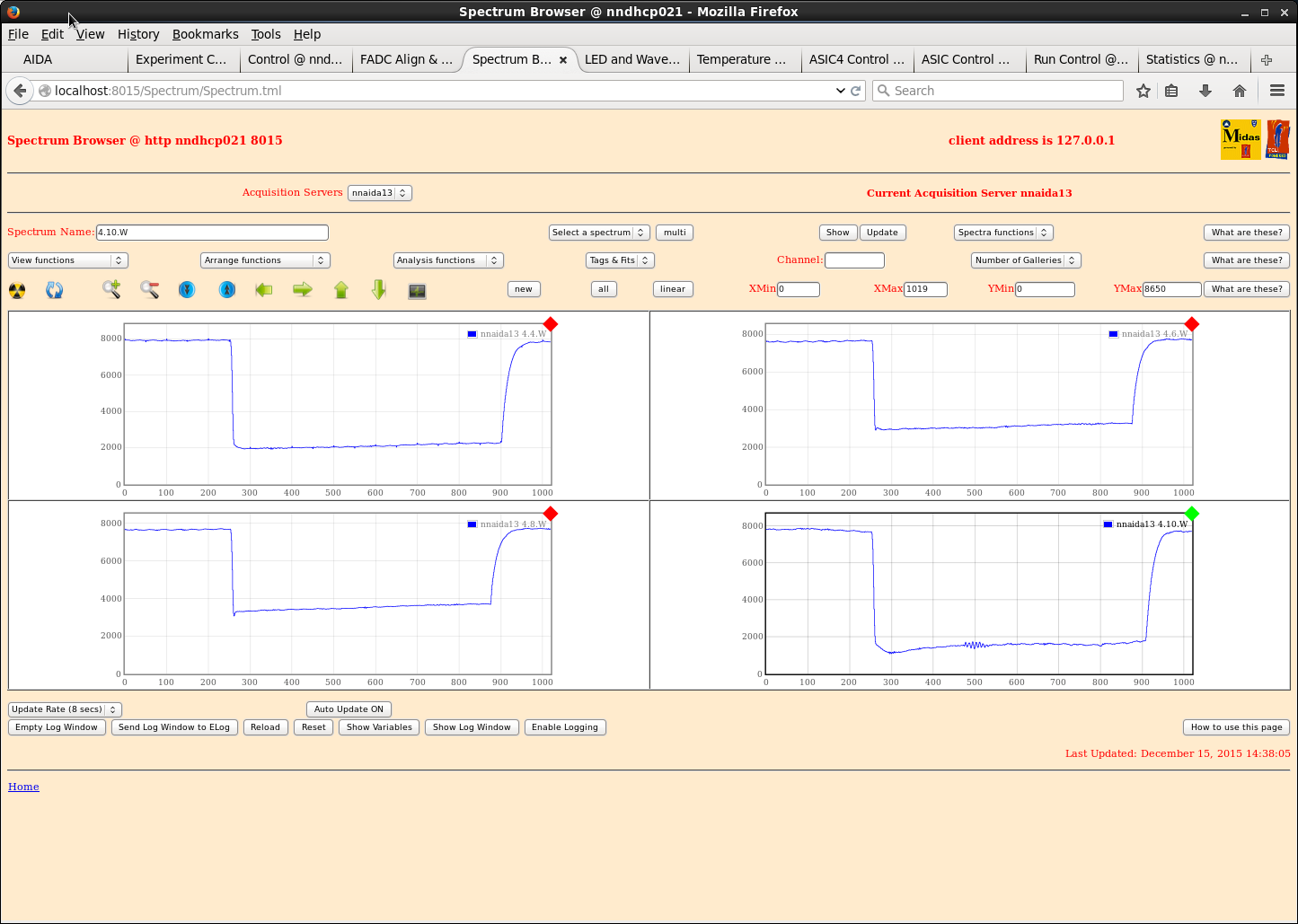

See attachment 4 - are these actually 3*W waveforms?

***

Left hand coupler (011215) + 1x 45cm 34-way ribbon cable nnaida11
Left hand coupler (011215) + 1x 90cm 34-way ribbon cable nnaida12

Left hand coupler (011215) + 1x 90cm 34-way ribbon cable nnaida14
Left hand coupler (011215) + 1x 45cm 34-way ribbon cable nnaida13

No EMC shielding or grounding

nnaida11 nnaida12 nnaida13 nnaida14
1.4.L    27.44    18.70    21.79    20.32
1.6.L    19.84    16.90    17.06    16.06
1.8.L    16.20    15.73    14.06    19.34
1.10.L   16.23    16.42    14.27    17.11
3.4.L    146.47   510      91.03    390
3.6.L    160.69   555      105.11   640
3.8.L    142.32   490      85.85    370
3.10.L   144.06   510      93.30    390

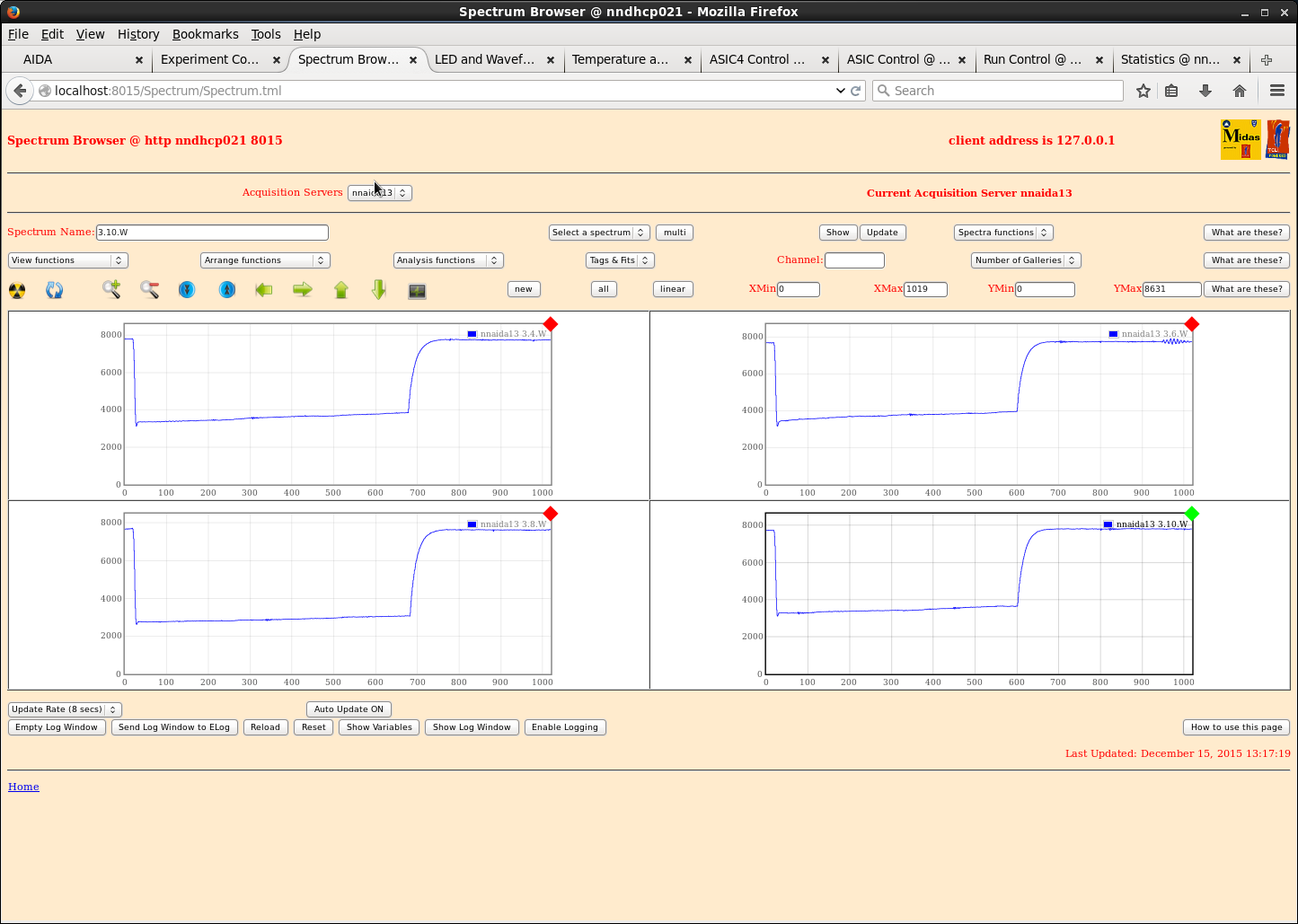

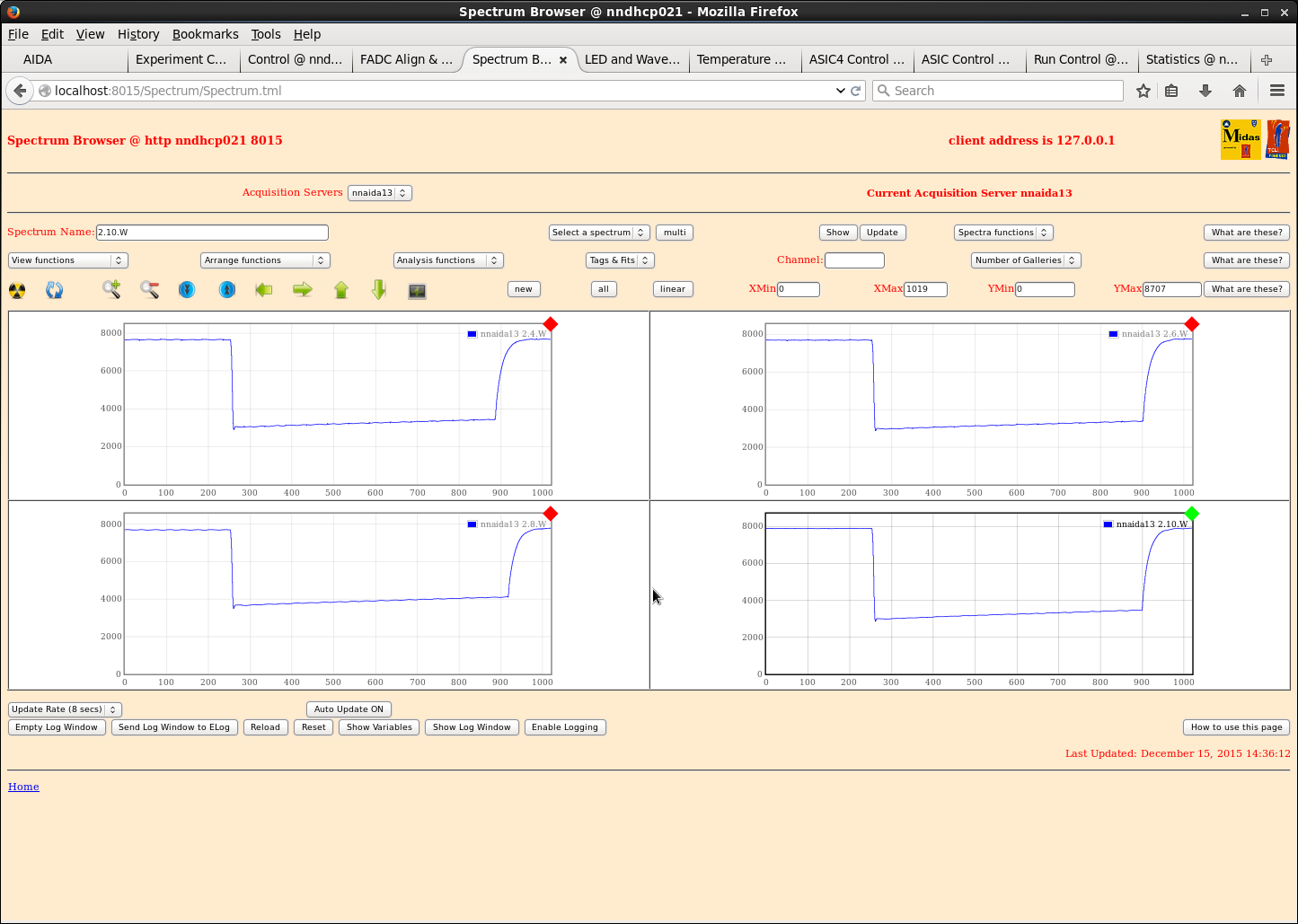

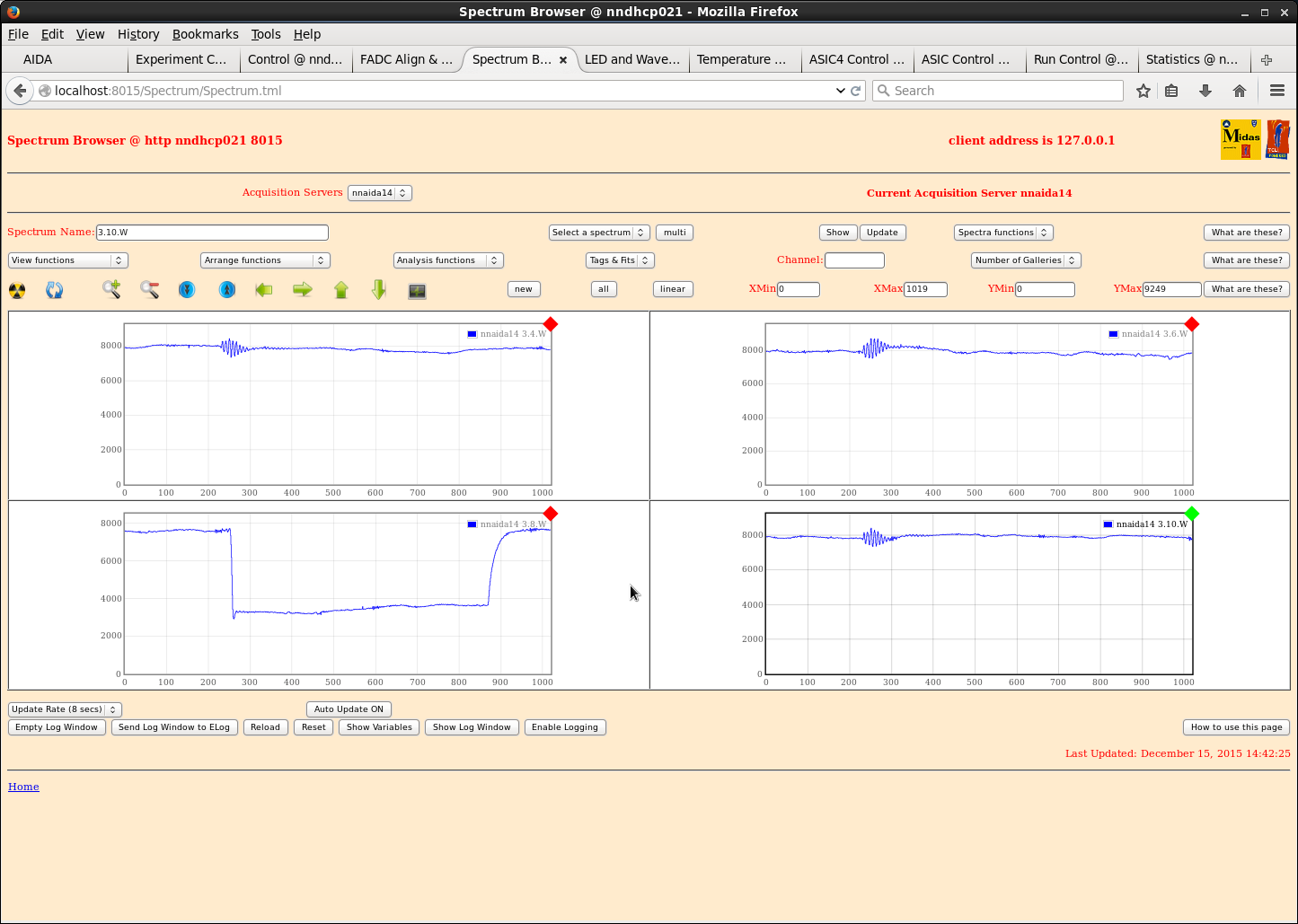

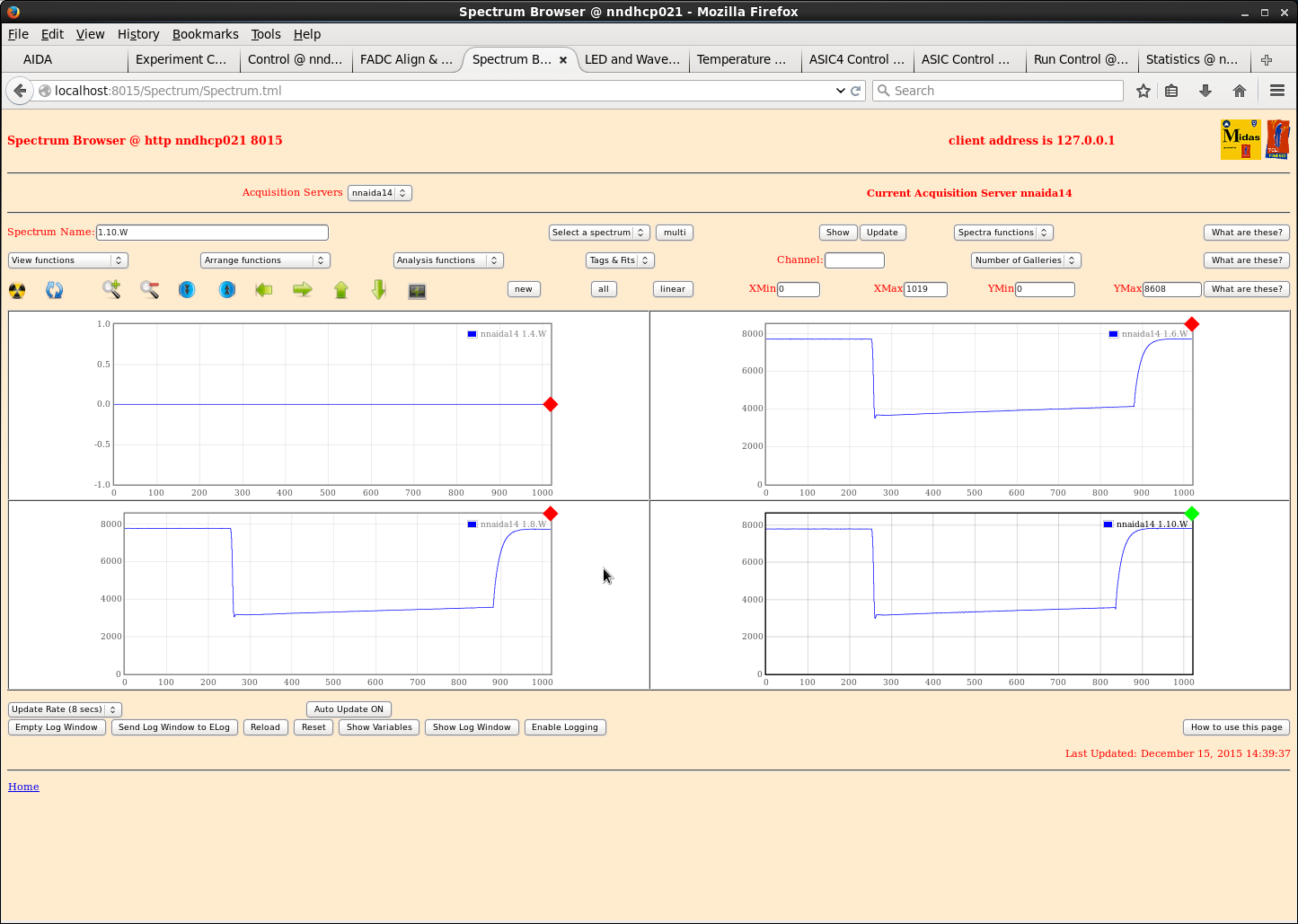

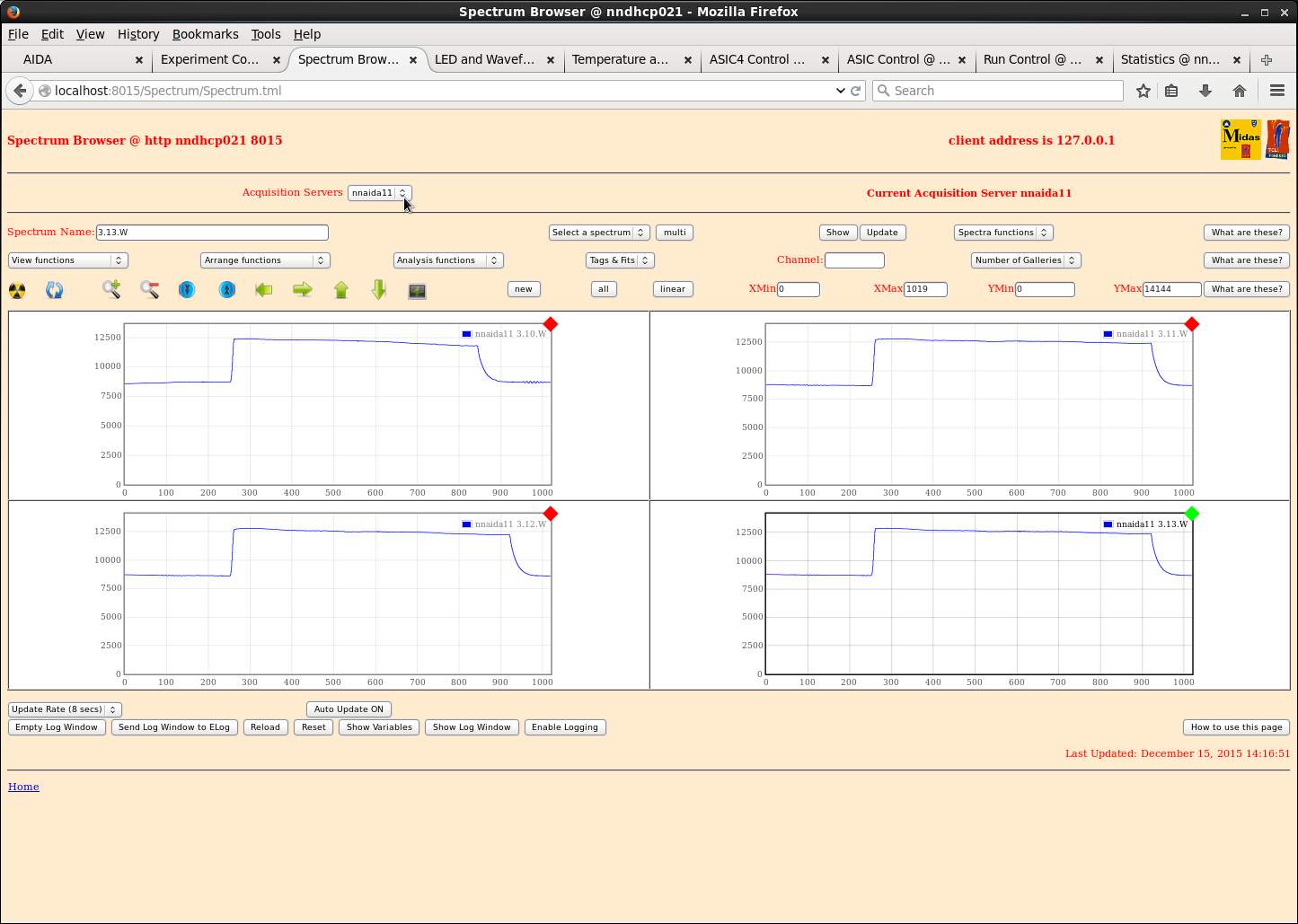

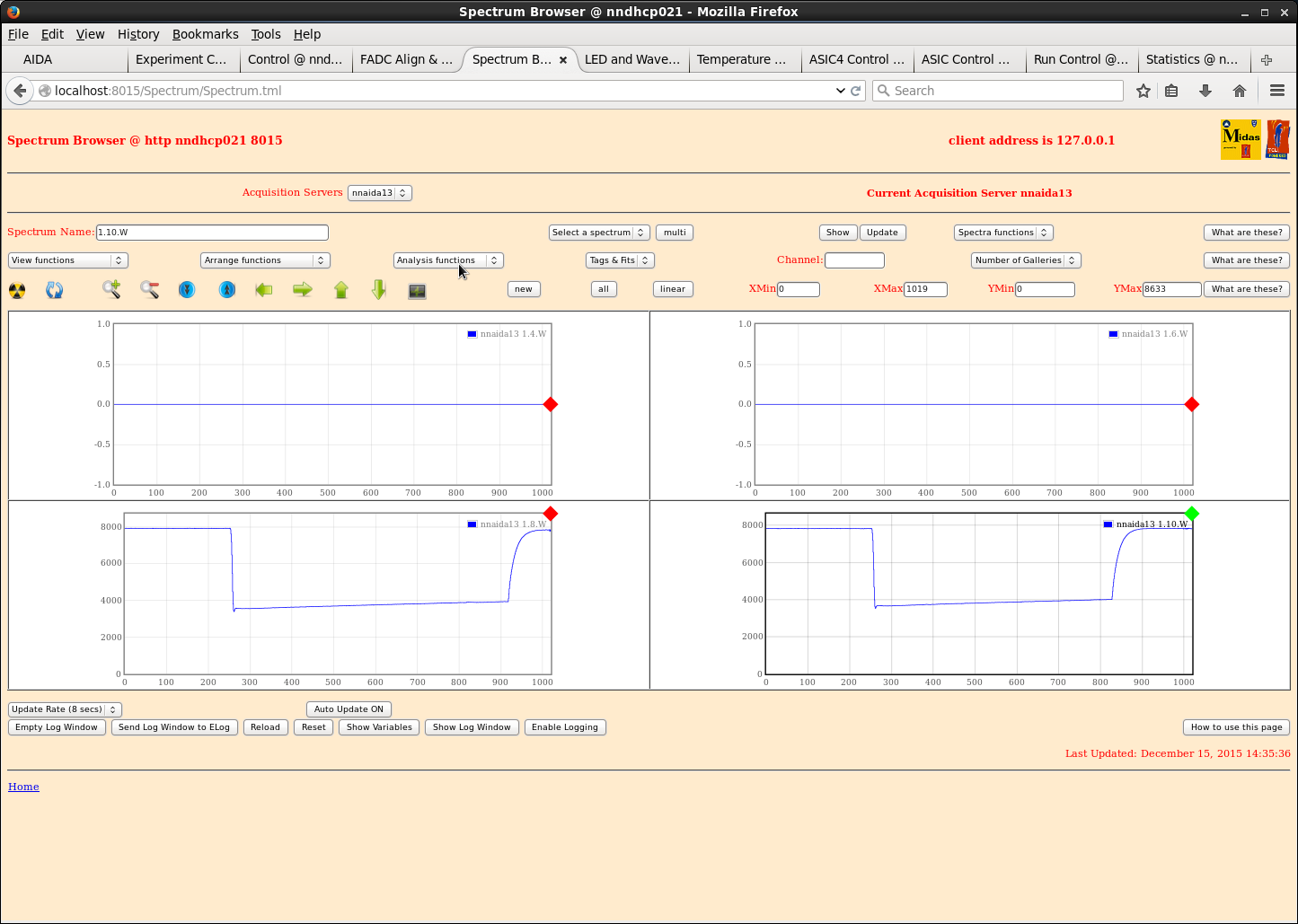

See attachments 5-13

***

Shaping time 2us

nnaida11 nnaida12 nnaida13 nnaida14
1.4.L                               19.60
1.6.L                               15.67
1.8.L                               17.68
1.10.L                              15.88
3.4.L    160.95   560      90.85    550
3.6.L    173.91   600      108.19   865
3.8.L    155.90   535      88.35    460
3.10.L   162.21   560      95.45    540
