Entry time:
Wed Oct 1 15:41:07 2014
Author
*
:
Subject
*
:

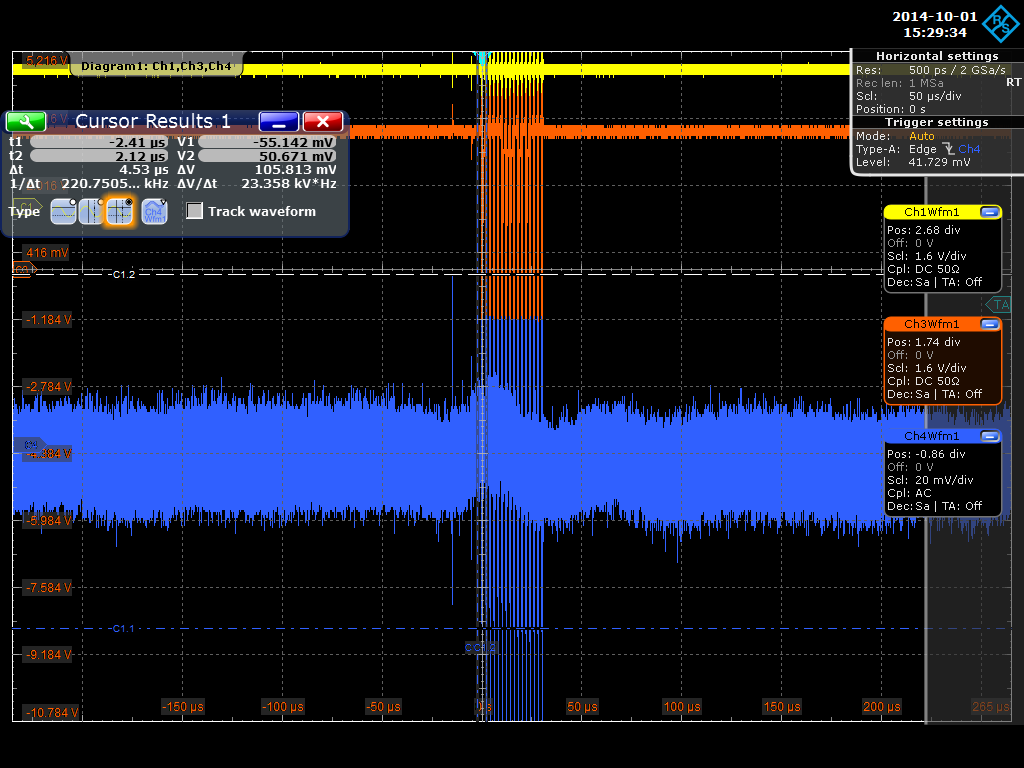

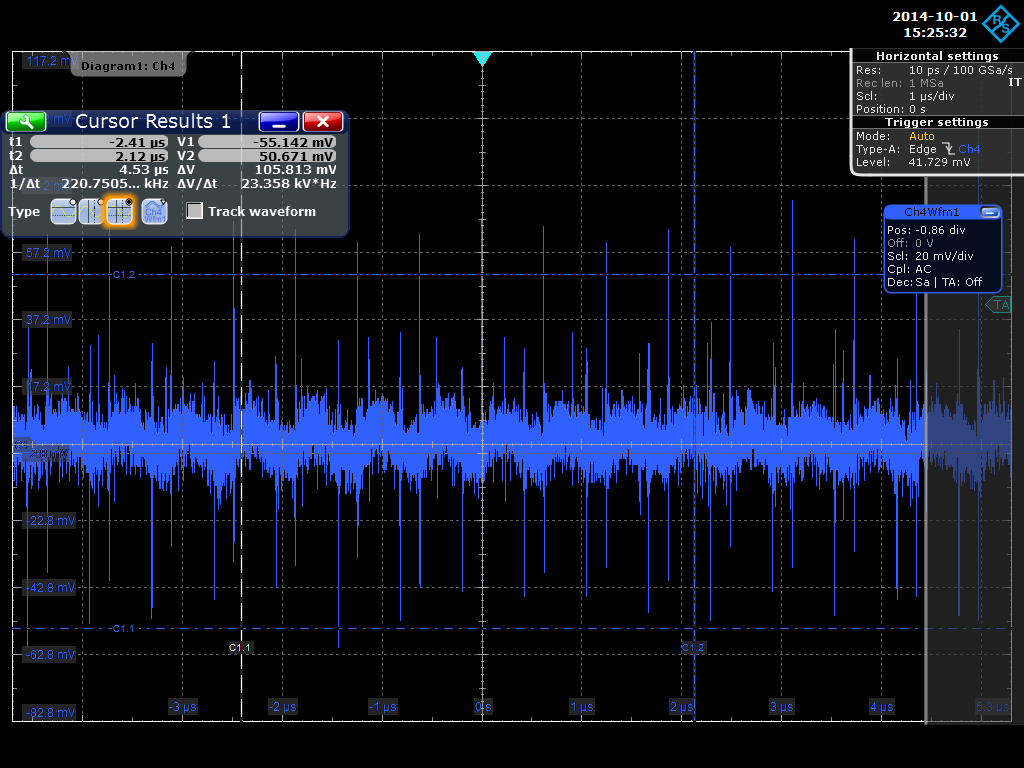

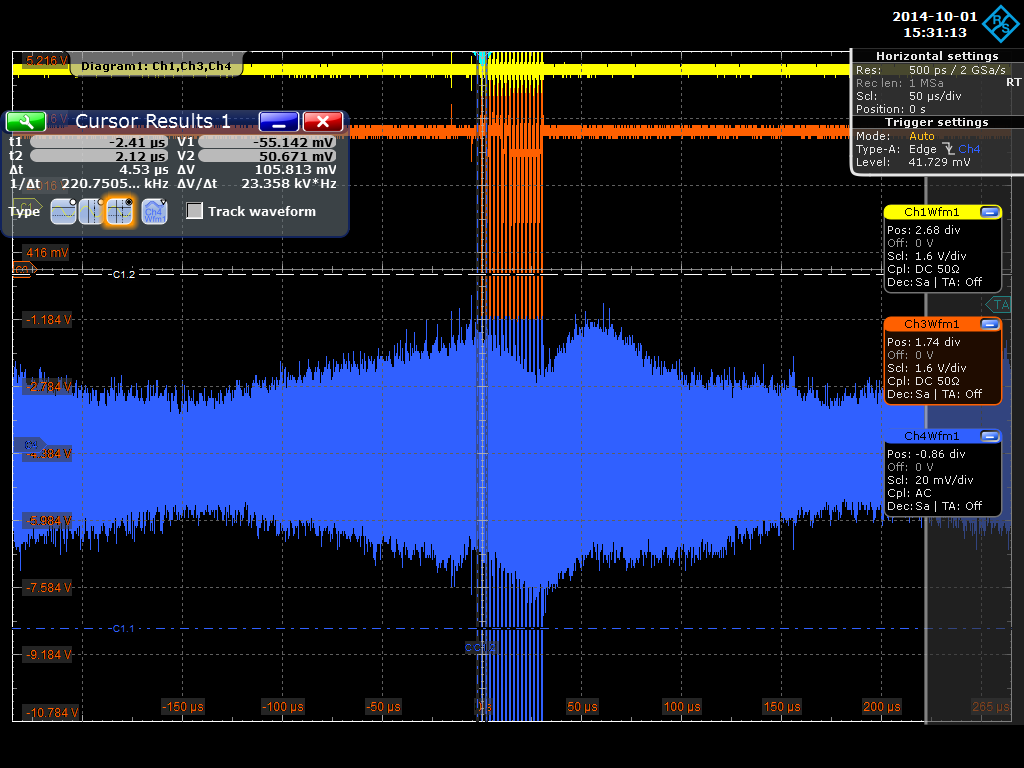

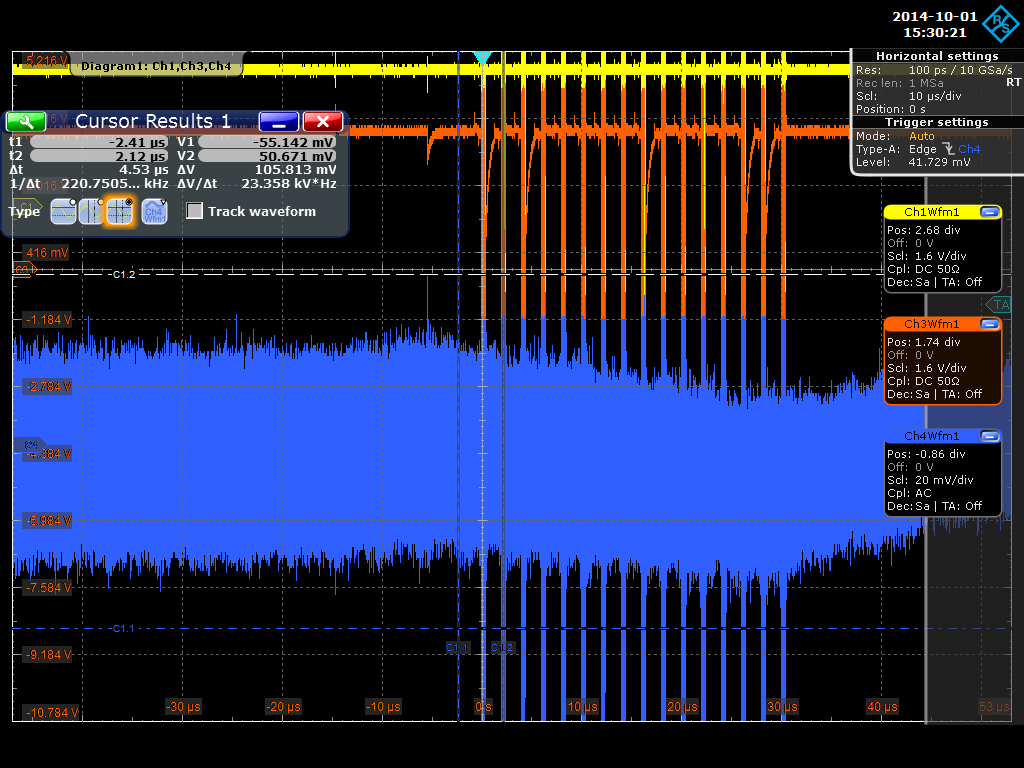

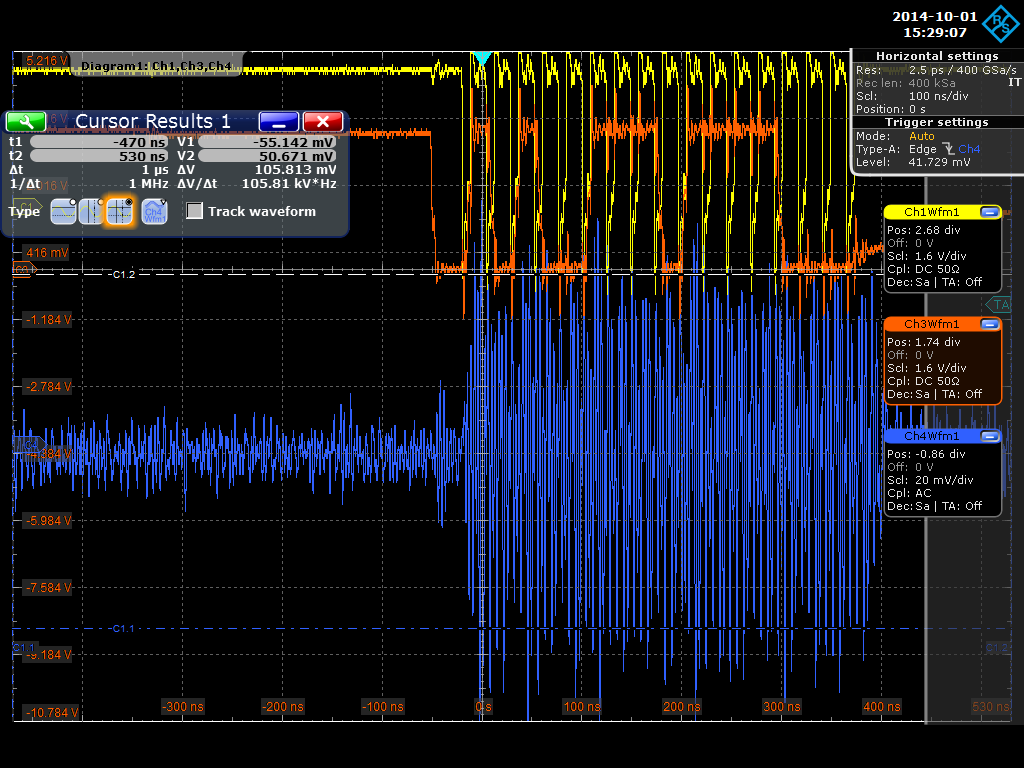

<p> Measuring the signal at the FEE64 end.</p> <p>+5v , -6v , +7v, +7v </p> <p>The two other 'scope channels are connected by FET probes to the FEE64. I now see there is a ground connection.... so i will remove it and re-measure the signals in the filter.</p> <p> No real difference.</p> <p>Measuring at the FEE64 and the spikes when the Mux ADC is reading out have disappeared. </p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1024x768
Attachment 2:
Original size: 1024x768
Attachment 3:
Original size: 1024x768
Attachment 4:
Original size: 1024x768
Attachment 5:
Original size: 1024x768
