Wed Dec 3 12:13:03 2014
Author
*
:
Subject
*
:

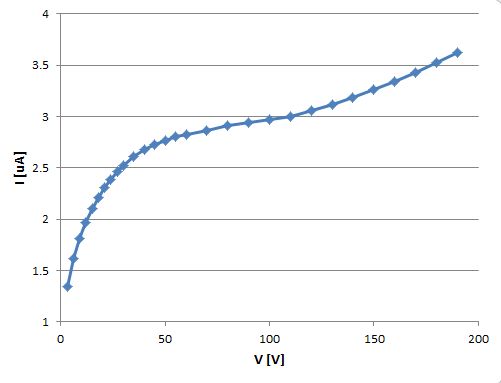

Measured IV curve for BB18 DSSD with new CAEN HV supply. Settings as in previous elog entry: Detector bias CAEN N1419 Programmable HV Power Supply - FAGND isolated from AGND (AGND = NIM chassis ground) - floating HV supply, <5mV pp noise specification - configured + polarity, i.e. core to nnaida11 & nnaida12 MSL type BB18 n+n ohmic strips braid to nnaida12 & nnaida13 MSL type BB18 p+n junction strips Data (see attachment): V [V] I [uA] 3 1.34 6 1.62 9 1.81 12 1.97 15 2.1 18 2.21 21 2.31 24 2.39 27 2.46 30 2.52 35 2.61 40 2.68 45 2.73 50 2.77 55 2.8 60 2.82 70 2.86 80 2.91 90 2.94 100 2.97 110 3 120 3.06 130 3.12 140 3.18 150 3.26 160 3.34 170 3.43 180 3.53 190 3.62
