Entry time:
Wed May 11 06:00:56 2016
Author
*
:
Subject
*
:

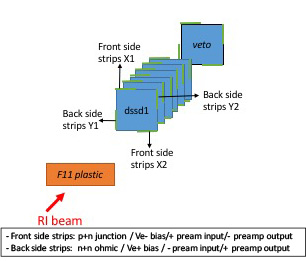

Here is the mapping of the trigger output of MAC-B modules to FEE64 modules 3.1 NNAIDA5 veto-X2 3.2 NNAIDA14 D4-X2 3.3 NNAIDA13 D5-X2 3.4 NNAIDA6 D6-X2 4.1 NNAIDA28 - 4.2 NNAIDA27 D1-Y1 4.3 NNAIDA20 D2-Y1 4.4 NNAIDA19 D3-Y1 5.1 NNAIDA12 D4-Y1 5.2 NNAIDA11 D5-Y1 5.3 NNAIDA3 veto-Y1 5.4 NNAIDA4 D6-Y1 6.1 NNAIDA25 D1-X1 6.2 NNAIDA17 D3-X1 6.3 NNAIDA18 D2-X1 6.4 NNAIDA26 - 8.1 NNAIDA29 - 8.2 NNAIDA30 D1-X2 8.3 NNAIDA22 D2-X2 8.4 NNAIDA21 D3-X2 9.1 NNAIDA15 D4-Y2 9.2 NNAIDA16 D5-Y2 9.3 NNAIDA7 D6-Y2 9.4 NNAIDA8 veto-Y2 10.1 NNAIDA1 veto-X1 10.2 NNAIDA9 D5-X1 10.3 NNAIDA10 D4-X1 10.4 NNAIDA2 D6-X1 11.1 NNAIDA23 D2-Y2 11.2 NNAIDA32 D1-Y2 11.3 NNAIDA31 - 11.4 NNAIDA24 D3-Y2 MACB modules are labeled, from left to right, according to their position in the NIM crate. D1 is the most upstream DSSD, and veto the most downstream one.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 306x261
