Entry time:
Sun May 29 23:55:15 2016
Author
*
:
Subject
*
:

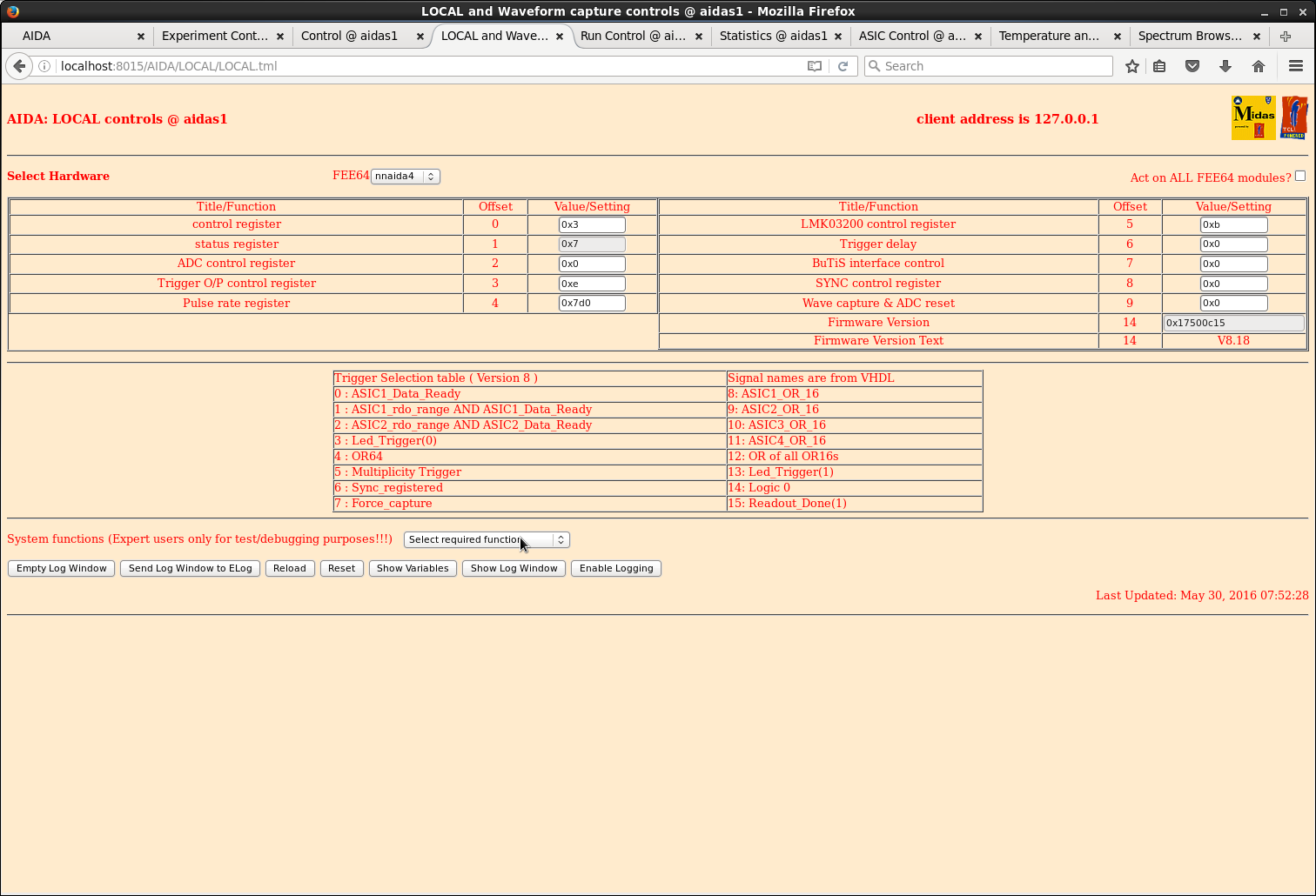

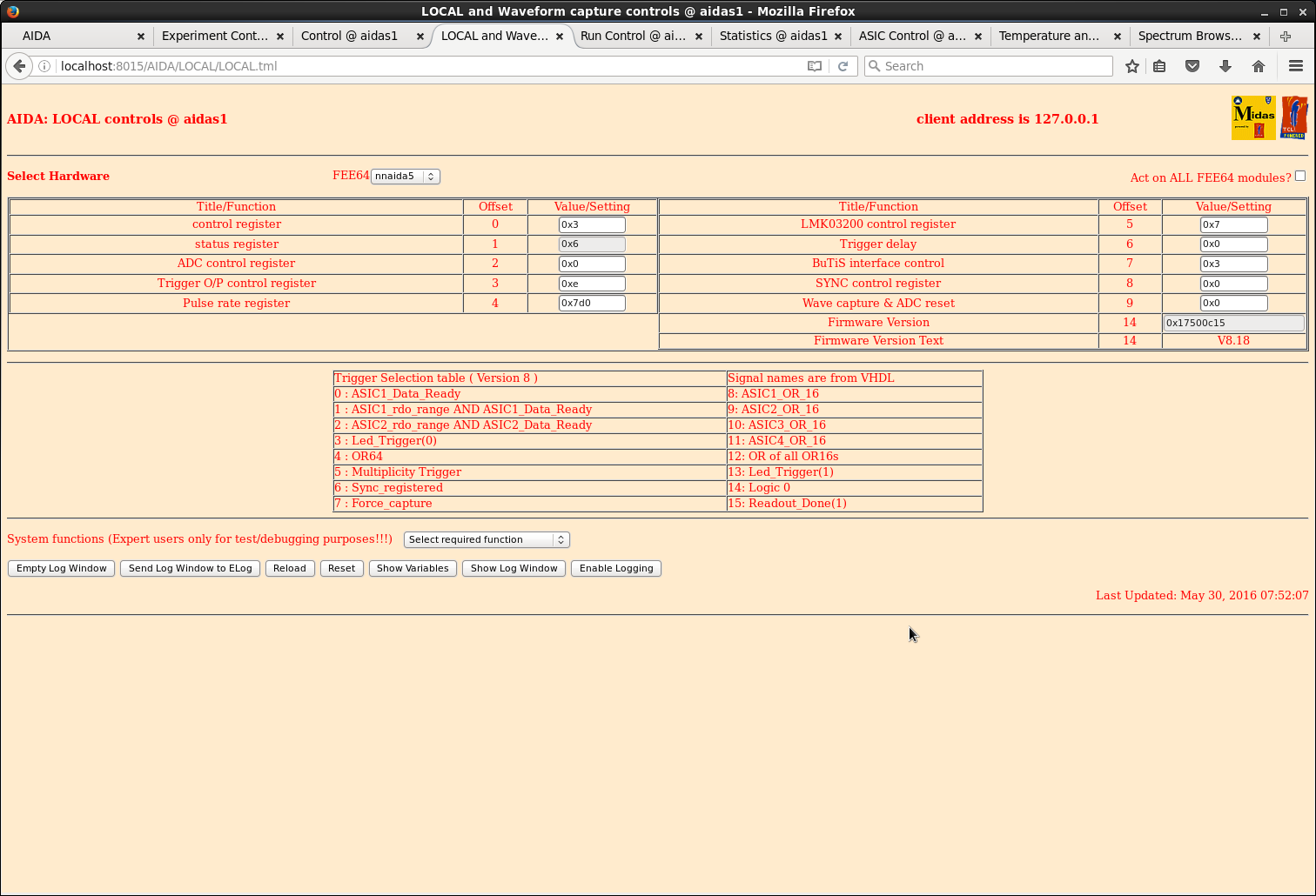

> > > > > > 22.05 nnaida17 ASIC parameters not loading > > > > power cycle & reboot > > > > > > > > nnaida5 (master) clock not locked - status 0x6 - see attachments 1-3 > > > > > > I suggest you check the hdmi hasn't been disturbed in the Macb or the FEE64.. Since the others are ok. I > > suggest it is the cable from the > > > Macb > > > to the FEE64 #5. If this fails to correct then please send a screen shot of the Local Controls status for > > nnaida5. > > > > See enclosed. > > The LMK3200 control register looks wrong. > Look at another FEE and I think it should be 0x1b nnaida1-4 LMK03200 control register 0xb cf. nnaida5 0x7
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1512x1030
Attachment 2:
Original size: 1512x1030
Attachment 3:
Original size: 1512x1030
Attachment 4:
Original size: 1512x1030
Attachment 5:
Original size: 1512x1030
