Entry time:
Fri Jun 10 21:07:52 2016
Author
*
:
Subject
*
:

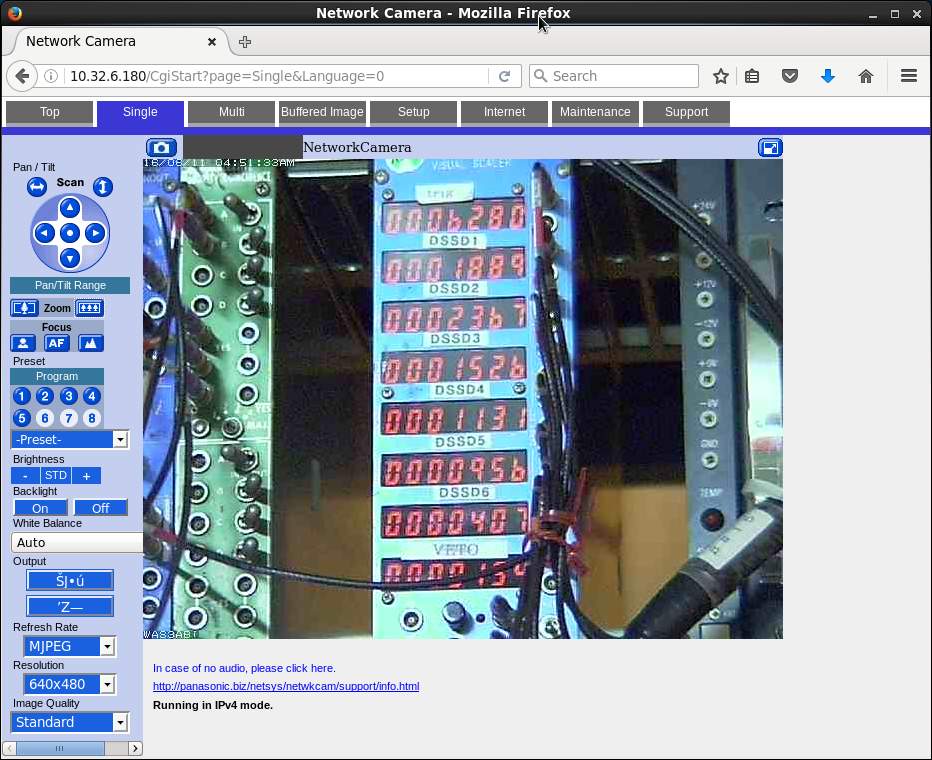

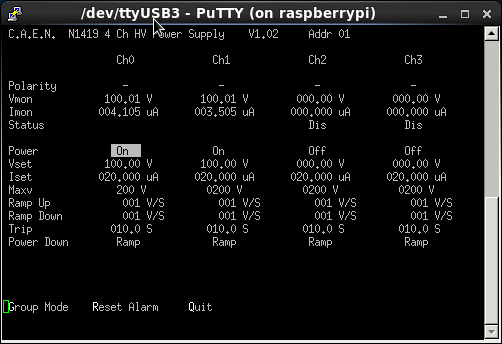

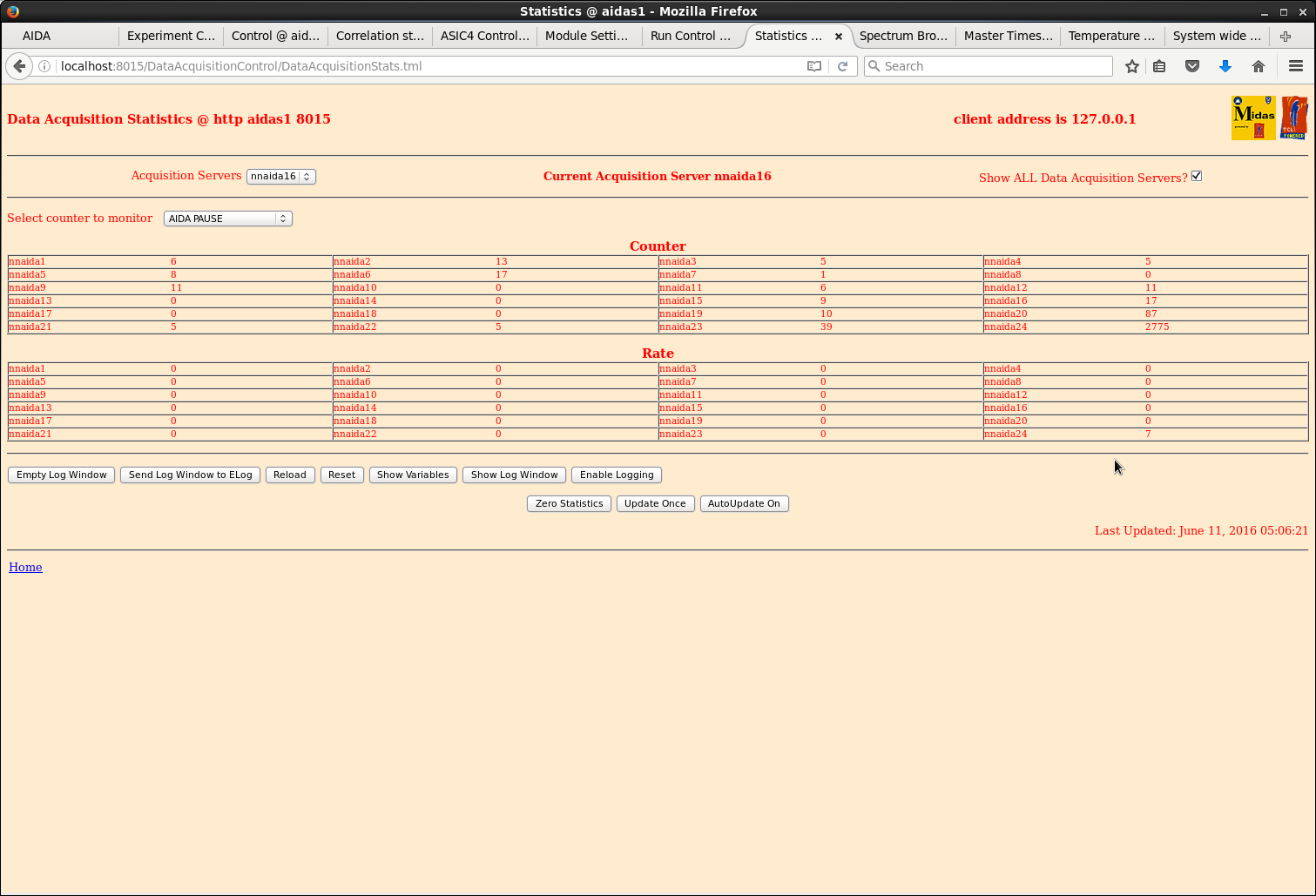

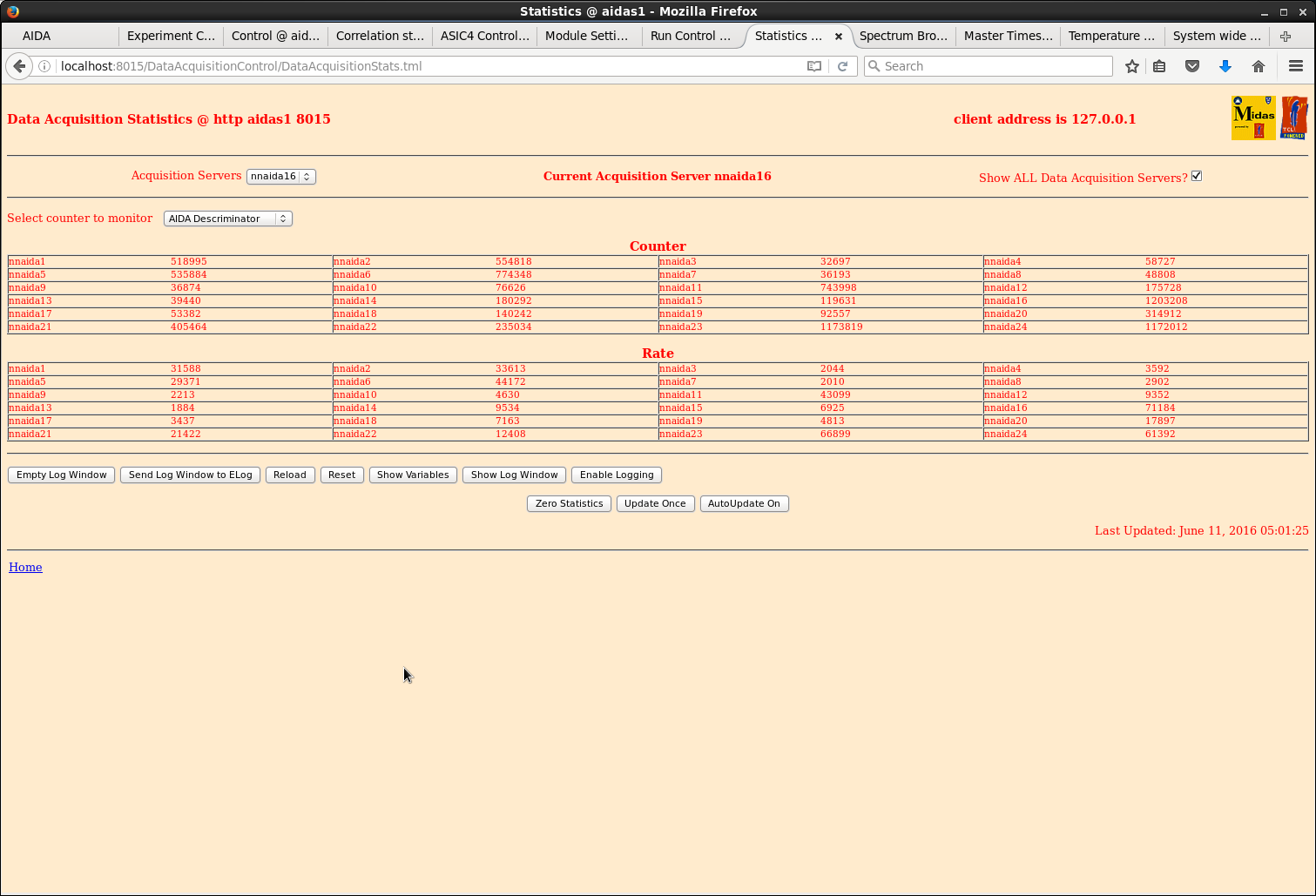

04.51 Start run AIDA18. Beam is back from the operators. Scalers are shown as attachment 1 Leak currents seem okay (all < 5 uA), shown as attachments 2 and 3. Discrim levels have a bit of fluctuation depending on the module -- attachment 4 nnaida24 has some pauses (attachment 5) 09.35 AIDA20* - AIDA24* test runs with no beam, i.e. noise, betas and low rate pulser to investigate FEE64 synchronisation AIDA20* nnaida19 data link to Merge program enabled AIDA21* - nnaida19 removed from DAQ configuration file (startup.tcl) and server/web browser restarted 12.35 Detector bias & leakage current, FEE temperatures - OK - see attachments 5-7
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 932x760
Attachment 2:
Original size: 502x344
Attachment 3:
Original size: 502x344
Attachment 4:
Original size: 1511x1029
Attachment 5:
Original size: 1511x1029
Attachment 6:
Original size: 502x344
Attachment 7:
Original size: 502x344
Attachment 8:
Original size: 1513x1029
