Entry time:
Mon Jun 13 03:45:15 2016
Author
*
:
Subject
*
:

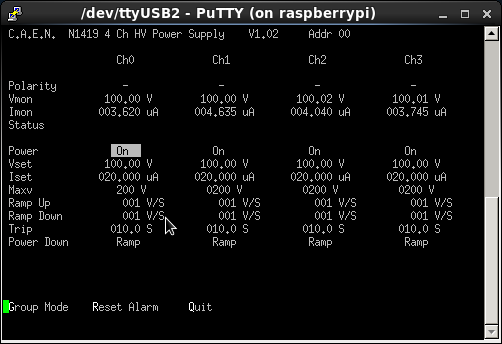

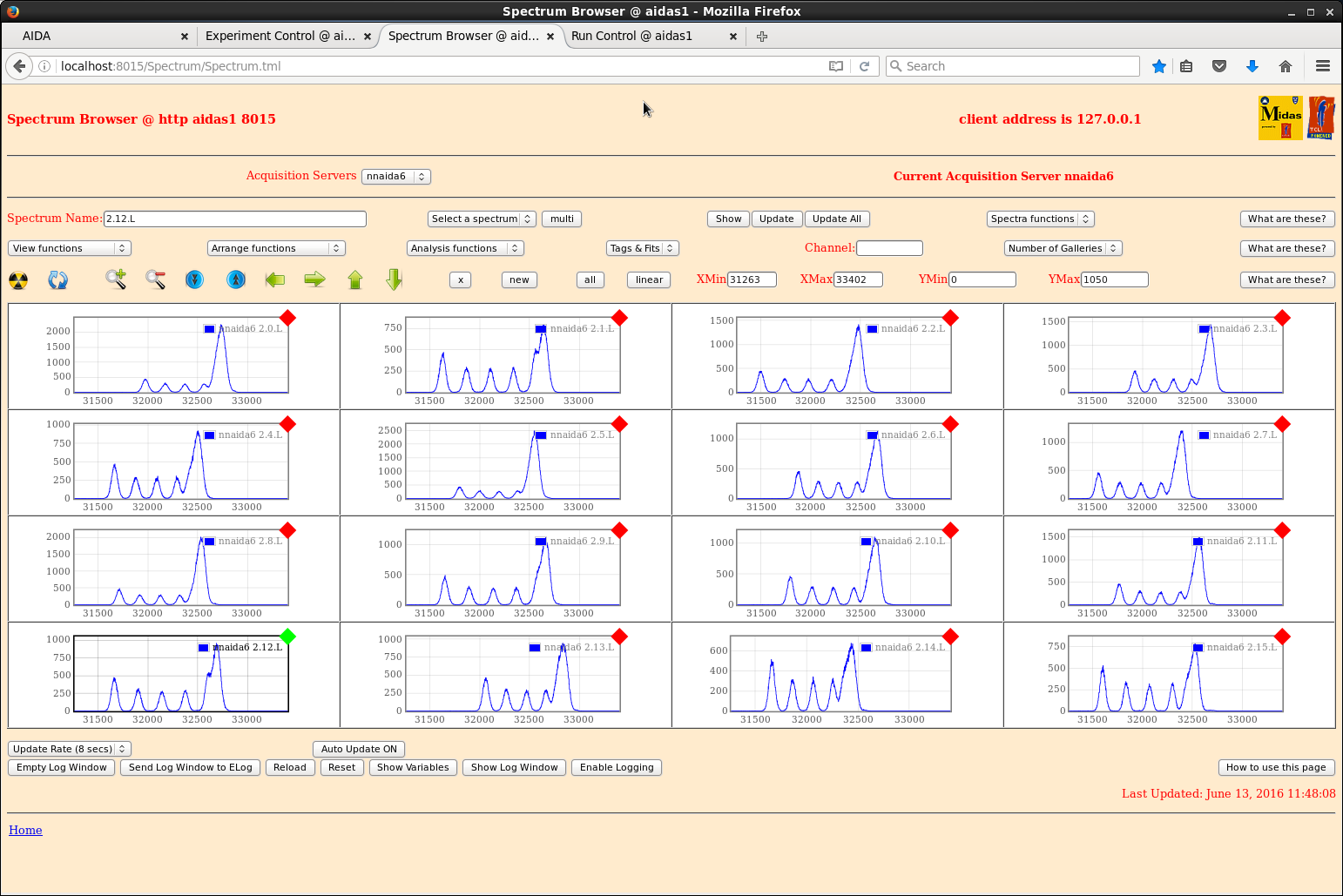

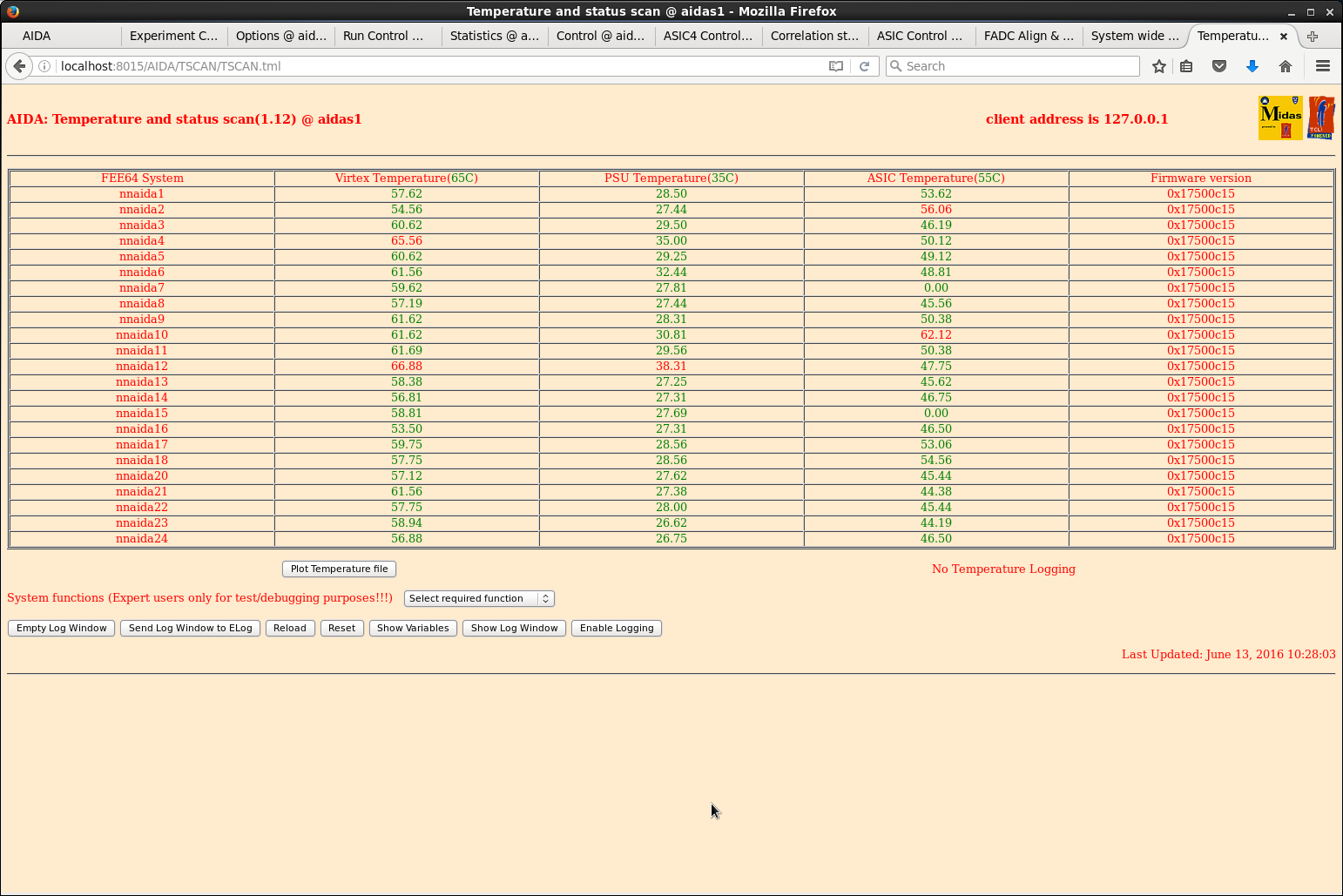

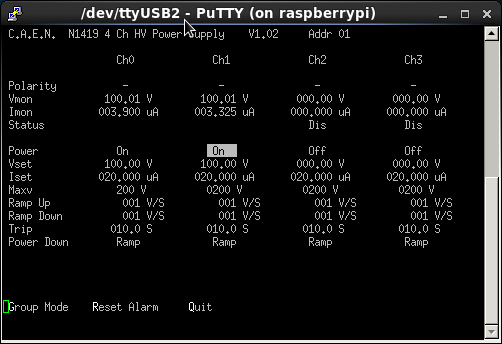

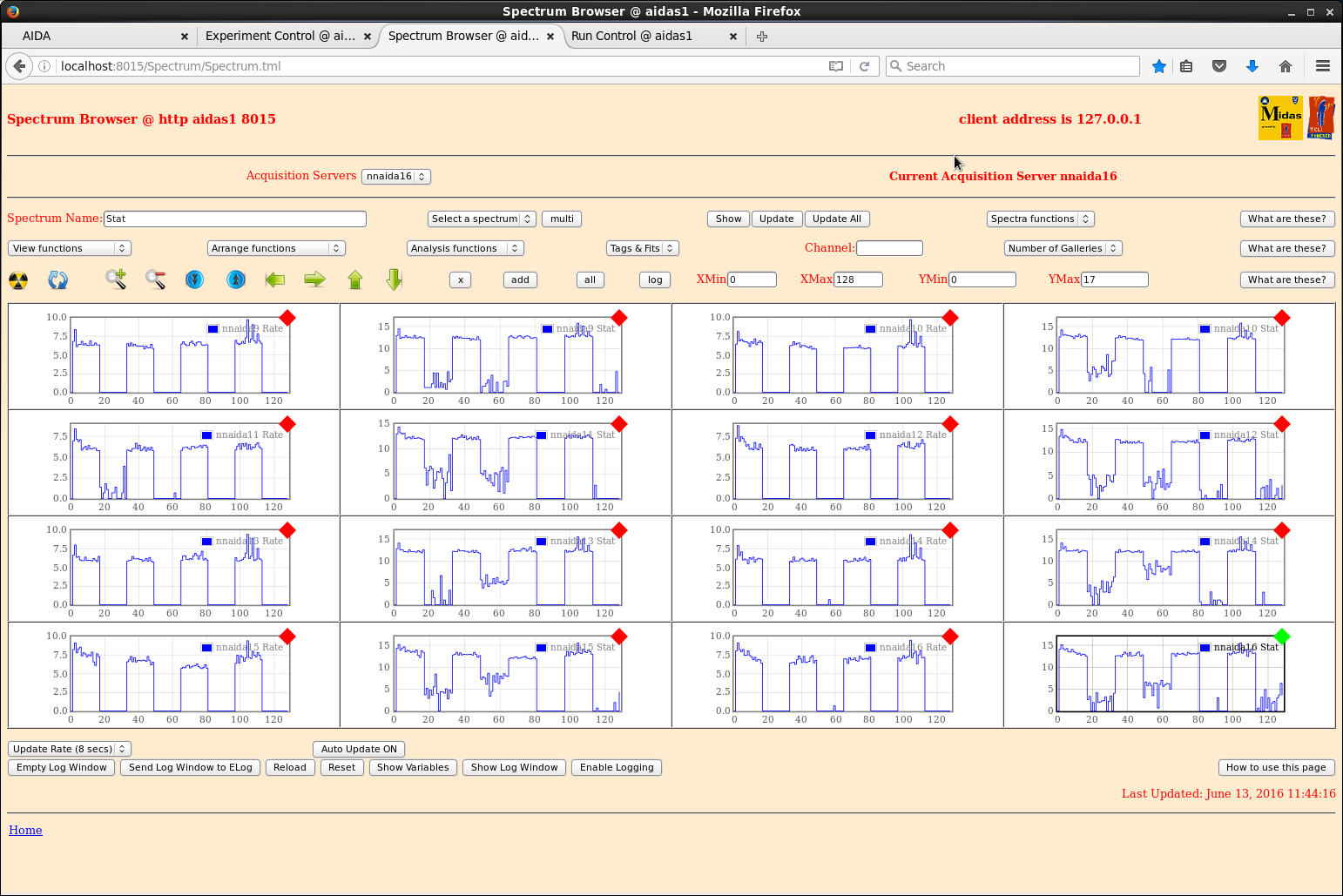

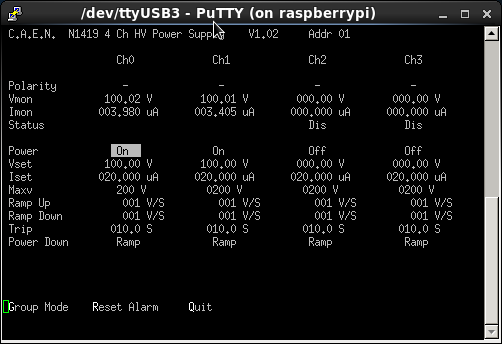

10.20 AIDA62 found stalled - no SYNCs, no data transfer All FEE64s pass all system-wide tests *except* nnaida3 & nnaida8 which fail ADC calibration Data files indicate DAQ stopped c. 06.56 DAQ stop and file closed 10.30 Detector bias & leakage currents, trigger rates and FEE64 temperatures - see attcahments 1-4 Julabo FL11006 set point +17 deg C (B2F/F11 ambient temperature +25.3 deg C, d.p. +11.6 deg C, RH 42.7%) 10.48 AIDA63 Pulser walkthrough BNC PB4 settings Amplitudes 10,000-90,000 @ 10,000 step x5 attenuator IN Frequency 250Hz range t_r 50ns tau_d 50us - polarity (+ polarity via EG&G Ortec 433A Sum & Invert Amp) INT ref, tail pulse, MIN delay ASIC settings 2016Jun12-09.09.37 See attachment 5 showing 9x pulser peaks, noise/beta/background and low amplitude pulser-related peak Spectra saved to /MIDAS/SpecData c. 11.00 13 June 2016 Note directory names are derived from internal FEE64 date/time settings which be wrong or unset All spectra cleared 11.06 AIDA64 Per AIDA63 *except* BNC PB-4 amplitudes 10,000-2,000 @ 2,000 step Spectra saved to /MIDAS/SpecData c. 11.13 13 June 2016 Note that not all pulse peak amplitudes will be above the slow comparator threshold Attachments 6-10 hit/stat spectra and example energy spectra EURICA standalone gamma energy and efficiency measurements using 152Eu and 133Ba. The gamma-ray sources were placed immediately upstream of DSSSD#1 inside the AIDA snout. 16.00 Obtained 'unable to connect' to nnaida1 through multiple power cycles/reboots and restarts of MERGE unable to clear problem. Finally reosrted to a reboot of aidas1 which did 'fix' the problem. AIDA65 Brief test run to check DAQ/merger/TapeServer - OK 16.06 AIDA66 (AIDA) 1 (EURICA) ~11kBq (current activity) 60Co source immediately upstream of DSSSD#1 inside the AIDA snout. ASIC settings 2016Jun12-09.09.37 FADC disabled BNC PB-4 pulser Amplitude 90,000 Frequency 25Hz range (probably ~1-few Hz) Attachments 11-12 Detector biases & leakage currents -OK 16.37 Attachment 13 - SyncCheck plots 16.50 FR adds ~40kBq 60Co source on top of the AIDA snout immediately above the DSSSDs DAQ continues aidas1> ~/td/GREAT/analyser2 AIDA66_17 *** GREAT format 3.2.0 analyser - TD - May 2014 *** SYNC100: block: 1 ptr: 5567 data: 0x82400595 module: 2 information type: 4 information field: 0x00000595 ts: 0x000000595DD400A0 OLD: ts: 0x07158F300DD4009D tag: 3 type: 0 *** FEE64 discriminator: block: 15627 ptr: 14341 data: 0x97620008 module: 23 information type: 6 information field: 0x00020008 ts: 0x005B300000A0 OLD: ts: 0x005B40000050 tag: 2 type: 6 *** ERROR: READ I/O error: 5002 blocks: 32000 ADC data format: 161285942 ( 973887.8 Hz) Other data format: 99834058 ( 602824.8 Hz) Sample trace data format: 0 ( 0.0 Hz) Undefined format: 0 ( 0.0 Hz) Other data format type: PAUSE: 118 ( 0.7 Hz) RESUME: 118 ( 0.7 Hz) SYNC100: 63176 ( 381.5 Hz) FEE64 disc: 98983953 ( 597691.6 Hz) MBS info: 786693 ( 4750.3 Hz) Other info: 0 ( 0.0 Hz) ADC data range bit set: 26988 ( 163.0 Hz) Timewarps: ADC: 0 ( 0.0 Hz) PAUSE: 0 ( 0.0 Hz) RESUME: 0 ( 0.0 Hz) SYNC100: 1 ( 0.0 Hz) FEE64 disc: 1 ( 0.0 Hz) MBS info: 0 ( 0.0 Hz) Undefined: 0 ( 0.0 Hz) Sample trace: 0 ( 0.0 Hz) Timestamp elapsed time: 165.610 s FEE module #: 1 elapsed dead time 0.378 s FEE module #: 2 elapsed dead time 0.464 s FEE module #: 3 elapsed dead time 0.002 s FEE module #: 4 elapsed dead time 0.000 s FEE module #: 5 elapsed dead time 4.701 s FEE module #: 6 elapsed dead time 0.228 s FEE module #: 7 elapsed dead time 0.000 s FEE module #: 8 elapsed dead time 0.000 s FEE module #: 9 elapsed dead time 0.304 s FEE module #: 10 elapsed dead time 0.154 s FEE module #: 11 elapsed dead time 0.901 s FEE module #: 12 elapsed dead time 0.000 s FEE module #: 13 elapsed dead time 0.203 s FEE module #: 14 elapsed dead time 0.164 s FEE module #: 15 elapsed dead time 0.000 s FEE module #: 16 elapsed dead time 0.000 s FEE module #: 17 elapsed dead time 0.000 s FEE module #: 18 elapsed dead time 0.000 s FEE module #: 19 elapsed dead time 0.000 s FEE module #: 20 elapsed dead time 0.000 s FEE module #: 21 elapsed dead time 0.000 s FEE module #: 22 elapsed dead time 0.346 s FEE module #: 23 elapsed dead time 0.000 s FEE module #: 24 elapsed dead time 0.000 s FEE module #: 25 elapsed dead time 0.000 s FEE module #: 26 elapsed dead time 0.000 s FEE module #: 27 elapsed dead time 0.000 s FEE module #: 28 elapsed dead time 0.000 s FEE module #: 29 elapsed dead time 0.000 s FEE module #: 30 elapsed dead time 0.000 s FEE module #: 31 elapsed dead time 0.000 s FEE module #: 32 elapsed dead time 0.000 s *** Program elapsed time: 123.023s ( 260.113 blocks/s, 16.257 Mb/s) 23.00 Found DAQ stalled - zero AIDA SYNCs from all FEE64s, and data trsabfer halted Disk files indicate stall at c. 18.58 (AIDA66_58) See attachments 14-19 All FEE64s pass all system-wide tests Installed new versions of check.tcl/check.tml - see attachment 20 Collect All SYNC Error Counters for Baseline selected 23.15 Standard DAQ stop/go sequence restarts DAQ AIDA67 No changes from AIDA66 [td@localhost 1E47-5D81]$ ~/GREAT/analyser2 AIDA67_7 *** GREAT format 3.2.0 analyser - TD - May 2014 *** SYNC100 timestamp: block: 1 ptr: 6123 data: 0x8B4028BF module: 11 information type: 4 information field: 0x000028BF ts: 0x0000028BF38C00A0 OLD: ts: 0x0DAF8F30038C0093 tag: 2 type: 6 *** ERROR: READ I/O error: 5002 blocks: 32000 ADC data format: 162789406 ( 931310.8 Hz) Other data format: 98330594 ( 562544.8 Hz) Sample trace data format: 0 ( 0.0 Hz) Undefined format: 0 ( 0.0 Hz) Other data format type: PAUSE: 81 ( 0.5 Hz) RESUME: 81 ( 0.5 Hz) SYNC100: 66680 ( 381.5 Hz) FEE64 disc: 97373010 ( 557066.5 Hz) MBS info: 890742 ( 5095.9 Hz) Other info: 0 ( 0.0 Hz) ADC data range bit set: 40512 ( 231.8 Hz) Timewarps: ADC: 0 ( 0.0 Hz) PAUSE: 0 ( 0.0 Hz) RESUME: 0 ( 0.0 Hz) SYNC100: 1 ( 0.0 Hz) FEE64 disc: 0 ( 0.0 Hz) MBS info: 0 ( 0.0 Hz) Undefined: 0 ( 0.0 Hz) Sample trace: 0 ( 0.0 Hz) Timestamp elapsed time: 174.796 s FEE module #: 1 elapsed dead time 0.162 s FEE module #: 2 elapsed dead time 0.232 s FEE module #: 3 elapsed dead time 0.000 s FEE module #: 4 elapsed dead time 0.000 s FEE module #: 5 elapsed dead time 0.213 s FEE module #: 6 elapsed dead time 0.273 s FEE module #: 7 elapsed dead time 0.000 s FEE module #: 8 elapsed dead time 0.000 s FEE module #: 9 elapsed dead time 0.433 s FEE module #: 10 elapsed dead time 0.123 s FEE module #: 11 elapsed dead time 0.417 s FEE module #: 12 elapsed dead time 0.000 s FEE module #: 13 elapsed dead time 0.127 s FEE module #: 14 elapsed dead time 0.000 s FEE module #: 15 elapsed dead time 0.000 s FEE module #: 16 elapsed dead time 0.000 s FEE module #: 17 elapsed dead time 0.000 s FEE module #: 18 elapsed dead time 0.000 s FEE module #: 19 elapsed dead time 0.000 s FEE module #: 20 elapsed dead time 0.095 s FEE module #: 21 elapsed dead time 0.000 s FEE module #: 22 elapsed dead time 0.030 s FEE module #: 23 elapsed dead time 0.000 s FEE module #: 24 elapsed dead time 0.000 s FEE module #: 25 elapsed dead time 0.000 s FEE module #: 26 elapsed dead time 0.000 s FEE module #: 27 elapsed dead time 0.000 s FEE module #: 28 elapsed dead time 0.000 s FEE module #: 29 elapsed dead time 0.000 s FEE module #: 30 elapsed dead time 0.000 s FEE module #: 31 elapsed dead time 0.000 s FEE module #: 32 elapsed dead time 0.000 s *** Program elapsed time: 338.012s ( 94.671 blocks/s, 5.917 Mb/s) *** ADC data: block: 1 ptr: 6003 data: 0xC63781A0 module: 24 fail: 0 range: 0 id: 1591 channel: 55 adc: 33184 ts: 0x************ *** ADC data: block: 1 ptr: 6005 data: 0xC2837F23 module: 10 fail: 0 range: 0 id: 643 channel: 3 adc: 32547 ts: 0x************ *** ADC data: block: 1 ptr: 6007 data: 0xC27E7DF9 module: 9 fail: 0 range: 0 id: 638 channel: 62 adc: 32249 ts: 0x************ *** ADC data: block: 1 ptr: 6009 data: 0xC1BA7D10 module: 6 fail: 0 range: 0 id: 442 channel: 58 adc: 32016 ts: 0x************ *** ADC data: block: 1 ptr: 6011 data: 0xC37A7DE7 module: 13 fail: 0 range: 0 id: 890 channel: 58 adc: 32231 ts: 0x************ *** ADC data: block: 1 ptr: 6013 data: 0xC62C8141 module: 24 fail: 0 range: 0 id: 1580 channel: 44 adc: 33089 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6015 data: 0x81641120 module: 1 information type: 6 information field: 0x00041120 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6017 data: 0x81640806 module: 1 information type: 6 information field: 0x00040806 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6019 data: 0x8B622000 module: 11 information type: 6 information field: 0x00022000 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6021 data: 0x81621000 module: 1 information type: 6 information field: 0x00021000 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6023 data: 0x86640912 module: 6 information type: 6 information field: 0x00040912 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6025 data: 0x81640008 module: 1 information type: 6 information field: 0x00040008 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6027 data: 0x86644009 module: 6 information type: 6 information field: 0x00044009 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6029 data: 0x81622880 module: 1 information type: 6 information field: 0x00022880 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6031 data: 0x8B622000 module: 11 information type: 6 information field: 0x00022000 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6033 data: 0x81620510 module: 1 information type: 6 information field: 0x00020510 ts: 0x************ *** ADC data: block: 1 ptr: 6035 data: 0xC17774D5 module: 5 fail: 0 range: 0 id: 375 channel: 55 adc: 29909 ts: 0x************ *** ADC data: block: 1 ptr: 6037 data: 0xC31480E9 module: 12 fail: 0 range: 0 id: 788 channel: 20 adc: 33001 ts: 0x************ *** ADC data: block: 1 ptr: 6039 data: 0xC1BD7ED2 module: 6 fail: 0 range: 0 id: 445 channel: 61 adc: 32466 ts: 0x************ *** ADC data: block: 1 ptr: 6041 data: 0xC3957E68 module: 14 fail: 0 range: 0 id: 917 channel: 21 adc: 32360 ts: 0x************ *** ADC data: block: 1 ptr: 6043 data: 0xC25E7E3C module: 9 fail: 0 range: 0 id: 606 channel: 30 adc: 32316 ts: 0x************ *** ADC data: block: 1 ptr: 6045 data: 0xC2777F9B module: 9 fail: 0 range: 0 id: 631 channel: 55 adc: 32667 ts: 0x************ *** ADC data: block: 1 ptr: 6047 data: 0xC3627F99 module: 13 fail: 0 range: 0 id: 866 channel: 34 adc: 32665 ts: 0x************ *** ADC data: block: 1 ptr: 6049 data: 0xC0C08485 module: 3 fail: 0 range: 0 id: 192 channel: 0 adc: 33925 ts: 0x************ *** ADC data: block: 1 ptr: 6051 data: 0xC3B77E63 module: 14 fail: 0 range: 0 id: 951 channel: 55 adc: 32355 ts: 0x************ *** ADC data: block: 1 ptr: 6053 data: 0xC28A7F9E module: 10 fail: 0 range: 0 id: 650 channel: 10 adc: 32670 ts: 0x************ *** ADC data: block: 1 ptr: 6055 data: 0xC2B77ED9 module: 10 fail: 0 range: 0 id: 695 channel: 55 adc: 32473 ts: 0x************ *** ADC data: block: 1 ptr: 6057 data: 0xC2657E47 module: 9 fail: 0 range: 0 id: 613 channel: 37 adc: 32327 ts: 0x************ *** ADC data: block: 1 ptr: 6059 data: 0xC5417EB7 module: 21 fail: 0 range: 0 id: 1345 channel: 1 adc: 32439 ts: 0x************ *** ADC data: block: 1 ptr: 6061 data: 0xC5777ECD module: 21 fail: 0 range: 0 id: 1399 channel: 55 adc: 32461 ts: 0x************ *** ADC data: block: 1 ptr: 6063 data: 0xC3777D25 module: 13 fail: 0 range: 0 id: 887 channel: 55 adc: 32037 ts: 0x************ *** ADC data: block: 1 ptr: 6065 data: 0xC2417E9B module: 9 fail: 0 range: 0 id: 577 channel: 1 adc: 32411 ts: 0x************ *** ADC data: block: 1 ptr: 6067 data: 0xC63782CB module: 24 fail: 0 range: 0 id: 1591 channel: 55 adc: 33483 ts: 0x************ *** ADC data: block: 1 ptr: 6069 data: 0xC24A7F3D module: 9 fail: 0 range: 0 id: 586 channel: 10 adc: 32573 ts: 0x************ *** ADC data: block: 1 ptr: 6071 data: 0xC2DC8028 module: 11 fail: 0 range: 0 id: 732 channel: 28 adc: 32808 ts: 0x************ *** ADC data: block: 1 ptr: 6073 data: 0xC281801A module: 10 fail: 0 range: 0 id: 641 channel: 1 adc: 32794 ts: 0x************ *** ADC data: block: 1 ptr: 6075 data: 0xC1BA7E55 module: 6 fail: 0 range: 0 id: 442 channel: 58 adc: 32341 ts: 0x************ *** ADC data: block: 1 ptr: 6077 data: 0xC1817EBA module: 6 fail: 0 range: 0 id: 385 channel: 1 adc: 32442 ts: 0x************ *** ADC data: block: 1 ptr: 6079 data: 0xC4B67EFE module: 18 fail: 0 range: 0 id: 1206 channel: 54 adc: 32510 ts: 0x************ *** ADC data: block: 1 ptr: 6081 data: 0xC3BA7DF5 module: 14 fail: 0 range: 0 id: 954 channel: 58 adc: 32245 ts: 0x************ *** ADC data: block: 1 ptr: 6083 data: 0xC0BD7E2A module: 2 fail: 0 range: 0 id: 189 channel: 61 adc: 32298 ts: 0x************ *** ADC data: block: 1 ptr: 6085 data: 0xC37A7D4F module: 13 fail: 0 range: 0 id: 890 channel: 58 adc: 32079 ts: 0x************ *** ADC data: block: 1 ptr: 6087 data: 0xC2837F32 module: 10 fail: 0 range: 0 id: 643 channel: 3 adc: 32562 ts: 0x************ *** ADC data: block: 1 ptr: 6089 data: 0xC17779E8 module: 5 fail: 0 range: 0 id: 375 channel: 55 adc: 31208 ts: 0x************ *** ADC data: block: 1 ptr: 6091 data: 0xC0407D64 module: 1 fail: 0 range: 0 id: 64 channel: 0 adc: 32100 ts: 0x************ *** ADC data: block: 1 ptr: 6093 data: 0xC27E7EBB module: 9 fail: 0 range: 0 id: 638 channel: 62 adc: 32443 ts: 0x************ *** ADC data: block: 1 ptr: 6095 data: 0xC1BD7EA1 module: 6 fail: 0 range: 0 id: 445 channel: 61 adc: 32417 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6097 data: 0x8B648040 module: 11 information type: 6 information field: 0x00048040 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6099 data: 0x8B632000 module: 11 information type: 6 information field: 0x00032000 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6101 data: 0x8B640014 module: 11 information type: 6 information field: 0x00040014 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6103 data: 0x8B622000 module: 11 information type: 6 information field: 0x00022000 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6105 data: 0x85640100 module: 5 information type: 6 information field: 0x00040100 ts: 0x************ *** ADC data: block: 1 ptr: 6107 data: 0xC2048185 module: 8 fail: 0 range: 0 id: 516 channel: 4 adc: 33157 ts: 0x************ *** ADC data: block: 1 ptr: 6109 data: 0xC3817CB5 module: 14 fail: 0 range: 0 id: 897 channel: 1 adc: 31925 ts: 0x************ *** ADC data: block: 1 ptr: 6111 data: 0xC0B76DE1 module: 2 fail: 0 range: 0 id: 183 channel: 55 adc: 28129 ts: 0x************ *** ADC data: block: 1 ptr: 6113 data: 0xC5347FB5 module: 20 fail: 0 range: 0 id: 1332 channel: 52 adc: 32693 ts: 0x************ *** ADC data: block: 1 ptr: 6115 data: 0xC2B87EFA module: 10 fail: 0 range: 0 id: 696 channel: 56 adc: 32506 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6117 data: 0x82640010 module: 2 information type: 6 information field: 0x00040010 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6119 data: 0x82640008 module: 2 information type: 6 information field: 0x00040008 ts: 0x************ *** FEE64 discriminator: block: 1 ptr: 6121 data: 0x82640003 module: 2 information type: 6 information field: 0x00040003 ts: 0x************ *** SYNC100 timestamp: block: 1 ptr: 6123 data: 0x8B4028BF module: 11 information type: 4 information field: 0x000028BF ts: 0x0000028BF38C00A0 OLD: ts: 0x0DAF8F30038C0093 tag: 2 type: 6 *** SYNC100 timestamp: block: 1 ptr: 6123 data: 0x8B4028BF module: 11 information type: 4 information field: 0x000028BF ts: 0x028BF38C00A0 *** ADC data: block: 1 ptr: 6125 data: 0xC30B80FA module: 12 fail: 0 range: 0 id: 779 channel: 11 adc: 33018 ts: 0x028BF38C00BD *** ADC data: block: 1 ptr: 6127 data: 0xC0817E77 module: 2 fail: 0 range: 0 id: 129 channel: 1 adc: 32375 ts: 0x028BF38C00C2 *** ADC data: block: 1 ptr: 6129 data: 0xC277758A module: 9 fail: 0 range: 0 id: 631 channel: 55 adc: 30090 ts: 0x028BF38C00CA *** FEE64 discriminator: block: 1 ptr: 6131 data: 0x8B648000 module: 11 information type: 6 information field: 0x00048000 ts: 0x028BF38C01D1 *** FEE64 discriminator: block: 1 ptr: 6133 data: 0x8B640040 module: 11 information type: 6 information field: 0x00040040 ts: 0x028BF38C01D2 *** FEE64 discriminator: block: 1 ptr: 6135 data: 0x8B640004 module: 11 information type: 6 information field: 0x00040004 ts: 0x028BF38C01D5 *** FEE64 discriminator: block: 1 ptr: 6137 data: 0x8B640010 module: 11 information type: 6 information field: 0x00040010 ts: 0x028BF38C01D9 *** ADC data: block: 1 ptr: 6139 data: 0xC3B77874 module: 14 fail: 0 range: 0 id: 951 channel: 55 adc: 30836 ts: 0x028BF38C020A *** ADC data: block: 1 ptr: 6141 data: 0xC0C0848E module: 3 fail: 0 range: 0 id: 192 channel: 0 adc: 33934 ts: 0x028BF38C0281 *** ADC data: block: 1 ptr: 6143 data: 0xC63C8026 module: 24 fail: 0 range: 0 id: 1596 channel: 60 adc: 32806 ts: 0x028BF38C02DC *** FEE64 discriminator: block: 1 ptr: 6145 data: 0x81641102 module: 1 information type: 6 information field: 0x00041102 ts: 0x028BF38C0395 *** FEE64 discriminator: block: 1 ptr: 6147 data: 0x81640020 module: 1 information type: 6 information field: 0x00040020 ts: 0x028BF38C0396 *** FEE64 discriminator: block: 1 ptr: 6149 data: 0x8B620001 module: 11 information type: 6 information field: 0x00020001 ts: 0x028BF38C0397 *** ADC data: block: 1 ptr: 6151 data: 0xC2B77CE0 module: 10 fail: 0 range: 0 id: 695 channel: 55 adc: 31968 ts: 0x028BF38C03E1 *** FEE64 discriminator: block: 1 ptr: 6153 data: 0x8E640200 module: 14 information type: 6 information field: 0x00040200 ts: 0x028BF38C03E5 *** FEE64 discriminator: block: 1 ptr: 6155 data: 0x82640010 module: 2 information type: 6 information field: 0x00040010 ts: 0x028BF38C046F *** FEE64 discriminator: block: 1 ptr: 6157 data: 0x82640009 module: 2 information type: 6 information field: 0x00040009 ts: 0x028BF38C0470 *** FEE64 discriminator: block: 1 ptr: 6159 data: 0x82640002 module: 2 information type: 6 information field: 0x00040002 ts: 0x028BF38C0473 *** ADC data: block: 1 ptr: 6161 data: 0xC3777F1E module: 13 fail: 0 range: 0 id: 887 channel: 55 adc: 32542 ts: 0x028BF38C05F3 *** ADC data: block: 1 ptr: 6163 data: 0xC0BA7F03 module: 2 fail: 0 range: 0 id: 186 channel: 58 adc: 32515 ts: 0x028BF38C063A *** ADC data: block: 1 ptr: 6165 data: 0xC63781EA module: 24 fail: 0 range: 0 id: 1591 channel: 55 adc: 33258 ts: 0x028BF38C06C4 *** ADC data: block: 1 ptr: 6167 data: 0xC25E7EC0 module: 9 fail: 0 range: 0 id: 606 channel: 30 adc: 32448 ts: 0x028BF38C070A *** ADC data: block: 1 ptr: 6169 data: 0xC310814C module: 12 fail: 0 range: 0 id: 784 channel: 16 adc: 33100 ts: 0x028BF38C07C5 *** ADC data: block: 1 ptr: 6171 data: 0xC2817FBE module: 10 fail: 0 range: 0 id: 641 channel: 1 adc: 32702 ts: 0x028BF38C07C9 *** FEE64 discriminator: block: 1 ptr: 6173 data: 0x82640010 module: 2 information type: 6 information field: 0x00040010 ts: 0x028BF38C0851 *** FEE64 discriminator: block: 1 ptr: 6175 data: 0x82640008 module: 2 information type: 6 information field: 0x00040008 ts: 0x028BF38C0854 *** ADC data: block: 1 ptr: 6177 data: 0xC1817E3E module: 6 fail: 0 range: 0 id: 385 channel: 1 adc: 32318 ts: 0x028BF38C095D *** FEE64 discriminator: block: 1 ptr: 6179 data: 0x86631000 module: 6 information type: 6 information field: 0x00031000 ts: 0x028BF38C0998 *** ADC data: block: 1 ptr: 6181 data: 0xC5807DFE module: 22 fail: 0 range: 0 id: 1408 channel: 0 adc: 32254 ts: 0x028BF38C09BC *** MBS information: block: 1 ptr: 6183 data: 0x8680FCC8 module: 6 information type: 8 information index: 0 MBS data:FCC8 ts: 0x028BF38C09F7 *** MBS information: block: 1 ptr: 6185 data: 0x8681680D module: 6 information type: 8 information index: 1 MBS data:680D ts: 0x028BF38C09F7 *** MBS information: block: 1 ptr: 6187 data: 0x86820007 module: 6 information type: 8 information index: 2 MBS data:0007 ts: 0x028BF38C09F7 *** ADC data: block: 1 ptr: 6189 data: 0xC0BD7F10 module: 2 fail: 0 range: 0 id: 189 channel: 61 adc: 32528 ts: 0x028BF38C0A22 *** ADC data: block: 1 ptr: 6191 data: 0xC1777A9E module: 5 fail: 0 range: 0 id: 375 channel: 55 adc: 31390 ts: 0x028BF38C0B47 *** ADC data: block: 1 ptr: 6193 data: 0xC3928023 module: 14 fail: 0 range: 0 id: 914 channel: 18 adc: 32803 ts: 0x028BF38C0CFA *** ADC data: block: 1 ptr: 6195 data: 0xC3427F14 module: 13 fail: 0 range: 0 id: 834 channel: 2 adc: 32532 ts: 0x028BF38C0CFB *** FEE64 discriminator: block: 1 ptr: 6197 data: 0x85640100 module: 5 information type: 6 information field: 0x00040100 ts: 0x028BF38C0D7B *** FEE64 discriminator: block: 1 ptr: 6199 data: 0x85640028 module: 5 information type: 6 information field: 0x00040028 ts: 0x028BF38C0D7C *** FEE64 discriminator: block: 1 ptr: 6201 data: 0x85640020 module: 5 information type: 6 information field: 0x00040020 ts: 0x028BF38C0D7F *** ADC data: block: 1 ptr: 6203 data: 0xC5817E5C module: 22 fail: 0 range: 0 id: 1409 channel: 1 adc: 32348 ts: 0x028BF38C0DA4 *** ADC data: block: 1 ptr: 6205 data: 0xC3817F2D module: 14 fail: 0 range: 0 id: 897 channel: 1 adc: 32557 ts: 0x028BF38C0DC2 *** ADC data: block: 1 ptr: 6207 data: 0xC0B76C9E module: 2 fail: 0 range: 0 id: 183 channel: 55 adc: 27806 ts: 0x028BF38C0E0A *** FEE64 discriminator: block: 1 ptr: 6209 data: 0x82648000 module: 2 information type: 6 information field: 0x00048000 ts: 0x028BF38C0F44 *** FEE64 discriminator: block: 1 ptr: 6211 data: 0x82640010 module: 2 information type: 6 information field: 0x00040010 ts: 0x028BF38C0F45 *** FEE64 discriminator: block: 1 ptr: 6213 data: 0x82630008 module: 2 information type: 6 information field: 0x00030008 ts: 0x028BF38C0F46 *** FEE64 discriminator: block: 1 ptr: 6215 data: 0x82640008 module: 2 information type: 6 information field: 0x00040008 ts: 0x028BF38C0F46 *** ADC data: block: 1 ptr: 6217 data: 0xC0817E94 module: 2 fail: 0 range: 0 id: 129 channel: 1 adc: 32404 ts: 0x028BF38C0F9A *** FEE64 discriminator: block: 1 ptr: 6219 data: 0x82640010 module: 2 information type: 6 information field: 0x00040010 ts: 0x028BF38C1018 *** ADC data: block: 1 ptr: 6221 data: 0xC61980E8 module: 24 fail: 0 range: 0 id: 1561 channel: 25 adc: 33000 ts: 0x028BF38C1024 *** ADC data: block: 1 ptr: 6223 data: 0xC6248081 module: 24 fail: 0 range: 0 id: 1572 channel: 36 adc: 32897 ts: 0x028BF38C1024 *** ADC data: block: 1 ptr: 6225 data: 0xC5398017 module: 20 fail: 0 range: 0 id: 1337 channel: 57 adc: 32791 ts: 0x028BF38C103B *** ADC data: block: 1 ptr: 6227 data: 0xC4727E47 module: 17 fail: 0 range: 0 id: 1138 channel: 50 adc: 32327 ts: 0x028BF38C1089 *** ADC data: block: 1 ptr: 6229 data: 0xC20080B8 module: 8 fail: 0 range: 0 id: 512 channel: 0 adc: 32952 ts: 0x028BF38C10C1 *** ADC data: block: 1 ptr: 6231 data: 0xC0C08465 module: 3 fail: 0 range: 0 id: 192 channel: 0 adc: 33893 ts: 0x028BF38C1159 *** ADC data: block: 1 ptr: 6233 data: 0xC2657E31 module: 9 fail: 0 range: 0 id: 613 channel: 37 adc: 32305 ts: 0x028BF38C12C2 *** FEE64 discriminator: block: 1 ptr: 6235 data: 0x82648010 module: 2 information type: 6 information field: 0x00048010 ts: 0x028BF38C12DF *** FEE64 discriminator: block: 1 ptr: 6237 data: 0x82640008 module: 2 information type: 6 information field: 0x00040008 ts: 0x028BF38C12E3 *** ADC data: block: 1 ptr: 6239 data: 0xC36C801D module: 13 fail: 0 range: 0 id: 876 channel: 44 adc: 32797 ts: 0x028BF38C14CB *** FEE64 discriminator: block: 1 ptr: 6241 data: 0x81641000 module: 1 information type: 6 information field: 0x00041000 ts: 0x028BF38C153A *** FEE64 discriminator: block: 1 ptr: 6243 data: 0x8B632000 module: 11 information type: 6 information field: 0x00032000 ts: 0x028BF38C153A *** FEE64 discriminator: block: 1 ptr: 6245 data: 0x8B640040 module: 11 information type: 6 information field: 0x00040040 ts: 0x028BF38C153A *** ADC data: block: 1 ptr: 6247 data: 0xC5F7816D module: 23 fail: 0 range: 0 id: 1527 channel: 55 adc: 33133 ts: 0x028BF38C154C *** ADC data: block: 1 ptr: 6249 data: 0xC3BB7E35 module: 14 fail: 0 range: 0 id: 955 channel: 59 adc: 32309 ts: 0x028BF38C1592 *** FEE64 discriminator: block: 1 ptr: 6251 data: 0x97630080 module: 23 information type: 6 information field: 0x00030080 ts: 0x028BF38C164D
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 502x344
Attachment 2:
Original size: 502x344
Attachment 3:
Original size: 932x760
Attachment 4:
Original size: 1542x1029
Attachment 5:
Original size: 1542x1029
Attachment 6:
Original size: 1542x1029
Attachment 7:
Original size: 1542x1029
Attachment 8:
Original size: 1542x1029
Attachment 9:
Original size: 1542x1029
Attachment 10:
Original size: 1542x1029
Attachment 11:
Original size: 502x344
Attachment 12:
Original size: 502x344
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1504x1030
Attachment 15:
Original size: 1920x1080
Attachment 16:
Original size: 1504x1030
Attachment 17:
Original size: 1504x1030
Attachment 18:
Original size: 1504x1030
Attachment 19:
Original size: 1504x1030
Attachment 20:
Original size: 1504x1030
