AIDA was relocated, and now I want to power it on to do some tests.&nbsp; However, I cannot get the Rly16 service running.
Specifically, after powering up the entire AIDA system, on aidas1 PC, I cannot connect to the raspberry pi (nnrpi1) via a web browser

http://nnrpi1:8015/AIDA/Rly16/

The following elog may be relevant: https://elog.ph.ed.ac.uk/AIDA/58

Now I am ssh'd to nnrpi1 via aidas1

% dmesg | grep -A 3 USB0
[&nbsp;&nbsp;&nbsp; 8.970098] usb 1-1.3: pl2303 converter now attached to ttyUSB0
[&nbsp;&nbsp;&nbsp; 9.012479] usb 1-1.2.2: Detected FT232RL
[&nbsp;&nbsp;&nbsp; 9.178208] usb 1-1.2.2: FTDI USB Serial Device converter now attached to ttyUSB1
[&nbsp;&nbsp;&nbsp; 9.348288] ftdi_sio 1-1.2.3:1.0: FTDI USB Serial Device converter detected

So, I will try Patrick's workaround in elog #58

I tried it, though it's hard to know if it is done correctly.&nbsp; Which item is which?&nbsp; Or more importantly, which one runs Rly16?

[&nbsp;&nbsp;&nbsp; 8.107290] usb 1-1.2.3: USB disconnect, device number 8
[&nbsp;&nbsp;&nbsp; 8.261338] usbserial: USB Serial support registered for FTDI USB Serial Device
[&nbsp;&nbsp;&nbsp; 8.541012] ftdi_sio 1-1.2.2:1.0: FTDI USB Serial Device converter detected
[&nbsp;&nbsp;&nbsp; 8.712409] usb 1-1.2.2: Detected FT232RL
[&nbsp;&nbsp;&nbsp; 8.847955] usb 1-1.2.2: FTDI USB Serial Device converter now attached to ttyUSB0
[&nbsp;&nbsp; 12.252576] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
[&nbsp;&nbsp; 12.728966] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
[&nbsp;&nbsp; 23.695562] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup
[&nbsp;&nbsp; 25.212043] smsc95xx 1-1.1:1.0 eth0: link up, 100Mbps, full-duplex, lpa 0xC1E1
[&nbsp;&nbsp; 32.372015] Adding 102396k swap on /var/swap.&nbsp; Priority:-1 extents:2 across:2134012k SSFS
[&nbsp; 109.219022] usb 1-1.2.3: new full-speed USB device number 9 using dwc_otg
[&nbsp; 109.335538] usb 1-1.2.3: New USB device found, idVendor=0403, idProduct=6001
[&nbsp; 109.335579] usb 1-1.2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[&nbsp; 109.335601] usb 1-1.2.3: Product: USB &lt;-&gt; Serial
[&nbsp; 109.335619] usb 1-1.2.3: Manufacturer: FTDI
[&nbsp; 109.354420] ftdi_sio 1-1.2.3:1.0: FTDI USB Serial Device converter detected
[&nbsp; 109.354761] usb 1-1.2.3: Detected FT232BM
[&nbsp; 109.356174] usb 1-1.2.3: FTDI USB Serial Device converter now attached to ttyUSB1
[&nbsp; 163.939476] usb 1-1.3: new full-speed USB device number 10 using dwc_otg
[&nbsp; 164.042348] usb 1-1.3: New USB device found, idVendor=067b, idProduct=2303
[&nbsp; 164.042424] usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[&nbsp; 164.042446] usb 1-1.3: Product: USB-Serial Controller D
[&nbsp; 164.042468] usb 1-1.3: Manufacturer: Prolific Technology Inc.
[&nbsp; 164.096379] usbcore: registered new interface driver pl2303
[&nbsp; 164.098786] usbserial: USB Serial support registered for pl2303
[&nbsp; 164.099085] pl2303 1-1.3:1.0: pl2303 converter detected
[&nbsp; 164.106666] usb 1-1.3: pl2303 converter now attached to ttyUSB2

On ttyUSB# have:
FT232RL
FT232BM
pl2303


% lsusb
Bus 001 Device 002: ID 0424:9514 Standard Microsystems Corp.
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 003: ID 0424:ec00 Standard Microsystems Corp.
Bus 001 Device 004: ID 05e3:0608 Genesys Logic, Inc. USB-2.0 4-Port HUB
Bus 001 Device 010: ID 067b:2303 Prolific Technology, Inc. PL2303 Serial Port
Bus 001 Device 005: ID 046d:c016 Logitech, Inc. Optical Wheel Mouse
Bus 001 Device 007: ID 04f2:0402 Chicony Electronics Co., Ltd Genius LuxeMate i200 Keyboard
Bus 001 Device 006: ID 0403:6001 Future Technology Devices International, Ltd FT232 USB-Serial (UART) IC
Bus 001 Device 009: ID 0403:6001 Future Technology Devices International, Ltd FT232 USB-Serial (UART) IC

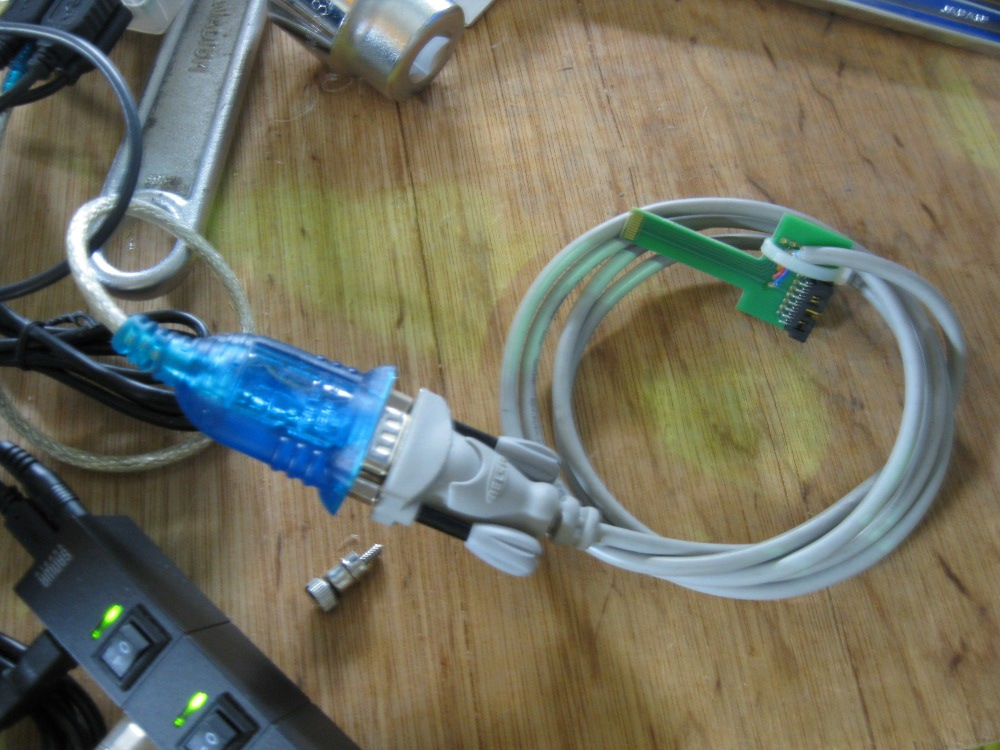

N.B. USB-serial link to FEE64 is not connected to anything on the serial side.&nbsp; What is the FEE64 Console?&nbsp; See Attachment 1.&nbsp; It goes to nothing!&nbsp; Should it go somewhere?

Rich Text Editor, Text

Editor toolbars

Press ALT 0 for help

â—¢Elements path

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

usb_serial.JPG Original size: 1000x750
