Entry time:
Tue Jul 5 10:26:11 2016
Author
*
:
Subject
*
:

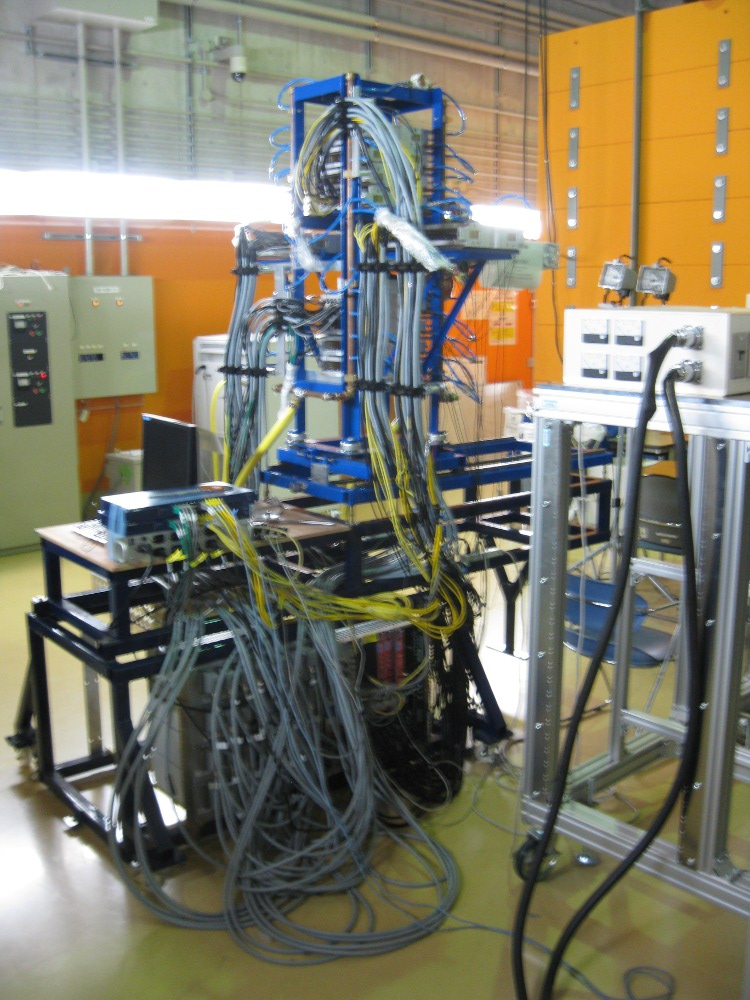

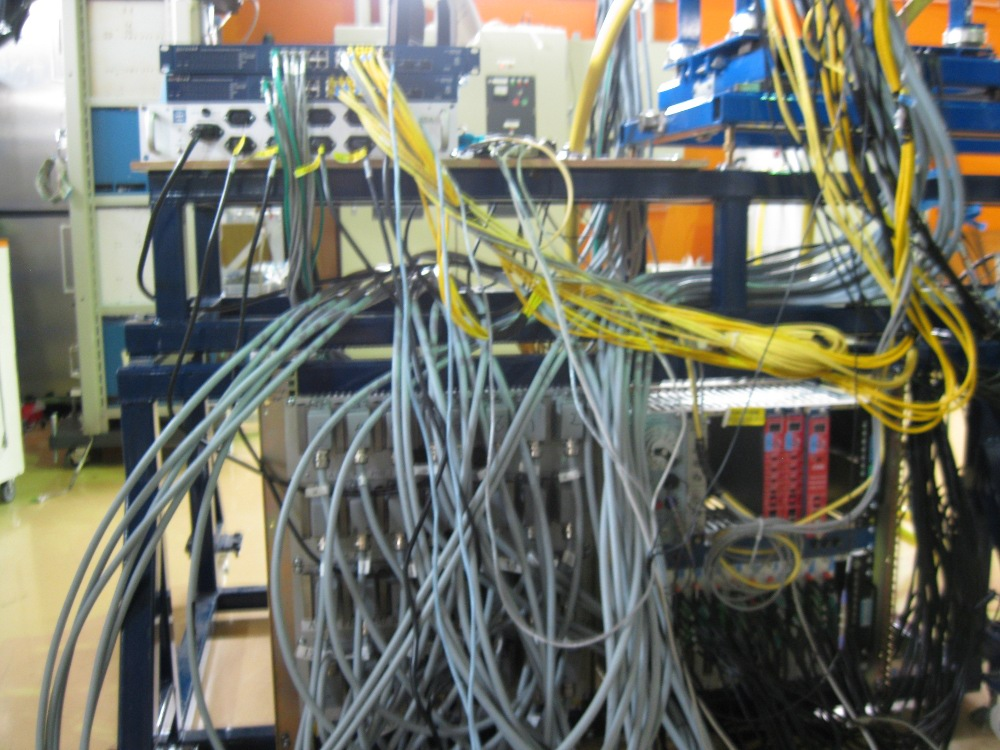

<p>Here are some pictures after AIDA's relocation.</p> <p>In principle, it can stay here, but probably after the tests we will push it further against the wall. However, power and ethernet cabling cannot reach that far.</p> <p>Attachment 1: Shows EURICA (original position) B-RIKEN moderator (near old AIDA spot) and AIDA (pushed downstream, rotated 90 degrees counterclockwise)</p> <p>Attachment 2: Zoom in on AIDA from above. Nominally the beam left downstream perspective. Power supply is also seen on BRIKEN moderator table.</p> <p>Attachment 3: Zoom in further of above, namely near FEE power supply rack</p> <p>Attachment 4: More upstream view, still on beam left, showing tube with SSDs as well as water cooler in background</p> <p>Attachment 5: Beam right view</p> <p>Attachment 6: Beam right view from more upstream perspective, also showing the full tower of electronics.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1000x750
Attachment 2:
Original size: 750x1000
Attachment 3:
Original size: 1000x750
Attachment 4:
Original size: 1000x750
Attachment 5:
Original size: 1000x750
Attachment 6:
Original size: 750x1000
