Entry time:
Tue Jul 5 13:43:02 2016
Author
*
:
Subject
*
:
<p>Needed to run startx and start the TcLHttpd server on rpi</p> <p>Following along here: https://elog.ph.ed.ac.uk/AIDA/242</p> <p>Can now access http://nnrpi1:8015/AIDA/Rly16/</p> <p>Window at first connection reads:</p> <p>Using /dev/ttyUSB0 firmware version 0</p> <p>Using /dev/ttyUSB1 firmware version 0901</p> <p> </p> <p>Looks good. Sequence ALL On was selected</p> <p>(By mistake, I then clicked Relay # to turn off...misread instructions...Switch all OFF, then sequence ALL on again)</p> <p>7:51 they are turned on. Waiting several minutes now.</p> <p>Add 4 L of water to the chiller</p> <p>8:12</p> <p> </p> <p>Save/Control Settings from Hardware Control tab:</p> <p>Selected: 2016Jun13-00.53.55 and Restore. (missing from elog 242)</p> <p> </p> <p>From Run Control, Enable Histogramming, Data Transfer: Enable #1 All (missing from elog 242)</p> <p> </p> <p>TapeServer / Merger / Httpd started on Workspace 2</p> <p> </p> <p>TapeServer reports</p> <p>Cannot issue more Access Tokens: Claim TapeServer returned:- 3 Capability table is full</p> <p><strong>Make a new directory for storing test data: /data10/TapeData/July2016</strong></p> <p>Merger: Setup and configure</p> <p>Data Statistics shows about ~5 x 10^5 events in many nnaida. Should we use a different setting file?</p> <p>Now we try 2016Jun12-10.10.08</p> <p>Perform ReSync</p> <p> </p> <p>Probably event rate can be high because the SSD bias is off? We set up Putty and turn on all biases to -100 V.</p> <p>Attachments 1 and 2 show the bias settings after they are turned on.</p> <p> </p> <p>Good Events rate improves, factor 2 to 4 (now about 100k roughly)</p> <p> </p> <p>Pulser settings: around ~900 on dial, attenuator x10, x10, x2 switches down, 5x up. Frequency ~250 Hz</p> <p> </p> <p>21:19</p> <p>Now we change the Control ASICs (select act on all ASICs, act on all FEEs)</p> <p>Slow Comparator from 0x8 to 0x20</p> <p>LEC/MEC Fast Comparator 0x4 to 0x80</p> <p>Now the Good Events go down to about 10k to 25k roughly</p> <p> </p> <p>TapeServer starts a run.</p> <p>Merger started / paused / unpaused</p> <p> </p> <p>Merger rate is 500k / sec. TapeServer is 4 k / sec.</p> <p> </p> <p>AIDA Syncs shown in Attachment 3</p> <p>Temps in Attachment 4</p> <p>Good Events Attachment 5</p> <p><strong>Run Number 1<br /> </strong></p> <p><strong>Setting file: 2016Jul05-21.37.20</strong> (Note: I wrote the wrong setting file name last night...this is the right one!)</p> <p> </p> <p>Show sample pulser peak in Attachment 6, 7, 8</p> <p> </p> <p>July 6 - 12:29: Stop the run. 114 run files, 2.0 GB each.</p> <p>Attachments 9, 10 show biases at the end of the run</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry

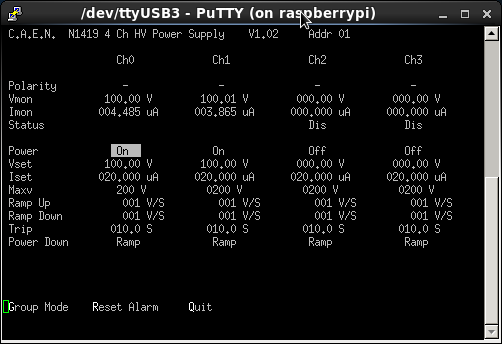

Attachment 1:
Original size: 502x344
Attachment 2:
Original size: 502x344

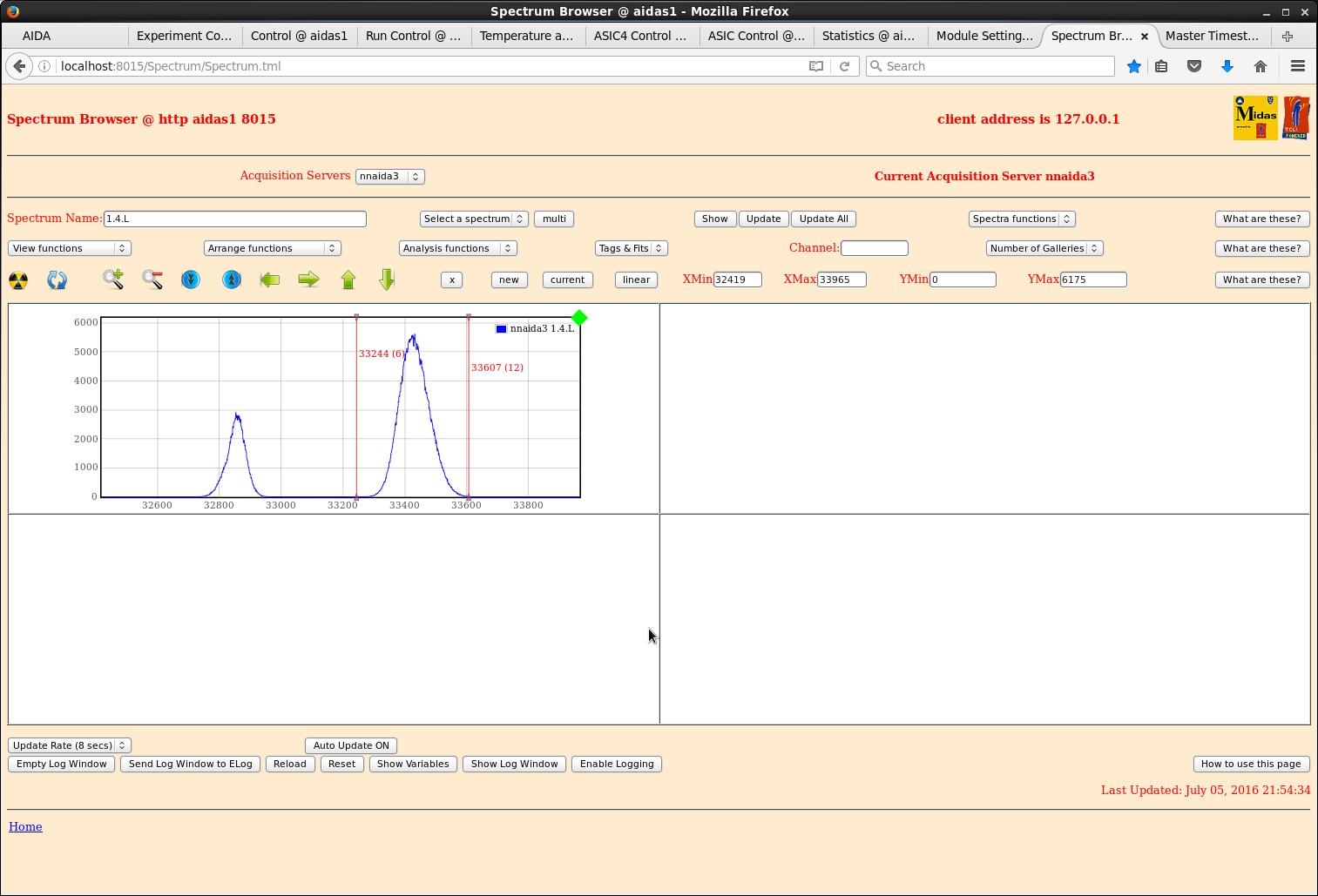

Attachment 3:
Original size: 1513x1029

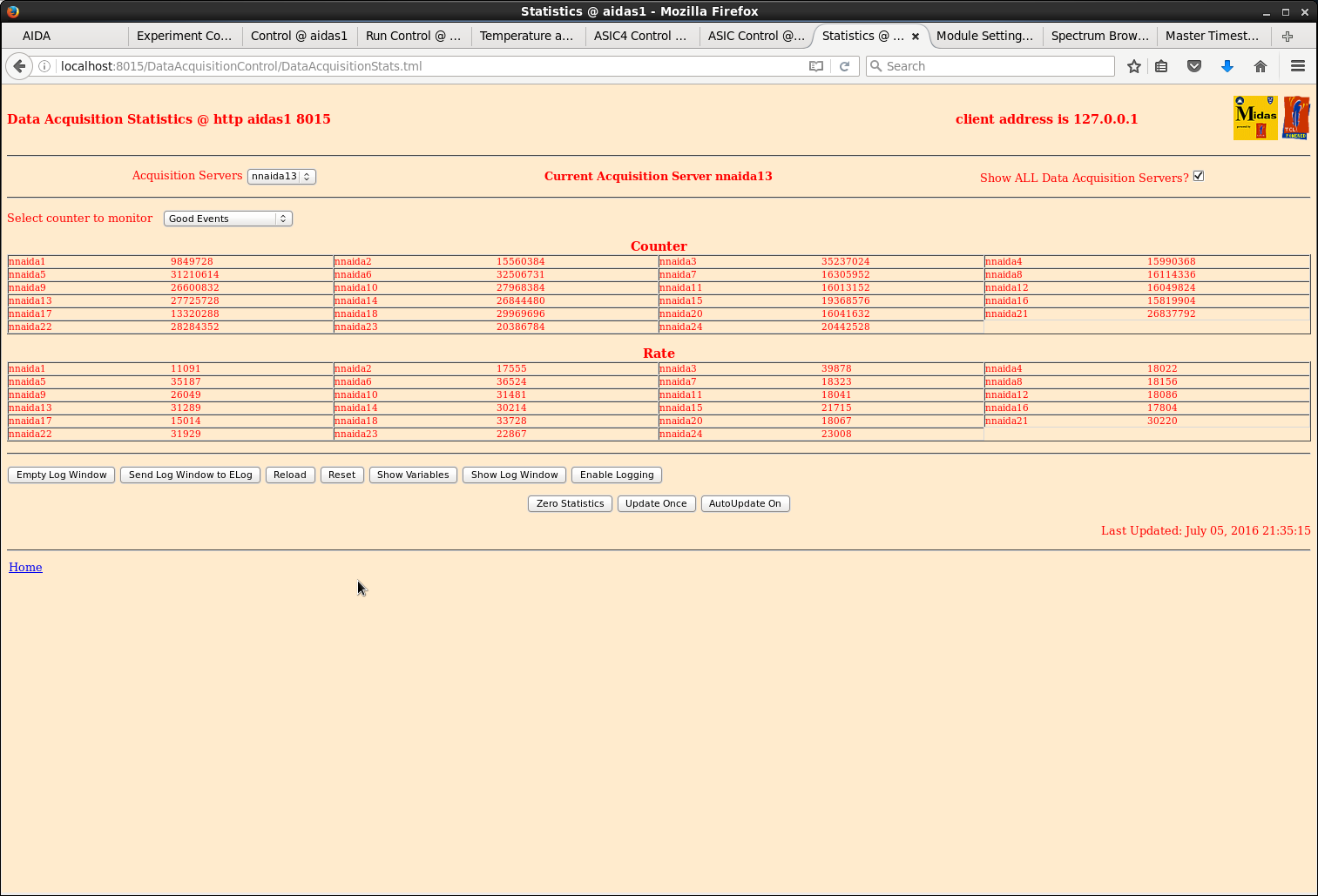

Attachment 4:
Original size: 1513x1029

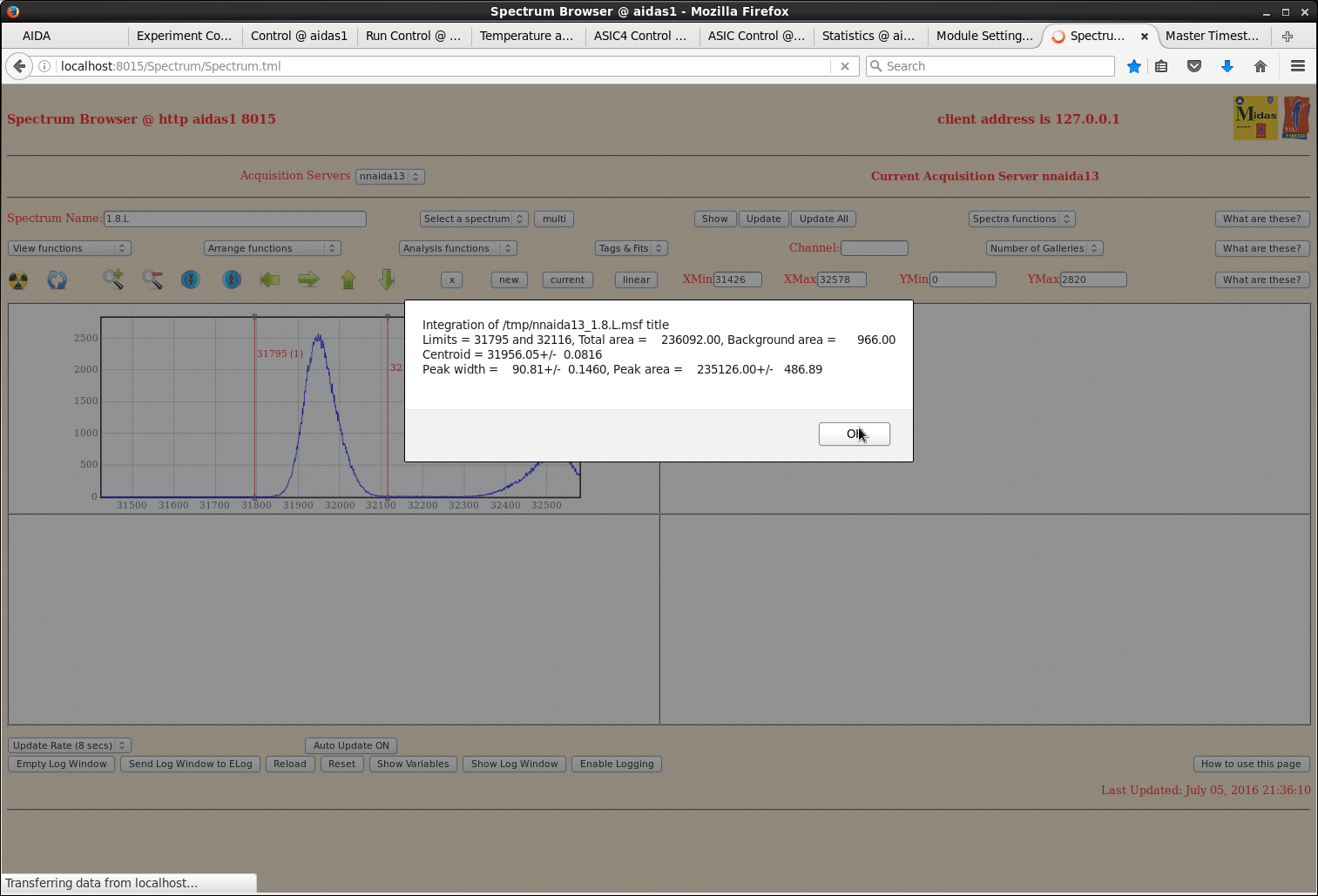

Attachment 5:
Original size: 1513x1029

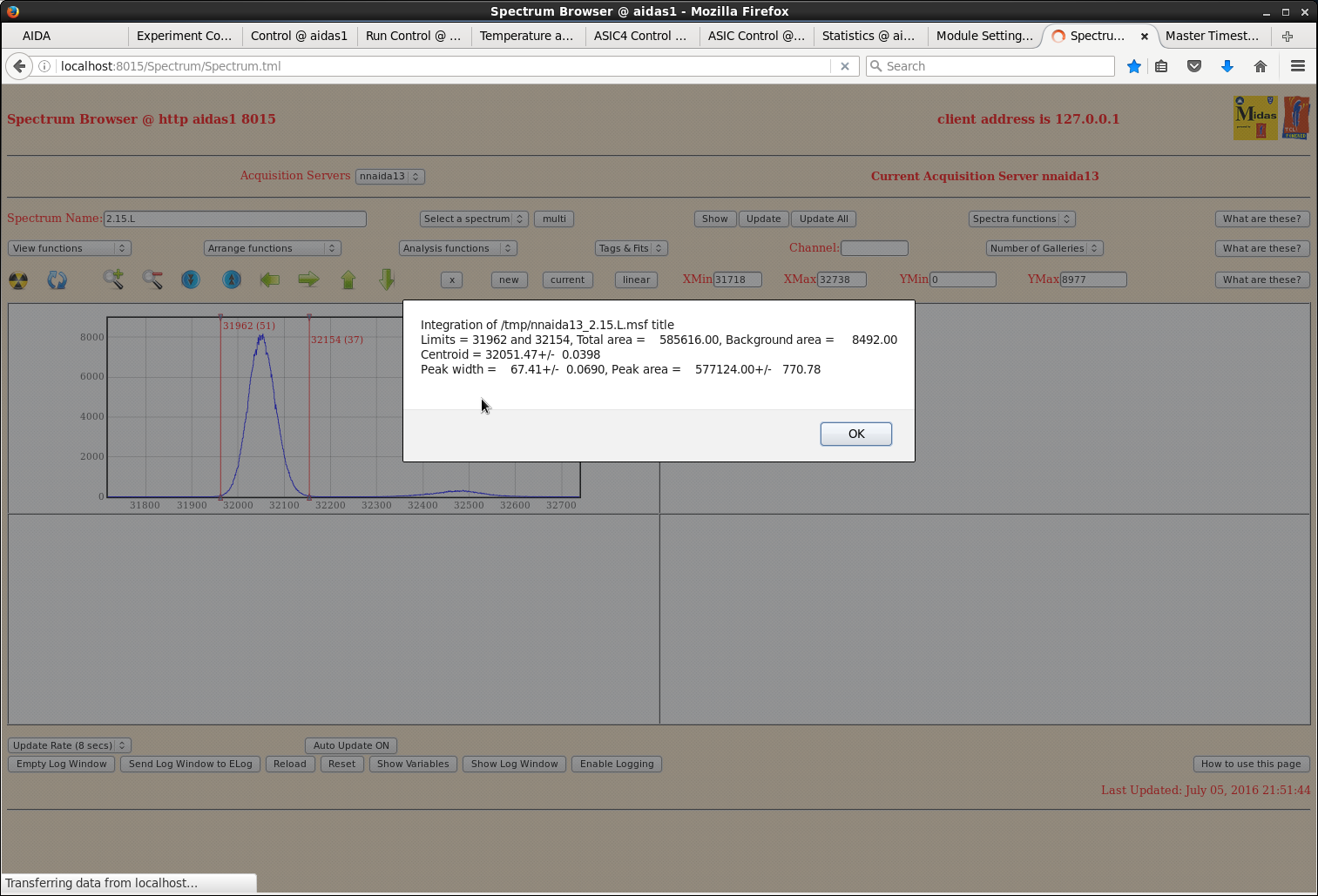

Attachment 6:
Original size: 1513x1029
Attachment 7:
Original size: 1513x1029
Attachment 8:
Original size: 1513x1029
Attachment 9:
Original size: 502x344
Attachment 10:
Original size: 502x344
