11.20 R1 stops

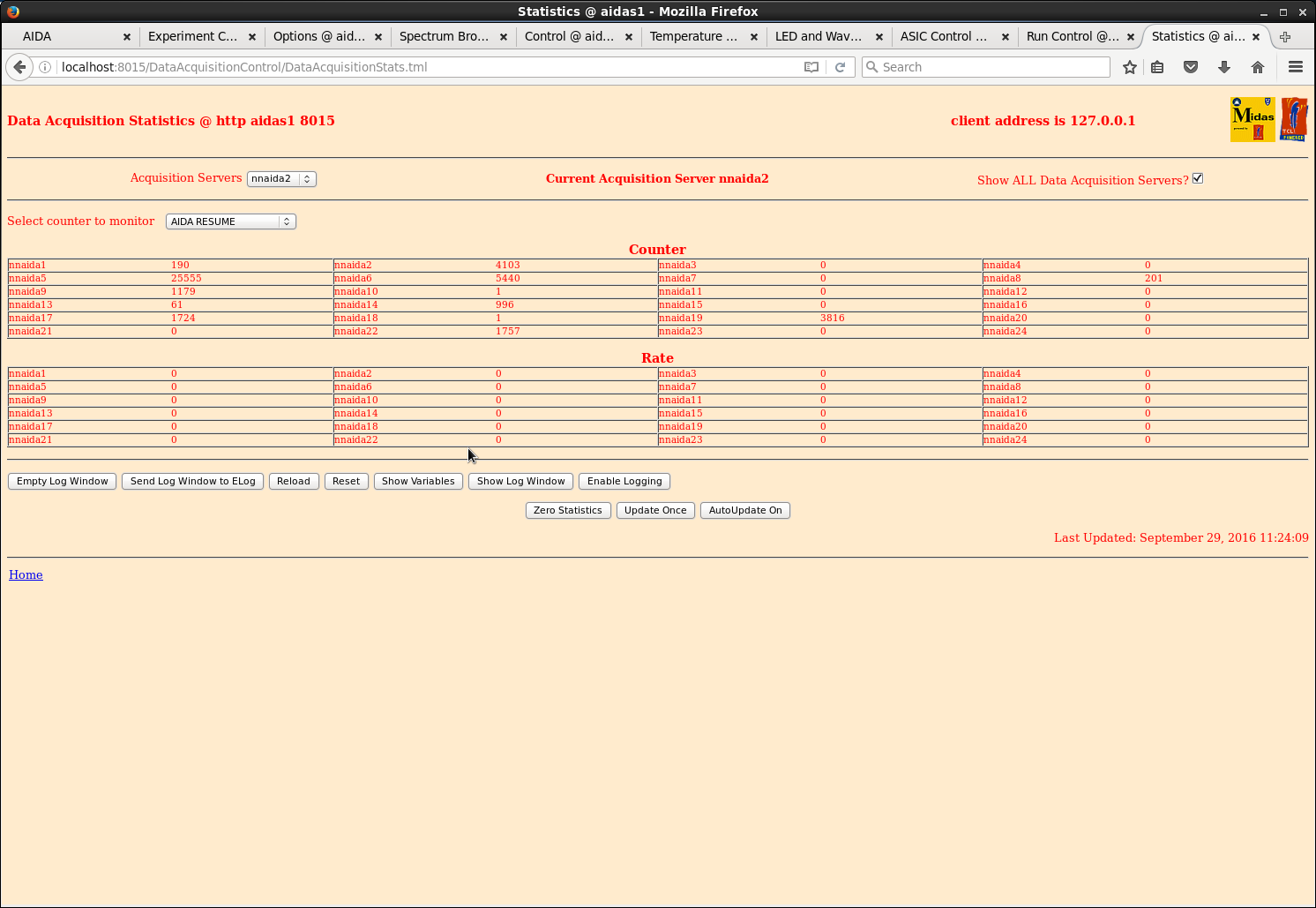

DSSSD bias/leakage current OK - see attachments 1-2
      FEE64 temperatures OK - see attachment 3

System-wide checks OK *except* nnaida19 fails ASIC timestamp check (no change)

No merger error messages - see attachment 4

AIDA SYNC, PAUSE, RESUME, Correlation L, SYNC time warp, Good Events, AIDA disc, nnaida6, nnaida5,
nnaida19 & nnaida20 statistics - see attachments 5-15

Analysis of R1_304 - ADC data synchronised

aidas1> ./analyser2 /TapeData/Sept2016/R1_304
 *** GREAT format 3.2.0 analyser - TD - May 2014
 *** ERROR: READ I/O error:       5002
                   blocks:      28207
          ADC data format:  105059677 (  495121.2 Hz)
        Other data format:  125077092 (  589458.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        143 (       0.7 Hz)
                               RESUME:        143 (       0.7 Hz)
                              SYNC100:    1940061 (    9143.0 Hz)
                           FEE64 disc:  123135099 (  580306.3 Hz)
                             MBS info:       1646 (       7.8 Hz)
                           Other info:          0 (       0.0 Hz)

ADC data range bit set:        543 (       2.6 Hz)

Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

Timestamp elapsed time:      212.190 s
 FEE module #:   1 elapsed dead time       0.000 s
 FEE module #:   2 elapsed dead time       0.906 s
 FEE module #:   3 elapsed dead time       0.000 s
 FEE module #:   4 elapsed dead time       0.000 s
 FEE module #:   5 elapsed dead time       3.664 s
 FEE module #:   6 elapsed dead time       0.681 s
 FEE module #:   7 elapsed dead time       0.000 s
 FEE module #:   8 elapsed dead time       0.000 s
 FEE module #:   9 elapsed dead time       0.019 s
 FEE module #:  10 elapsed dead time       0.000 s
 FEE module #:  11 elapsed dead time       0.000 s
 FEE module #:  12 elapsed dead time       0.000 s
 FEE module #:  13 elapsed dead time       0.000 s
 FEE module #:  14 elapsed dead time       0.003 s
 FEE module #:  15 elapsed dead time       0.000 s
 FEE module #:  16 elapsed dead time       0.000 s
 FEE module #:  17 elapsed dead time       0.144 s
 FEE module #:  18 elapsed dead time       0.000 s
 FEE module #:  19 elapsed dead time       0.753 s
 FEE module #:  20 elapsed dead time       0.000 s
 FEE module #:  21 elapsed dead time       0.000 s
 FEE module #:  22 elapsed dead time       0.108 s
 FEE module #:  23 elapsed dead time       0.000 s
 FEE module #:  24 elapsed dead time       0.000 s
 FEE module #:  25 elapsed dead time       0.000 s
 FEE module #:  26 elapsed dead time       0.000 s
 FEE module #:  27 elapsed dead time       0.000 s
 FEE module #:  28 elapsed dead time       0.000 s
 FEE module #:  29 elapsed dead time       0.000 s
 FEE module #:  30 elapsed dead time       0.000 s
 FEE module #:  31 elapsed dead time       0.000 s
 FEE module #:  32 elapsed dead time       0.000 s

*** Program elapsed time:    8.492s ( 3321.523 blocks/s, 207.595 Mb/s)

11.32 DSSSD Bias off
      FEE64 power off

17.00 nnaida1/nnaida2 & nnaida9/nnaida10
      AIDA adaptor PCB rev C -> AIDA adaptor PCB rev D

Adaptor PCB damaged during re-install of AIDA DSSSD mounting bracket
      to adjust to vertical.

nnaida13/nnaida14
      AIDA adaptor PCB rev D -> AIDA adaptor PCB rev D
