Entry time:
Wed Oct 5 07:29:29 2016
Author
*
:
Subject
*
:

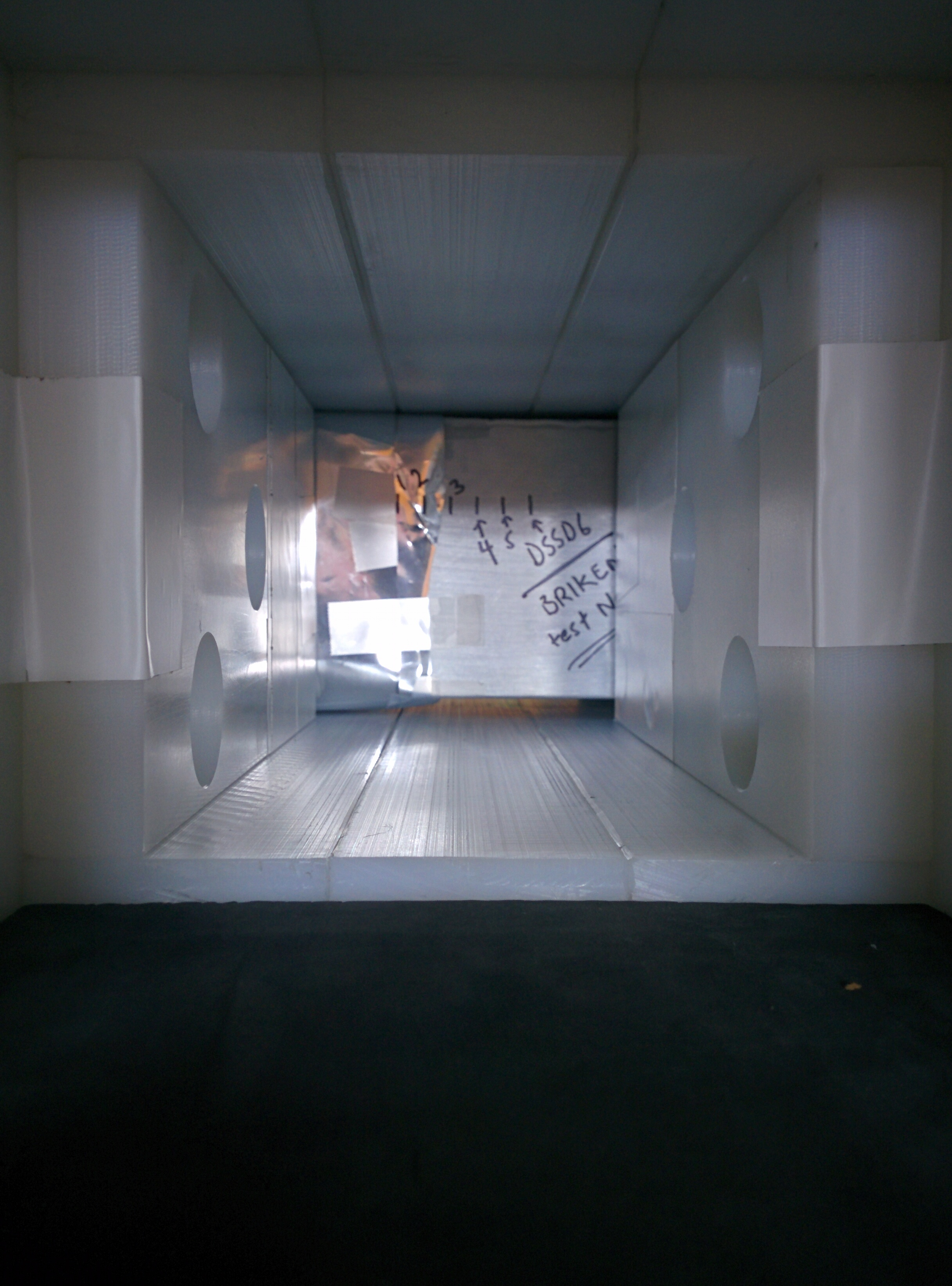

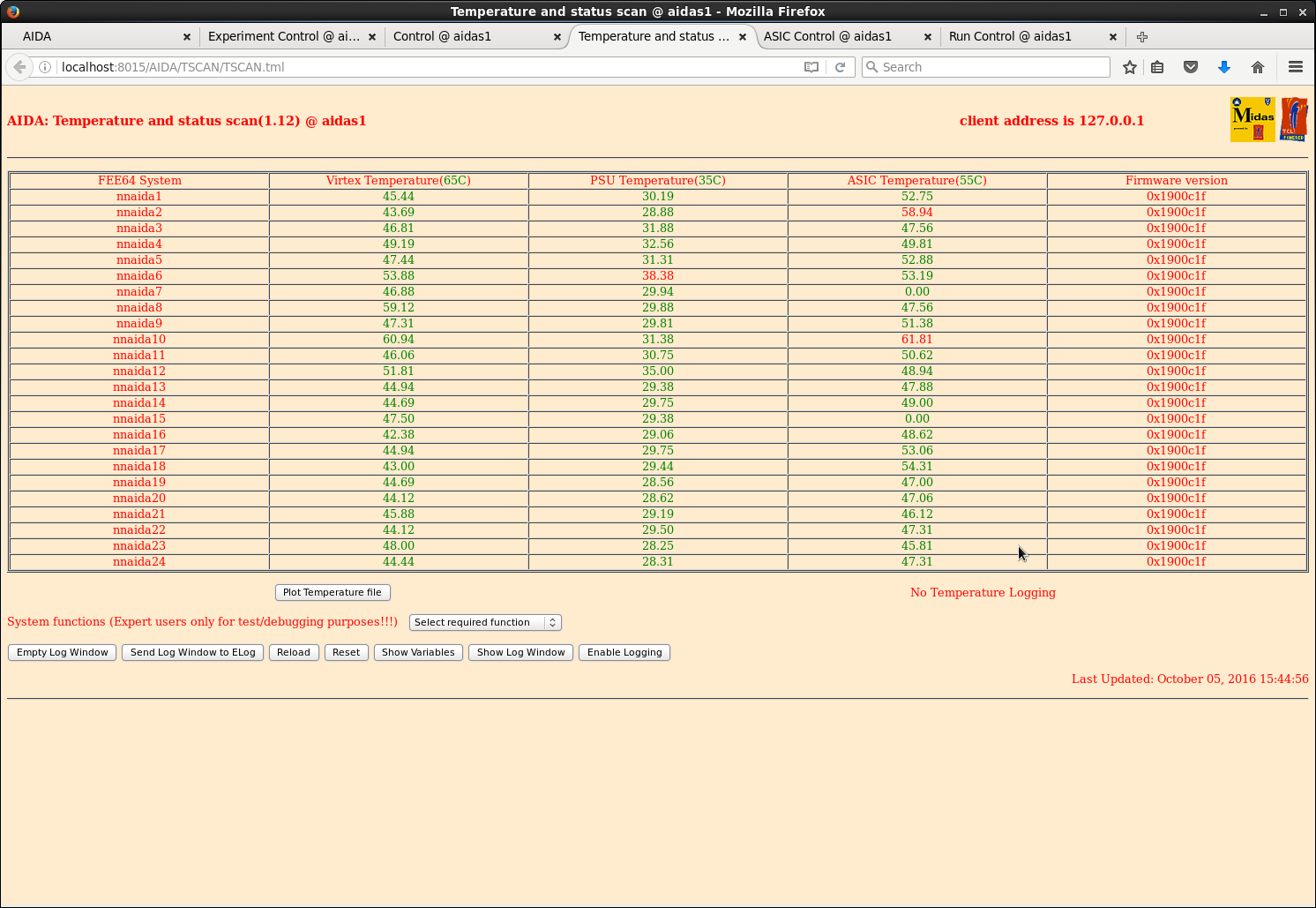

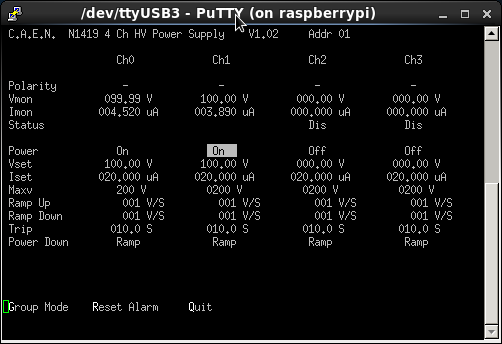

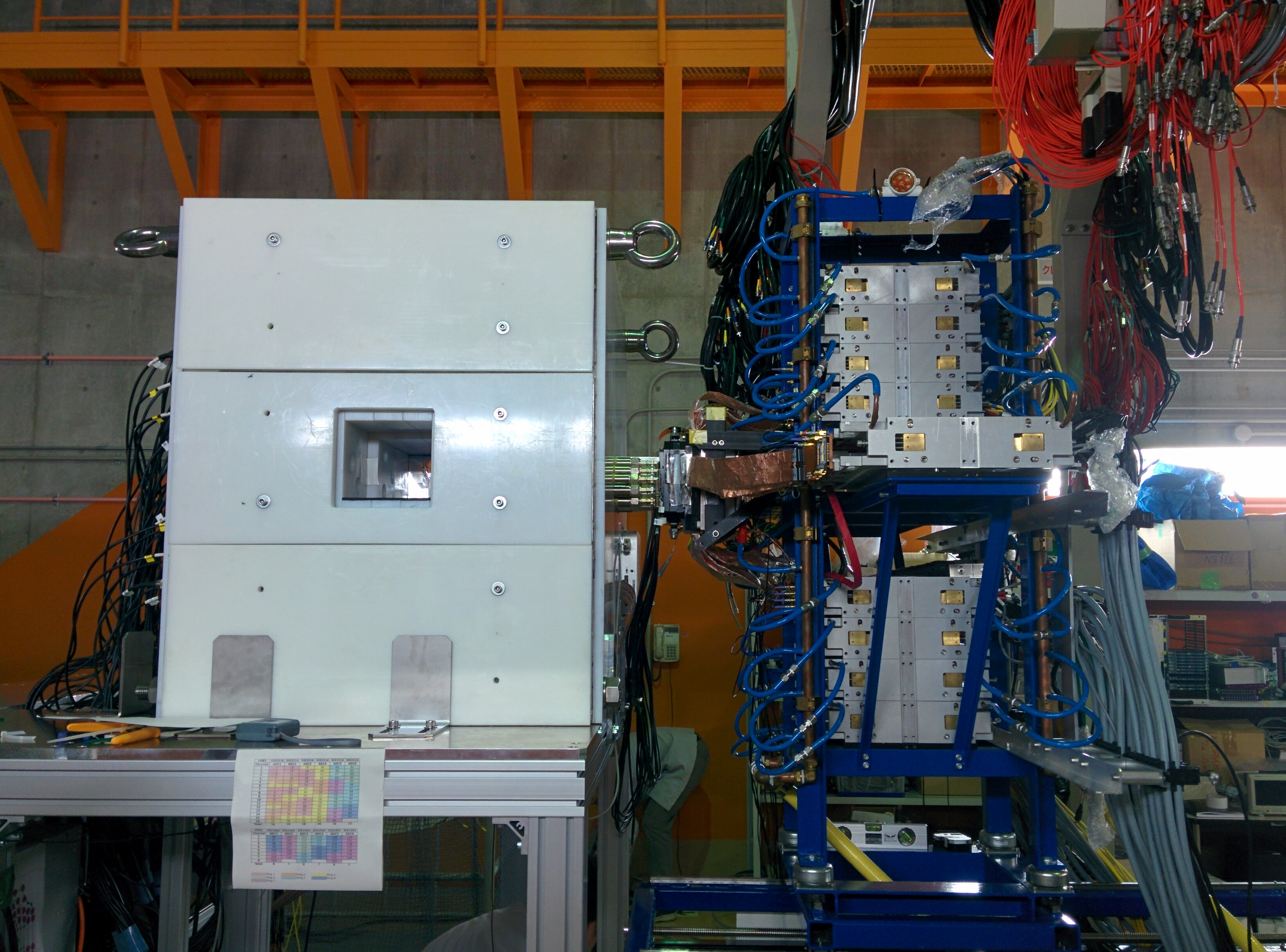

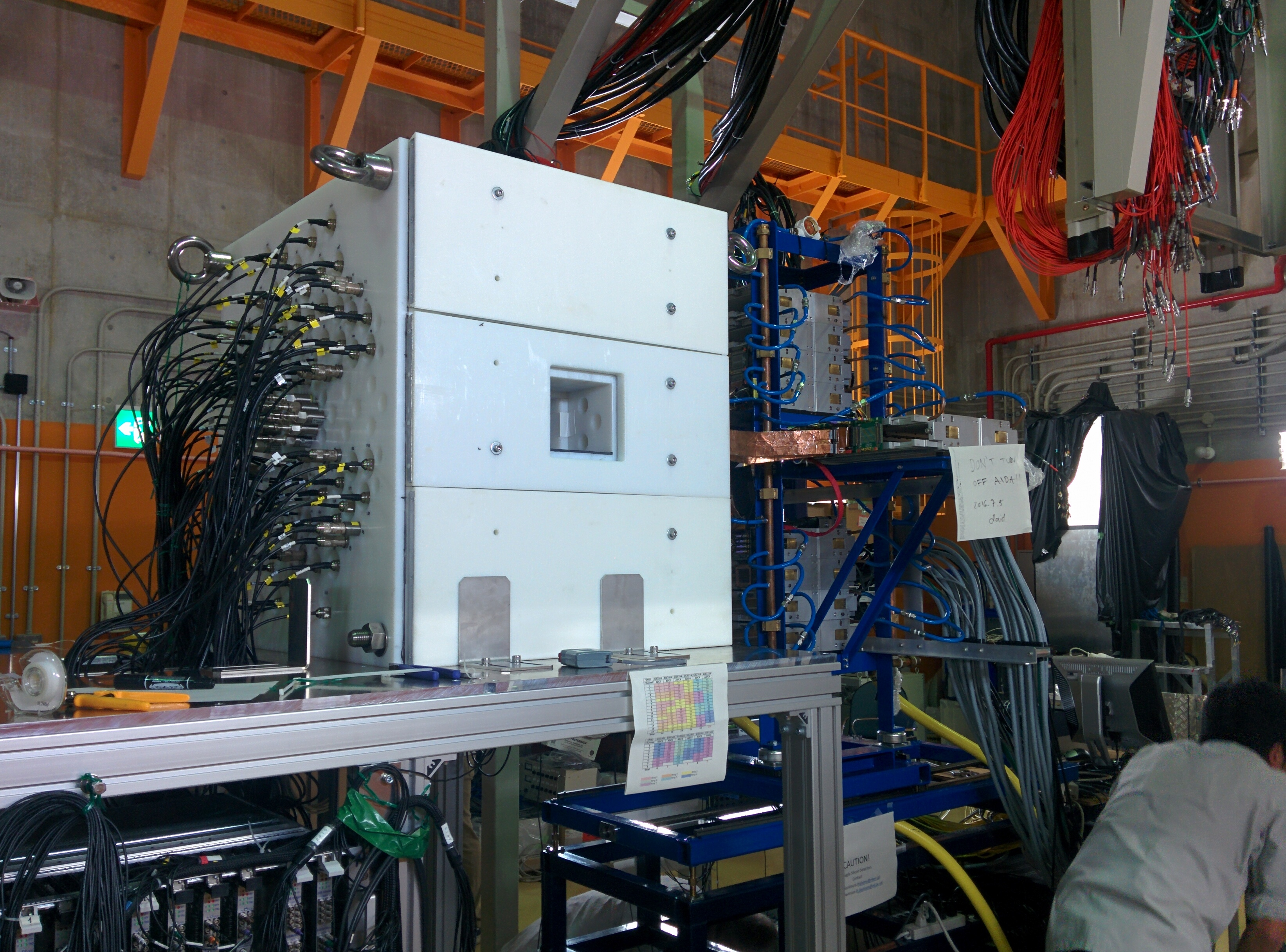

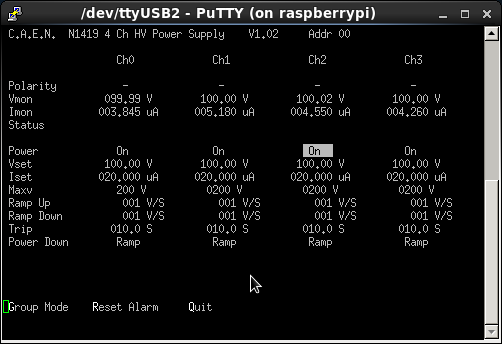

14.30 Adjusted and checked insertion of AIDA snout into BRIKEN (CH2)n moderator. up-down AIDA snout appears centred (@ (CH2)n centre) and tracks into (CH2)n moderator with no significant vertical movement left right AIDA snout appears centred (@ (CH2)n centre) and tracks into (CH2)n moderator with ~3mm horizontal movement left to right (looking upstream) 15.28 DSSSD bias/leakage current OK - see attachments 1-2 FEE64 temperatures OK - see attachment 3 B2F/F11 temperature +24.8 deg C, d.p. +11.8 deg C, RH 44.4% 16.00 Power off to place ac mains distribution unit between AIDA and BRIKEN 18.34 Power up PCS request for remote data/diagnostics collection
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 502x344
Attachment 2:
Original size: 502x344
Attachment 3:
Original size: 1492x1029
Attachment 4:
Original size: 3286x2432
Attachment 5:
Original size: 2432x3286
Attachment 6:
Original size: 2432x3286
Attachment 7:
Original size: 2432x3286
Attachment 8:
Original size: 3286x2432
Attachment 9:
Original size: 2432x3286
Attachment 10:
Original size: 3286x2432
Attachment 11:
Original size: 3286x2432
