Entry time:
Thu Oct 6 11:16:40 2016
Author
*
:
Subject
*
:

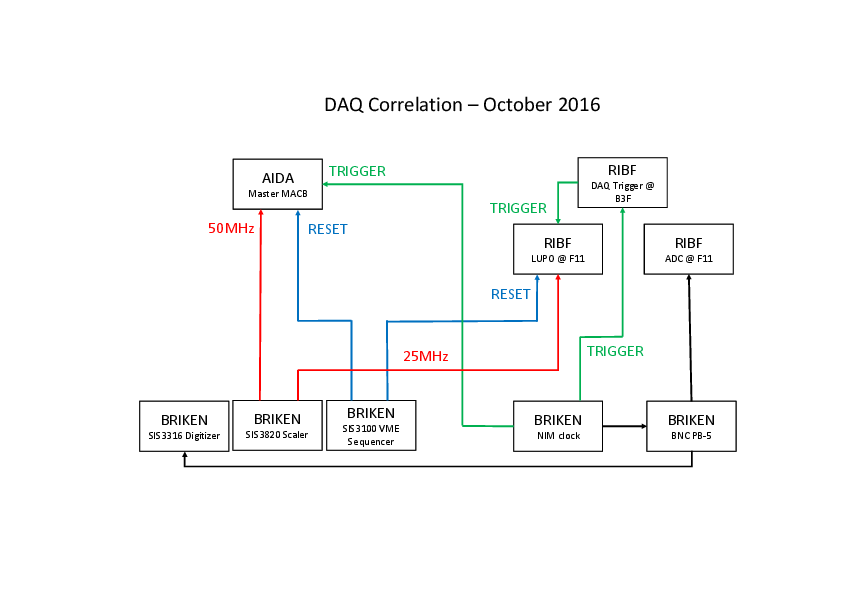

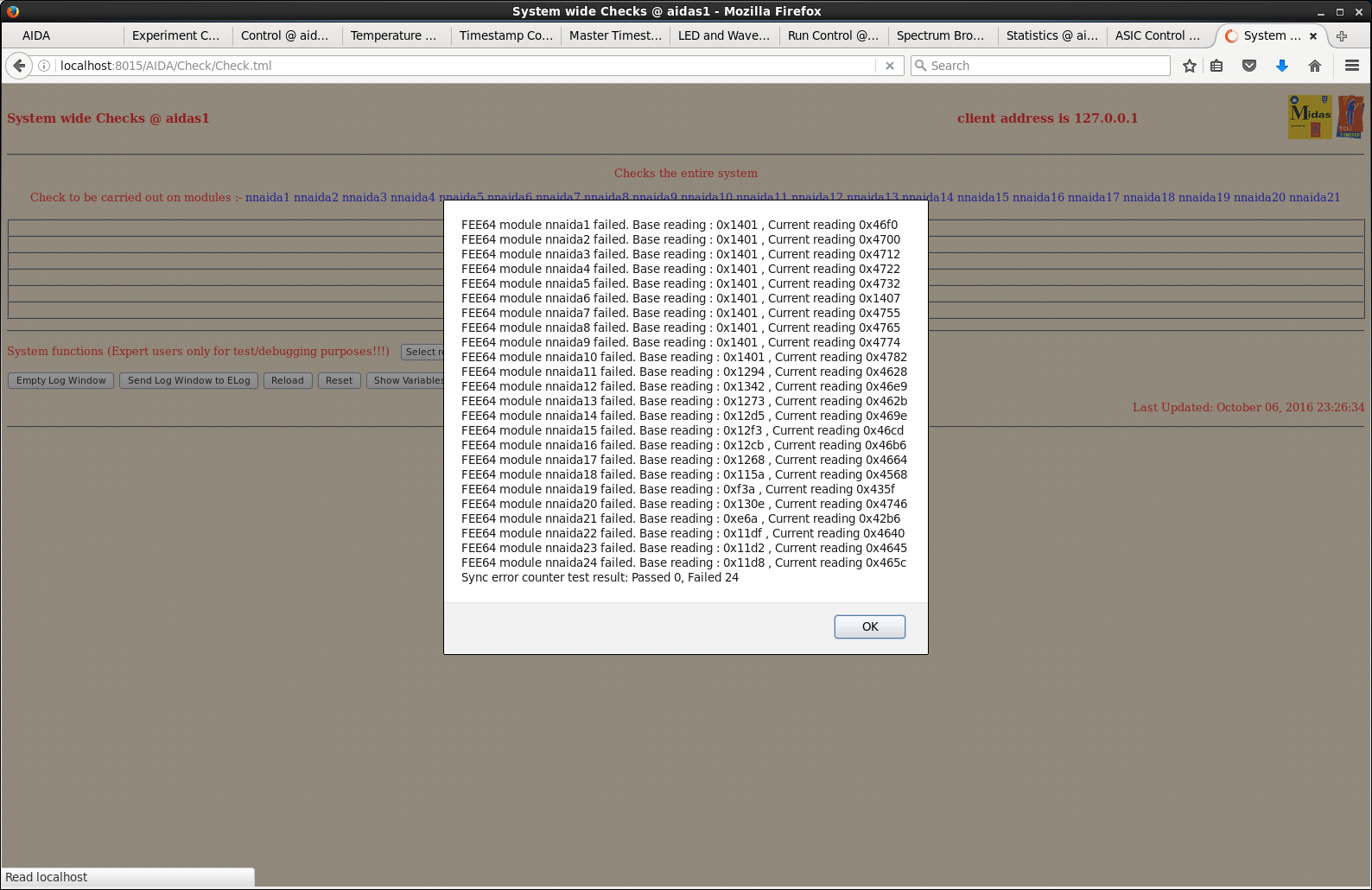

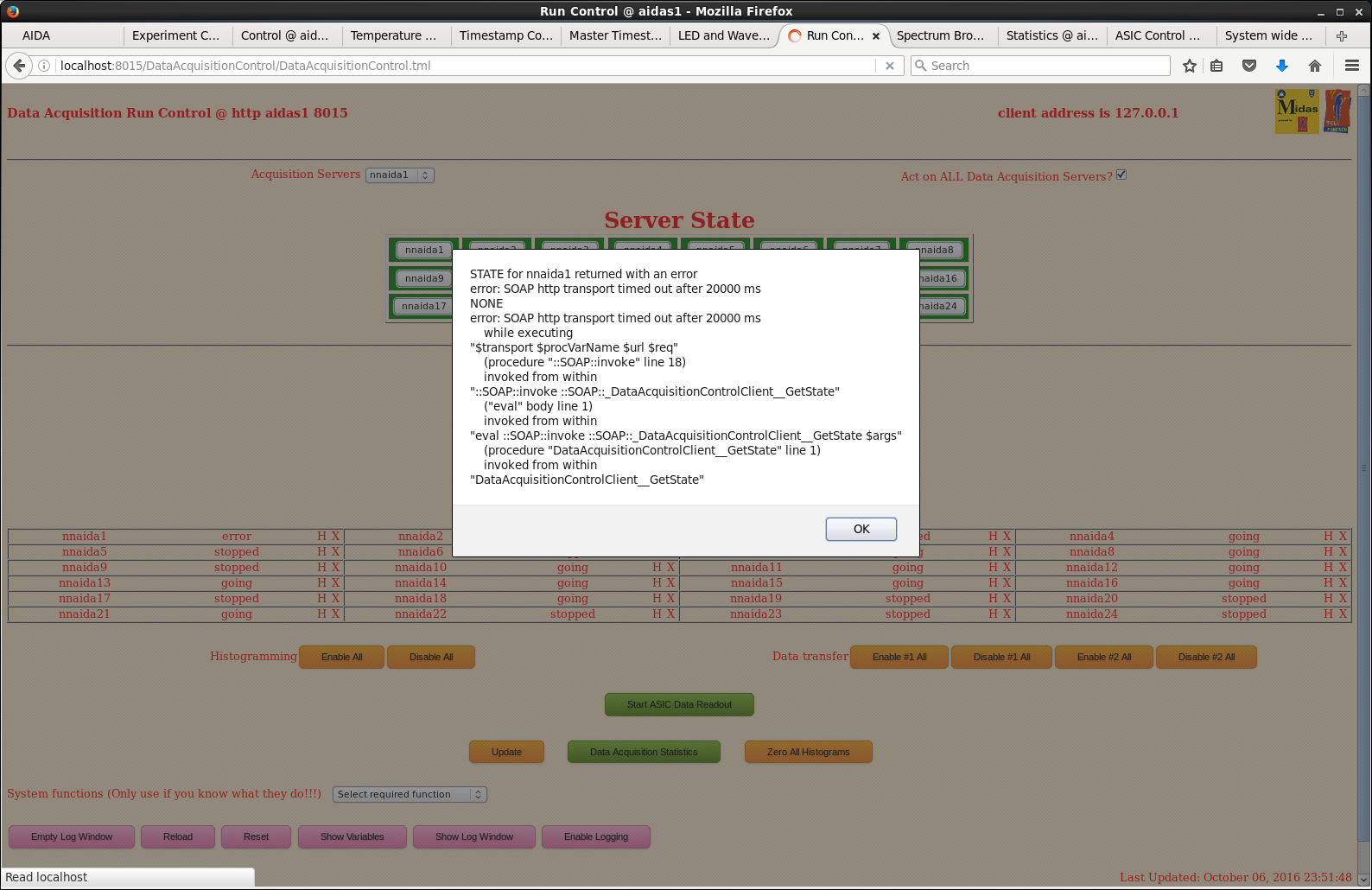

DSSSD bias voltages and leakage currents OK - see attachments 1 & 2 FEE64 temperatures OK - see attachment 3 Install MACB serial #13 (firmware 16.4.15) as Master MACB, mode 5 System-wide checks all OK N.B. nnaida19 ASIC clock OK (cf previous Elog entries) - see attachment 4 Setup AIDA-BELEN DAQ correlation - RIBF still to do - see attachments 5 & 6 reset request and trigger signals to Master MACB - NIM, width ~200ns BELEN clock (10Hz) triggers BELEN BNC PB-5 and AIDA Master MACB *** MBS information: block: 9349 ptr: 3725 data: 0x86807FF5 module: 6 information type: 8 information index: 0 MBS data:7FF5 ts: 0x00000026D0FE47A2 *** MBS information: block: 9349 ptr: 3727 data: 0x8681AF75 module: 6 information type: 8 information index: 1 MBS data:AF75 ts: 0x00000026D0FE47A2 *** MBS information: block: 9349 ptr: 3729 data: 0x86820000 module: 6 information type: 8 information index: 2 MBS data:0000 ts: 0x00000026D0FE47A2 *** MBS information: block: 9362 ptr: 7641 data: 0x8680A5AD module: 6 information type: 8 information index: 0 MBS data:A5AD ts: 0x00000026D196DE82 *** MBS information: block: 9362 ptr: 7643 data: 0x8681AF9B module: 6 information type: 8 information index: 1 MBS data:AF9B ts: 0x00000026D196DE82 *** MBS information: block: 9362 ptr: 7645 data: 0x86820000 module: 6 information type: 8 information index: 2 MBS data:0000 ts: 0x00000026D196DE82 0x0000AF9BA5AD - 0x0000AF757FF5 = 0x2625B8 = 2500024 * 40ns = 100000960ns = 0.1s 0x26D196DE82 - 0x26D0FE47A2 = 0x9896E0 = 10000096 * 10ns = 100000960ns = 0.1s BELEN DAQ manual reset -> Master MACB reset request *** MBS information: block: 9375 ptr: 3043 data: 0x86808A8A module: 6 information type: 8 information index: 0 MBS data:8A8A ts: 0x00000026D22F755E *** MBS information: block: 9375 ptr: 3045 data: 0x8681001F module: 6 information type: 8 information index: 1 MBS data:001F ts: 0x00000026D22F755E *** MBS information: block: 9375 ptr: 3047 data: 0x86820000 module: 6 information type: 8 information index: 2 MBS data:0000 ts: 0x00000026D22F755E 0x0000001F8A8A = 2067082 * 40ns = 82683280ns = 82.7us (which is < 0.1s as expected) *** MBS information: block: 9388 ptr: 3291 data: 0x8680B041 module: 6 information type: 8 information index: 0 MBS data:B041 ts: 0x00000026D2C80C3A *** MBS information: block: 9388 ptr: 3293 data: 0x86810045 module: 6 information type: 8 information index: 1 MBS data:0045 ts: 0x00000026D2C80C3A *** MBS information: block: 9388 ptr: 3295 data: 0x86820000 module: 6 information type: 8 information index: 2 MBS data:0000 ts: 0x00000026D2C80C3A *** MBS information: block: 9401 ptr: 5841 data: 0x8680D5F9 module: 6 information type: 8 information index: 0 MBS data:D5F9 ts: 0x00000026D360A31A *** MBS information: block: 9401 ptr: 5843 data: 0x8681006B module: 6 information type: 8 information index: 1 MBS data:006B ts: 0x00000026D360A31A *** MBS information: block: 9401 ptr: 5845 data: 0x86820000 module: 6 information type: 8 information index: 2 MBS data:0000 ts: 0x00000026D360A31A 19.05 R13_0 starts 23.19 Returned from dinner to find DAQ had stopped writing to disk at 22.19. Merger paused and Tape run ended successfully. No SYNC pulses being issued. Carried out system-wide checks. Clock status, ADC calib and ASIC clock passed for all 24 FEEs. Attachments 7 & 8 show errors messages issued upon fail of SYNC errors and SYNC pulses system checks. From attachment 8 ( 6016000 SYNC / 9150 SYNC/s ) * 24 ~ 15800s => DAQ stopped 23.07 which is not consistent with observation as final write to disk files was c. 22.19 - note 23.21 for R13_47 indicates file closed at 23.21 cf. access times for R13_46, _45 etc -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:09 R13_0 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:13 R13_1 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:50 R13_10 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:54 R13_11 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:58 R13_12 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:02 R13_13 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:06 R13_14 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:10 R13_15 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:14 R13_16 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:19 R13_17 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:23 R13_18 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:27 R13_19 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:17 R13_2 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:31 R13_20 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:35 R13_21 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:39 R13_22 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:43 R13_23 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:47 R13_24 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:51 R13_25 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:55 R13_26 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 20:59 R13_27 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:03 R13_28 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:08 R13_29 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:21 R13_3 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:12 R13_30 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:16 R13_31 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:20 R13_32 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:24 R13_33 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:28 R13_34 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:32 R13_35 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:36 R13_36 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:40 R13_37 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:44 R13_38 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:48 R13_39 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 19:25 R13_4 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:52 R13_40 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 21:56 R13_41 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 22:00 R13_42 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 22:04 R13_43 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 22:08 R13_44 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 22:13 R13_45 -rw-rw-rw-. 1 npg npgstaff 2097152000 Oct 6 22:17 R13_46 -rw-rw-rw-. 1 npg npgstaff 777519104 Oct 6 23:21 R13_47 23.21 R13_47 file closed 23.50 On trying to stop DAQ received nnaida1 timeout error (attachment 9). DAQ power-cycled, re-started with no data transfer
