Entry time:

Sun Oct 9 11:47:34 2016

Author*:

Subject*:

12.30 Following scheduled power outages of October 8

power up AIDA and Julabo FL11006 recirculating chiller

Julabo FL11006 set point +20 deg C
      Temperature +25.3 deg C, d.p. +10.6 deg C, RH 39.3%

      boot aidas1
      aidas1 filesystem checks (fsck) run from c. 12.30 to 15.58

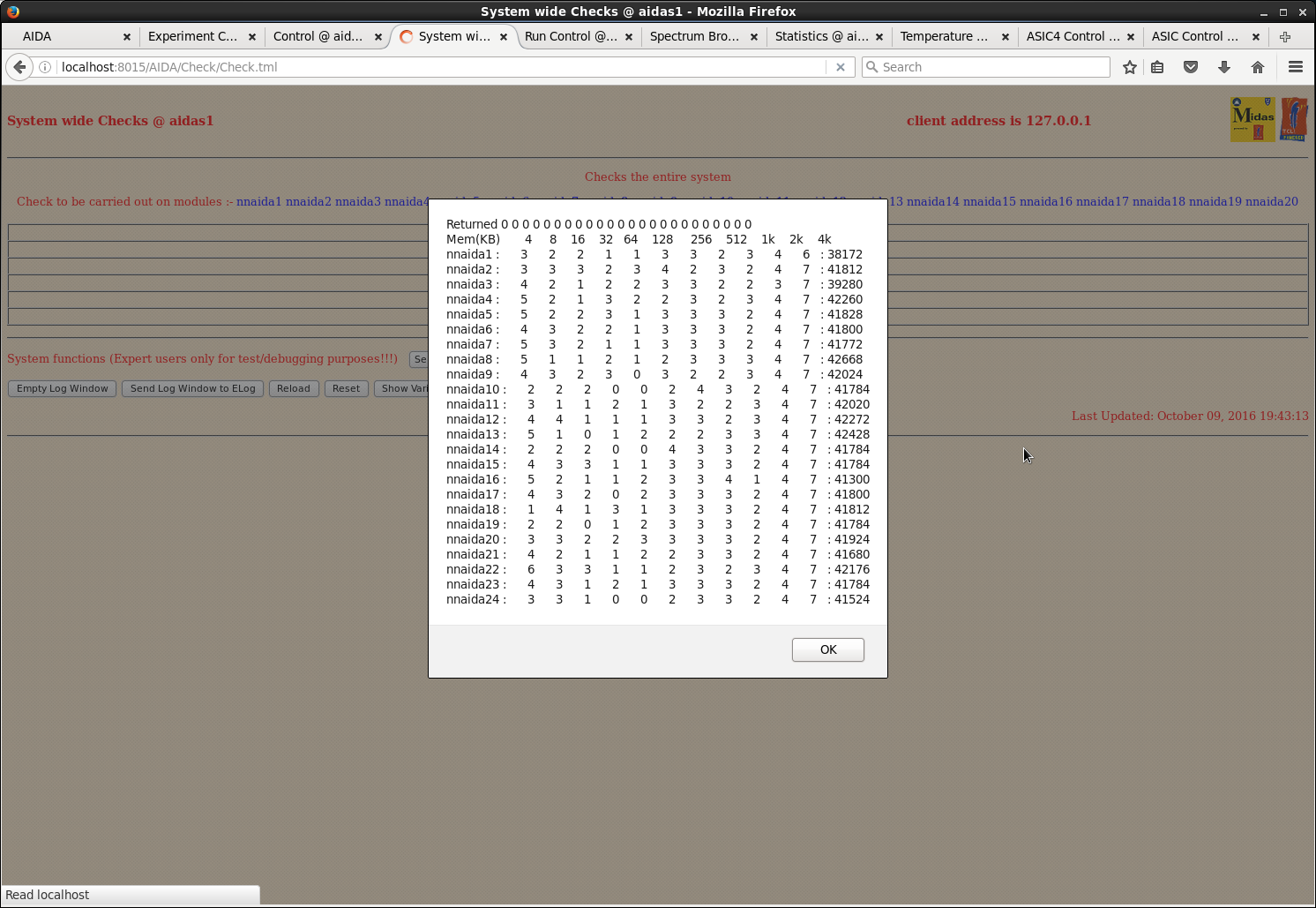

System wide checks OK *except* nnaida21 failed ADC calibration

16.55 DAQ starts (no data transfer)

ASIC settings 2016Sep02-18.17.01
      slow comparator threshold 0x10 -> 0x0a
      TS_SYNC_PHASE 0

DSSSD bias & leakage current OK - see attachments 8 & 9
      FEE64 temperatures OK - see attachment 7

17.30 DAQ stops

DSSSD bias off
      AIDA withdrawn from (CH2)n moderator
      DSSSD bias on

17.40 DAQ starts

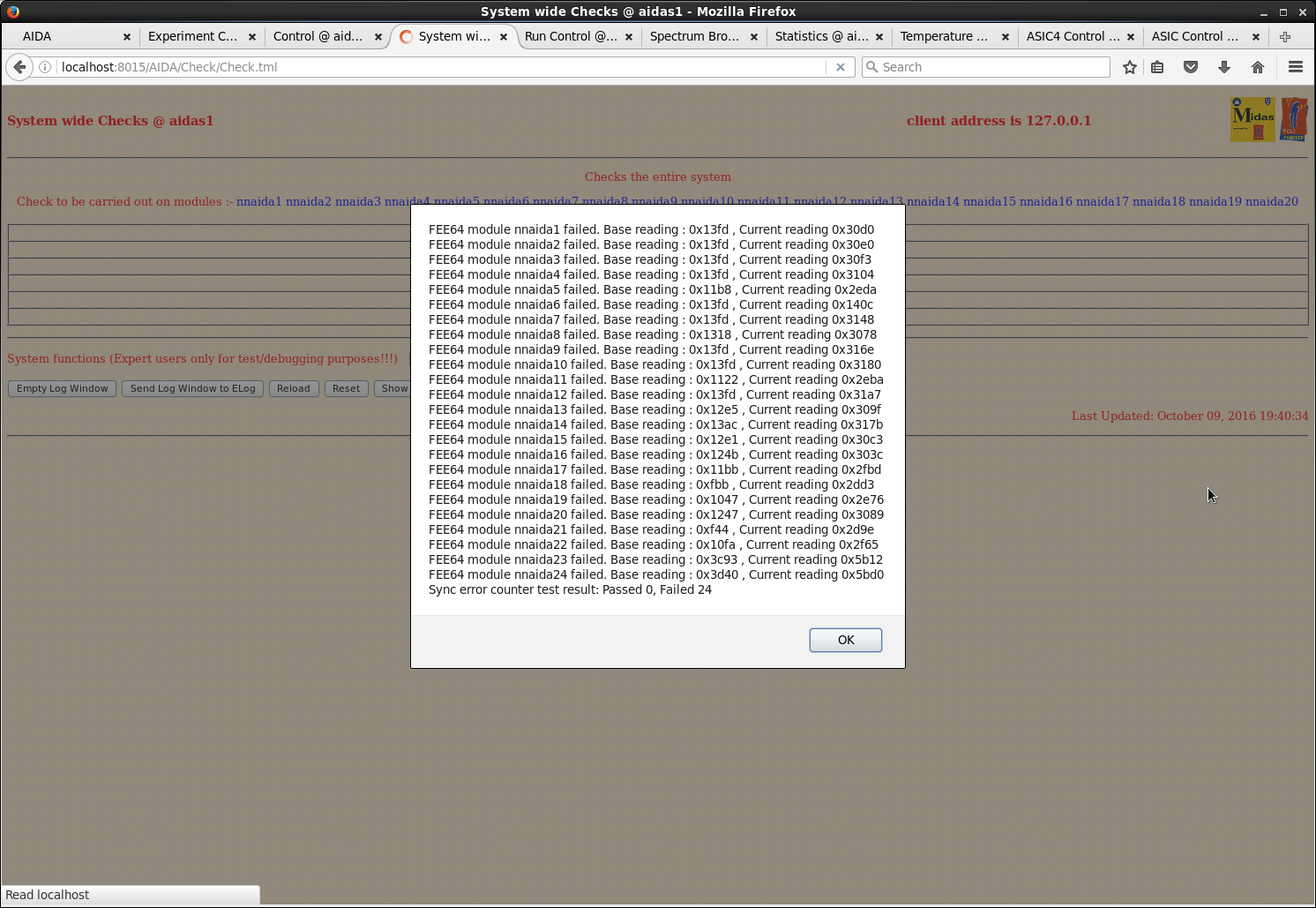

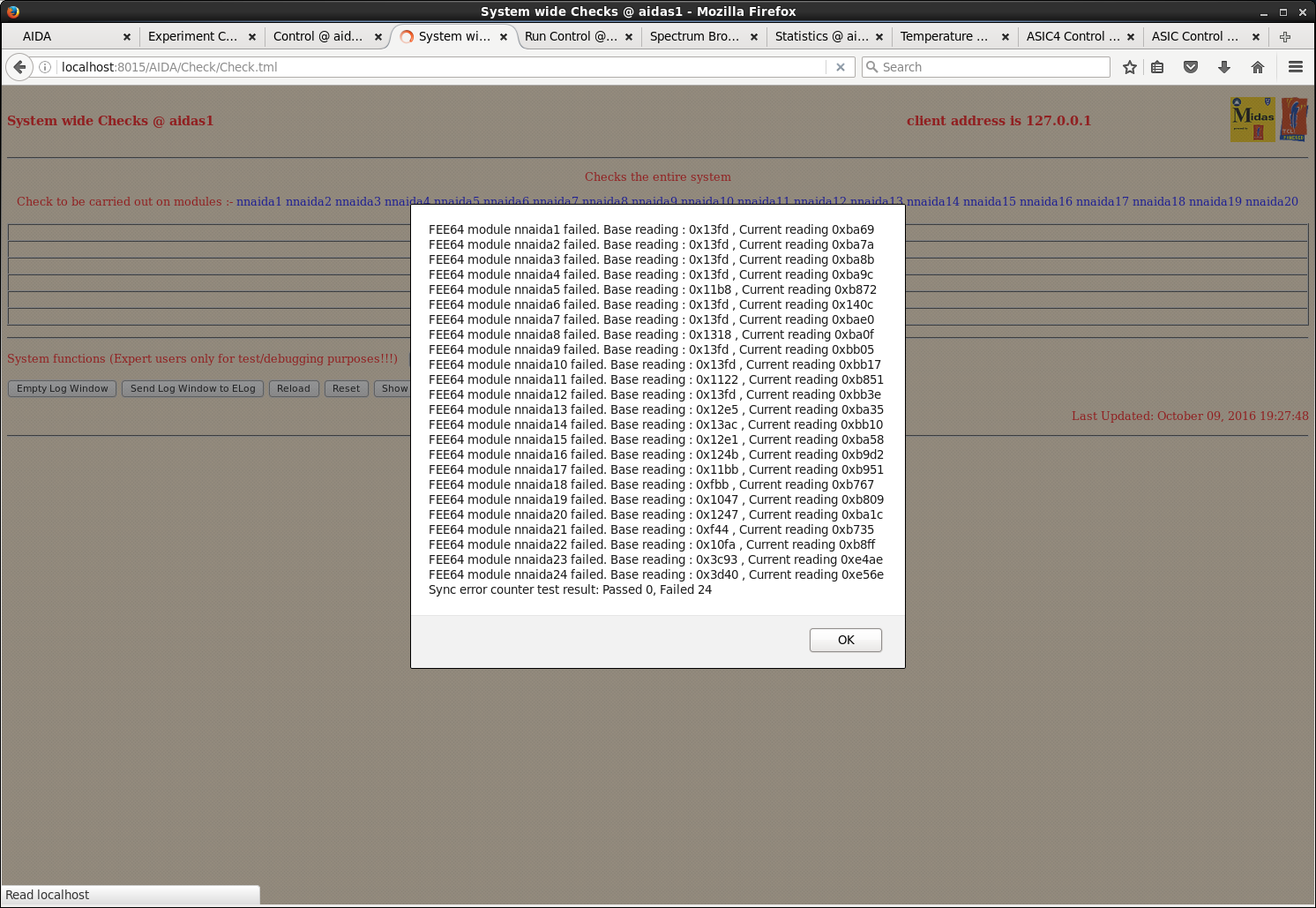

19.15 Noticed DAQ stopped producing SYNC pulses at some point.
      A reload of the run control tab sees them all as going still, but only 20% are reporting any SYNC output in the stats page.
      All FEEs have failed the SYNC errors since baseline check and the values reported by the SYNC pulses received tests vary
      by +- 3 of a central value.
      See attachments 1-6.
      The merger and tape server were not set up before this run and are not currently running.

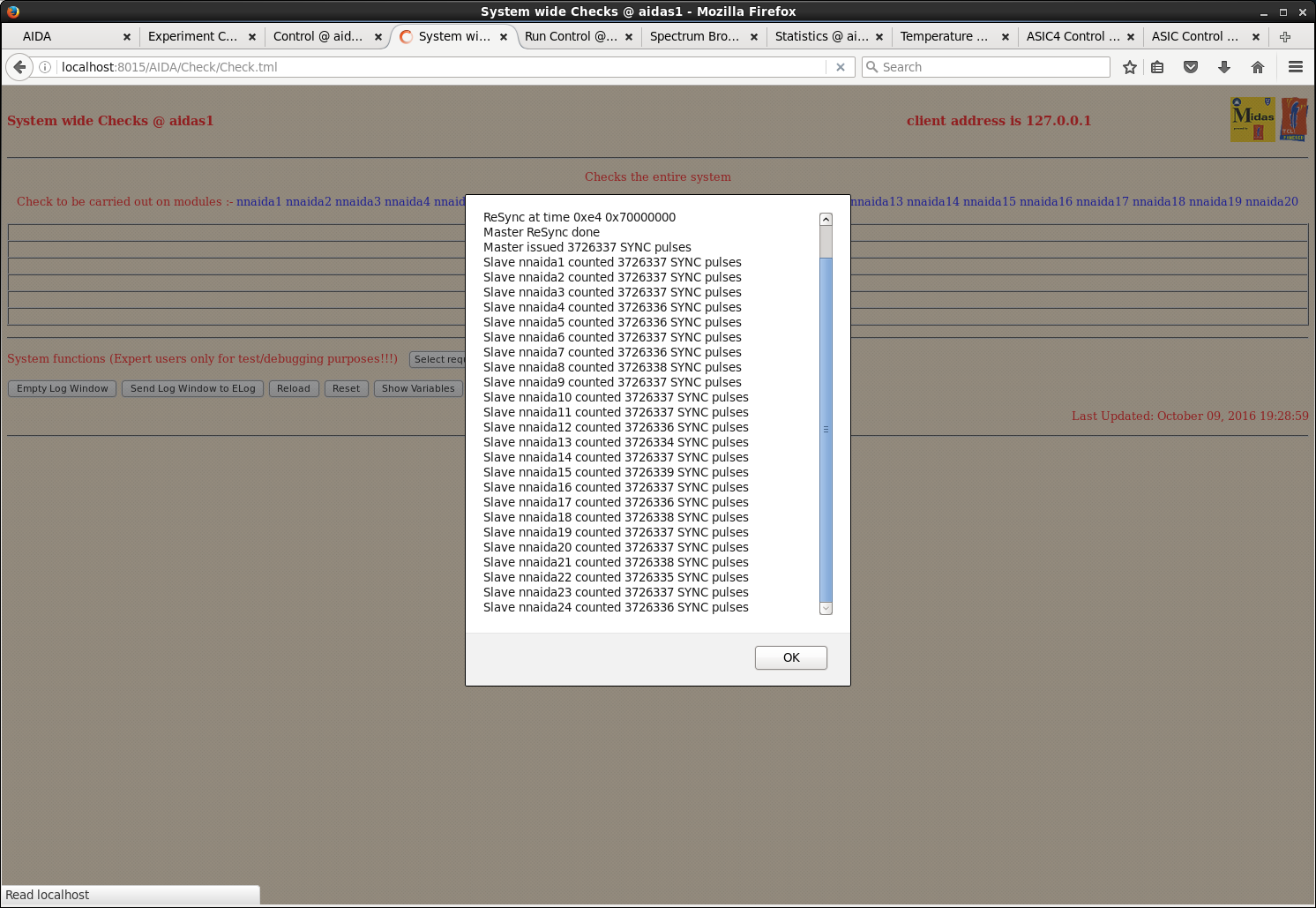

TS_SYNC phase changed from 0 -> 1 and ReSYNC

22.20 DAQ OK

AIDA SYNCs OK
      All system-wide checks OK *except* nnaida21 fails ADC calibration (no change)

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:
