Entry time:
Mon Oct 10 03:15:59 2016
Author
*
:
Subject
*
:

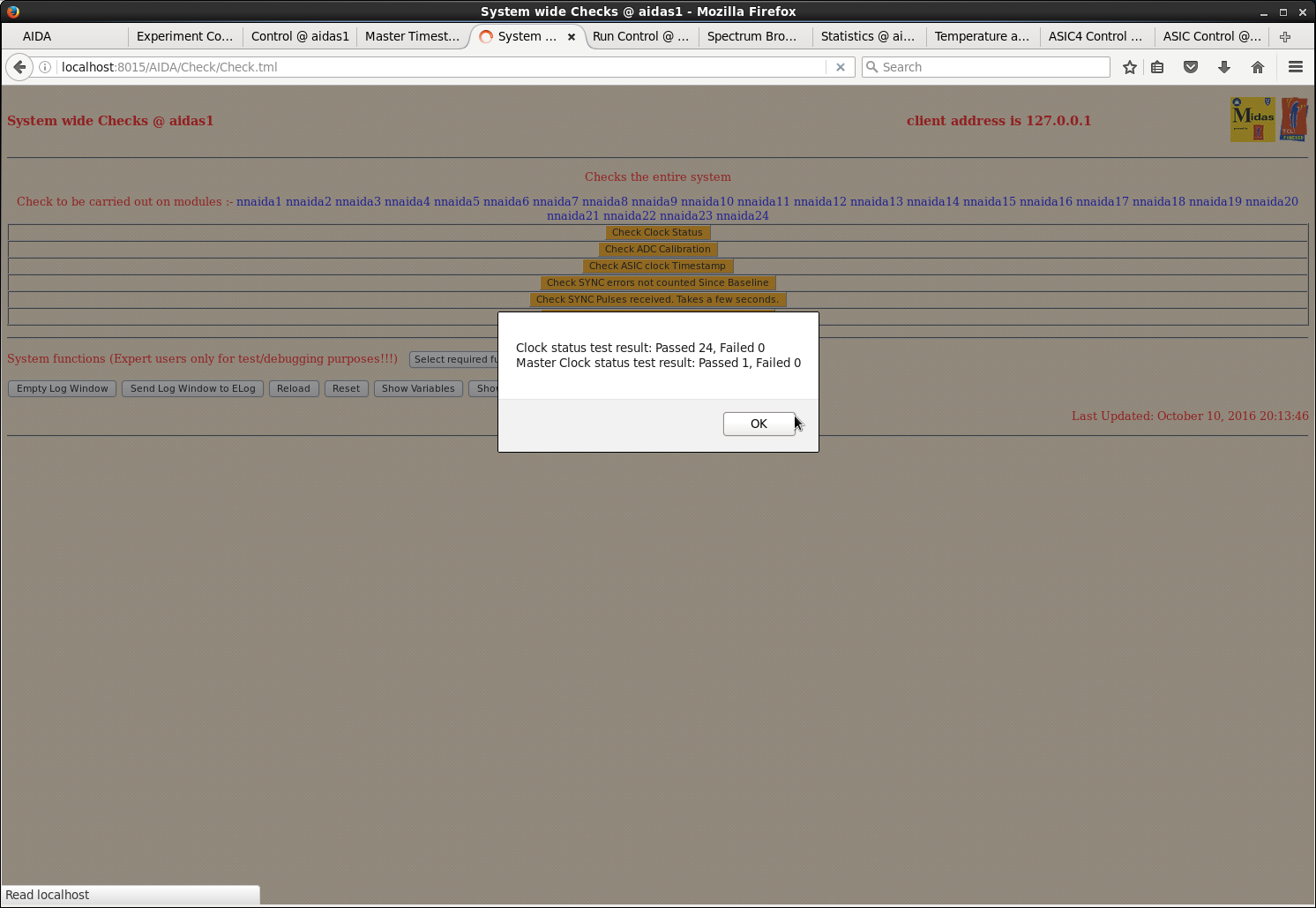

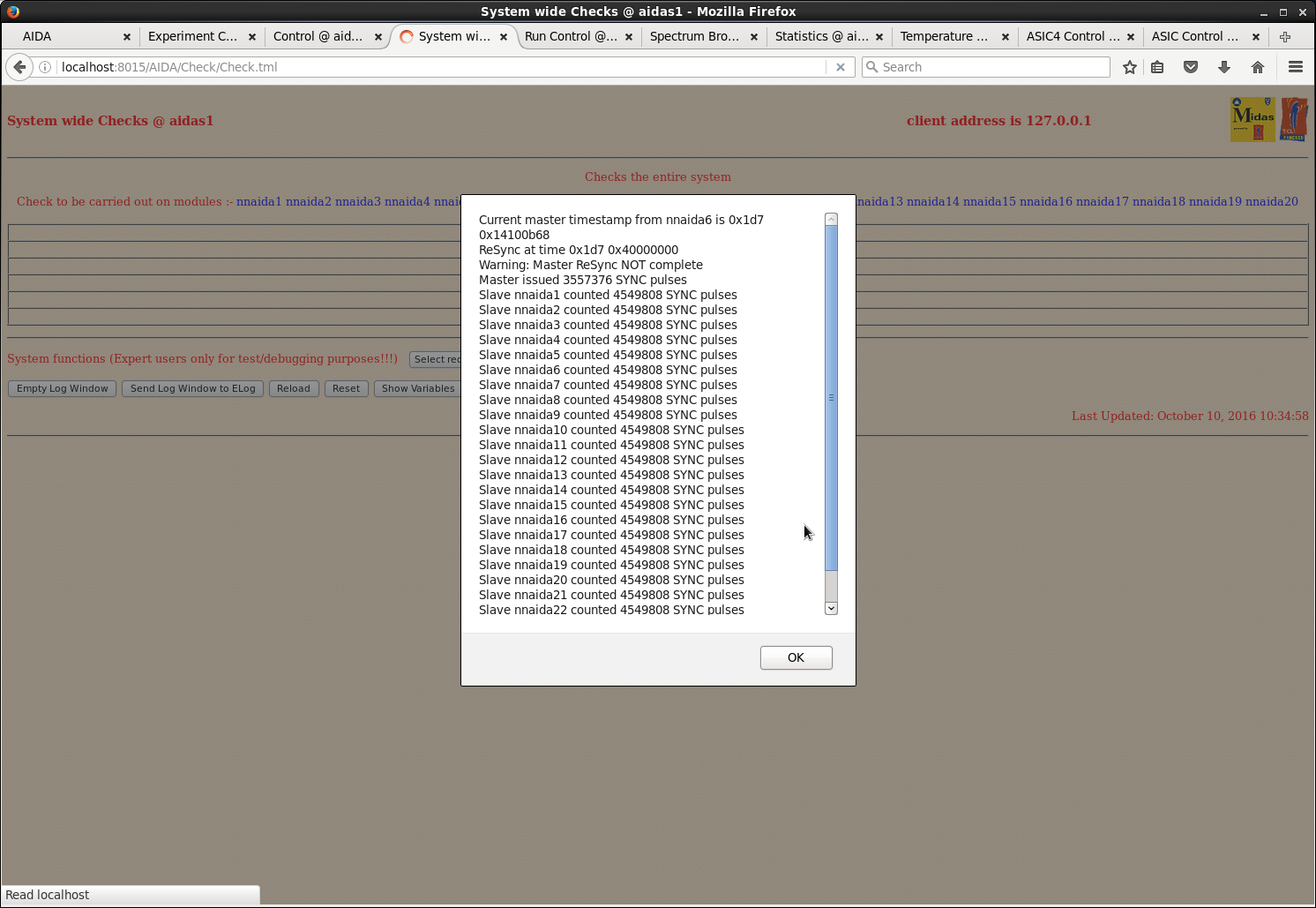

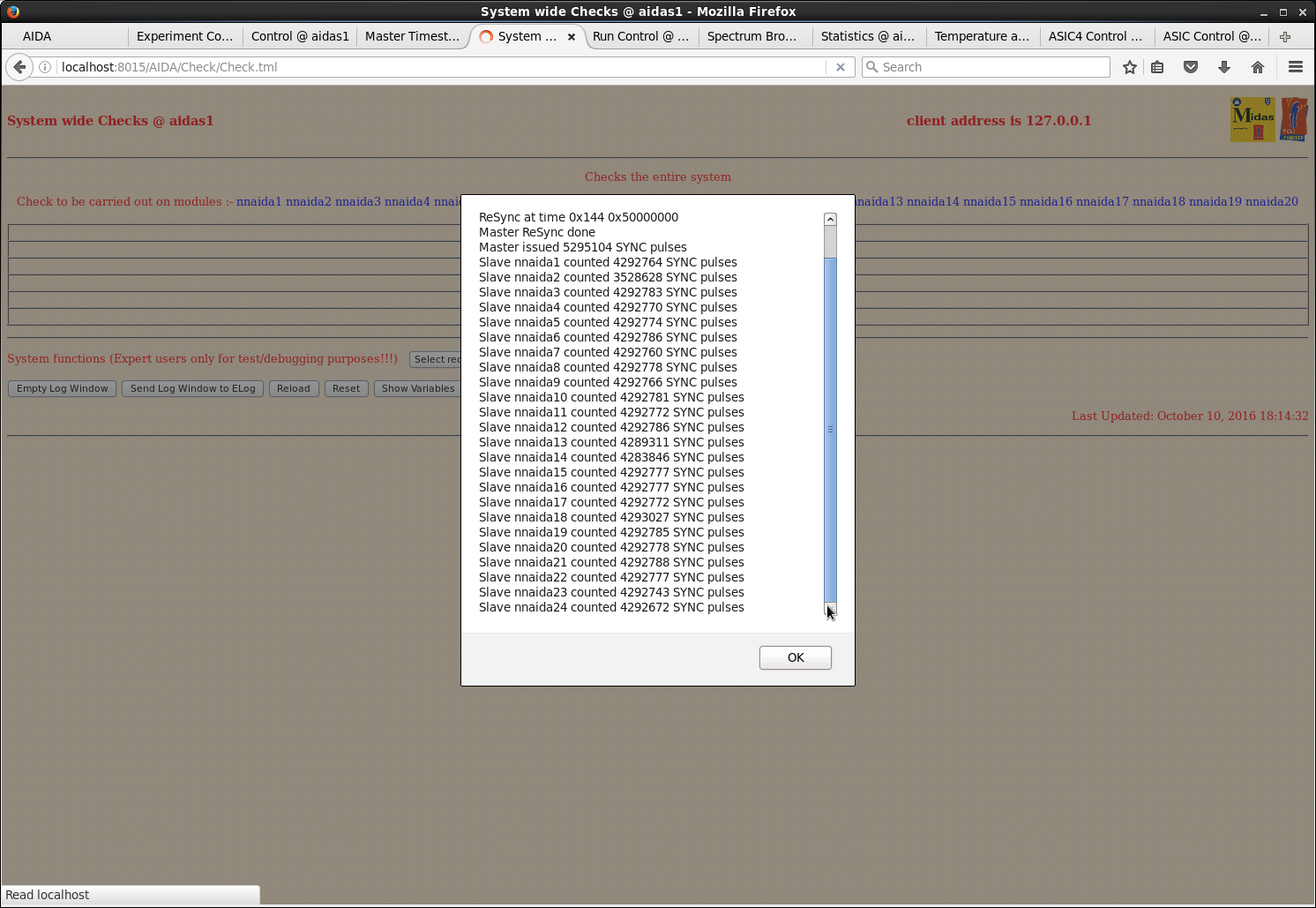

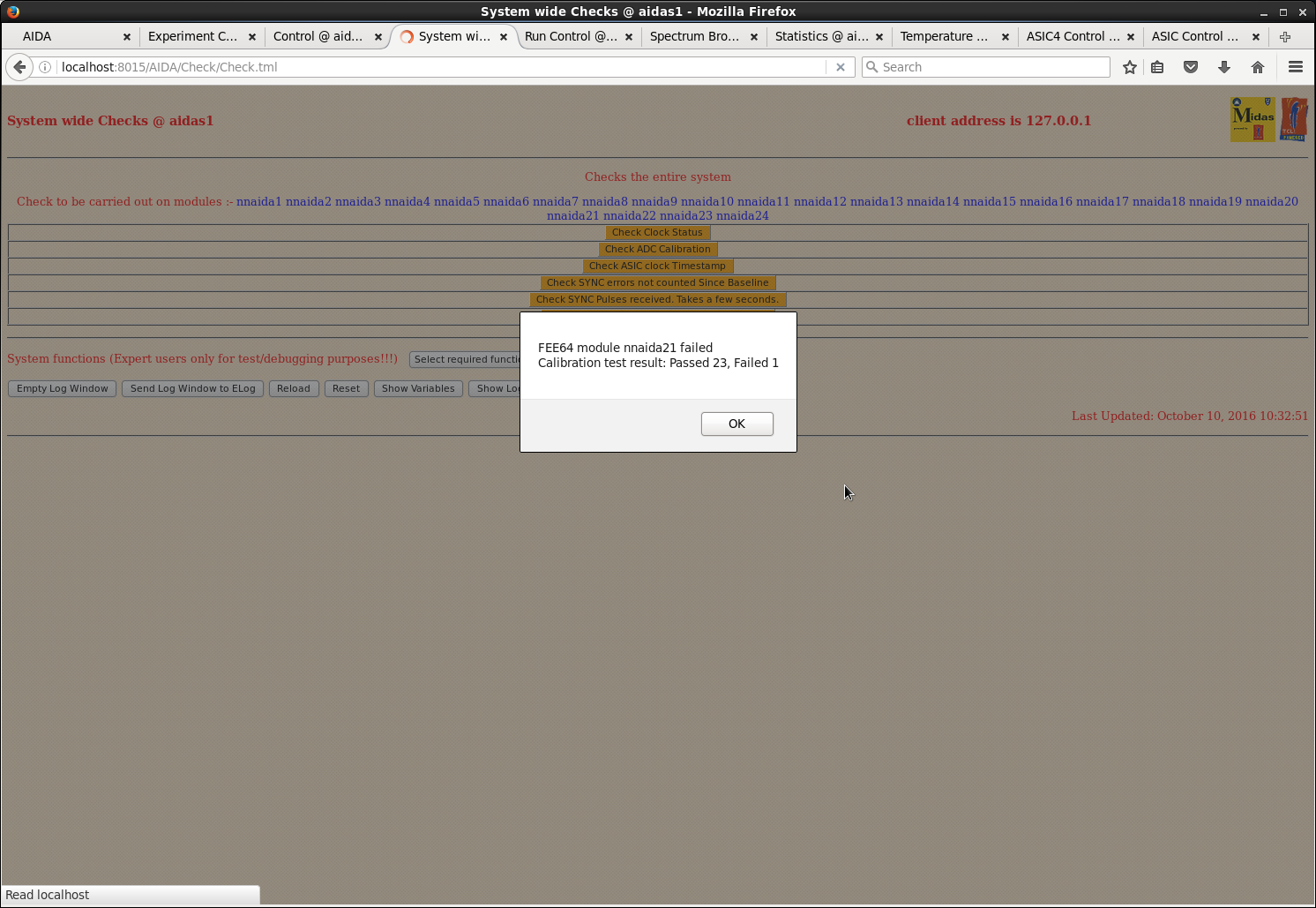

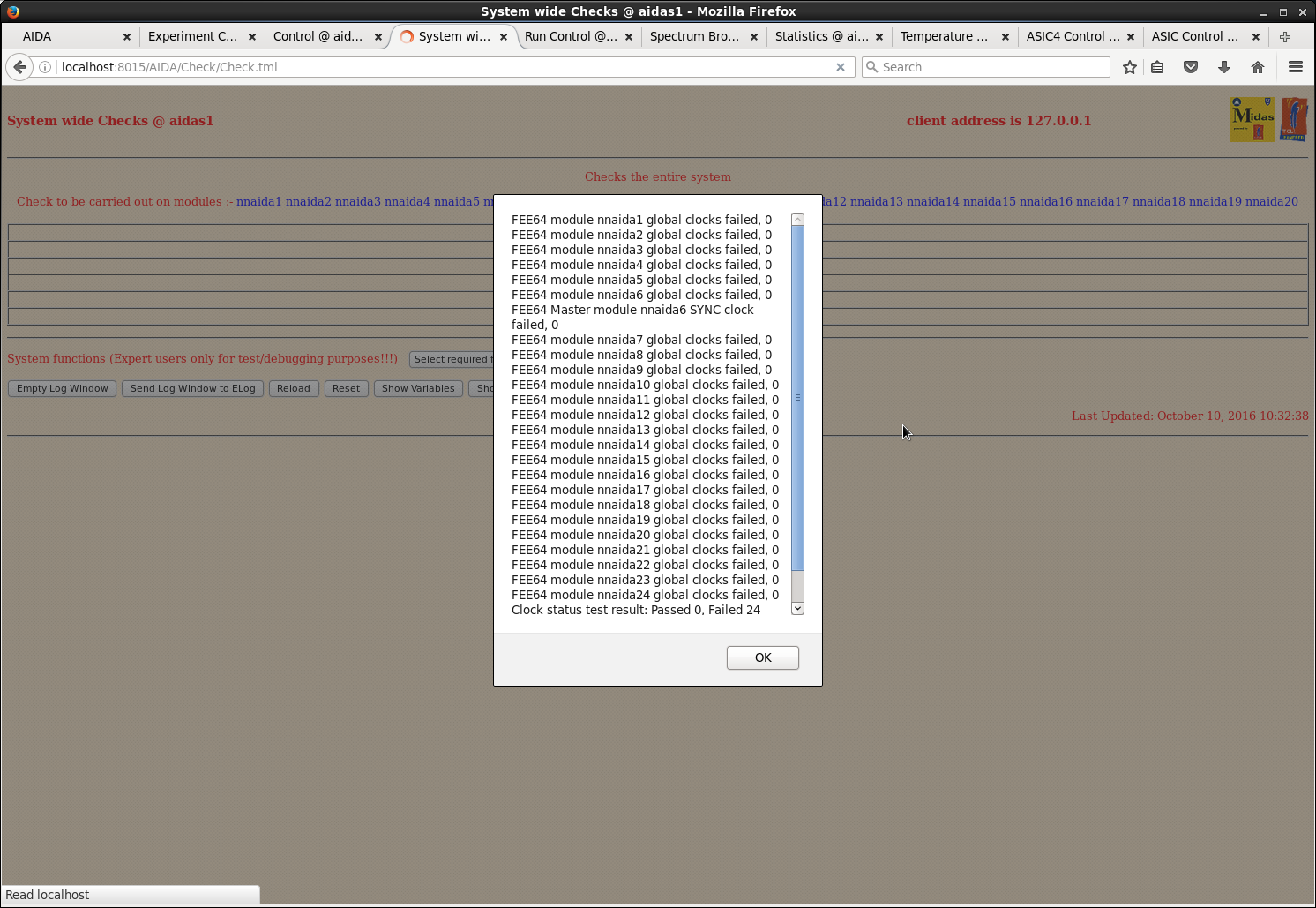

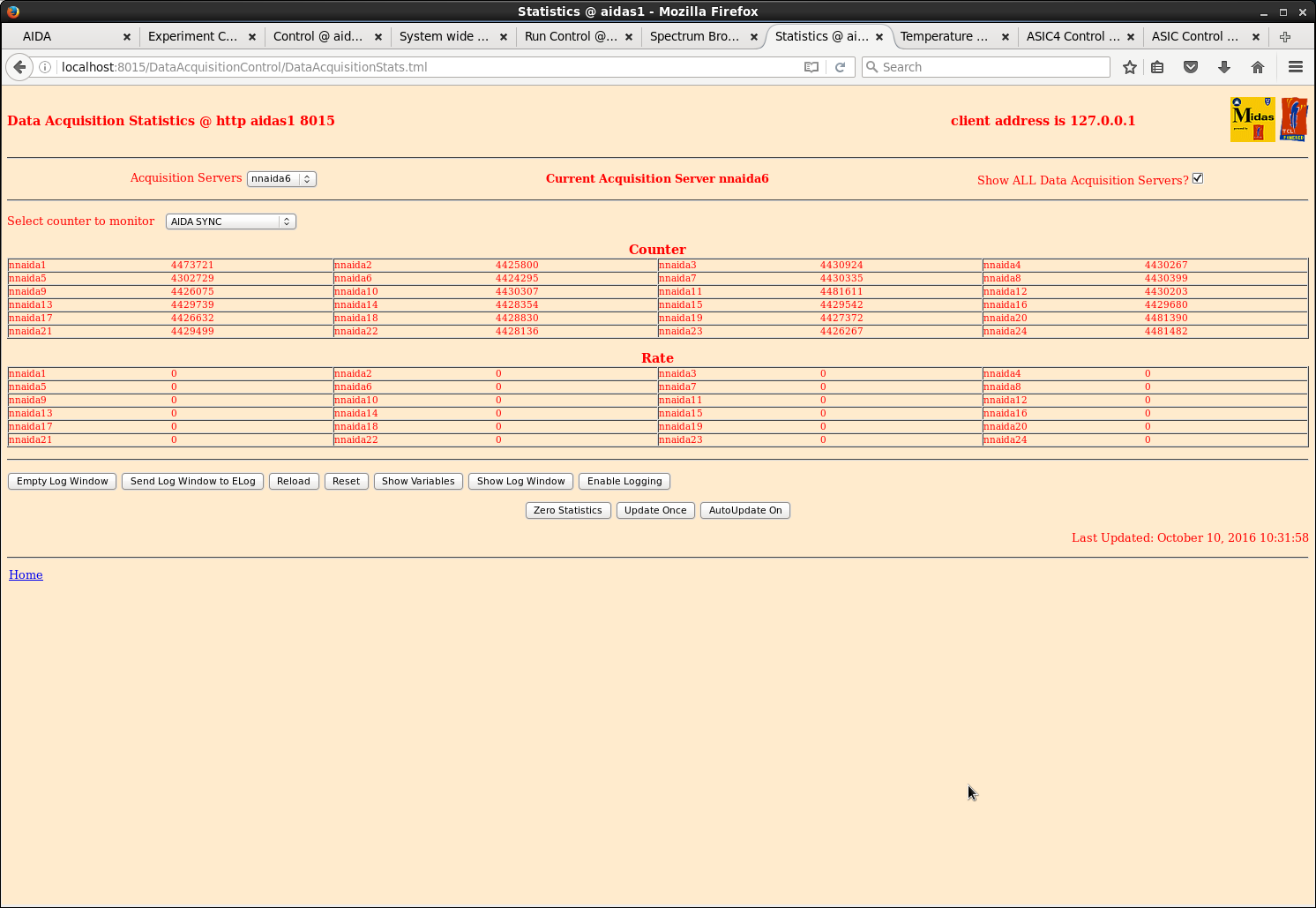

10.30 DAQ found stopped All FEE64 AIDA SYNC rates zero, AIDA SYNC count ~ 4.4M => DAQ stopped @ 01.40 3He detector DAQ off - no 50MHz clock to Master MACB System wide checks - see attachments 26-18 N.B. It would appear that the DAQ stalled (TS_SYNC_PHASE 1) c. 01.40 and at some later time (c. 06.00) the 3He detector DAQ was powered off which means that AIDA lost the external 50MHz clock to the Master MACB - system-wide screenshots should be interpreted with caution. 14.15 3He detector DAQ 50MHz clock restarted VME and NIM crates ON Excecute command ConfClock_50MHz on 3He detector DAQ computer Power cycle AIDA FEE64s Set TS_SYNC_PHASE 2 DSSSD bias/leakage current OK FEE64 temperatures OK *All* system-wide checks OK B2F/F11 temperature + deg C, d.p. + deg C,RH % ASIC settings 2016Sep02-18.17.01 slow comparator 0x10 -> 0x0a Master MACB serial #13 (see https://elog.ph.ed.ac.uk/AIDA/367) Master MACB mode 5 14.20 DAQ starts (no data transfer) 18.10 DAQ found stopped All FEE64 AIDA SYNC rates zero, AIDA SYNC count ~ 3.4M => DAQ stopped @ 16.50 System-wide checks - see attachments 16-9 Power cycle AIDA FEE64s Set TS_SYNC_PHASE 3 ASIC settings 2016Sep02-18.17.01 slow comparator 0x10 -> 0x0a 20.10 DAQ found stalled System-wide checks - see attachments 8-1 Power cycle AIDA FEE64s Set TS_SYNC_PHASE 0 ASIC settings 2016Sep02-18.17.01 slow comparator 0x10 -> 0x0a 20.35 DAQ starts (no data transfer) slow comparator 0x10 -> 0x0a 18.35 DAQ starts (no data transfer) 20.16 DAQ found stopped All FEE64 AIDA SYNC rates zero, AIDA SYNC count ~ 120k (17/24 FEE64s) or 1.49M (7/24) => FEE64s stopped @ 18.40 & 19.40 20.36 DAQ starts (no data transfer) 23.47 DAQ OK
