Entry time:
Sat Oct 15 03:27:31 2016
Author
*
:
Subject
*
:

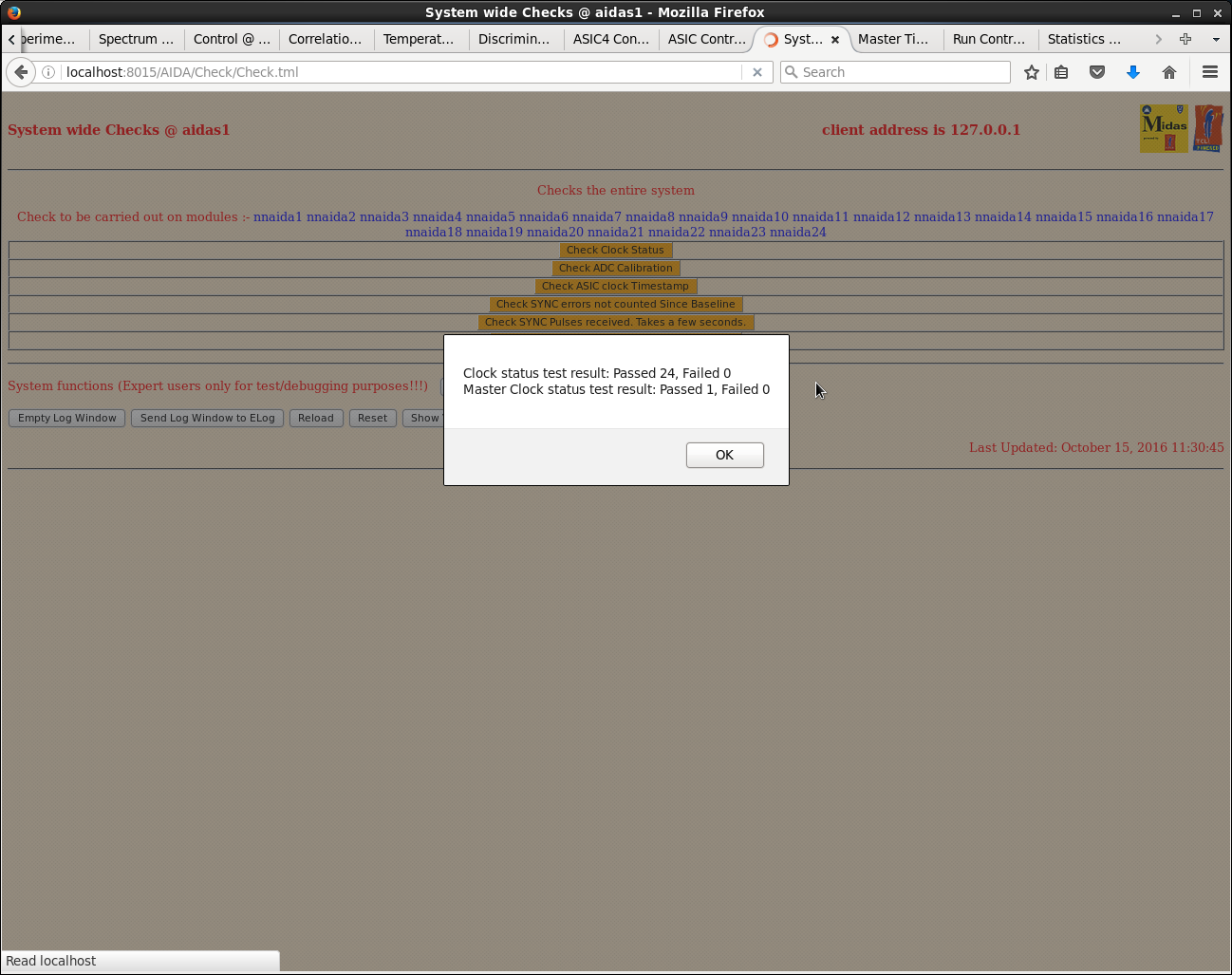

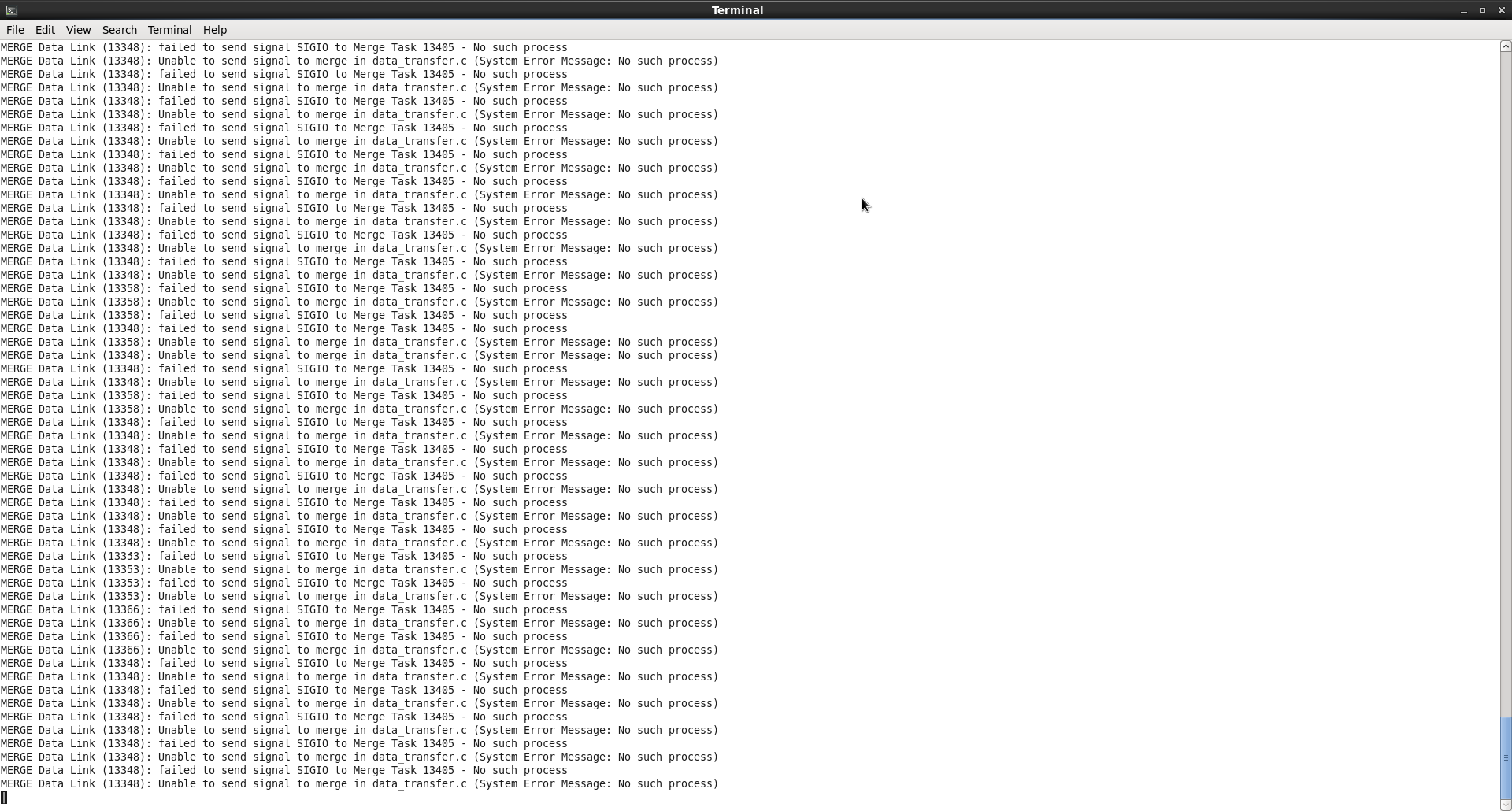

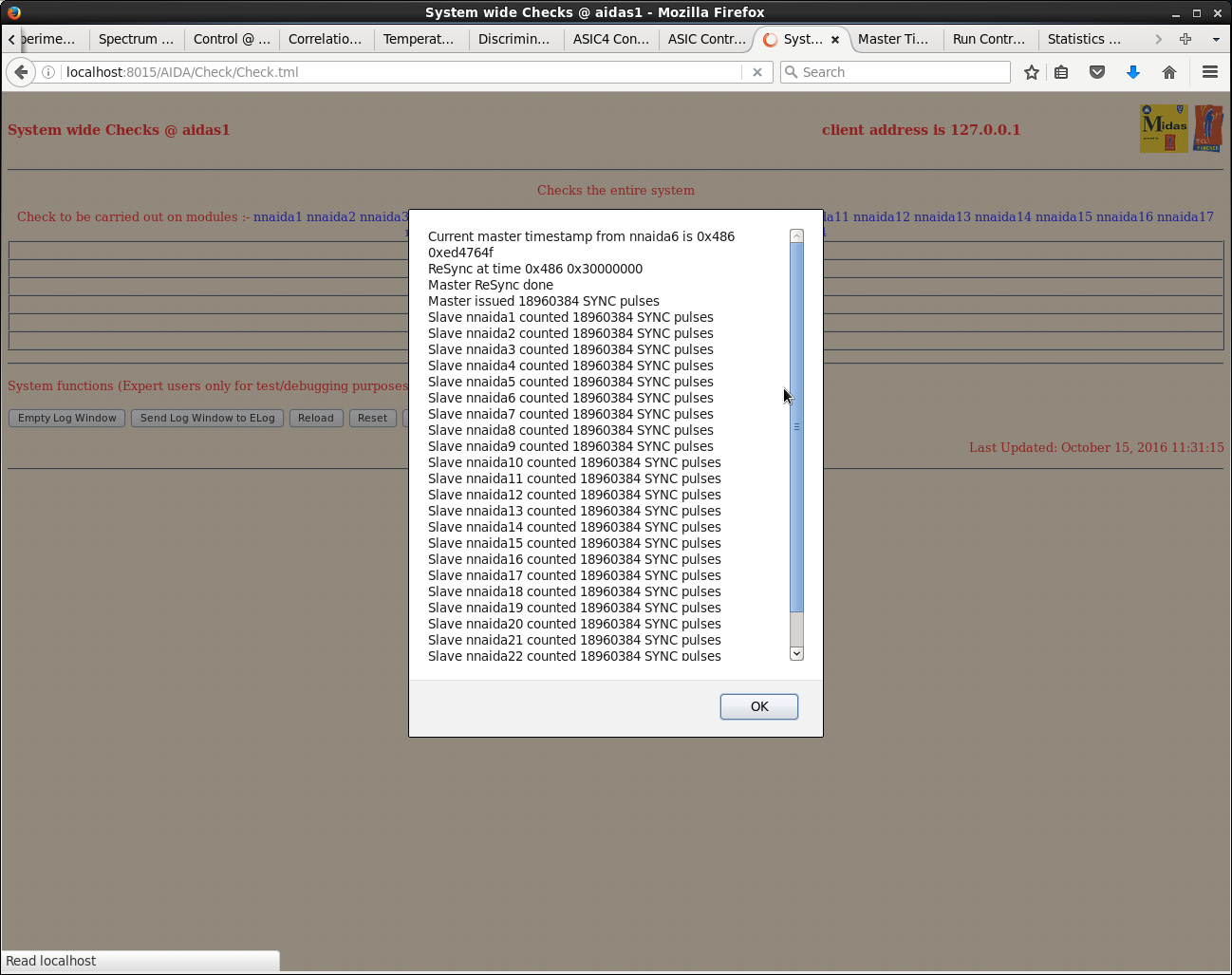

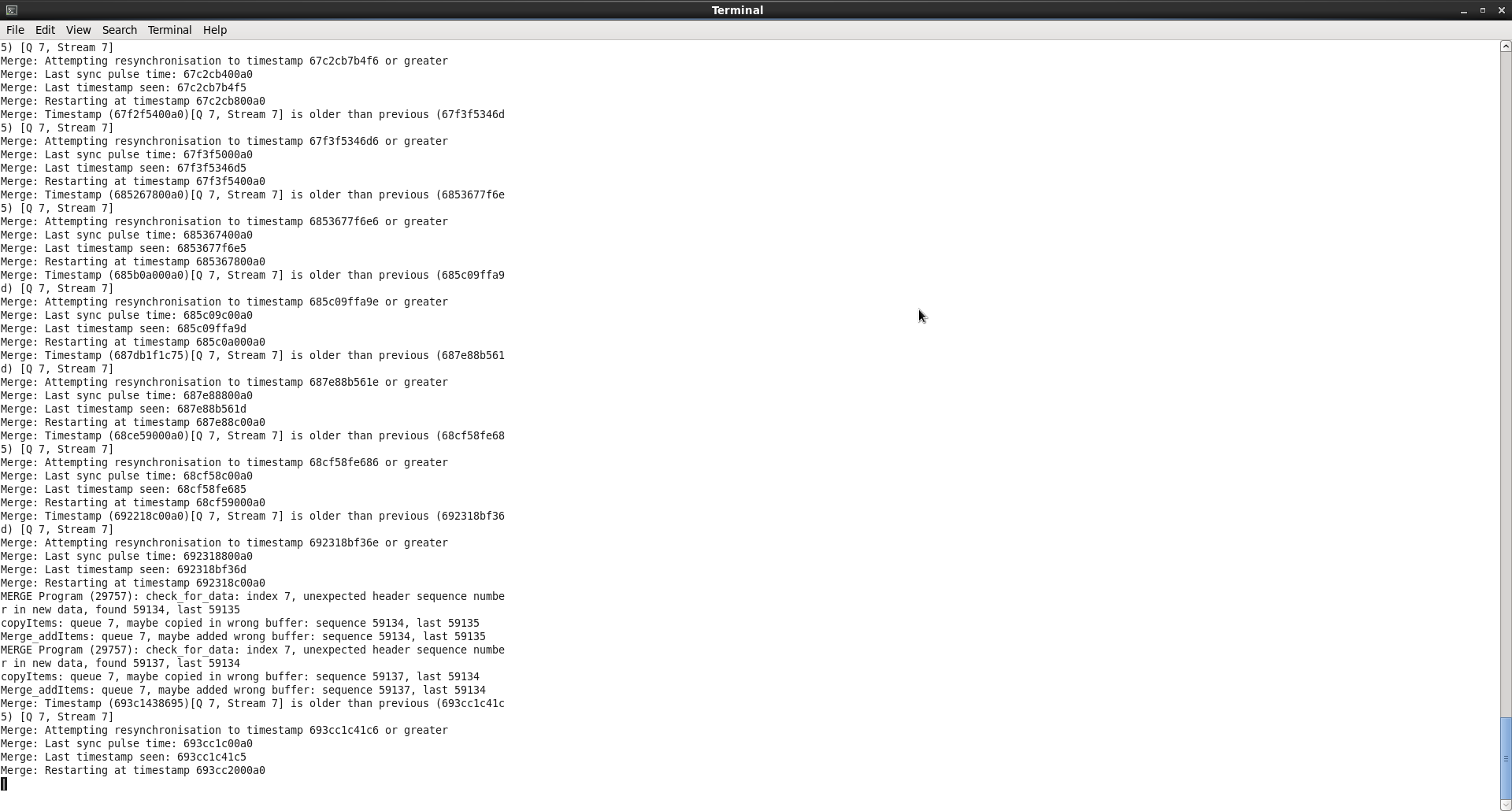

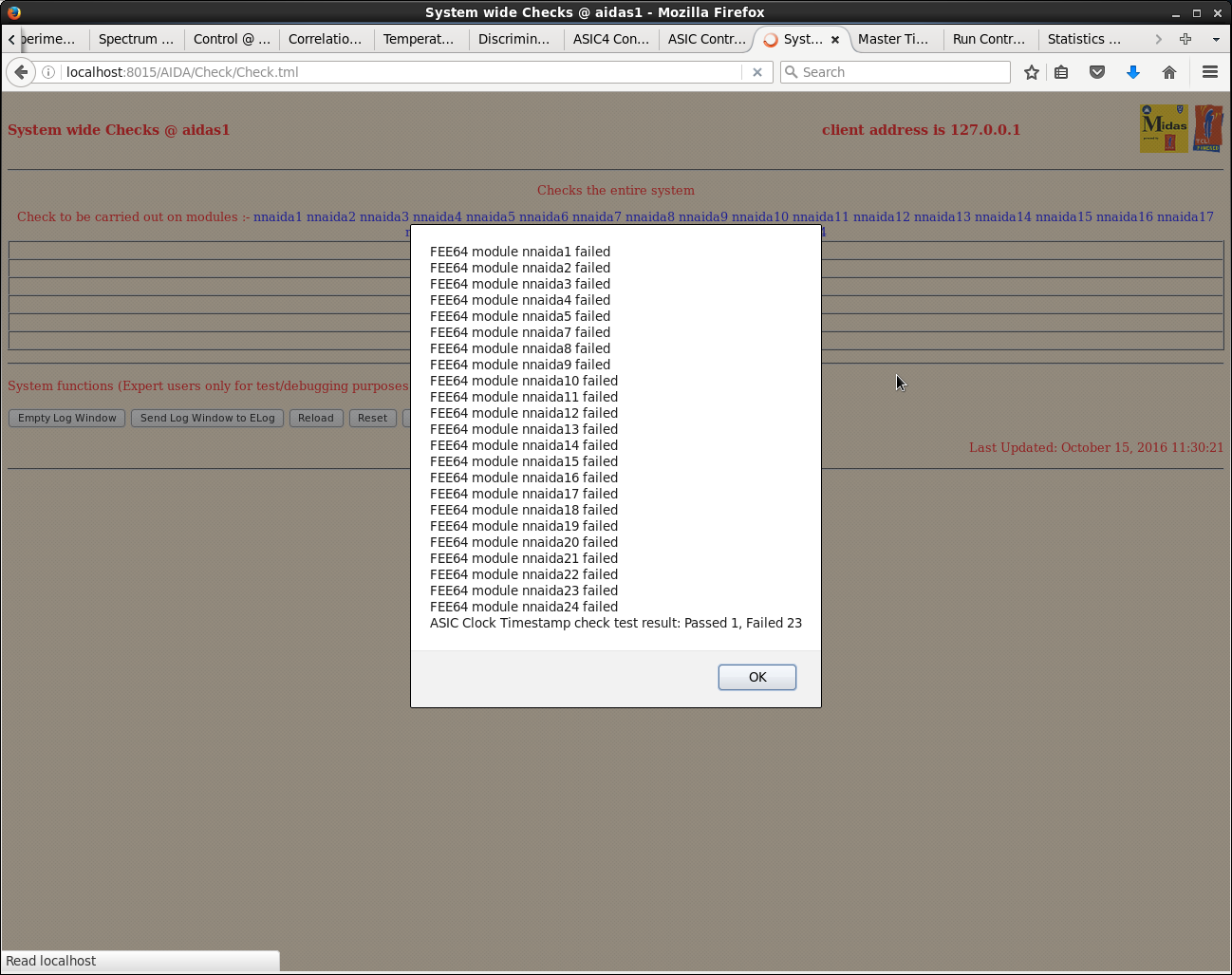

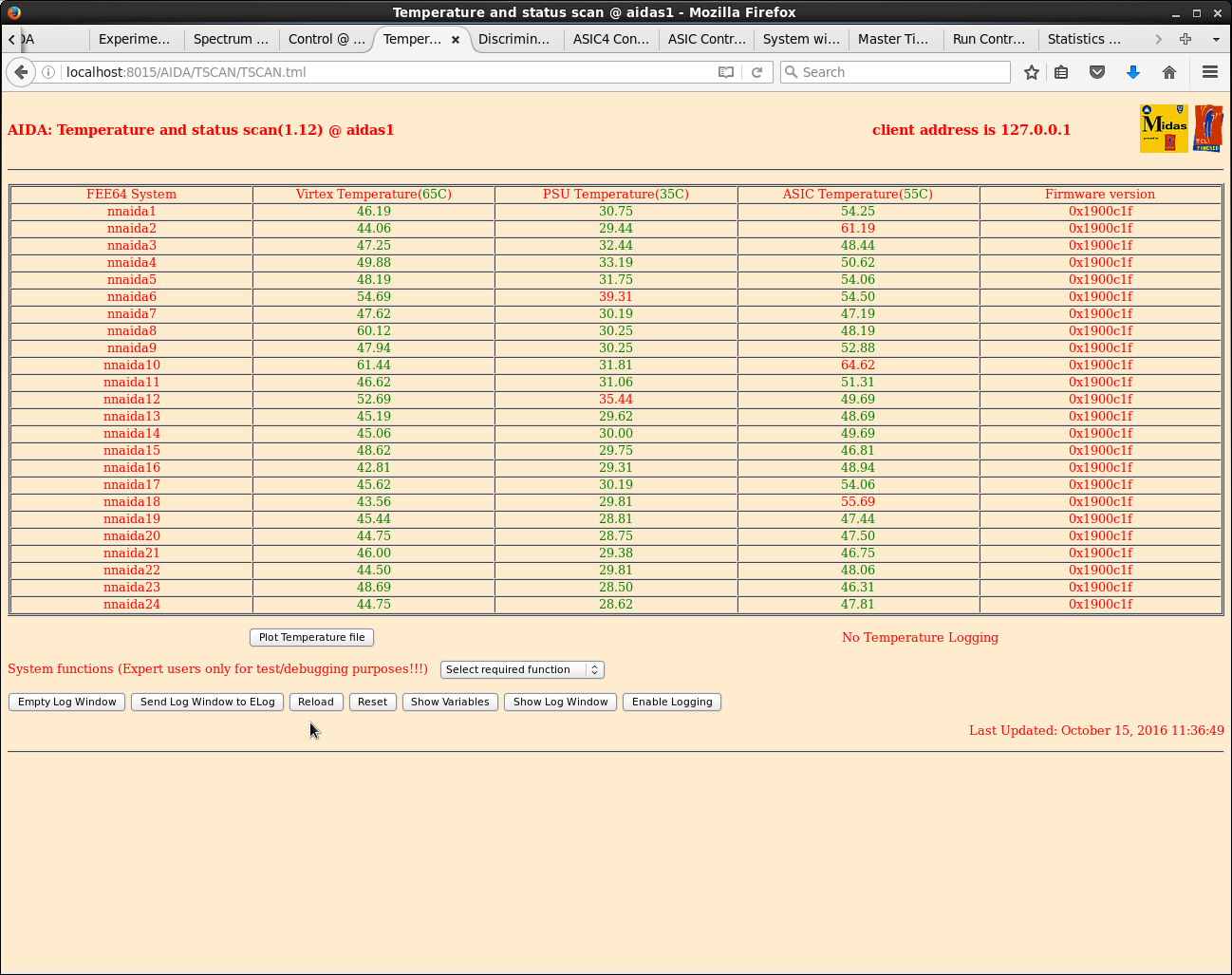

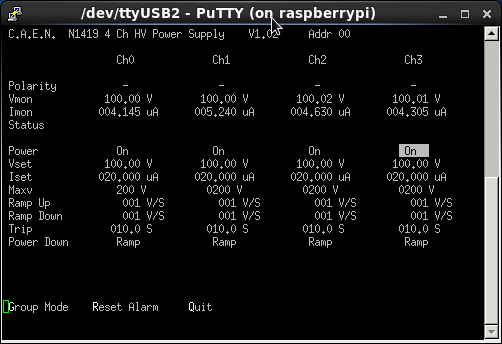

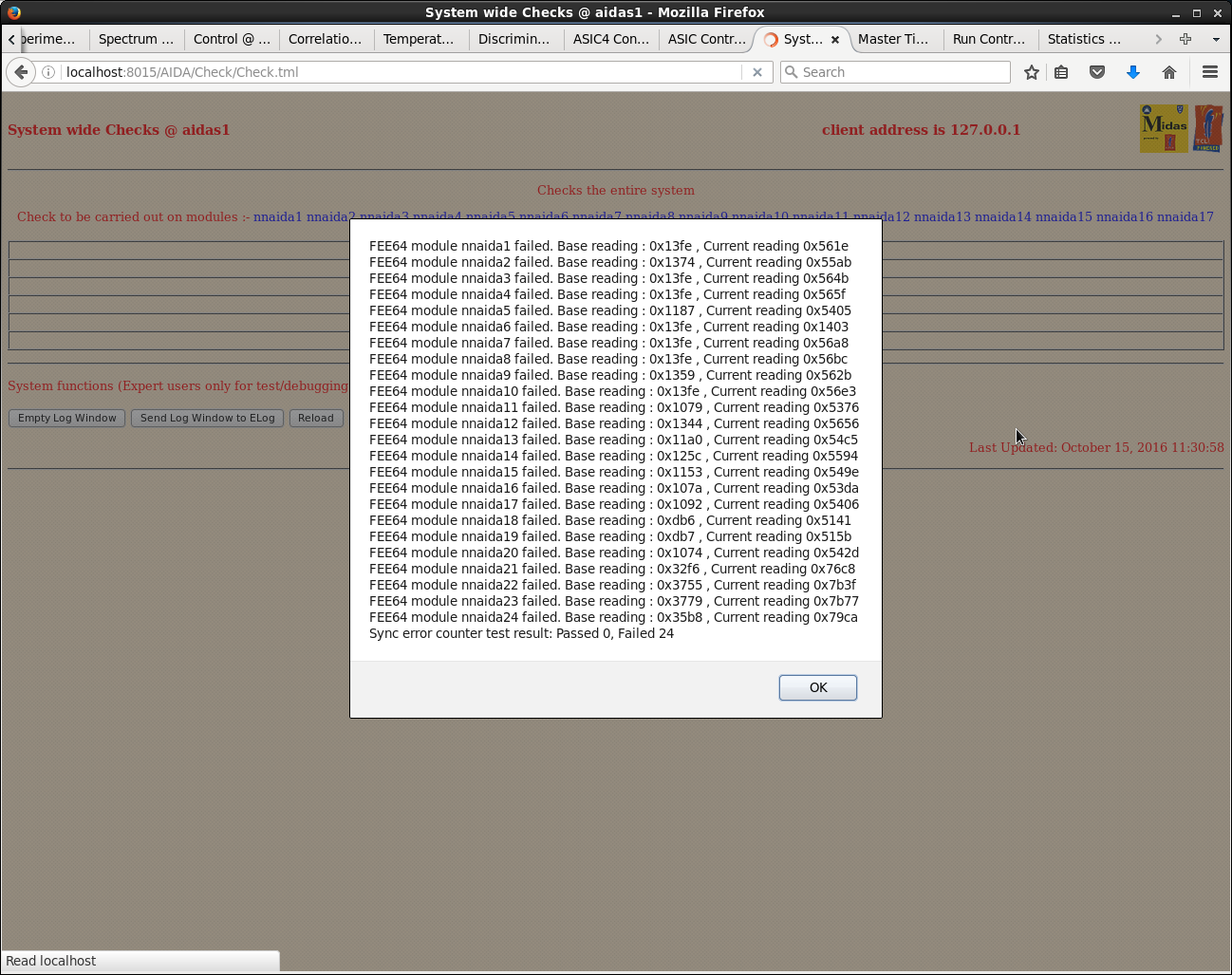

11.27 DAQ found stopped Most recent file R42_164, last accessed 07.18 Restart merger OK DAQ STOP OK System-wide checks - see attachments 1-5 ASIC clock timestamp, SYNC errors fail *but* SYNC pulses OK ReSYNC OK System-wide checks OK DSSSD bias & leakage currents OK - see attachments 6 & 7 FEE64 temperatures OK - see attachment 8 R42_164 ADC data synchronised aidas1> ./analyser2 /TapeData/Sept2016/R42_164 *** GREAT format 3.2.0 analyser - TD - May 2014 *** ERROR: READ I/O error: 5002 blocks: 2444 ADC data format: 19809141 ( 1404089.4 Hz) Other data format: 131455 ( 9317.6 Hz) Sample trace data format: 0 ( 0.0 Hz) Undefined format: 0 ( 0.0 Hz) Other data format type: PAUSE: 7 ( 0.5 Hz) RESUME: 7 ( 0.5 Hz) SYNC100: 129011 ( 9144.4 Hz) FEE64 disc: 2010 ( 142.5 Hz) MBS info: 420 ( 29.8 Hz) Other info: 0 ( 0.0 Hz) ADC data range bit set: 21 ( 1.5 Hz) Timewarps: ADC: 0 ( 0.0 Hz) PAUSE: 0 ( 0.0 Hz) RESUME: 0 ( 0.0 Hz) SYNC100: 0 ( 0.0 Hz) FEE64 disc: 0 ( 0.0 Hz) MBS info: 0 ( 0.0 Hz) Undefined: 0 ( 0.0 Hz) Sample trace: 0 ( 0.0 Hz) Timestamp elapsed time: 14.108 s FEE module #: 1 elapsed dead time 0.000 s FEE module #: 2 elapsed dead time 0.000 s FEE module #: 3 elapsed dead time 0.000 s FEE module #: 4 elapsed dead time 0.000 s FEE module #: 5 elapsed dead time 0.334 s FEE module #: 6 elapsed dead time 0.042 s FEE module #: 7 elapsed dead time 0.000 s FEE module #: 8 elapsed dead time 0.000 s FEE module #: 9 elapsed dead time 0.000 s FEE module #: 10 elapsed dead time 0.000 s FEE module #: 11 elapsed dead time 0.000 s FEE module #: 12 elapsed dead time 0.000 s FEE module #: 13 elapsed dead time 0.000 s FEE module #: 14 elapsed dead time 0.000 s FEE module #: 15 elapsed dead time 0.000 s FEE module #: 16 elapsed dead time 0.000 s FEE module #: 17 elapsed dead time 0.000 s FEE module #: 18 elapsed dead time 0.005 s FEE module #: 19 elapsed dead time 0.000 s FEE module #: 20 elapsed dead time 0.000 s FEE module #: 21 elapsed dead time 0.000 s FEE module #: 22 elapsed dead time 0.000 s FEE module #: 23 elapsed dead time 0.000 s FEE module #: 24 elapsed dead time 0.000 s FEE module #: 25 elapsed dead time 0.000 s FEE module #: 26 elapsed dead time 0.000 s FEE module #: 27 elapsed dead time 0.000 s FEE module #: 28 elapsed dead time 0.000 s FEE module #: 29 elapsed dead time 0.000 s FEE module #: 30 elapsed dead time 0.000 s FEE module #: 31 elapsed dead time 0.000 s FEE module #: 32 elapsed dead time 0.000 s *** Program elapsed time: 0.586s ( 4171.093 blocks/s, 260.693 Mb/s) 11.39 DAQ starts (R43) 12.07 Disk housekeeping caused TapeServer problem DAQ stopped OK after some minutes and restarting merger 12.43 DAQ starts (R46) 18.26 DAQ stalled Latest file R46_109 (most recent access 18.26) Merger error messages - see attachment 9 Restart merger - error messages - see attachment 10 Analysis of R46_109 ADC data synchronised aidas1> ./analyser2 /TapeData/Sept2016/R46_109 *** GREAT format 3.2.0 analyser - TD - May 2014 *** ERROR: READ I/O error: 5002 blocks: 4688 ADC data format: 37985730 ( 1342216.8 Hz) Other data format: 263662 ( 9316.4 Hz) Sample trace data format: 0 ( 0.0 Hz) Undefined format: 0 ( 0.0 Hz) Other data format type: PAUSE: 25 ( 0.9 Hz) RESUME: 25 ( 0.9 Hz) SYNC100: 258788 ( 9144.2 Hz) FEE64 disc: 3981 ( 140.7 Hz) MBS info: 843 ( 29.8 Hz) Other info: 0 ( 0.0 Hz) ADC data range bit set: 41 ( 1.4 Hz) Timewarps: ADC: 0 ( 0.0 Hz) PAUSE: 0 ( 0.0 Hz) RESUME: 0 ( 0.0 Hz) SYNC100: 0 ( 0.0 Hz) FEE64 disc: 0 ( 0.0 Hz) MBS info: 0 ( 0.0 Hz) Undefined: 0 ( 0.0 Hz) Sample trace: 0 ( 0.0 Hz) Timestamp elapsed time: 28.301 s FEE module #: 1 elapsed dead time 0.000 s FEE module #: 2 elapsed dead time 0.013 s FEE module #: 3 elapsed dead time 0.000 s FEE module #: 4 elapsed dead time 0.000 s FEE module #: 5 elapsed dead time 0.298 s FEE module #: 6 elapsed dead time 0.200 s FEE module #: 7 elapsed dead time 0.000 s FEE module #: 8 elapsed dead time 0.000 s FEE module #: 9 elapsed dead time 0.001 s FEE module #: 10 elapsed dead time 0.000 s FEE module #: 11 elapsed dead time 0.000 s FEE module #: 12 elapsed dead time 0.000 s FEE module #: 13 elapsed dead time 0.000 s FEE module #: 14 elapsed dead time 0.003 s FEE module #: 15 elapsed dead time 0.000 s FEE module #: 16 elapsed dead time 0.000 s FEE module #: 17 elapsed dead time 0.086 s FEE module #: 18 elapsed dead time 0.054 s FEE module #: 19 elapsed dead time 0.097 s FEE module #: 20 elapsed dead time 0.000 s FEE module #: 21 elapsed dead time 0.000 s FEE module #: 22 elapsed dead time 0.001 s FEE module #: 23 elapsed dead time 0.000 s FEE module #: 24 elapsed dead time 0.000 s FEE module #: 25 elapsed dead time 0.000 s FEE module #: 26 elapsed dead time 0.000 s FEE module #: 27 elapsed dead time 0.000 s FEE module #: 28 elapsed dead time 0.000 s FEE module #: 29 elapsed dead time 0.000 s FEE module #: 30 elapsed dead time 0.000 s FEE module #: 31 elapsed dead time 0.000 s FEE module #: 32 elapsed dead time 0.000 s *** Program elapsed time: 2.102s ( 2230.721 blocks/s, 139.420 Mb/s) 11.00 Sunday 16 October DAQ STOP requested - nnaida1-24 all stop *except* nnaida6 which remains going - Run Control displays RESET only DAQ RESET System-wide checks all OK Normal setup and DAQ restart (see https://elog.ph.ed.ac.uk/AIDA/388 ) DAQ SETUP
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1298x1027
Attachment 2:
Original size: 1298x1027
Attachment 3:
Original size: 1298x1027
Attachment 4:
Original size: 1298x1027
Attachment 5:
Original size: 1298x1027
Attachment 6:
Original size: 502x344
Attachment 7:
Original size: 502x344
Attachment 8:
Original size: 1298x1027
Attachment 9:
Original size: 1920x1030
Attachment 10:
Original size: 1920x1030
