Entry time:
Fri Feb 20 10:04:29 2015
Author
*
:
Subject
*
:

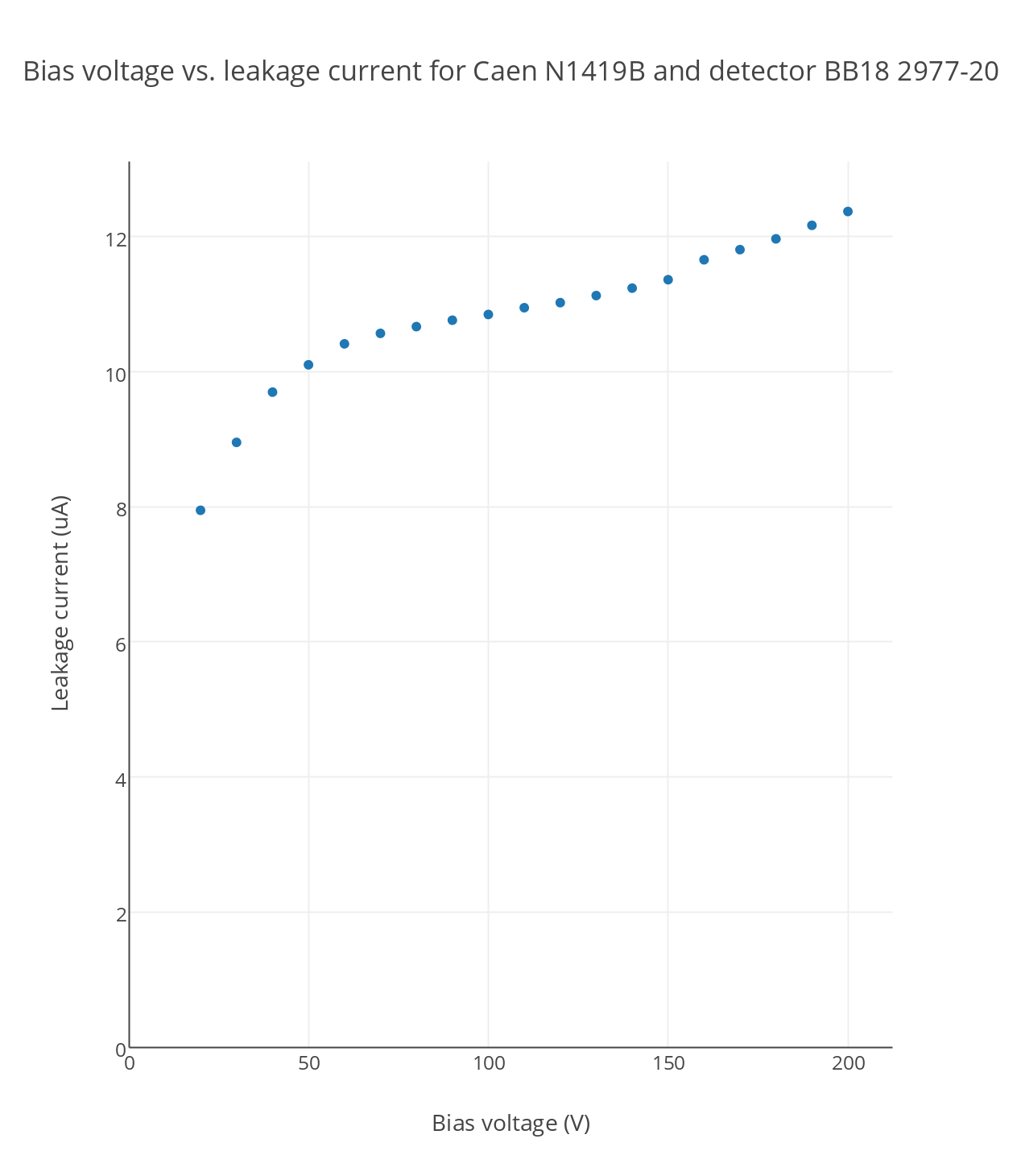

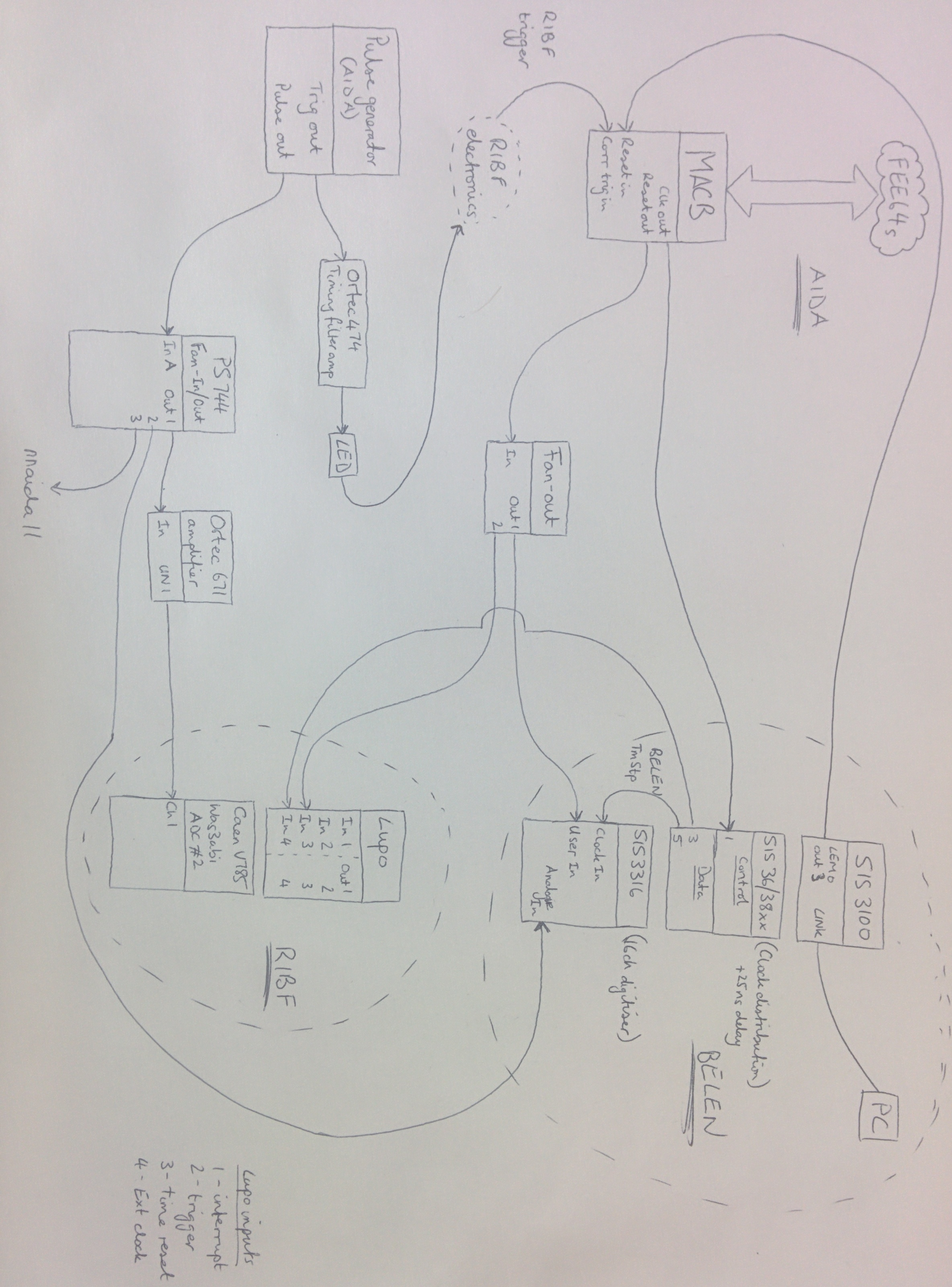

<p>20/02/15</p> <p>1400: Measured leakage current as function of bias V for the Caen 1419B high voltage supply and detector BB18 2977-20. (see attachment #1)</p> <p>1500: Modified MACB installed and connected to BELEN and RIBF DAQs (see attachment #2 for signal flow diagram).</p> <p> Increased noise in several nnaida, possibly due to grounding issues introduced by inclusion of modules for other DAQs.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1268x1460
Attachment 2:
Original size: 2368x3200
