Entry time:
Tue Nov 8 13:06:18 2016
Author
*
:
Subject
*
:

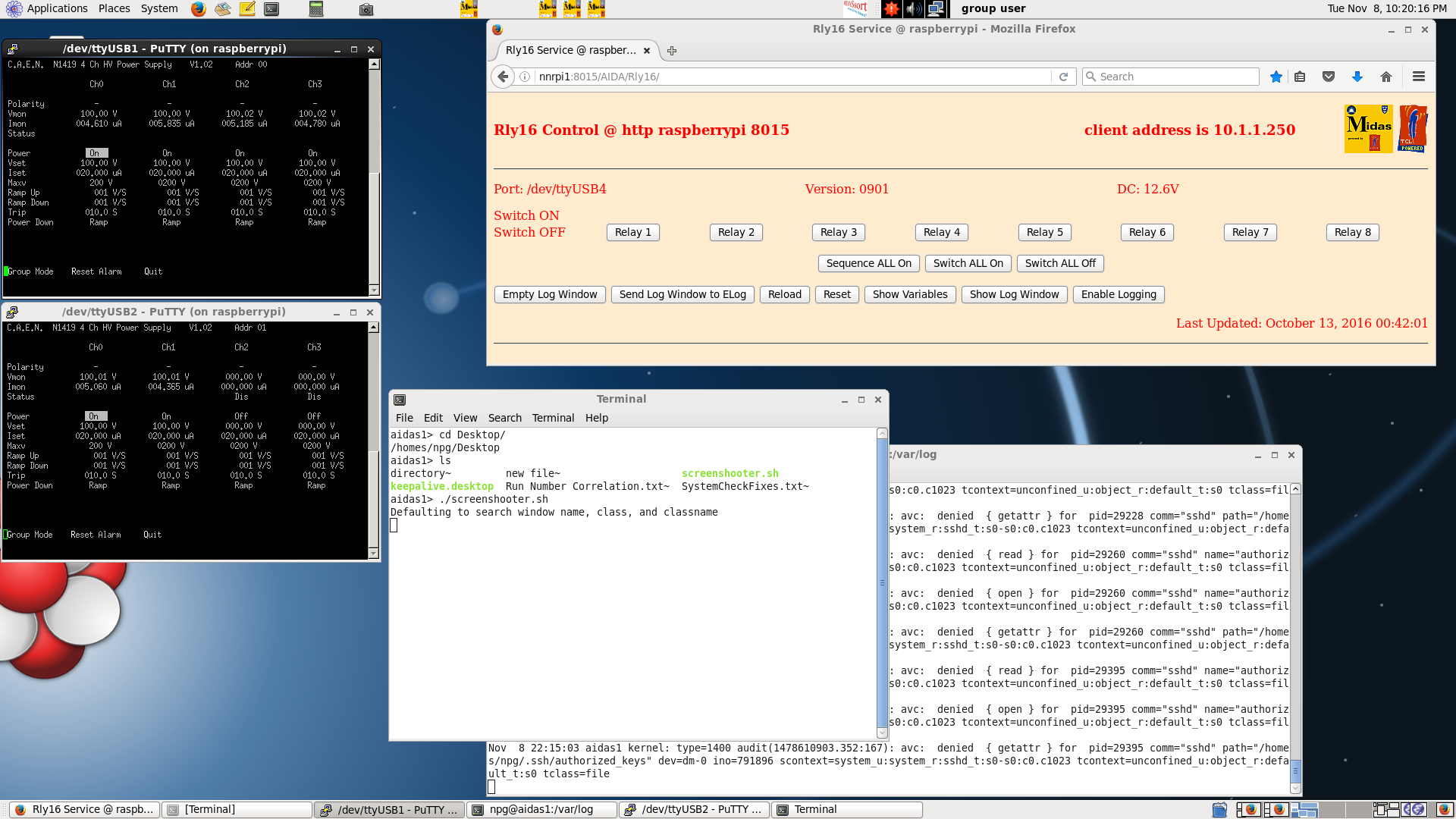

<p>AIDA run with Takechi experiment. 71~73 Ni beam setting</p> <p>F5 carbon target is: IN</p> <p>F7 CH2 target is: OUT</p> <p>F11 carbon target is: OUT</p> <p>All variable Al degraders at F11 are OUT</p> <p> When the run started, we had 1mm Al degrader in (count rate of AIDA was near the background rate)</p> <p> Then we took out the final 1mm Al degrader, and we started to get counts on AIDA (600 Hz on detectors 1, 2, 3, very little on 4, 5, 6)</p> <p>Run file: NP1412/R1</p> <p>ASIC parameter file: 2016Nov07-23.03.06</p> <p>5 mm thick Al stopper is at the center of BRIKEN, with AIDA slightly behind it</p> <p>Run start: 8/11/2016 22:00</p> <p>Leak currents (4 to 5 uA each) shown as Attachment #1</p> <p>22:30 All degraders removed at end of run Run Stop time 22:30</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
