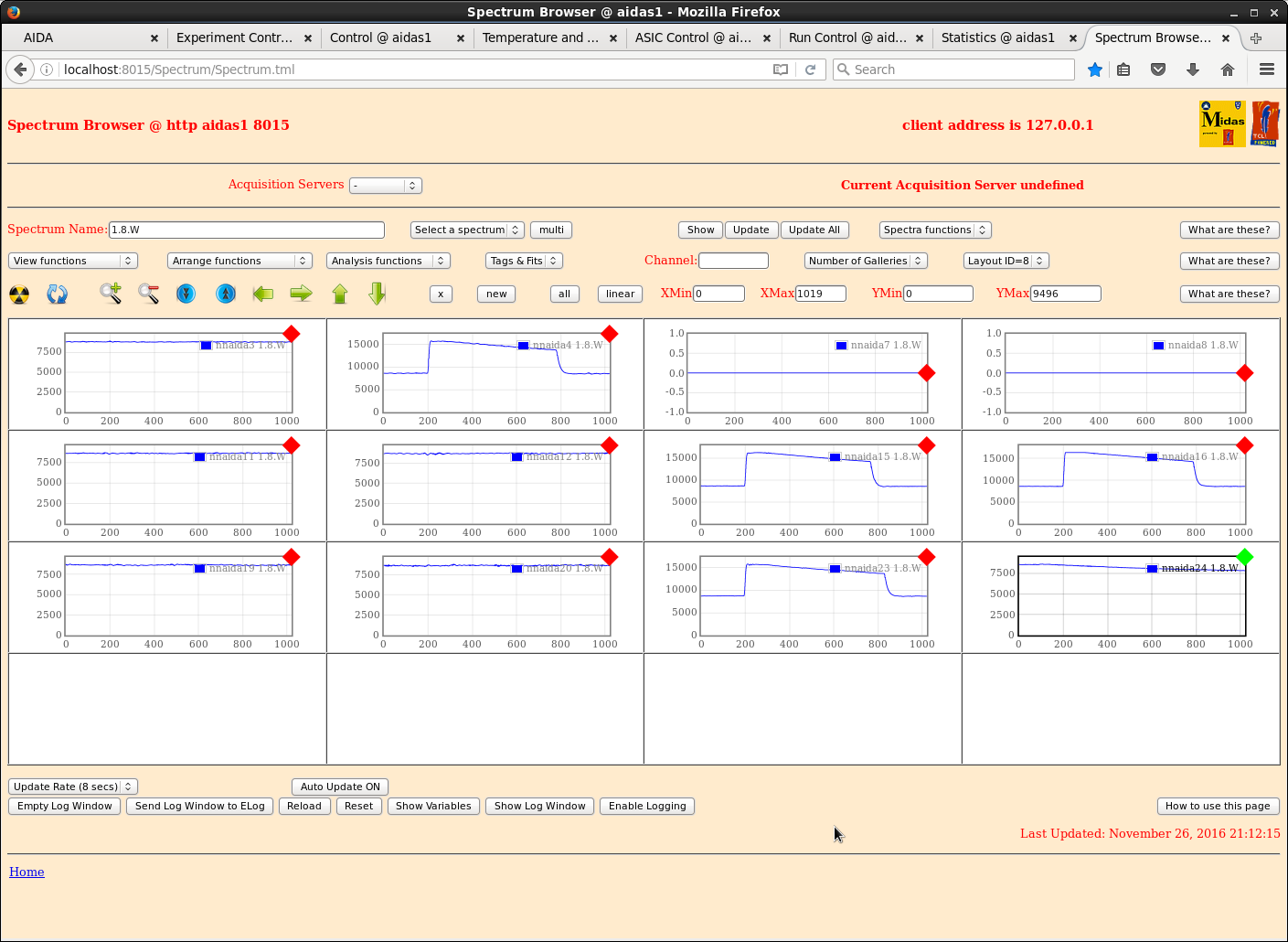

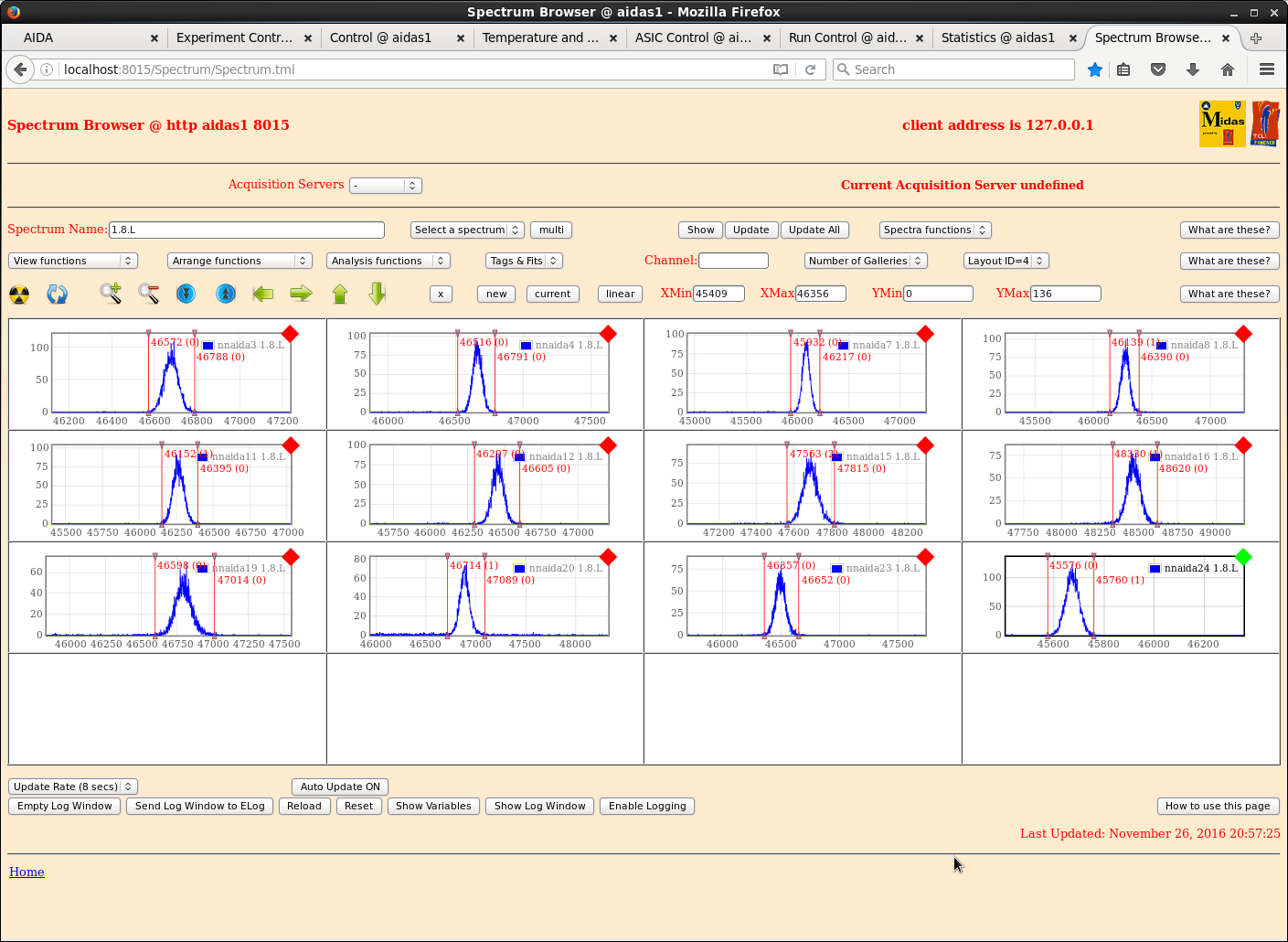

19:30 Power cycled of AIDA reuired after Ge filling 20:04 Started new run: R10_0 BRIKEN run: 20161126_2005 BigRIPS run: 40Mg1011 ASIC settings: 2016Nov17-10.50.10 Degraders: 3mm Pb (in opening of PE shielding wall) variable= 2 and 3 IN; 1.3mm W + 2 mm Al (positions confirmed when entering F11 to move Pb degrader downstream) Pulser widths (ch 8 of ASIC 1 - see attachments): P-N strips: Integration of /tmp/nnaida1_1.8.L.msf title Peak width = 63.64+/- 1.4850, Peak area = 4675.00+/- 70.59 Integration of /tmp/nnaida2_1.8.L.msf title Peak width = 189.85+/- 2.4288, Peak area = 4585.00+/- 67.71 Integration of /tmp/nnaida5_1.8.L.msf title Peak width = 70.83+/- 1.5868, Peak area = 5889.00+/- 80.70 Integration of /tmp/nnaida6_1.8.L.msf title Peak width = 83.75+/- 0.7634, Peak area = 6194.00+/- 78.70 Integration of /tmp/nnaida9_1.8.L.msf title Peak width = 73.87+/- 0.6702, Peak area = 6206.00+/- 78.78 Integration of /tmp/nnaida10_1.8.L.msf title Peak width = 79.73+/- 0.9011, Peak area = 6215.00+/- 78.84 Integration of /tmp/nnaida13_1.8.L.msf title Peak width = 96.67+/- 0.8988, Peak area = 6166.00+/- 78.52 Integration of /tmp/nnaida14_1.8.L.msf title Peak width = 71.27+/- 1.3208, Peak area = 5701.50+/- 80.27 Integration of /tmp/nnaida17_1.8.L.msf title Peak width = 265.98+/- 2.8845, Peak area = 5625.00+/- 75.00 Integration of /tmp/nnaida18_1.8.L.msf title Peak width = 188.75+/- 2.3814, Peak area = 5920.00+/- 76.94 Integration of /tmp/nnaida21_1.8.L.msf title Peak width = 80.82+/- 0.9310, Peak area = 5925.00+/- 80.03 Integration of /tmp/nnaida22_1.8.L.msf title Peak width = 79.79+/- 1.1019, Peak area = 5748.50+/- 80.41 N-N strips Integration of /tmp/nnaida3_1.8.L.msf title Peak width = 77.05+/- 0.6356, Peak area = 7049.00+/- 83.96 Integration of /tmp/nnaida4_1.8.L.msf title Peak width = 80.16+/- 0.6881, Peak area = 7048.00+/- 83.95 Integration of /tmp/nnaida7_1.8.L.msf title Peak width = 81.78+/- 0.7073, Peak area = 7046.00+/- 83.94 Integration of /tmp/nnaida8_1.8.L.msf title Peak width = 81.94+/- 0.8639, Peak area = 6921.00+/- 84.69 Integration of /tmp/nnaida11_1.8.L.msf title Peak width = 84.16+/- 0.7746, Peak area = 6924.00+/- 84.66 Integration of /tmp/nnaida12_1.8.L.msf title Peak width = 90.02+/- 0.7720, Peak area = 7059.00+/- 84.02 Integration of /tmp/nnaida15_1.8.L.msf title Peak width = 90.08+/- 0.9683, Peak area = 6707.00+/- 84.93 Integration of /tmp/nnaida16_1.8.L.msf title Peak width = 98.99+/- 0.9699, Peak area = 6807.50+/- 84.25 Integration of /tmp/nnaida19_1.8.L.msf title Peak width = 138.33+/- 1.2900, Peak area = 6747.00+/- 82.14 Integration of /tmp/nnaida20_1.8.L.msf title Peak width = 111.96+/- 1.3730, Peak area = 6848.00+/- 84.99 Integration of /tmp/nnaida23_1.8.L.msf title Peak width = 106.07+/- 0.9108, Peak area = 6955.00+/- 83.40 Integration of /tmp/nnaida24_1.8.L.msf title Peak width = 63.04+/- 0.5770, Peak area = 6978.50+/- 84.64
