Here we show the PID plot and implantation depth in AIDA from BigRIPS file 40Mg1012 (1 hr of data from 20:30 in Nov 26th), merged with AIDA files R10_8 to R10_29

The more neutron-rich isotopes have a shorter range in AIDA, and seem to be implanted towards the first layers of the stack. For 40Mg - most exciting case(?) - there is only one count at DSSD1. But comparing to the position of 38Mg, we could deduce that the implantation depth is already good. need more data analyzed to decide if we need to remove a bit of degrader.

Degrader settings: 3mm Pb (at BRIKEN PE shielding), variable of 1mm W (+1mmAl) + 0.3mmW (+1 mm Al)

Attachment 1: DSSD of detected implant for cuts in the PID.

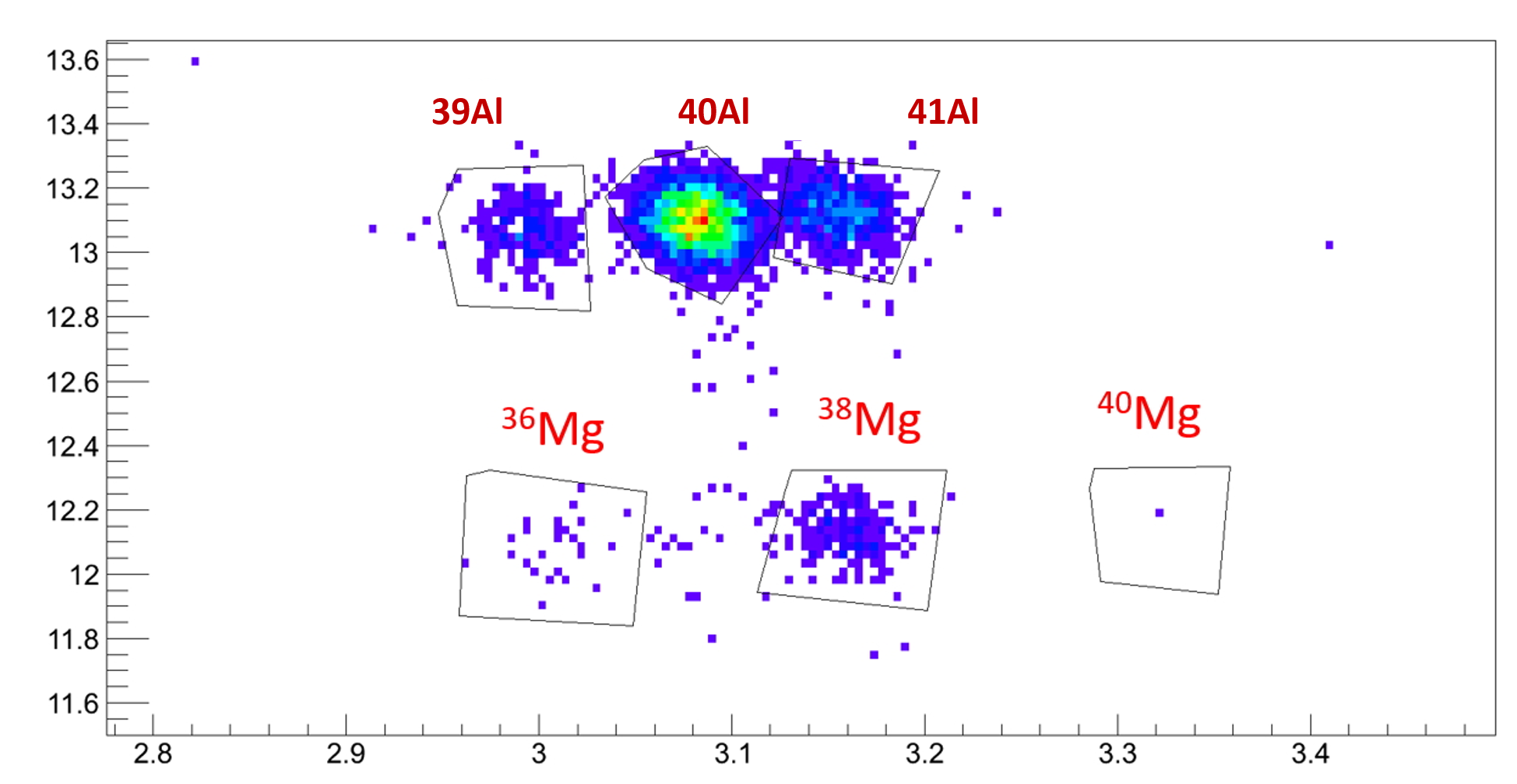

Attachment 2: PID from F8 to F11.

BigRIPS trees produced with macro at gamma16@a04:exp/users/alfredo/macro/MakePIDTree.C (or MakeAllTree.C, depending on version of merger)

Merging code in: ur16@ribfana03:analysis/users/liujj/BRIKEN_161125Parasitic/
