Entry time:
Tue Nov 29 19:07:35 2016
Author
*
:
Subject
*
:

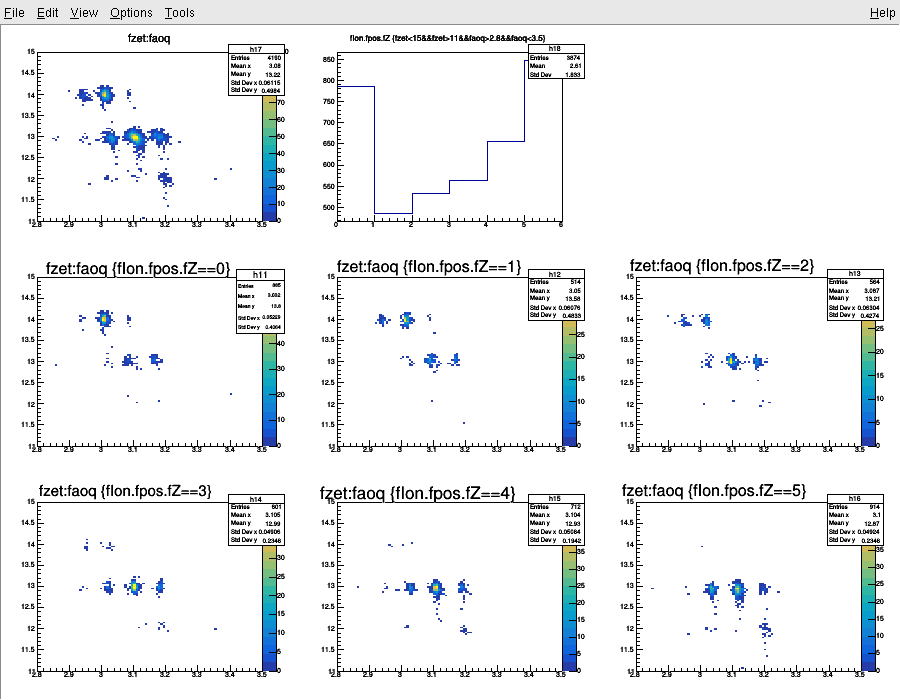

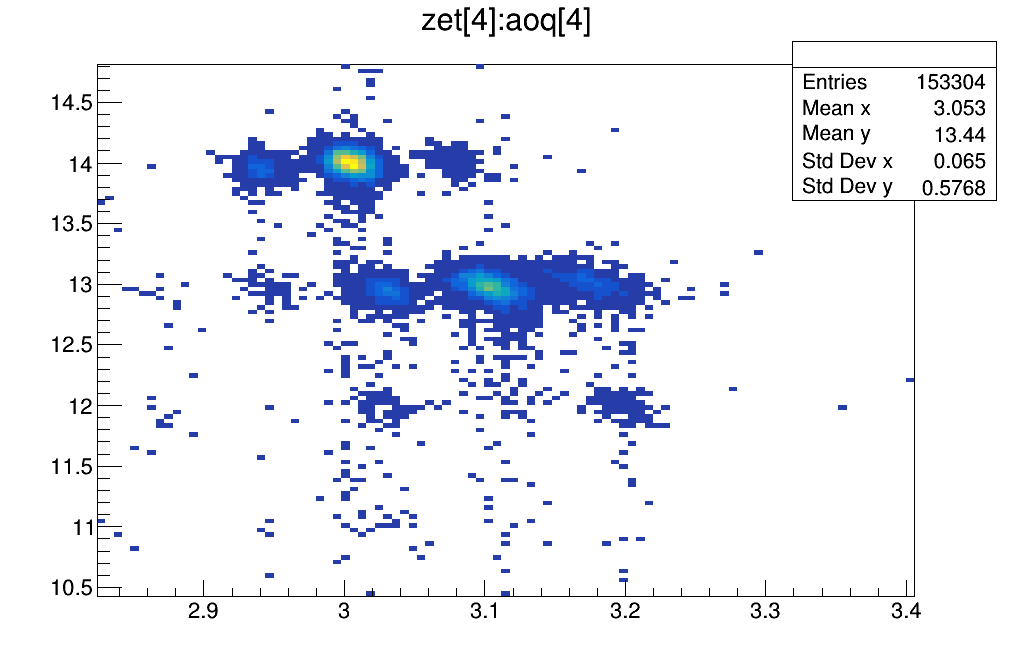

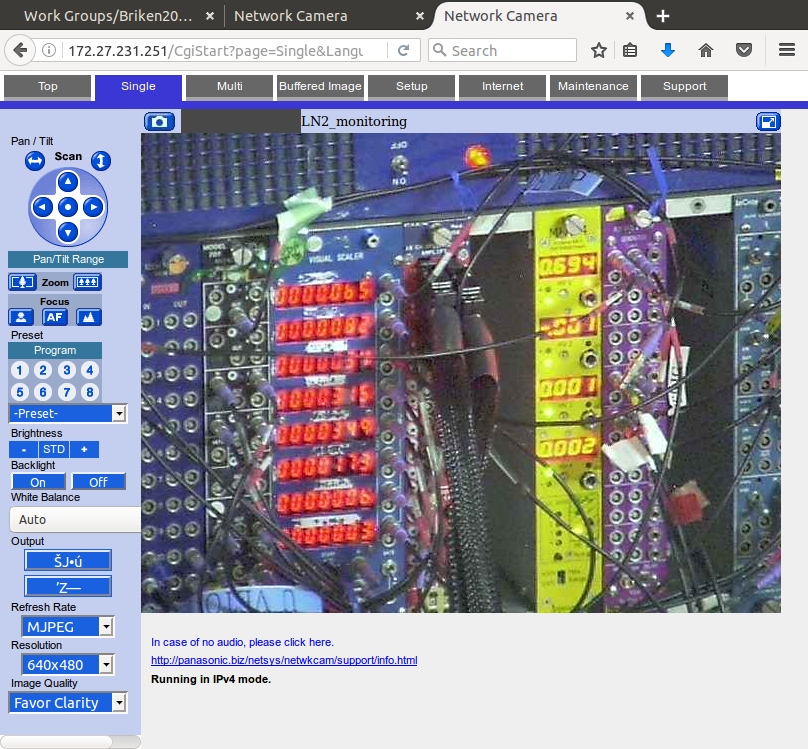

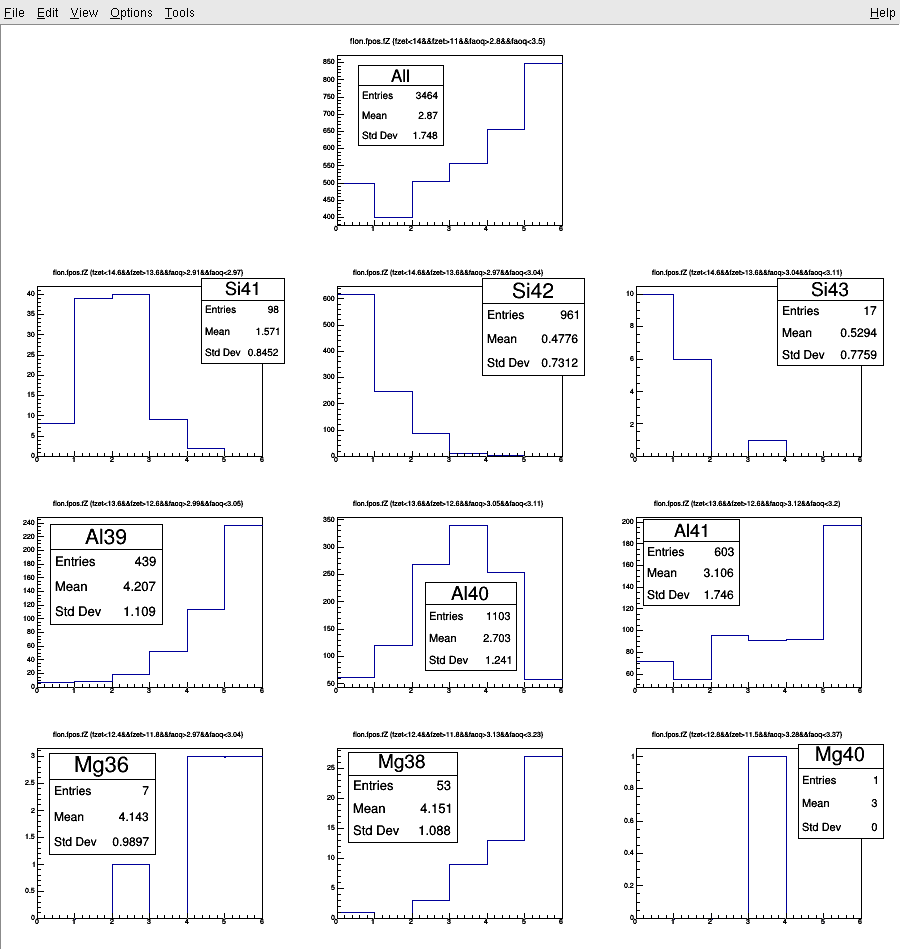

<p>The main experiment changed to a carbon reaction target at F8 (similar thickness of CH2 previously used), and retuned the ZDS. First BigRIPS run after retuning is 40Mg_1093 (at 2:29 am, Nov 30th)</p> <p>The background at F11 has increased. The neutron backgroun incresead by a factor of ~10. The rates of visual scalers also increased; for example Si Top/Bottom from about 50 Hz to 300 Hz (see attachment 1).</p> <p>One possible explanation are higher light particle rate at F11. By comparing the PID for C target (attachment 2) with that of CH2 target setting (e.g. https://elog.ph.ed.ac.uk/AIDA/492), it looks like the new conditions have a higher transmission for A/Q=3 fragments (3H et al). Also, in the new setting the Si isotopes are also transmitted to F11.</p> <p>The implantation depth is still good; same as we had for C target at F8 (compare 40Al distribution in attachment 3 with what we had before).</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 808x749
Attachment 2:
Original size: 1018x659
Attachment 3:
Original size: 900x950
Attachment 4:
Original size: 900x700
Attachment 5:
Original size: 900x700
