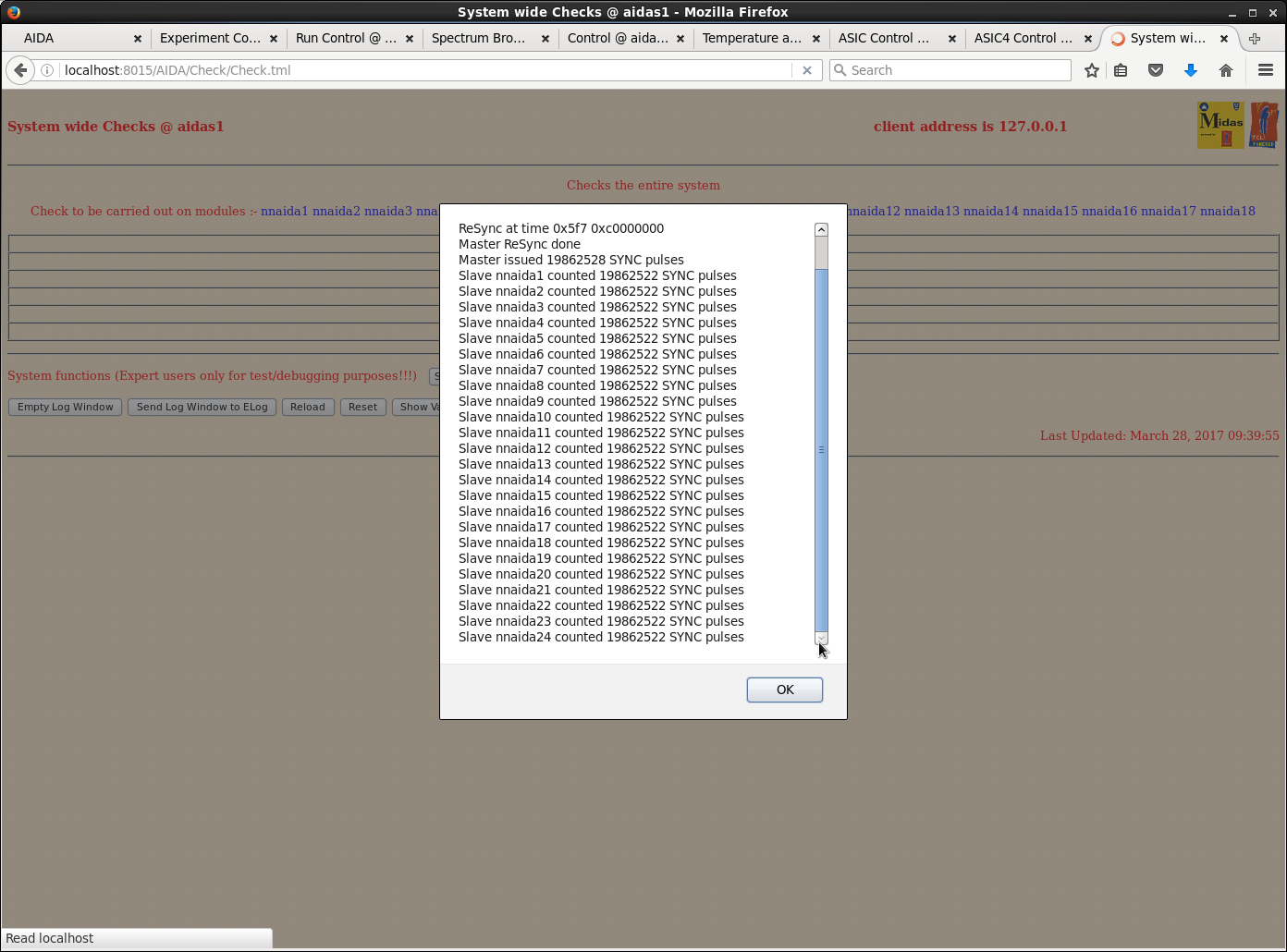

09.13 DAQ run R3 ends OK (final file R3_9) ASIC settings 2017Mar27-16.12.39 slow comparator 100 (dec) LEC/MEC fast comparator 255 (dec) BNC PB-4 pulser OFF 09.20 Biases & leakage currents OK - see attachments 1 & 2 Ambient temperature +23.8 deg C, d.p. -3.5 deg C, RH 15.7% Julabo FL11006 set point +20 deg C actual +20.0 deg C 09.32 FEE64 temperatures OK - see attachment 3 09.39 System-wide checks OK except ADC calibration fails nnaida21 & 23 SYNC errors not counted since baseline SYNC pulses received see attachments 4-8 13.36 PE16/R1 Pulser walkthough BNC PB-4 settings Amplitude 90,000 - 10,000 @ 10,000 step x5 attenuator IN t_r 50ns, tau_d 50us polarity - rate ~250Hz delay MIN, tail pulse ASIC settings 2017Mar27-16.12.39 see attachment 9 13.52 PE16/R2 Pulser walkthough BNC PB-4 settings Amplitude 10,000 - 2,000 @ 2,000 step see attachment 10 14.03 PE16/R3 Pulser walkthough BNC PB-4 settings Amplitude 2,000 - 8,000 @ 2,000 step, 10,000 - 50,000 @ 10,000 step see attachment 11 20.30 System-wide checks All OK *except* clock status - nnaida1 global clocks failed 6 - see attachment 12 20.35 PE16/R4 Background BNC PB-4 OFF ASIC settings 2017Mar27-16.12.39 MACB master mode 5 (external 50MHz clock from Tektronix AFG3102C) 20.40 Biases & leakage currents OK - see attachments 13 & 14 Ambient temperature +23.6 deg C, d.p. -3.2 deg C, RH 16.6% Julabo FL11006 set point +20 deg C actual +20.0 deg C FEE64 temperatures OK - see attachment 15 20.50 PE16/R4 ends OK
