02:02 Recovered DAQ from crash. Merger became clogged and the system required a full restart. Raspberry pi also
required a restart to regain control of the USB power relay.
      AIDA R16 started
      BigRips on run 0143 which started at 01:19
      BRIKEN run 2

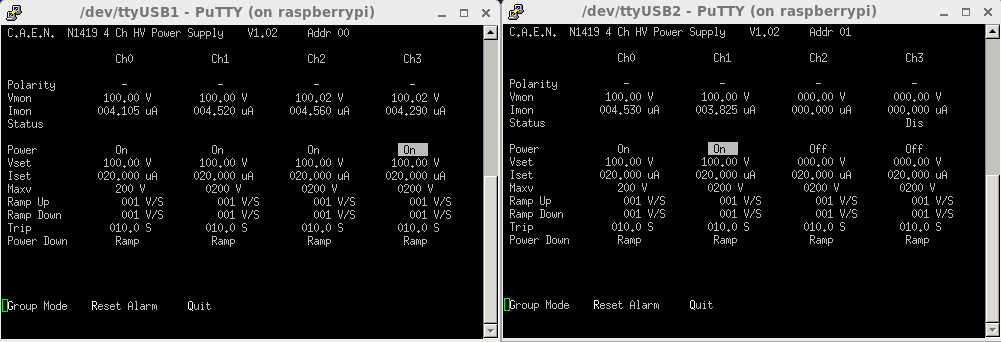

Biases and leakage currents ok see attachment 1

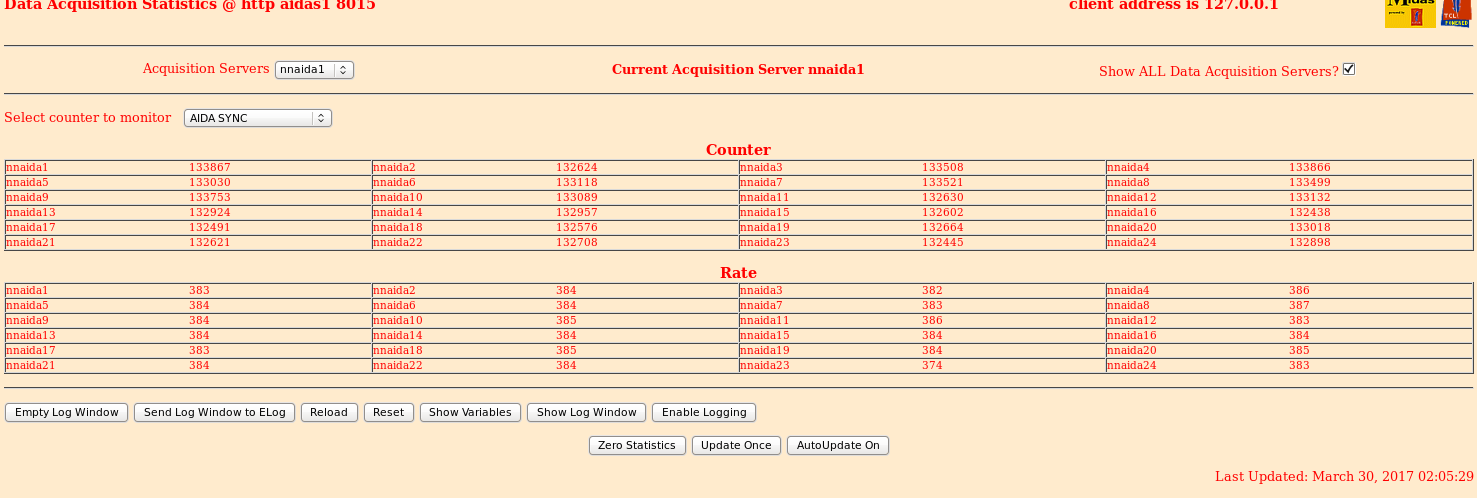

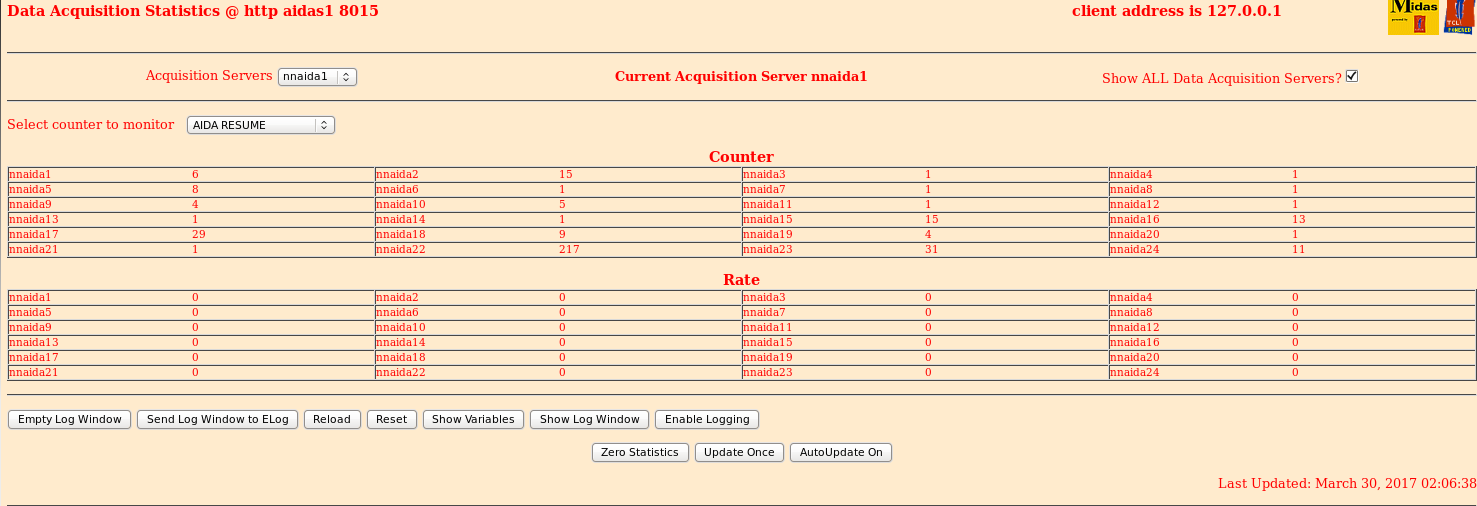

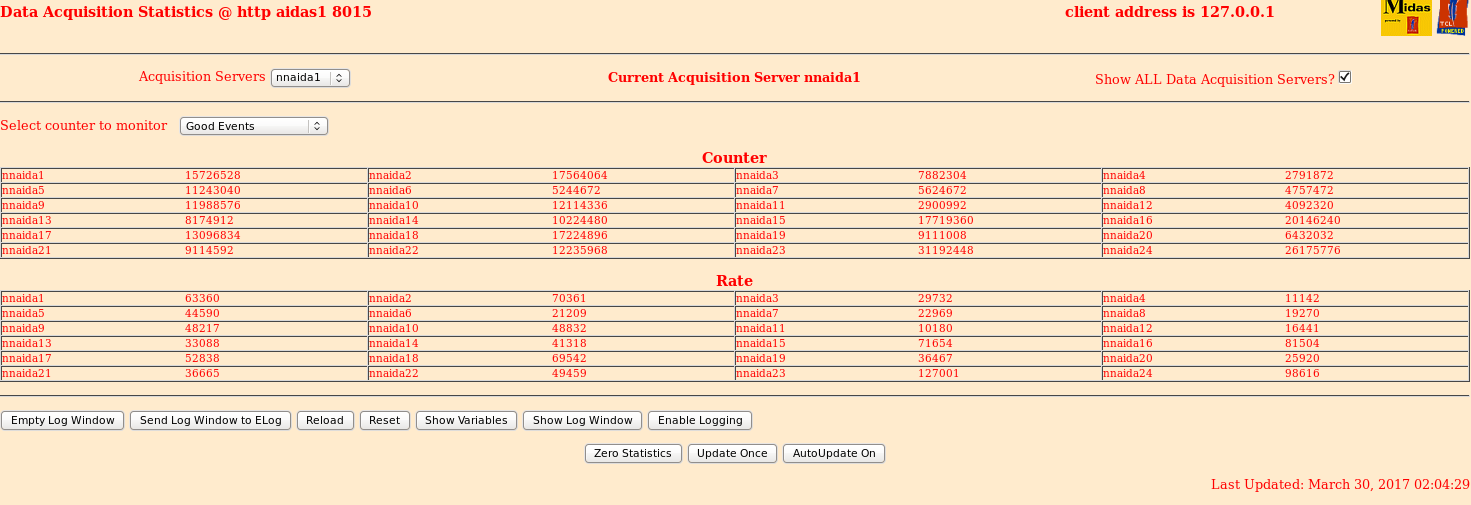

      Screenshots attached for good events, sync, pause and resume (attachments 2-5)

02:23 BigRips started run 0144
      AIDA on run R16_5
      BRIKEN run 3

02:47 All system wide checks ok

03:25 BigRips Run 0145
      AIDA run R16_22 begins at 03:26
      BRIKEN run 4
      All system wide checks ok

04:00 Biases and leakage currents ok (attachment 6)

04:25 BigRips has stopped. AIDA run R16_37
      brief stop in beam time as Shunji got access to the area and removed the fixed degrader.
      In the hope that we were stopping ions before they reached AIDA.
      It is now attached to the furthest upstream variable degrader.

04:29 bigRips run 0146
      AIDA run R16_38
      BRIKEN run 5
      System wide checks ok, ASICS settings checked

05:31 BigRips beam stopped. Carbon foil change
      AIDA file run R16_54
      BRIKEN also stopped
      Was running with 13mm of Al. Switching to 11mm of Al degrader.

05:41 BigRips start Run 0147
      AIDA file R16_57 starts at 05:52
      BRIKEN run 6
      System wide checks all ok.

06:00  Bias and leakages ok (see attachment 7)

06:26  System wide checks ok

06:43 BigRips stopped their run.
      AIDA currently on R16_73. Still running even after LN2 fill.

07:17 BigRips start run 0148
      AIDA run R16_81
      BRIKEN run 7
      System wide checks and ASIC load all ok

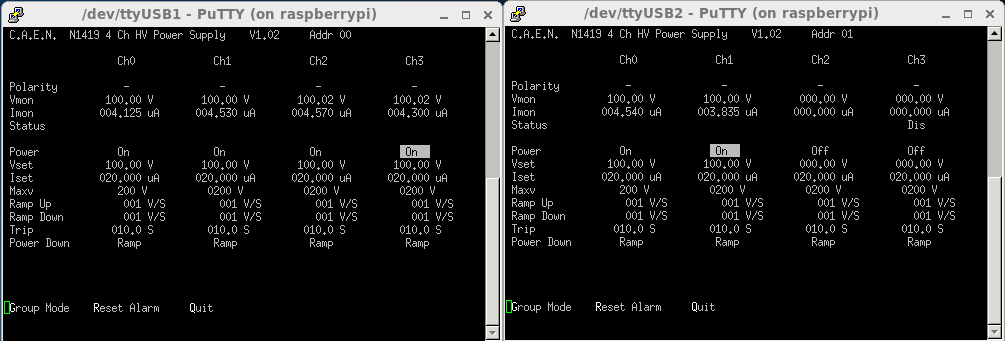

07:42 Bias and leakage currents ok (see attachment 8)

08:22 System wide checks all ok

08:36 BigRips started run 0149
      AIDA file R16_104

08:41 BRIKEN run 8

09.30 System-wide checks all ok.

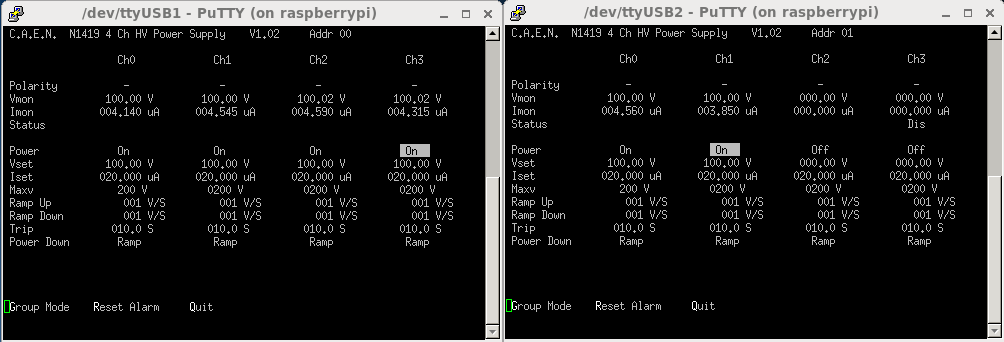

      Leakage currents ok (see attachment 10).

09.43 BigRIPS run 0150 starts. Corresponds to the beginning of R16_125.

10.35 System-wide checks all ok. nnaida1 still fails clock status check, but bit 2 is set.
      Leakage currents ok.
      R16_141.

10.44 BigRIPS run 0151 starts. Corresponds to the end of R16_142.

11.40 System-wide checks all ok. nnaida1 still fails clock status check, but bit 2 is set.
      Leakage currents ok.
      R16_141.

11.45 BigRIPS run 0152 starts. Corresponds to end of R16_159

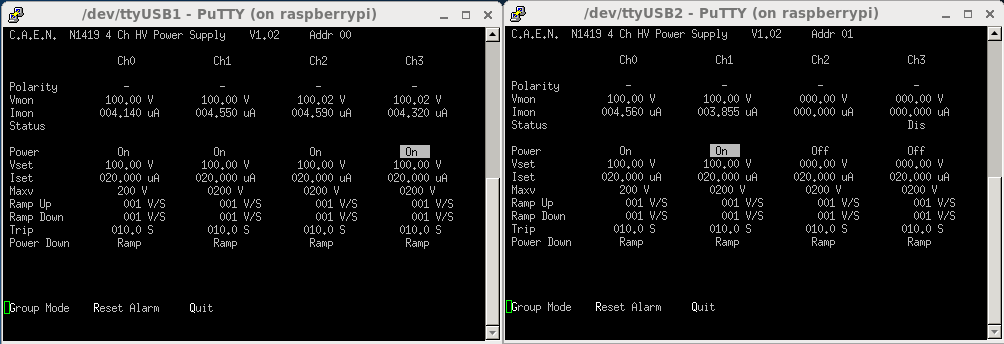

12.00 Leakage currents all ok (see attachment 11).

12.47 PE16/R16_178
      BRIKEN file 11
      BigRIPS run0153

12.50 System wide checks OK *except* nnaida1 fails global clocks 6
      ASIC check control

13.41 1.8.H and 1.8.W spectra

13.43 System wide checks OK *except* nnaida1 fails global clocks 6

14.03 BigRIPS run 0154.
      Roughly start of R16_199.

14.21 BigRIPS run 0155.
      Start of R16_204.

14.50 System-wide checks all passed except nnaida1 fails global clocks 6.
      Leakage currents ok.

15.23 Beam off. ~Half way through R16_220.
      Degrader reduced from 11mm to 8mm.
      Previously no pulser visible in p-side FEEs. Jiggled pulser cabling and pushed all LEMO connectors in.
      Pulser no visible in 1.8.L for all p-side FEEs.

15.28 Beam returned. End of R16_221.
      BigRIPS file 0156.

15:40 STQ problem so beam stopped near start of R16_225.

16.05 Beam returned to F11. 1.7G into R16_231.
      BigRIPS file 0157
      BRIKEN file 15
      System-wide checks all passed except nnaida1 fails global clocks 6.
      Leakage currents ok.

17.20 BigRIPS file run0158

17.38 Bias & leakage currents OK - see attachments 16-17
      FEE64 temperatures OK - see attachment 18

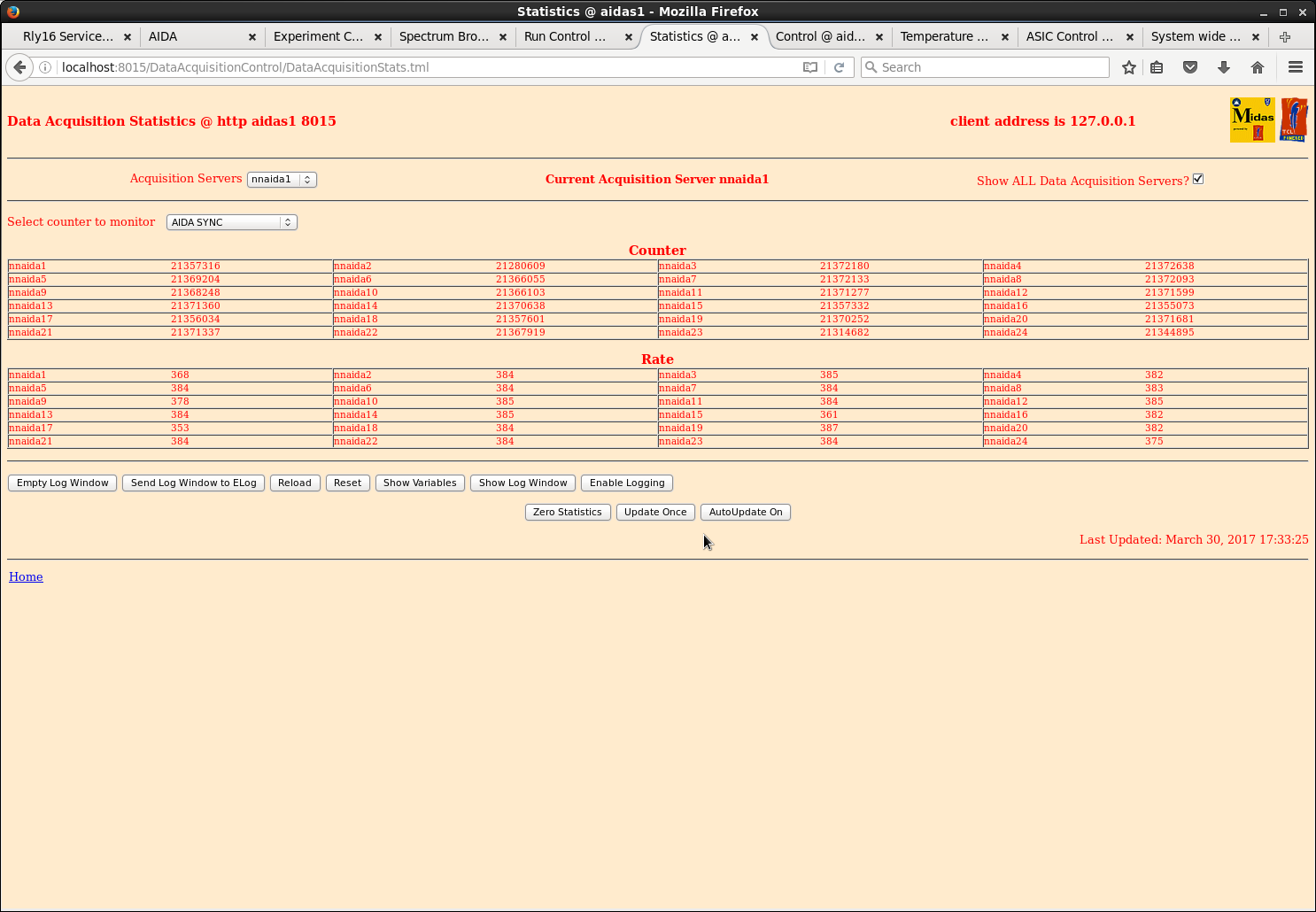

Statistics - good events, AIDA disc, SYNC, PAUSE, RESUME, correlation L - see attachments 19-24
      Merge statistics - see attachments 25-26

17.40 System wide checks OK *except* nnaida1 fails global clocks 6

18.21 BigRIPS run0159
      AIDA R16_269
      BRIKEN file 17

18.44 System wide checks OK *except* nnaida1 fails global clocks 6

19.31 BigRIPS run0160
      AIDA R16_288
      BRIKEN file 18

19.55 System wide checks OK *except* nnaida1 fails global clocks 6

20.22 BigRIPS run0161
      AIDA R16_300
      BRIKEN file 19
      Degrader 8mm Al (unchanged)

21.32 BigRIPS run0162
      AIDA R16_318
      BRIKEN file 20
      Degrader 8mm Al (unchanged)

21.32 Bias & leakage currents OK - see attachments 27-28
      FEE64 temperatures OK - see attachment 29

21.38 System wide checks OK *except* nnaida1 fails global clocks 6

22.16 BigRIPS run0163
      AIDA R16_329
      Degrader 8mm Al (unchanged)

22.30 System wide checks OK *except* nnaida1 fails global clocks 6

22.33 AIDA synchronised - R16_333 - see attachment 30

23.07 BigRIPS run0163
      AIDA R16_341
      BRIKEN
      Degrader 8mm Al (unchanged)

23.28 ASIC settings 2017Mar27-16.12.39

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 50ns tau_d 50us
      frequency 25Hz range
      polarity-
      tail pulse, delay MIN

23.35 System wide checks OK *except* nnaida1 fails global clocks 6

23.28 Analysis of data fileR16_347 - see attachment 31

23.48 daid on shift.

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

300317_bias1.png Original size: 1001x342

Attachment 2:

300317_goodevents1.png Original size: 1471x505

Attachment 3:

300317_pause1.png Original size: 1479x507

Attachment 4:

300317_resume1.png Original size: 1477x506

Attachment 5:

300317_sync1.png Original size: 1477x498

Attachment 6:

300317_bias2.png Original size: 1005x341

Attachment 7:

300317_bias3.png Original size: 1002x343

Attachment 8:

300317_bias4.png Original size: 1005x341

Attachment 9:

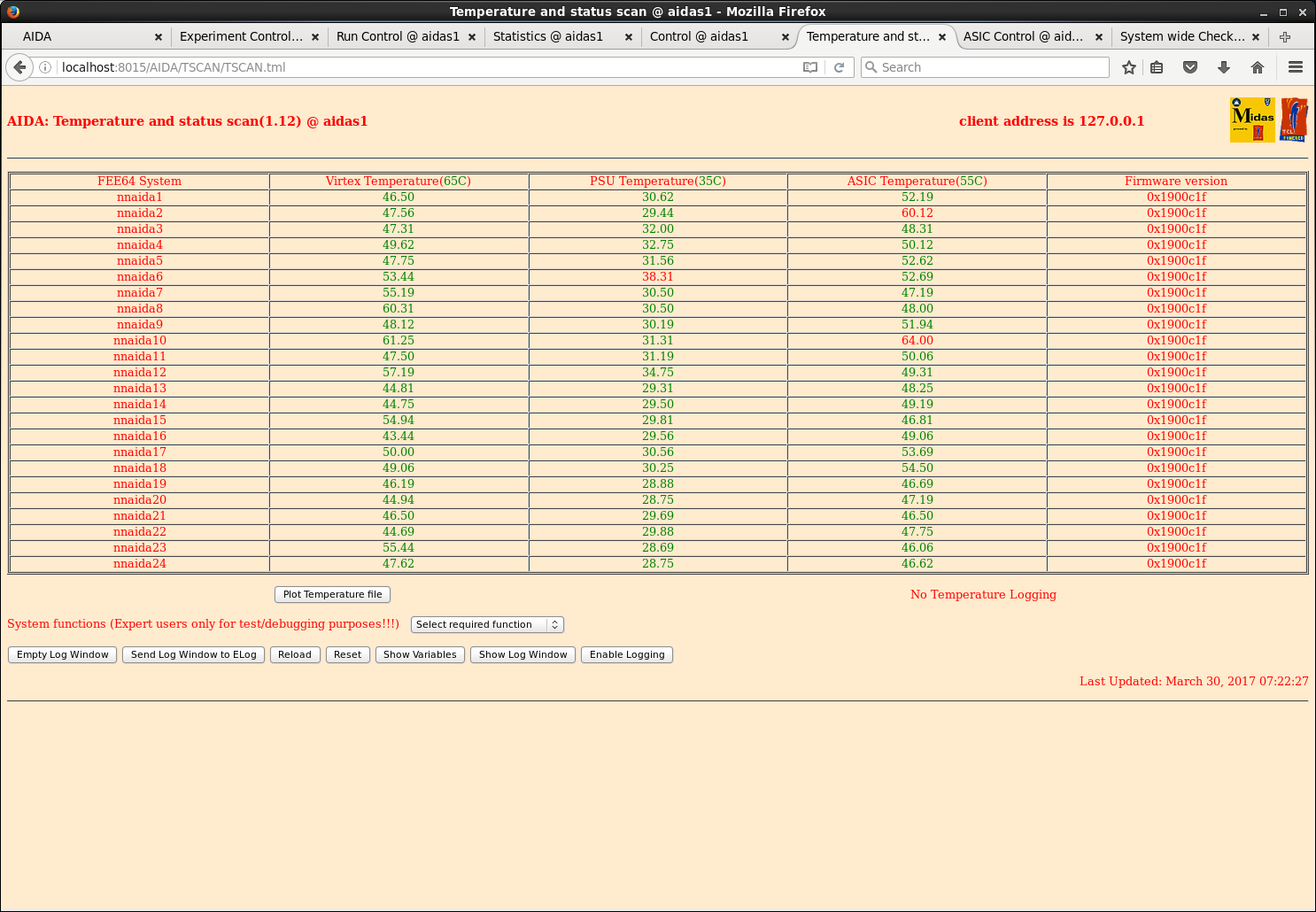

temps_0900_300317.png Original size: 1486x1030

Attachment 10:

bias_300317_0930.png Original size: 1004x342

Attachment 11:

bias_300317_1200.png Original size: 1004x344

Attachment 12:

101.png Original size: 1486x1030

Attachment 13:

102.png Original size: 1486x1030

Attachment 14:

103.png Original size: 1486x1030

Attachment 15:

104.png Original size: 1486x1030

Attachment 16:

1.png Original size: 502x344

Attachment 17:

2.png Original size: 502x344

Attachment 18:

3.png Original size: 1486x1030

Attachment 19:

4.png Original size: 1486x1030

Attachment 20:

5.png Original size: 1486x1030

Attachment 21:

6.png Original size: 1486x1030

Attachment 22:

7.png Original size: 1486x1030

Attachment 23:

8.png Original size: 1486x1030

Attachment 24:

9.png Original size: 1486x1030

Attachment 25:

10.png Original size: 1920x1080

Attachment 26:

11.png Original size: 1486x1030

Attachment 27:

12.png Original size: 502x344

Attachment 28:

13.png Original size: 502x344

Attachment 29:

14.png Original size: 1486x1030

Attachment 30:

15.png Original size: 1906x597

Attachment 31:

R16_347.out

 *** TDR format 3.3.0 analyser - TD - October 2016
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  258617393 ( 1063102.8 Hz)
        Other data format:    2470607 (   10156.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         80 (       0.3 Hz)
                               RESUME:         80 (       0.3 Hz)
                              SYNC100:    2226076 (    9150.8 Hz)
                           FEE64 disc:     233060 (     958.0 Hz)
                             MBS info:      11311 (      46.5 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       2897 (      11.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      243.267 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.048                0.000
  6                0.047                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.006                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.003                0.000
 15                0.269                0.000
 16                0.241                0.000
 17                0.157                0.000
 18                0.149                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.002                0.000
 23                0.817                0.852
 24                0.360                0.380
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   12509558     102337          0          0          0          0      92792       9545          0          0        161
  2    7607865     105310          0          0          0          0      92785      12525          0          0          0
  3    7556969     100942          0          0          0          0      92783       8159          0          0          0
  4    2515946      98819          0          0          0          0      92786       6033          0          0         79
  5   10920570     104069          0          0          8          8      92771      11282          0          0          0
  6   12748474     113963          0          0          4          4      92774       9870      11311          0          0
  7    5247530      98931          0          0          0          0      92782       6149          0          0        134
  8    4448662     100669          0          0          0          0      92785       7884          0          0        349
  9    8677724     102306          0          0          0          0      92791       9515          0          0          0
 10   10533767     107166          0          0          3          3      92779      14381          0          0          0
 11    2745480     100781          0          0          0          0      92783       7998          0          0          1
 12    3872642      98727          0          0          0          0      92787       5940          0          0          0
 13    7837575     103307          0          0          0          0      92788      10519          0          0          0
 14    9473662     100212          0          0          2          2      92782       7426          0          0         33
 15   17589349     103513          0          0         10         10      92690      10803          0          0          1
 16   19794949     101039          0          0          8          8      92698       8325          0          0          0
 17   12364562     105521          0          0         14         14      92727      12766          0          0          0
 18   16571556     109872          0          0          6          6      92729      17131          0          0          0
 19    8013405     103594          0          0          0          0      92785      10809          0          0          0
 20    5661370      99897          0          0          0          0      92790       7107          0          0       1801
 21    8287632     105654          0          0          0          0      92782      12872          0          0        261
 22    9536798     102123          0          0          3          3      92782       9335          0          0          0
 23   29778129     100090          0          0         14         14      92475       7587          0          0         77
 24   24323219     101765          0          0          8          8      92650       9099          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** Program elapsed time:   20.180s ( 1585.753 blocks/s,  99.110 Mb/s)

Attachment 32:

Drop attachments here...

ELOG V3.1.4-unknown
