Entry time:

Sat May 13 02:35:53 2017

Author*:

Subject*:

10.35 DAQ continues OK
      Current file May2017/R6_246

ASIC settings 2017Mar27-16.12.39 *except*
      slow comparator 0x20
      LEC/MEC fast comparator 0xff

Detector biases & leakage currents OK - see attachments 1 & 2
      FEE64 Temperatures OK - see attachment 3
      'good events' statistics OK - see attachment 4
      No warnings/errors reported by merger since DAQ GO - see attachment 5

*all* system wide checks OK

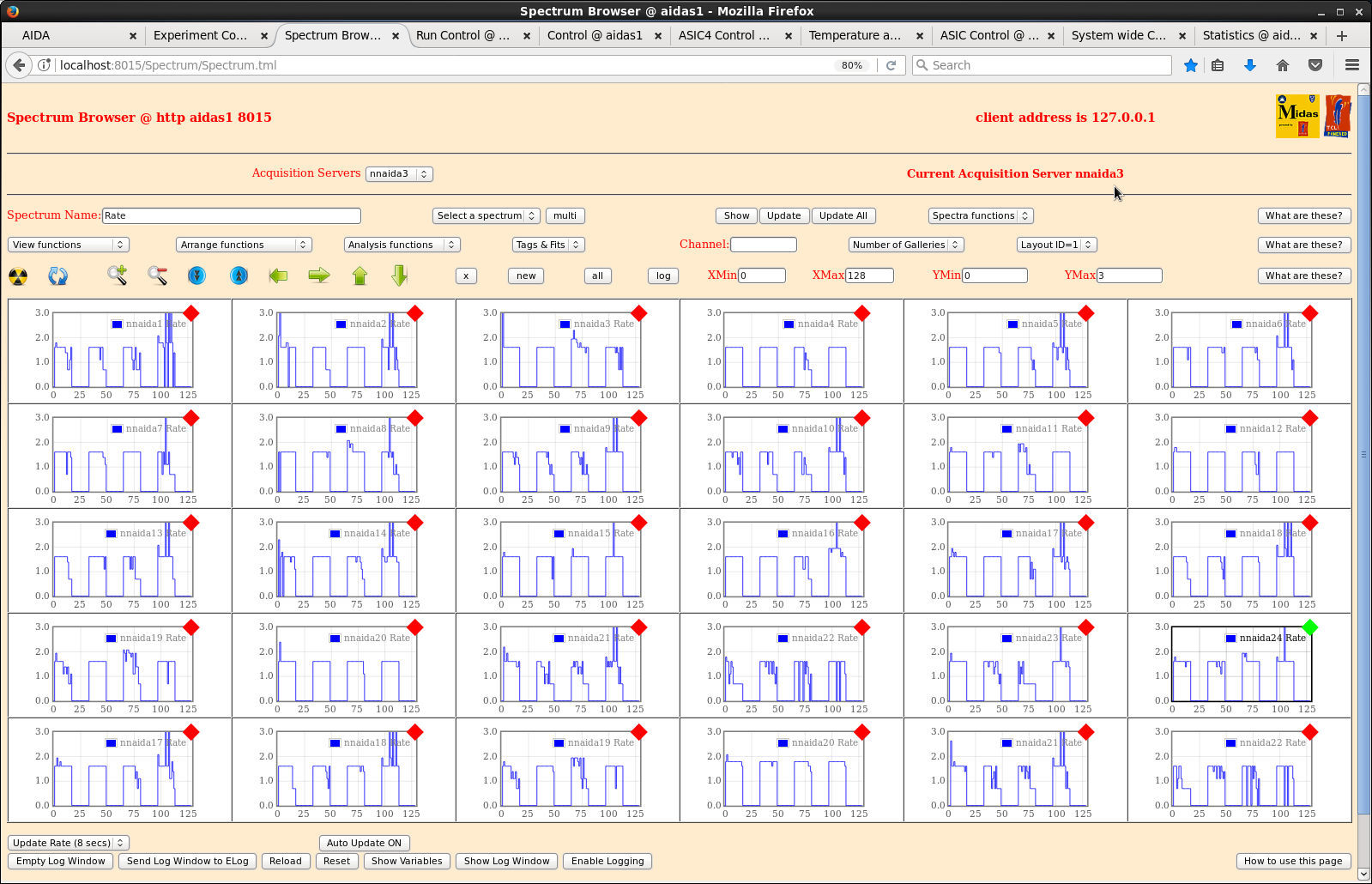

10.46 Rate/HitRate spectra - see attachments 6 & 7

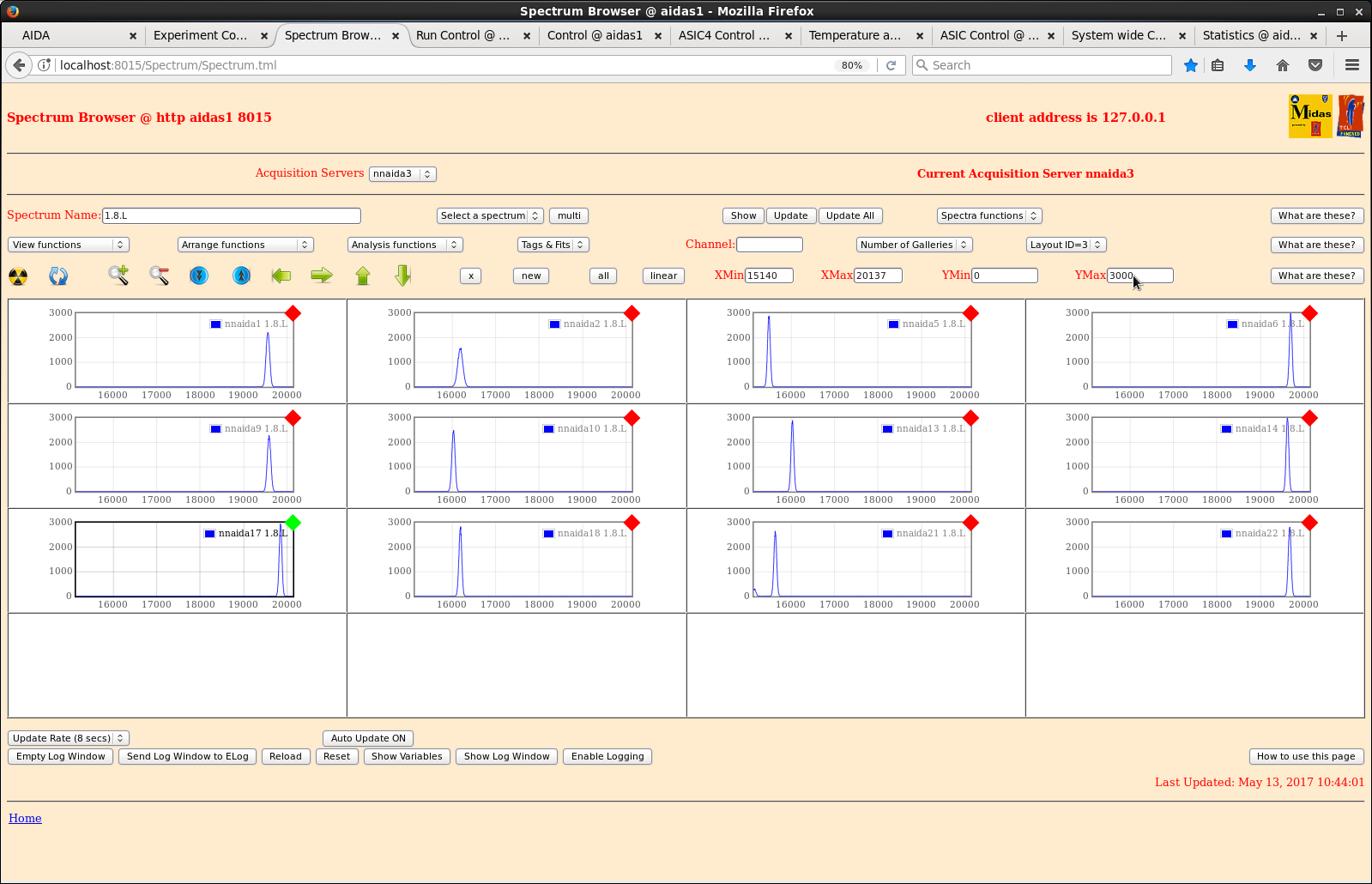

      1.8.L ADC spectra - see attachments 8 & 9

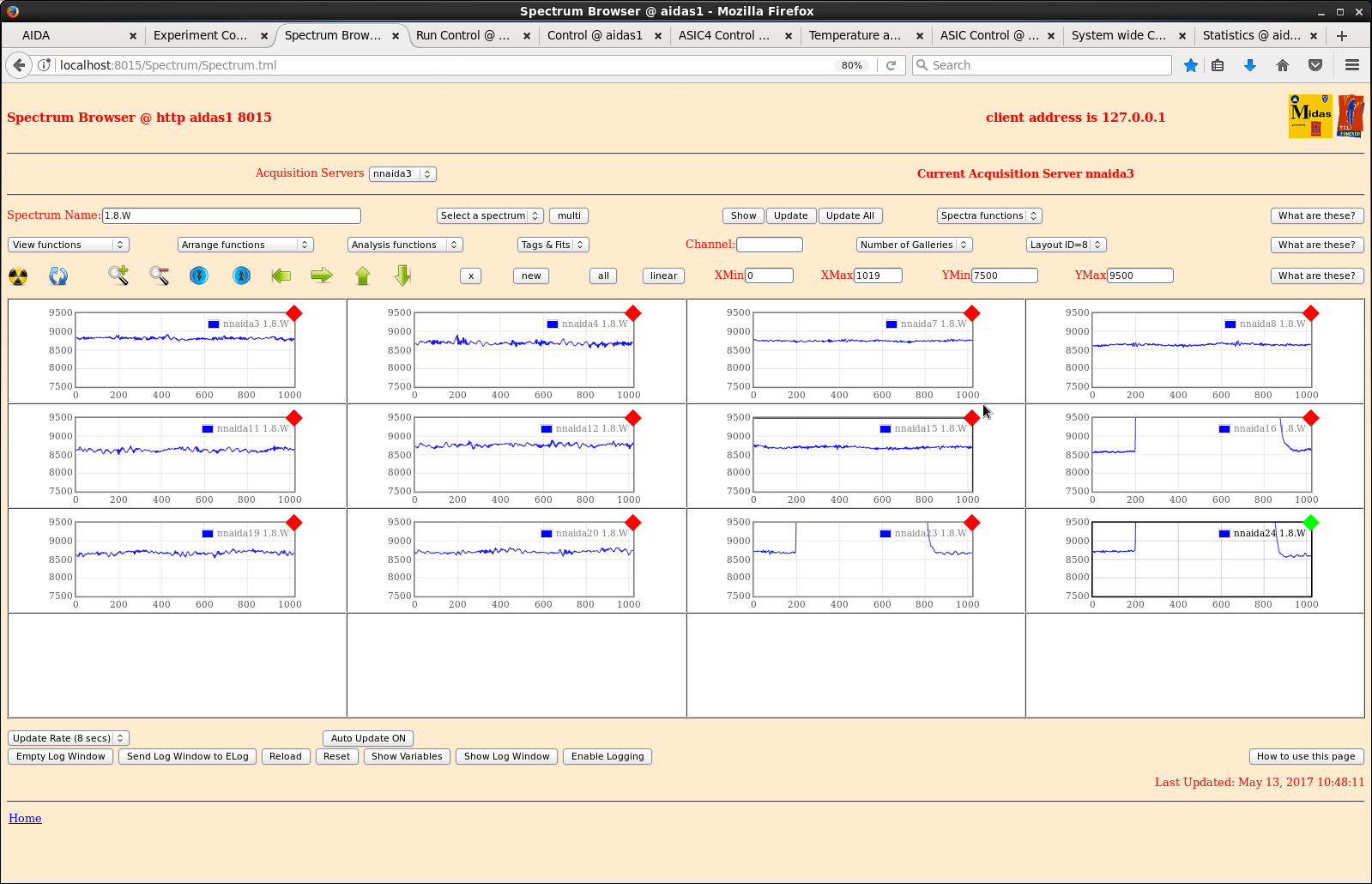

      1.8.W waveforms - see attachments 10-13

10.51 Analysis of data file R6_245 - see attachment 14
      Zero AIDA pause/resume
      Zero idle-time
      AIDA SYNC100 variations ~33/503400

12.03 E17/F11 ambient temperature +24.6 deg C, RH 39.4%, d.p. +9.9 deg C
      Julabo FL11006 set point +20 deg C, actual +20.0 deg C, water level OK (c. 65%)

12.04 DAQ stops OK
      Current file May2017/R6_250

Files May2017/R6* *deleted*

ASIC settings 2017Mar27-16.12.39 *except*
      slow comparator 0x0a
      LEC/MEC fast comparator 0xff

BNC PB-4 settings
      Amplitude 90,000
      x5 attenuator IN
      t_r 50ns, tau_d 50us
      polarity -
      rate 250Hz range
      delay MIN, tail pulse

Check ASIC Control x2
      Zero all spectra

12.15 DAQ starts
      File May2017/R7

14.30 Analysis of May2017/R7_29

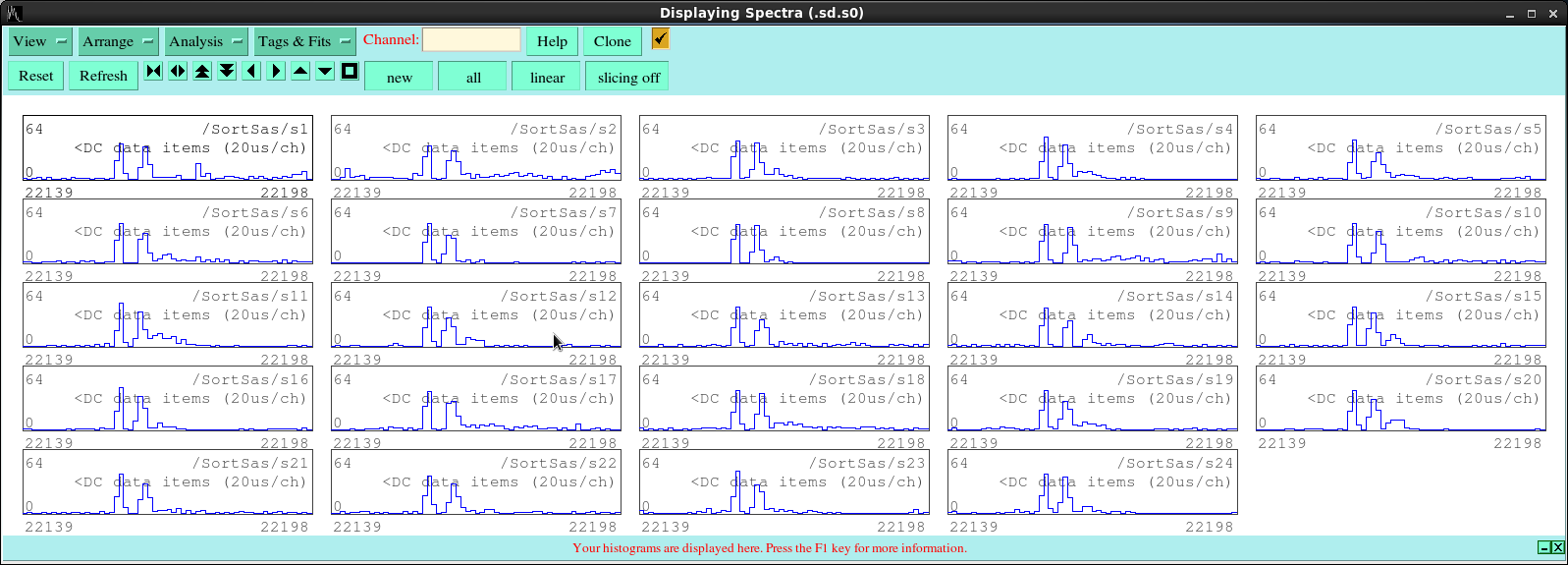

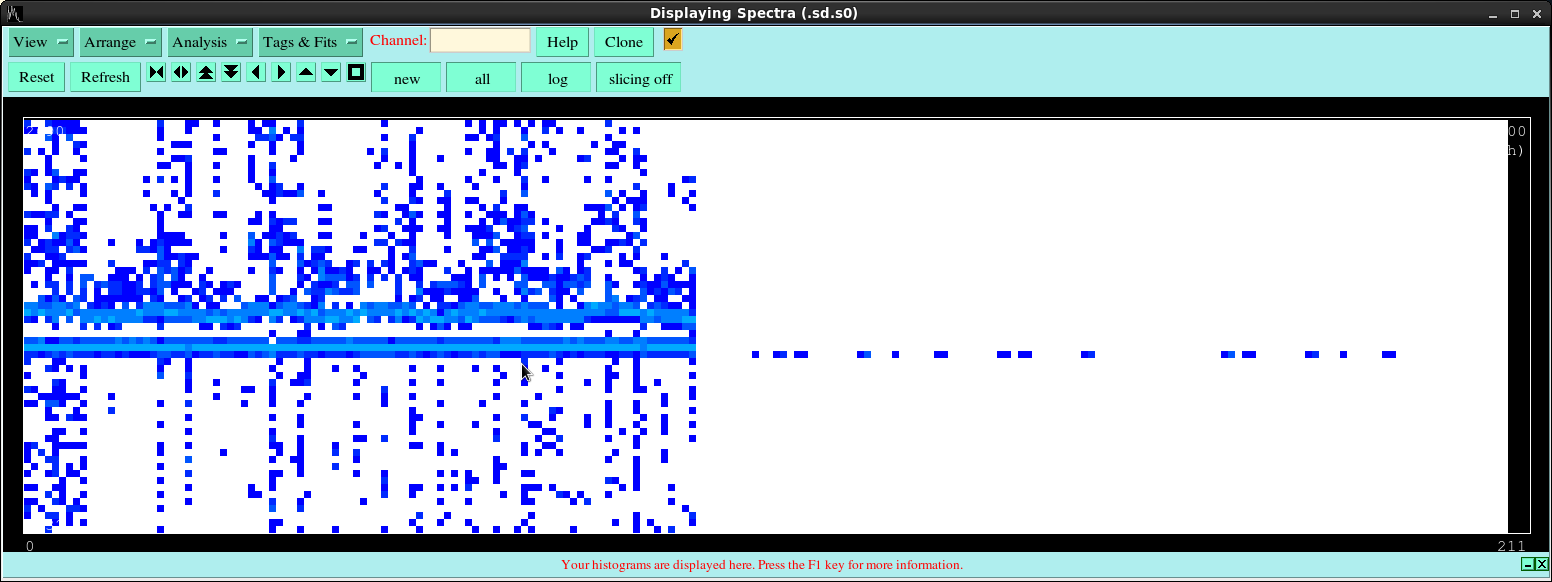

ADC data synchronised - see attachments 15 & 16

14.37 Analysis of data file R7_29 - see attachment 17
      AIDA pause/resume for some FEE64s
      dead-time/idle-time <0.5%
      AIDA SYNC100 variations ~300/100000

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

40.png Original size: 502x344

Attachment 2:

41.png Original size: 502x344

Attachment 3:

42.png Original size: 1599x1030

Attachment 4:

43.png Original size: 1599x1030

Attachment 5:

44.png Original size: 1920x1080

Attachment 6:

45.png Original size: 1599x1030

Attachment 7:

46.png Original size: 1599x1030

Attachment 8:

47.png Original size: 1599x1030

Attachment 9:

48.png Original size: 1599x1030

Attachment 10:

49.png Original size: 1599x1030

Attachment 11:

50.png Original size: 1599x1030

Attachment 12:

51.png Original size: 1599x1030

Attachment 13:

52.png Original size: 1599x1030

Attachment 14:

R6_245

 *** TDR format 3.3.0 analyser - TD - October 2016
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  248860714 (  188621.5 Hz)
        Other data format:   12227286 (    9267.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:   12077703 (    9154.2 Hz)
                           FEE64 disc:     149583 (     113.4 Hz)
                             MBS info:          0 (       0.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       3105 (       2.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     1319.365 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   16273235     511402          0          0          0          0     503244       8158          0          0       1051
  2   24787054     514666          0          0          0          0     503243      11423          0          0          0
  3    1121536     509736          0          0          0          0     503238       6498          0          0          0
  4     418486     503235          0          0          0          0     503235          0          0          0          0
  5   19694247     516577          0          0          0          0     503230      13347          0          0          0
  6   25611582     506453          0          0          0          0     503221       3232          0          0          0
  7     506088     503234          0          0          0          0     503234          0          0          0          0
  8     503553     509750          0          0          0          0     503225       6525          0          0          0
  9   16717431     507556          0          0          0          0     503241       4315          0          0          0
 10   15092481     516957          0          0          0          0     503234      13723          0          0          0
 11     425327     509720          0          0          0          0     503245       6475          0          0          0
 12     432732     503239          0          0          0          0     503239          0          0          0          0
 13   15757667     518167          0          0          0          0     503231      14936          0          0          0
 14   18136781     509978          0          0          0          0     503235       6743          0          0        700
 15    4760147     503241          0          0          0          0     503239          2          0          0          2
 16    5480202     503244          0          0          0          0     503244          0          0          0          0
 17   25930914     509320          0          0          0          0     503234       6086          0          0          0
 18   25238857     517468          0          0          0          0     503254      14214          0          0          0
 19     420716     509749          0          0          0          0     503246       6503          0          0          0
 20     438145     503241          0          0          0          0     503241          0          0          0          0
 21   16898568     519841          0          0          0          0     503239      16602          0          0       1352
 22     343595     507556          0          0          0          0     503250       4306          0          0          0
 23    6753779     503225          0          0          0          0     503225          0          0          0          0
 24    7117591     509731          0          0          0          0     503236       6495          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** Program elapsed time:   15.488s ( 2066.078 blocks/s, 129.130 Mb/s)

Attachment 15:

70.png Original size: 1552x582

Attachment 16:

71.png Original size: 1597x575

Attachment 17:

R7_29

 *** TDR format 3.3.0 analyser - TD - October 2016
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  258637735 (  978007.0 Hz)
        Other data format:    2450265 (    9265.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         62 (       0.2 Hz)
                               RESUME:         62 (       0.2 Hz)
                              SYNC100:    2420294 (    9152.0 Hz)
                           FEE64 disc:      29847 (     112.9 Hz)
                             MBS info:          0 (       0.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:        625 (       2.4 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      264.454 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.187                0.000
  2                0.716                0.689
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.006                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.156                0.000
 10                0.042                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.214                0.000
 19                0.007                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.004                0.000
 23                0.147                0.000
 24                0.044                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   22868848     102579          0          0          5          5     100803       1766          0          0        207
  2   28331988     102793          0          0         15         15     100593       2170          0          0          0
  3    8152447     102183          0          0          0          0     100869       1314          0          0          0
  4    2855381     100866          0          0          0          0     100866          0          0          0          0
  5    9414432     103577          0          0          0          0     100876       2701          0          0          0
  6   10509544     101541          0          0          3          3     100873        662          0          0          0
  7    3213206     100864          0          0          0          0     100864          0          0          0          0
  8    2650984     102170          0          0          0          0     100865       1305          0          0          0
  9   18798217     101588          0          0          6          6     100804        772          0          0          0
 10   12655365     103508          0          0          6          6     100853       2643          0          0          0
 11    4592570     102175          0          0          0          0     100867       1308          0          0          0
 12    5264613     100869          0          0          0          0     100869          0          0          0          0
 13    8207988     103872          0          0          0          0     100869       3003          0          0          0
 14    9525654     102085          0          0          0          0     100869       1216          0          0        142
 15   10466734     100867          0          0          0          0     100865          2          0          0          2
 16   10194633     100868          0          0          0          0     100868          0          0          0          0
 17    7780448     102006          0          0          0          0     100872       1134          0          0          0
 18   15590832     103639          0          0         11         11     100790       2827          0          0          0
 19   10640866     102176          0          0          3          3     100870       1300          0          0          0
 20    7659649     100872          0          0          0          0     100872          0          0          0          0
 21    9094337     104303          0          0          0          0     100872       3431          0          0        274
 22   10748488     101889          0          0          2          2     100879       1006          0          0          0
 23   15896000     100831          0          0          7          7     100817          0          0          0          0
 24   13524511     102144          0          0          4          4     100849       1287          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** Program elapsed time:    4.930s ( 6491.284 blocks/s, 405.705 Mb/s)

Attachment 18:

Drop attachments here...

ELOG V3.1.4-unknown
