Entry time:

Wed May 17 05:28:19 2017

Author*:

Subject*:

11.11 DAQ found stopped
      Most recent file May2017/R11_245 (last accessed 06:09)

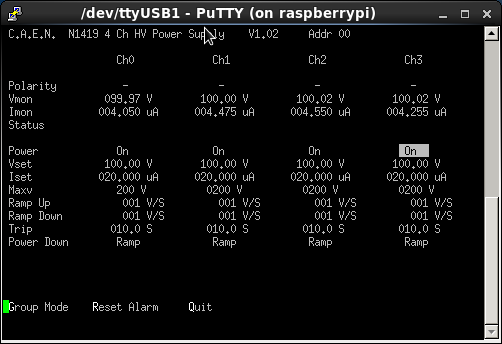

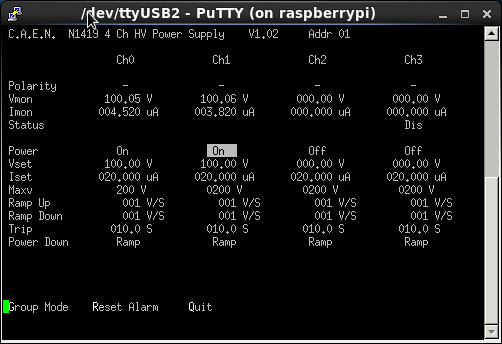

Detector biases & leakage currents OK - see attachments 1 & 2

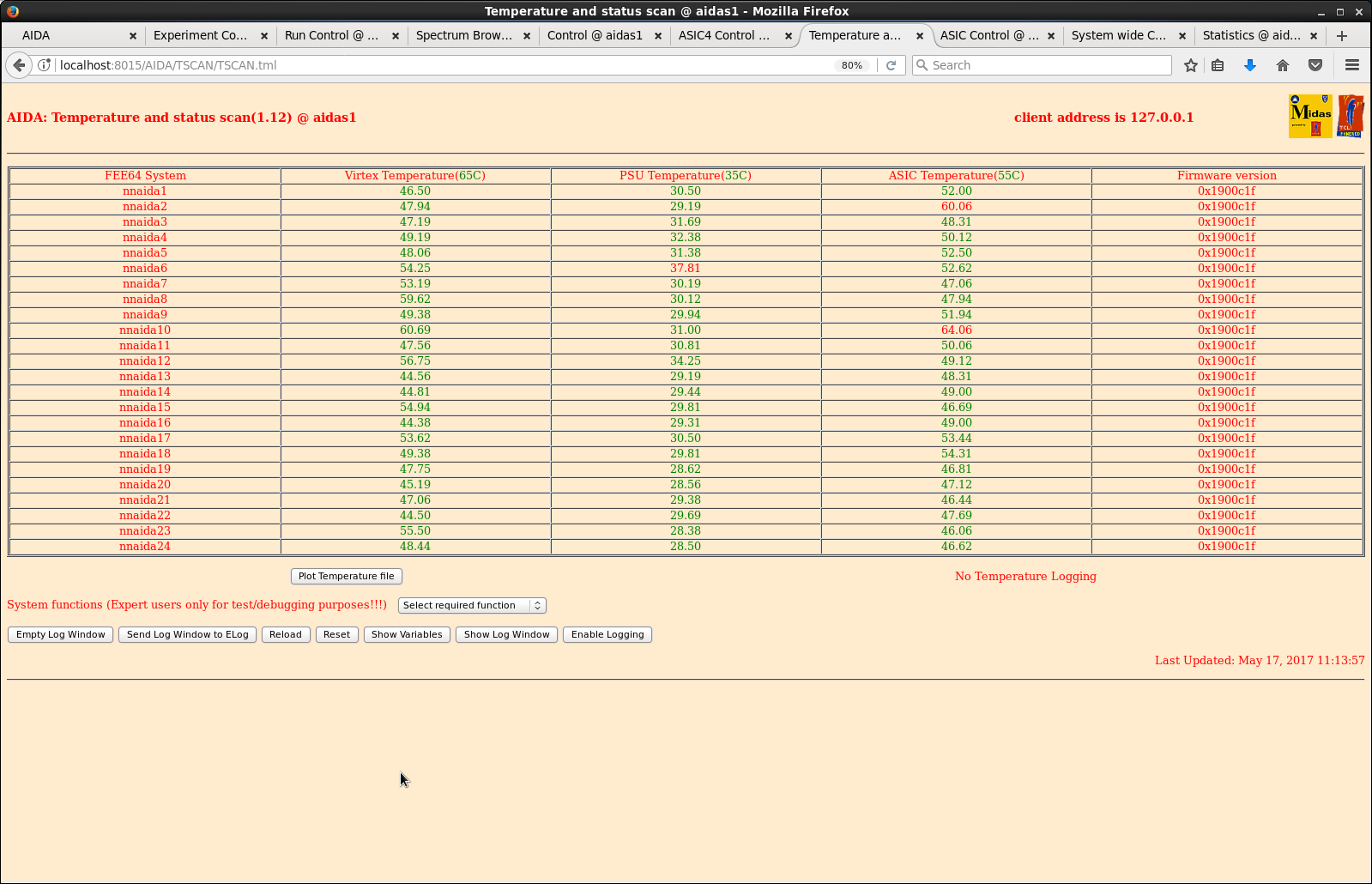

      FEE64 Temperatures OK - see attachment 3

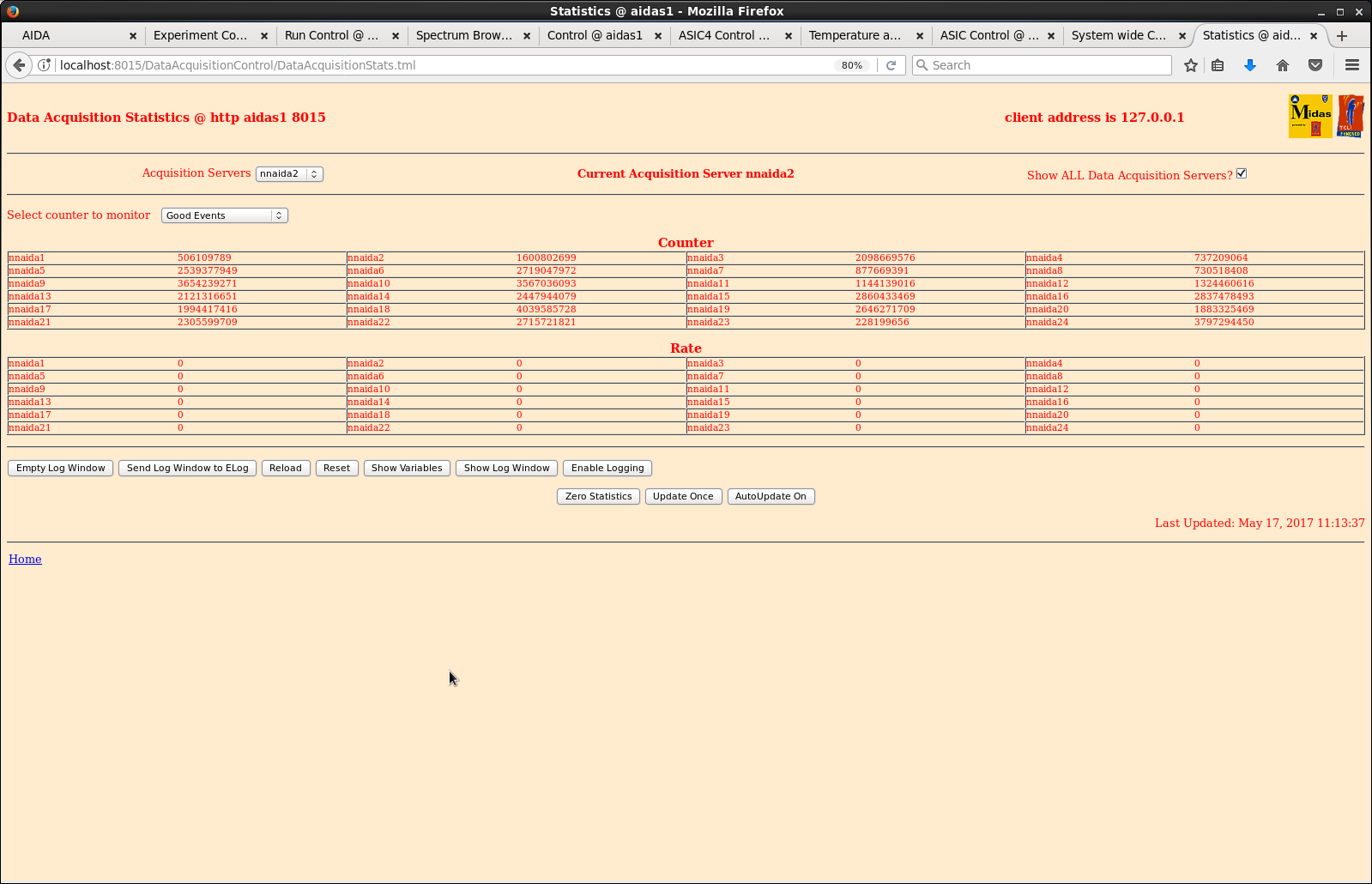

      'good events' statistics zero - see attachment 4

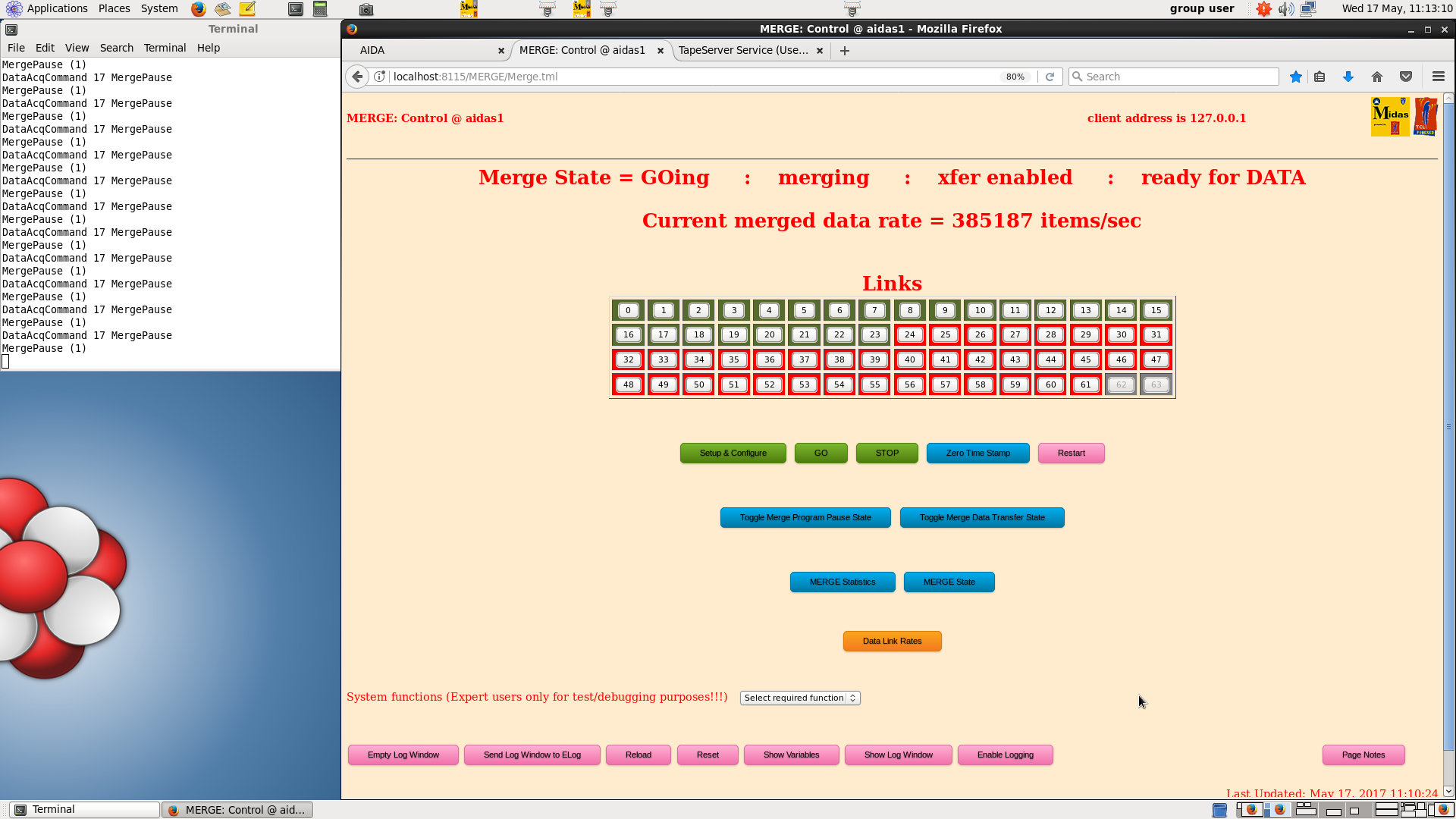

      Merger and Tapeserver terminal server windows are gone - see attachment 5

*all* system wide checks OK

No relevant system log messages (/var/log/messages) c. 06.00

DAQ STOP attempt #1  did not stop
                       #2  timeout nnaida1, nnaida2-24 did not stop
                       #3  timeout nnaida1, nnaida2-24 did not stop

Restart, configure and setup/go merger terminal server
      Restart TapeServer terminal server

DAQ STOP attempt #3 all stop OK

11.24 Analysis of data file R11_245 - see attachment 6
      dead-time/idle-time < 0.5%
      AIDA SYNC100 variations ~160/78000

11.34 E17/F11 ambient temperature +24.5 deg C, RH 37.0%, d.p. +9.0 deg C
      Julabo FL11006 set point +20 deg C, actual +20.0 deg C, water level OK (c. 65%)

13.06 Check ASIC Control x2
      Zero all spectra

Restart terminal servers for Httpd for Merger/TapeServer, Merger & TapeServer
      Restart browser for Merger & TapeServer
      N.B. *no FEE64 power cycle, no DAQ RESET, SETUP etc*

11.30 DAQ starts
      File May2017/R12

13.10 DAQ GO - data transfer links for nnaida11 & nnaida12 dropped

DAQ STOP
      Disable all data transfer links
      Restart terminal servers for Httpd for Merger/TapeServer, Merger & TapeServer
      Restart browser for Merger & TapeServer
      Enable all data transfer links

DAQ GO OK
      File May2017/R13

ASIC settings 2017Mar27-16.12.39 *except*
      slow comparator 0x0a
      LEC/MEC fast comparator 0xff

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1599x1030

Attachment 4:

4.png Original size: 1599x1030

Attachment 5:

5.png Original size: 1920x1080

Attachment 6:

R11_245

 *** TDR format 3.3.0 analyser - TD - October 2016
 *** ERROR: READ I/O error:       5002
                   blocks:      24768
          ADC data format:  200038543 (  974262.9 Hz)
        Other data format:    2043569 (    9952.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         61 (       0.3 Hz)
                               RESUME:         61 (       0.3 Hz)
                              SYNC100:    1879179 (    9152.3 Hz)
                           FEE64 disc:     164268 (     800.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       3266 (      15.9 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      205.323 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.085                0.000
  2                0.403                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.081                0.000
 10                0.019                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.003                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.098                0.000
 19                0.027                0.000
 20                0.000                0.000
 21                0.001                0.000
 22                0.009                0.000
 23                0.173                0.000
 24                0.090                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   15859709      84568          0          0          3          3      78281       6281          0          0        298
  2   20673464      88218          0          0         20         20      78162      10016          0          0          0
  3    6325466      85095          0          0          0          0      78318       6777          0          0          0
  4    2161359      83714          0          0          0          0      78312       5402          0          0         55
  5    7716830      86678          0          0          0          0      78310       8368          0          0          0
  6    8261678      83557          0          0          0          0      78307       5250          0          0         23
  7    2586314      83505          0          0          0          0      78318       5187          0          0         77
  8    2140344      84833          0          0          0          0      78310       6523          0          0        318
  9   12087904      83724          0          0          6          6      78288       5424          0          0          0
 10   11279375      87355          0          0          1          1      78304       9049          0          0          0
 11    3334460      85220          0          0          0          0      78310       6910          0          0          1
 12    3910098      83516          0          0          0          0      78314       5202          0          0          0
 13    6413306      86252          0          0          0          0      78314       7938          0          0          0
 14    7397722      84482          0          0          0          0      78319       6163          0          0        729
 15    8630720      85929          0          0          2          2      78315       7610          0          0          1
 16    8569650      84594          0          0          0          0      78315       6279          0          0          0
 17    6084495      83427          0          0          0          0      78321       5106          0          0         17
 18   12305359      86944          0          0          5          5      78280       8654          0          0          0
 19    8117190      87564          0          0          7          7      78306       9244          0          0          1
 20    5733733      83692          0          0          0          0      78315       5377          0          0       1504
 21    7030601      88069          0          0          1          1      78317       9750          0          0        220
 22    8291377      83545          0          0          4          4      78313       5224          0          0          5
 23   13671003      83823          0          0          7          7      78250       5559          0          0         17
 24   11456386      85265          0          0          5          5      78280       6975          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** Program elapsed time:    9.391s ( 2637.524 blocks/s, 164.845 Mb/s)
