09.00 DAQ continues OK
      Current file May2017/R32_239

Detector biases; leakage currents OK - see attachments 1 & 2
      FEE64 Temperatures OK - see attachment 3
      good events; statistics OK - see attachment 4
      Some error messages reported by merger yesterday but none overnight - see attachment 5

*all* system wide checks OK *except* ADC calibration of nnaida1, 21 and nnaida1 clock status (status =6)

09.33 E17/F11 ambient temperature +24.0 deg C, RH 38.0%, d.p. +8.8 deg C
      Julabo FL11006 set point +20 deg C, actual +20.0 deg C, water level OK (c. 75%)

09.35 Analysis of R32_259 - OK see attachment 6

10.50 Offline analysis R32_277 - ADC & disc data synchronised - see attachments 7-9

11.00 DAQ stop OK
      File May2017/R32_280

Check ASIC control x2
      Zero all spectra

11.05 DAQ go
      File May2017/R33

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 100ns tau_d 50us
      - polarity
      frequency 25Hz range
      delay MIN, tail pulse, INT ref

ASIC settings 2017Mar27-16.12.39 *except*
      slow comparator 0x0a
      LEC/MEC fast comparator 0x20

15.00 Merger crashed (SEGV) - see https://elog.ph.ed.ac.uk/AIDA/607

DAQ stop
      Restart Merger
      DAQ stop OK following transient nnaida1 timeout

Close merger/tapeserver browser, kill httpd for merger/tapeserver,merger and tapeserver terminal server
sessions
      Disable histogramming and data transfer #1
      DAQ reset, setup
      Restart merger and tapeserver
      Enable histogramming and data transfer #1

*all* system wide checks OK *except* nnaida1 & nnaida21 fail ADC calibration, nnaida1 clock status=6

15.18 DAQ start
      File May2017/R34

15.25 no merger error messages
      nnaida1 & nnaida2 good events high - ~100k and ~120k respectively - see attachment 10

16.24 removed R32
      System wide checks - ASIC clock timestamp test fails on all nnaidas. Synchronised clocks. ASIC clock test
      passes.
      FEE temperatures, leakage currents - OK
      Merger reports

Merge: Restarting from timestamp 1 or greater
      Merge: Starting at timestamp 27d1e55c00a0
      Merge: Trying to add items to Q index 21 (Link 21) but queue already full

Probably as a result of ADC clock synchronisation.

17:03 Used analyser on R34_23. No timewarps, negligible dead time. All other values as normal.

17.19 FEE64 temperatures, leakage currents - OK
      nnaida1 & nnaida 2 good events still high - ~100k roughly
      No further messages from merger

17.45 DAQ continues OK
      BRIKEN reports increased neutron and gamma activity. No apparent effect on AIDA rates.

18.50 DAQ continues OK
      FEE64 temperatures, leakage currents - OK
      No merger errors
      Used analyser on run R34_49 - no timewarps, rates as expected

19.30 BigRIPS optimisation ongoing. DAQ continues OK
      FEE64 temperatures, leakage currents - OK
      No merger error messages
      No panics from USB device monitor
      Used analyser on R34_58 - no timewarps, ADC data format ~ 1Mhz, other rates OK,
                                highest dead time = ~2 s/254 s on nnaida 2

20.00 BigRIPS optimisation ongoing. DAQ continues OK
      FEE64 temperatures, leakage currents - OK
      No merger error messages
      No panics from USB device monitor
      Used analyser on R34_63 - no timewarps, ADC data format ~ 1Mhz, other rates OK,
                                highest dead time = ~1.3 s/255 s on nnaida 2

20.15 BigRIPS reports beam optimisation may be over soon.
      DAQ continues OK.

20.47 BigRIPS optimisation ongoing. DAQ continues OK
      FEE64 temperatures, leakage currents - OK
      No merger error messages
      No panics from USB device monitor
      Used analyser on R34_76 - no timewarps, ADC data format ~ 1Mhz, other rates OK,
                                highest dead time = ~1.1 s/255 s on nnaida 2

21.49 BigRIPS optimisation ongoing. DAQ continues OK
      FEE64 temperatures, leakage currents - OK
      No merger error messages
      No panics from USB device monitor
      Used analyser on R34_90 - no timewarps, ADC data format ~ 1Mhz, other rates OK,
                                highest dead time = ~2.0 s/258 s on nnaida 2

23.05 BigRIPS optimisation ongoing. DAQ continues OK
      FEE64 temperatures, leakage currents - OK
      No merger error messages
      No panics from USB device monitor
      Used analyser on R34_109 - no timewarps, ADC data format ~ 1Mhz, other rates OK,
                                highest dead time = ~1.9 s/256 s on nnaida 2

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1460x1028

Attachment 4:

4.png Original size: 1460x1028

Attachment 5:

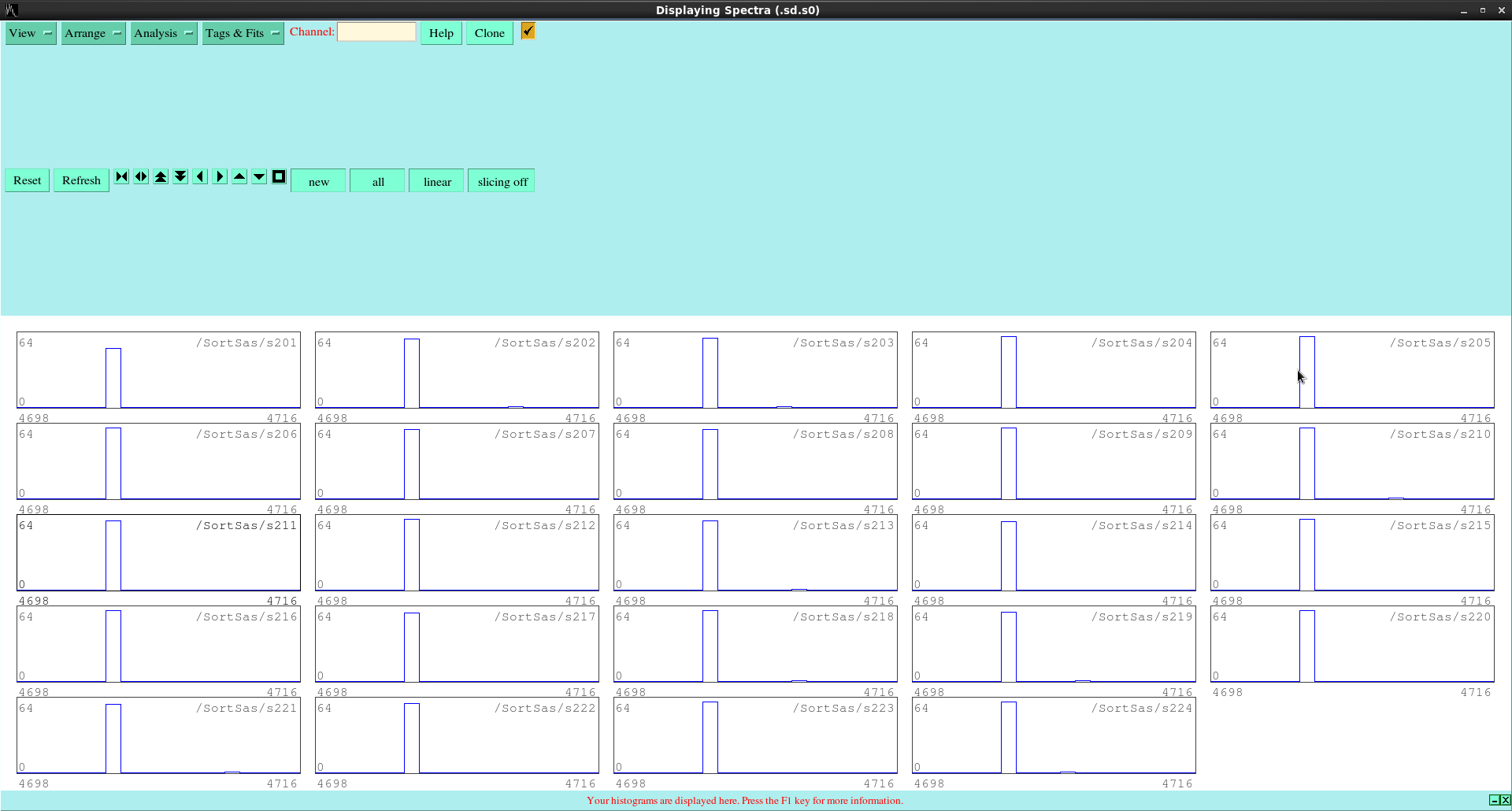

5.png Original size: 1920x1080
