Entry time:

Wed May 31 00:02:41 2017

Author*:

Subject*:

08:02 BRIKEN starts run 1032
      BigRIPS starts run 31
      AIDA on file R1_423

08:10 system wide checks all ok

08:28 Check ASIS all OK

08:40 Check Online data OK

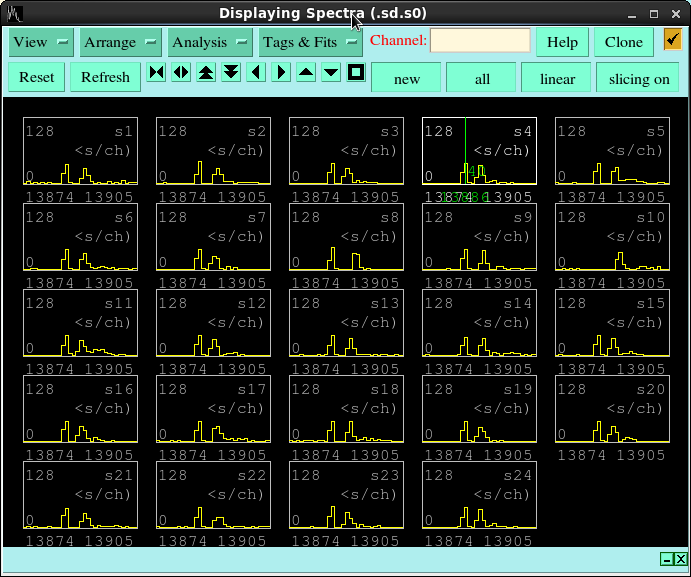

      See Attachment 1, 2

08:57 BigRips and BRIKEN stop their runs
      AIDA on file R1_436

09:06 BRIKEN start run 32
      BigRIPS start run 1033
      AIDA on file R1_439

10:00 BigRips and BRIKEN stop their runs
      AIDA on file R1_452

10:01 BRIKEN start run 33
      BigRIPS start run 1034
      AIDA on file R1_453

10:07 FEE temperature OK - Attachment 3

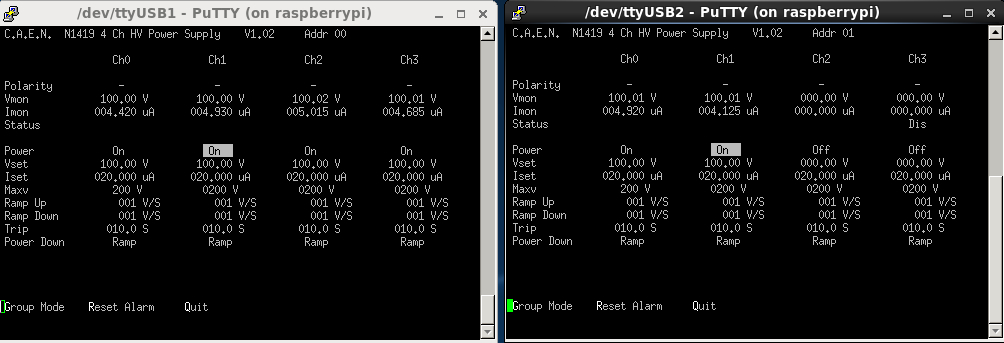

      Bias and leakage current OK - attachment 4

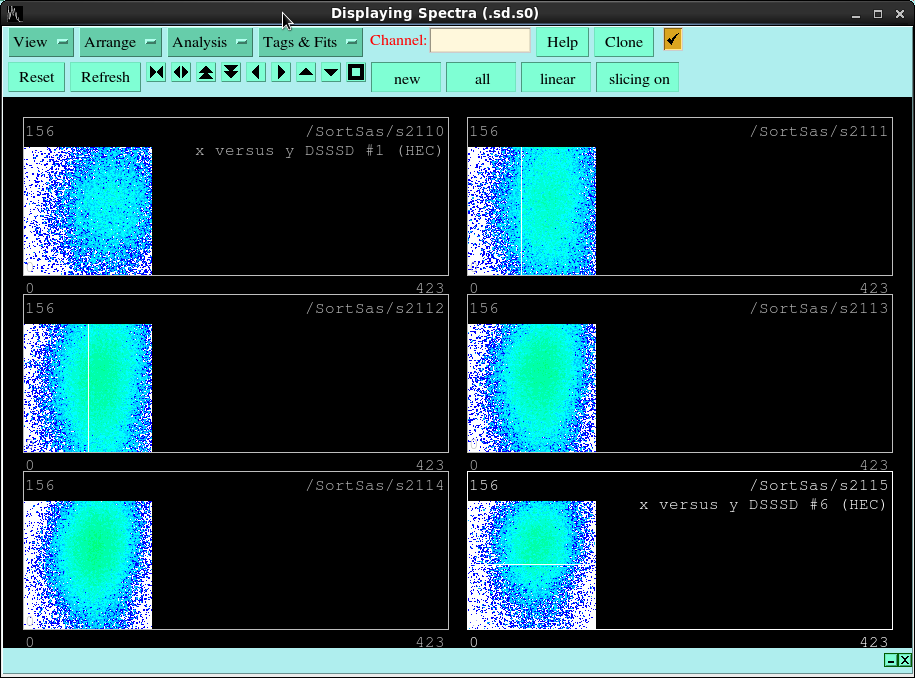

      2d hit pattern (high energy) is Ok - attachment 5

10:37 We found that histogram was not enabled in some of the FEEs, data transfer is enable
      see attachment 6

11:04 BigRips and BRIKEN stop their runs
      AIDA on file R1_468

11.04 Enabled histogramming during BRIKEN run stop/start - all OK
      ttyUSB6 (nnaida2) system console monitor log attached - 8

11:06 BRIKEN start run 34
      BigRIPS start run 1035
      AIDA on file R1_470

12:00 BigRips and BRIKEN stop their runs
      AIDA on file R1_482

12:01 BRIKEN start run 35
      BigRIPS start run 1036
      AIDA on file R1_482

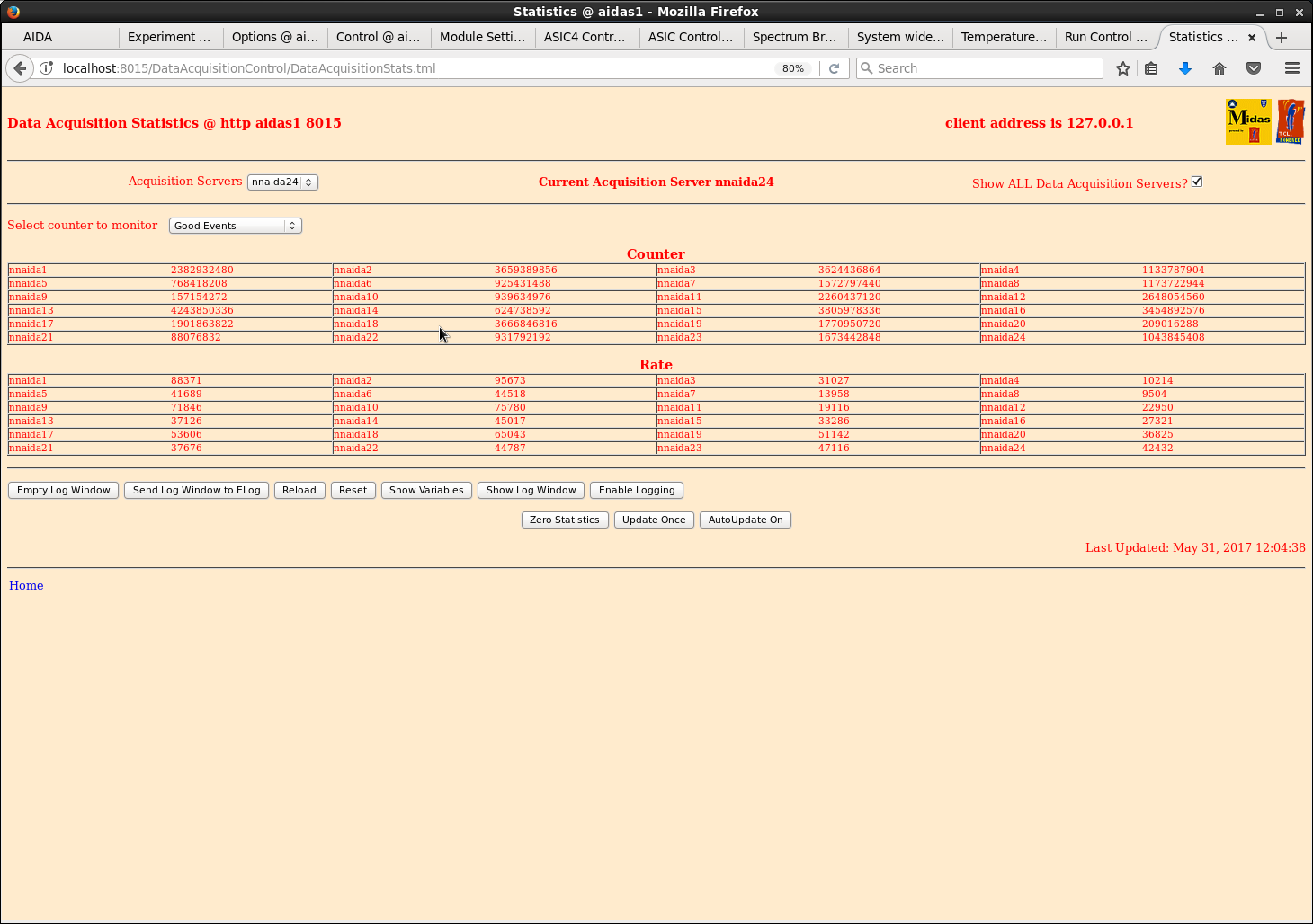

12:01 Good event statistics - attachment 7
      System wide checks all OK

12.24 DAQ continues OK
      FEE64 temperaturs - OK
      Statistics - OK
      No merger errors
      No nnaida panics
      HEC x vs y - attach 9

Sorted first few seconds of R1_486
*** data items:    9080967 (  99245.54 Hz)
 *** ADC events:     940138 (  10274.73 Hz)
 *** time warps:          0 (      0.00 Hz)
 *** DSSSD # 1 count:    404906 old count:    378618 dt:      8.69 s  LEC rate:  46613.05 Hz
 *** DSSSD # 2 count:    536629 old count:    501262 dt:      8.69 s  LEC rate:  61777.09 Hz
 *** DSSSD # 3 count:    197174 old count:    183650 dt:      8.69 s  LEC rate:  22698.80 Hz
 *** DSSSD # 4 count:    177340 old count:    166370 dt:      8.69 s  LEC rate:  20415.50 Hz
 *** DSSSD # 5 count:     76292 old count:     71320 dt:      8.69 s  LEC rate:   8782.79 Hz
 *** DSSSD # 6 count:    138215 old count:    129356 dt:      8.69 s  LEC rate:  15911.40 Hz
 *** DSSSD # 1 count:       106 old count:       100 dt:      8.69 s  HEC rate:     12.20 Hz
 *** DSSSD # 2 count:       204 old count:       184 dt:      8.69 s  HEC rate:     23.48 Hz
 *** DSSSD # 3 count:       323 old count:       303 dt:      8.69 s  HEC rate:     37.18 Hz
 *** DSSSD # 4 count:       300 old count:       278 dt:      8.69 s  HEC rate:     34.54 Hz
 *** DSSSD # 5 count:       264 old count:       246 dt:      8.69 s  HEC rate:     30.39 Hz
 *** DSSSD # 6 count:       165 old count:       154 dt:      8.69 s  HEC rate:     18.99 Hz

Cleared SortSas. Restarted online sorted.

12.57  Removed May2017/R34_* acquired during optimisation before start of RIBF127R1/R1 run

13:00 BigRips and BRIKEN stop their runs
      AIDA on file R1_496

13:04 BRIKEN start run 36
      BigRIPS start run 1037
      AIDA on file R1_498

      Cleared SortSas

13:23 Beam is off
      BigRips and BRIKEN stop their runs
      AIDA on file R1_502

13:28 Beam is back
      BRIKEN start run 37
      BigRIPS start run 1038
      AIDA on file R1_503

13:30 Beam is off
      BRIKEN and BigRIPS DAQ are still running
      Current AIDA file R1_504

13:37 Beam is back
      Current AIDA file R1_505

14:25 Crane activities in SAMURAI area (F12)

14:29 BigRips and BRIKEN stop their runs
      AIDA on file R1_518

14:33 BRIKEN start run 38
      BigRIPS start run 1039
      AIDA on file R1_519
      Clear midas sort histogram, x versus y hit pattern (HEC) OK

14:38 Crane activities ends

14:53 Bias and leakage current OK - attachment 10
      FEE64 temperature - OK
      Statistics - OK
      No Merger errors
      System wide check all OK

15:34 BigRips and BRIKEN stop their runs
      AIDA on file R1_534

15:36 BRIKEN start run 39
      BigRIPS start run 1040
      AIDA on file R1_534

Clear midas sort histogram, x versus y hit pattern (HEC) OK
      FEE64 temperature - OK
      Statistics - OK
      No Merger errors
      System wide check all OK

*** DSSSD # 1 count:  38468714 old count:  38464614 dt:      1.15 s  LEC rate:   3573.31 Hz
 *** DSSSD # 2 count:  51643619 old count:  51638011 dt:      1.15 s  LEC rate:   4887.59 Hz
 *** DSSSD # 3 count:  19411426 old count:  19409561 dt:      1.15 s  LEC rate:   1625.42 Hz
 *** DSSSD # 4 count:  16930225 old count:  16928509 dt:      1.15 s  LEC rate:   1495.56 Hz
 *** DSSSD # 5 count:   7224866 old count:   7223934 dt:      1.15 s  LEC rate:    812.27 Hz
 *** DSSSD # 6 count:  13083942 old count:  13082308 dt:      1.15 s  LEC rate:   1424.09 Hz
 *** DSSSD # 1 count:     10122 old count:     10119 dt:      1.15 s  HEC rate:      2.61 Hz
 *** DSSSD # 2 count:     22934 old count:     22930 dt:      1.15 s  HEC rate:      3.49 Hz
 *** DSSSD # 3 count:     30932 old count:     30928 dt:      1.15 s  HEC rate:      3.49 Hz
 *** DSSSD # 4 count:     28790 old count:     28787 dt:      1.15 s  HEC rate:      2.61 Hz
 *** DSSSD # 5 count:     27032 old count:     27032 dt:      1.15 s  HEC rate:      0.00 Hz
 *** DSSSD # 6 count:     16926 old count:     16926 dt:      1.15 s  HEC rate:      0.00 Hz

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

R1_430

 *** TDR format 3.3.0 analyser - TD - October 2016
 *** ERROR: READ I/O error:       5002
                   blocks:      31364
          ADC data format:  250386244 ( 1085915.4 Hz)
        Other data format:    5512632 (   23908.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        100 (       0.4 Hz)
                               RESUME:        100 (       0.4 Hz)
                              SYNC100:    2109849 (    9150.3 Hz)
                           FEE64 disc:    3343975 (   14502.7 Hz)
                             MBS info:      58608 (     254.2 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     407023 (    1765.2 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      230.576 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.228                0.155
  2                0.994                1.035
  3                0.000                0.000
  4                0.000                0.000
  5                0.060                0.000
  6                0.040                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.199                0.047
 10                0.156                0.050
 11                0.000                0.000
 12                0.000                0.000
 13                0.003                0.000
 14                0.034                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.246                0.000
 18                0.191                0.000
 19                0.050                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.047                0.000
 23                0.032                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   22660113     181087          0          0          5          5      87856      93221          0          0      18437
  2   26093940     180458          0          0         17         17      87570      92854          0          0      17190
  3    7009584     114973          0          0          0          0      87944      27029          0          0       1693
  4    2225326     147124          0          0          0          0      87949      59175          0          0       4999
  5    9500884     130013          0          0         15         15      87918      42065          0          0       4996
  6   10112018     234681          0          0          7          7      87929      88130      58608          0      13400
  7    3079103     197120          0          0          0          0      87947     109173          0          0      11700
  8    2127491     138387          0          0          0          0      87950      50437          0          0       5044
  9   18255350     247699          0          0          6          6      87873     159814          0          0      15982
 10   19583574     189609          0          0          4          4      87889     101712          0          0      12166
 11    4599717     171271          0          0          0          0      87947      83324          0          0       8893
 12    5352677     228742          0          0          0          0      87947     140795          0          0      13629
 13    8454509     277760          0          0          2          2      87946     189810          0          0      22310
 14    9984954     386445          0          0          5          5      87933     298502          0          0      32862
 15    7242070     303749          0          0          0          0      87947     215802          0          0      23407
 16    6166132     223674          0          0          0          0      87942     135732          0          0      17937
 17   12332534     157537          0          0         16         16      87854      69651          0          0       6340
 18   14961017     127292          0          0          8          8      87874      39402          0          0       2993
 19   12052723     260498          0          0          4          4      87931     172559          0          0      16392
 20    8767089     331536          0          0          0          0      87942     243594          0          0      19012
 21    8733119     278859          0          0          0          0      87947     190912          0          0      40624
 22   10354800     305676          0          0          7          7      87926     217736          0          0      42776
 23   10819045     383620          0          0          3          3      87939     295675          0          0      27842
 24    9918475     314822          0          0          1          1      87949     226871          0          0      26399
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** Program elapsed time:   39.699s (  790.041 blocks/s,  49.378 Mb/s)

Attachment 2:

1.online_pulser_spec.png Original size: 691x577

Attachment 3:

2.FEE_temp.png Original size: 1460x1028

Attachment 4:

3.bias_current.png Original size: 1005x339

Attachment 5:

4.highe_hitpattern.png Original size: 915x678

Attachment 6:

61.png Original size: 1460x1028

Attachment 7:

6_event_statistic.png Original size: 1460x1028

Attachment 8:

ttyUSB6

executing generic doStop
EXPERIMENTS/AIDA/Options/nnaida2 Stat.offset NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_W_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 TS_SYNC_PHASE NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ExtClk NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.shift NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 MACB_TRIG_MODE NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.offset NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_GroupBase NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Rate.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Stat.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.Vchannels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ASIC.settings NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 WAVE_DMA_HWM NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_D_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Stat.shift NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.Wchannels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_V_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Include.Aida NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 DataAcqPgm NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_H_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 DataFormat NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ASIC_DMA_HWM NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_L_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Index NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
DataAcqCommand 1 Halt
Aida state now Stopped. AidaExecV8_52: Build 170816
Halt (1)
DataAcqCommand 1 disconnect xfer stream #0
disconnect xfer stream #0 (1)
completed generic doStop
executing generic doGo
EXPERIMENTS/AIDA/Options/nnaida2 Stat.offset NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_W_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 TS_SYNC_PHASE NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ExtClk NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.shift NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 MACB_TRIG_MODE NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.offset NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_GroupBase NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Rate.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Stat.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.Vchannels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ASIC.settings NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 WAVE_DMA_HWM NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_D_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Stat.shift NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.Wchannels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_V_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Include.Aida NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 DataAcqPgm NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_H_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 DataFormat NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ASIC_DMA_HWM NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_L_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Index NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
DataAcqCommand 3 connect xfer stream #0
Initialising communication with storage server myserver on port 11002
Setting Transfer Block Size 65536
Setting Transfer Mode 3
Setting Overlap Mode 0
Setting Blocking Mode 0
Setting nice 0
TCP transfer library version 3.12
TCP socket send buffer was 16384 - now 221184
TCP socket receive buffer was 87380 - now 221184
TCP socket created OK - now connecting to myserver port 11002
Connected to myserver port 11002
connect xfer stream #0 (1)
DataAcqCommand 2 Go
Data Acquisition Statistics counters now cleared
ASIC DMA buffer size 2097152; WAVE DMA buffer size 1048576
Aida state now Going. AidaExecV8_52: Build 170816
Go (1)
Running Go_Electronics for nnaida2 with TSMaster nnaida6
ADCs Calibrated.
get_WAVEBlk (A) which = 0 ---- status = 1042, State machines = 0201
WV:0:Buffer info. Length = 64 : Offset = 0
WV:1:Buffer info. Length = 62 : Offset = 2
WV:2:Buffer info. Length = 60 : Offset = 4
WV:3:Buffer info. Length = 58 : Offset = 6
WV:4:Buffer info. Length = 56 : Offset = 8
WV:5:Buffer info. Length = 54 : Offset = 10
WV:6:Buffer info. Length = 52 : Offset = 12
WV:7:Buffer info. Length = 50 : Offset = 14
WV:8:Buffer info. Length = 48 : Offset = 16
WV:9:Buffer info. Length = 46 : Offset = 18
get_WAVEBlk (A) which = 1 ---- status = 1082, State machines = 0201
get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
Finished Go_Electronics for AIDA
get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
completed generic doGo
get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
get_WAVEBlk (A) which = 0 ---- status = 0048, State machines = 0908
get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
In RDOGo_Operate: Enabled Correlation, ASIC and discriminator readout
executing generic doStop
EXPERIMENTS/AIDA/Options/nnaida2 Stat.offset NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_W_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 TS_SYNC_PHASE NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ExtClk NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.shift NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 MACB_TRIG_MODE NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.offset NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_GroupBase NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Rate.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Stat.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.Vchannels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ASIC.settings NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 WAVE_DMA_HWM NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_D_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Stat.shift NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.Wchannels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_V_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Include.Aida NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida.channels NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 DataAcqPgm NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_H_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 DataFormat NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 ASIC_DMA_HWM NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Aida_Hist_L_Enable NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
EXPERIMENTS/AIDA/Options/nnaida2 Index NOT available: error 0x10004; unable to access CONTENTS for node /MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2: couldn't open "/MIDAS/DB/EXPERIMENTS/AIDA/Options/nnaida2/CONTENTS": permission denied
DataAcqCommand 1 Halt
Aida state now Stopped. AidaExecV8_52: Build 170816
Halt (1)
DataAcqCommand 1 disconnect xfer stream #0
disconnect xfer stream #0 (1)
completed generic doStop


Flash base address=FC000000

Set Flash to ASync Mode

XFLASH_PART_NOT_SUPPORTED

Finished copying zImage to RAM


Found 0 errors checking kernel image

VHDL version number 0X01900C1F

Bootloader version number 1.2.7 -- 22nd August 2012

Starting LMK 3200 setup


Setting LMK03200 to standard clock settings -- External Clock 23Nov15

.... SPI Base Address=0x81400000

clk_control_reg=0x4
Next step is SPIconfig

Control 32(0x81400000)=0x180

SlaveSel(0x81400000)=0x3

Ctrl(0x81400000)=0xE6

Ctrl(0x81400000)=0x86
SPIconfig done now to set up the LMK3200 registers
LMK #0 : regInit[0]=0x80000000
LMK #0 : regInit[1]=0x10070600
LMK #0 : regInit[2]=0x60601
LMK #0 : regInit[3]=0x60602
LMK #0 : regInit[4]=0x60603
LMK #0 : regInit[5]=0x70624
LMK #0 : regInit[6]=0x70605
LMK #0 : regInit[7]=0x70606
LMK #0 : regInit[8]=0x70627
LMK #0 : regInit[9]=0x10000908
LMK #0 : regInit[10]=0xA0022A09
LMK #0 : regInit[11]=0x82800B
LMK #0 : regInit[12]=0x28C800D
LMK #0 : regInit[13]=0x830020E
LMK #0 : regInit[14]=0xC800180F

Calibrate completed at 942 counts

Setting Clock Control =0x0000000B, to set GOE and sync bit

Ctrl @ SPIstop (0x81400000)=0x186

0 delay setup completed at 0 counts

Finished Clock setup LMK03200

completed LMK 3200 setup

Loaded all four ASICs with default settings

Setting the ADCs into calibration mode


Control 32(0x81400400)=0x180

SlaveSel(0x81400400)=0xFF

Ctrl(0x81400400)=0xE6

Ctrl(0x81400400)=0x86

Init : Config of AD9252 SPI ok


Ctrl @ SPIstop (0x81400400)=0x186

ADCs initialised

 waiting for 10 seconds


ADCs calibrated


Control 32(0x81400400)=0x186

SlaveSel(0x81400400)=0xFF

Ctrl(0x81400400)=0xE6

Ctrl(0x81400400)=0x86Config of AD9252 SPI ok


Ctrl @ SPIstop (0x81400400)=0x186

ADCs set for PN-9

Jumping to kernel simpleboot...


zImage starting: loaded at 0x00a00000 (sp: 0x00bc4eb0)

Allocating 0x3b78cc bytes for kernel ...

gunzipping (0x00000000 <- 0x00a0f000:0x00bc380e)...done 0x39604c bytes


Linux/PowerPC load: console=ttyS0 root=/dev/nfs ip=on rw mem=112M

Finalizing device tree... flat tree at 0xbd1300

Probing IIC bus for MAC... MAC address = 0x0 0x4 0xa3 0x2a 0xd9 0xe1
Using Xilinx Virtex440 machine description
Linux version 2.6.31 (nf@nnlxb.dl.ac.uk) (gcc version 4.2.2) #34 PREEMPT Tue Nov 15 15:57:04 GMT 2011
Zone PFN ranges:
  DMA      0x00000000 -> 0x00007000
  Normal   0x00007000 -> 0x00007000
Movable zone start PFN for each node
early_node_map[1] active PFN ranges
    0: 0x00000000 -> 0x00007000
MMU: Allocated 1088 bytes of context maps for 255 contexts
Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 28448
Kernel command line: console=ttyS0 root=/dev/nfs ip=on rw mem=112M
PID hash table entries: 512 (order: 9, 2048 bytes)
Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
Memory: 109680k/114688k available (3500k kernel code, 4852k reserved, 144k data, 130k bss, 168k init)
Kernel virtual memory layout:
  * 0xffffe000..0xfffff000  : fixmap
  * 0xfde00000..0xfe000000  : consistent mem
  * 0xfde00000..0xfde00000  : early ioremap
  * 0xd1000000..0xfde00000  : vmalloc & ioremap
NR_IRQS:512
clocksource: timebase mult[a00000] shift[22] registered
Console: colour dummy device 80x25
Mount-cache hash table entries: 512
NET: Registered protocol family 16
PCI: Probing PCI hardware
bio: create slab <bio-0> at 0
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 4096 (order: 3, 32768 bytes)
TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
TCP: Hash tables configured (established 4096 bind 4096)
TCP reno registered
NET: Registered protocol family 1
ROMFS MTD (C) 2007 Red Hat, Inc.
msgmni has been set to 214
io scheduler noop registered
io scheduler anticipatory registered
io scheduler deadline registered
io scheduler cfq registered (default)
Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
83e00000.serial: ttyS0 at MMIO 0x83e01003 (irq = 16) is a 16550
console [ttyS0] enabled
brd: module loaded
loop: module loaded
Device Tree Probing 'ethernet'
xilinx_lltemac 81c00000.ethernet: MAC address is now  0: 4:a3:2a:d9:e1
xilinx_lltemac 81c00000.ethernet: XLlTemac: using DMA mode.
XLlTemac: DCR address: 0x80
XLlTemac: buffer descriptor size: 32768 (0x8000)
XLlTemac: Allocating DMA descriptors with kmalloc
XLlTemac: (buffer_descriptor_init) phy: 0x6938000, virt: 0xc6938000, size: 0x8000
XTemac: PHY detected at address 7.
xilinx_lltemac 81c00000.ethernet: eth0: Xilinx TEMAC at 0x81C00000 mapped to 0xD1024000, irq=17
fc000000.flash: Found 1 x16 devices at 0x0 in 16-bit bank
 Intel/Sharp Extended Query Table at 0x010A
 Intel/Sharp Extended Query Table at 0x010A
 Intel/Sharp Extended Query Table at 0x010A
 Intel/Sharp Extended Query Table at 0x010A
 Intel/Sharp Extended Query Table at 0x010A
 Intel/Sharp Extended Query Table at 0x010A
Using buffer write method
cfi_cmdset_0001: Erase suspend on write enabled
cmdlinepart partition parsing not available
RedBoot partition parsing not available
Creating 5 MTD partitions on "fc000000.flash":
0x000000000000-0x000000500000 : "golden_firmware"
0x000000500000-0x000000800000 : "golden_kernel"
0x000000800000-0x000000d00000 : "user_firmware"
0x000000d00000-0x000000fe0000 : "user_kernel"
0x000000fe0000-0x000001000000 : "env_variables"
xilinx-xps-spi 81400400.hd-xps-spi: at 0x81400400 mapped to 0xD1028400, irq=20
SPI: XIlinx spi: bus number now 32766
xilinx-xps-spi 81400000.xps-spi: at 0x81400000 mapped to 0xD102C000, irq=21
SPI: XIlinx spi: bus number now 32765
mice: PS/2 mouse device common for all mice
Device Tree Probing 'i2c'
 #0 at 0x81600000 mapped to 0xD1030000, irq=22
at24 0-0050: 1024 byte 24c08 EEPROM (writable)
TCP cubic registered
NET: Registered protocol family 17
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
eth0: XLlTemac: Options: 0x3fa
eth0: XLlTemac: allocating interrupt 19 for dma mode tx.
eth0: XLlTemac: allocating interrupt 18 for dma mode rx.
eth0: XLlTemac: speed set to 1000Mb/s
eth0: XLlTemac: Send Threshold = 24, Receive Threshold = 4
eth0: XLlTemac: Send Wait bound = 254, Receive Wait bound = 254
Sending DHCP requests ., OK
IP-Config: Got DHCP answer from 10.1.1.250, my address is 10.1.1.2
IP-Config: Complete:
     device=eth0, addr=10.1.1.2, mask=255.255.255.0, gw=10.1.1.250,
     host=nnaida2, domain=, nis-domain=(none),
     bootserver=10.1.1.250, rootserver=10.1.1.250, rootpath=/MIDAS@aidas/XilinxLinux/ppc_4xx/rfs/nnaida2,tcp

... 6744 more lines ...

Attachment 9:

62.png Original size: 1920x1030

Attachment 10:

8.bias_current.png Original size: 1004x343

Attachment 11:

Drop attachments here...

ELOG V3.1.4-unknown
