Entry time:

Fri Jun 2 00:01:48 2017

Author*:

Subject*:

08:05 Briken and BigRIPS stopping daqs
      AIDA on file R1_1099

08:07 BigRIPS starts run 1088
      BRIKEN starts run  77

08:13 System wide checks all ok
      FEE temperatures all ok - attachment 1
      Good events statistics - attachment 2

08:50 Bias and leakage currents ok - attachment 3

09:04 BigRIPS and BRIKEN stop daqs
      AIDA on file R1_1113

09:05 BigRIPS starts run 1089
      BRIKEN starts run 78
      AIDA on file R1_1113

09:22 Beam lost AIDA on file R1_1117

09:26 Beam back AIDA on file R1_1118

10:06 BigRIPS and BRIKEN stop daqs
      AIDA on file R1_1128

10:07 BigRIPS starts run 1090
      BRIKEN starts run 79
      AIDA on file R1_1128

10:12 System wide checks ok

10:24 DSSD rates from R1_1131
 *** DSSSD # 1 count:     88384 old count:     45978 dt:      1.01 s  LEC rate:  42084.25 Hz
 *** DSSSD # 2 count:    119845 old count:     62135 dt:      1.01 s  LEC rate:  57272.13 Hz
 *** DSSSD # 3 count:     40809 old count:     21150 dt:      1.01 s  LEC rate:  19509.84 Hz
 *** DSSSD # 4 count:     37059 old count:     18986 dt:      1.01 s  LEC rate:  17935.87 Hz
 *** DSSSD # 5 count:     14947 old count:      7772 dt:      1.01 s  LEC rate:   7120.56 Hz
 *** DSSSD # 6 count:     29809 old count:     15349 dt:      1.01 s  LEC rate:  14350.29 Hz
 *** DSSSD # 1 count:        35 old count:        16 dt:      1.01 s  HEC rate:     18.86 Hz
 *** DSSSD # 2 count:       108 old count:        56 dt:      1.01 s  HEC rate:     51.61 Hz
 *** DSSSD # 3 count:        77 old count:        38 dt:      1.01 s  HEC rate:     38.70 Hz
 *** DSSSD # 4 count:        76 old count:        35 dt:      1.01 s  HEC rate:     40.69 Hz
 *** DSSSD # 5 count:        27 old count:        15 dt:      1.01 s  HEC rate:     11.91 Hz
 *** DSSSD # 6 count:         4 old count:         2 dt:      1.01 s  HEC rate:      1.98 Hz

11:07 BigRIPS and BRIKEN stop their daqs
      AIDA on file R1_1142

11:08 BigRIPS starts run 1091
      BRIKEN starts run 80
      AIDA on file R1_1142

11:10 Leakages and biases ok - attachment 4

11.36 DAQ continues OK
      Attached HEC x vs y - attach 5
      Zero'd HEC x vs y

11.59 Analysed R1_1153 - see attachment 6
      No timewarps
      Dead time negligible
      All OK

12:06 BigRIPS and BRIKEN stop their daqs
      AIDA on file R1_1156

12:07 BigRIPS starts run1092
      BRIKEN starts run 81
      AIDA on file R1_1156

13:07 BigRIPS and BRIKEN stop daqs
      AIDA on file R1_1170

13:08 BRIKEN starts run 82
      BigRIPS starts run 1093
      AIDA on file R1_1170

13:11 System wide checks ok

13:55 BRIKEN and BigRIPS stop their daqs
      AIDA on file R1_1181
      Beam gone

14:11 Bias and leakage currents ok - attachment 7
      Ambient Temperature 23.9C - Humidity 37.3% - D.P +8.3

15:26 Beam is back
      AIDA on file R1_1201

15:07 BigRIPS starts run 1094
      BRIKEN starts run 83
      AIDA on file R1_1201

15:34 System wide checks ok
      FEE temperatures ok - attachment 8
      Good Events statistics - attachment 9

15:39 No beam - beam back

15:46 Beam gone for couple of minutes

15:50 Beam back

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

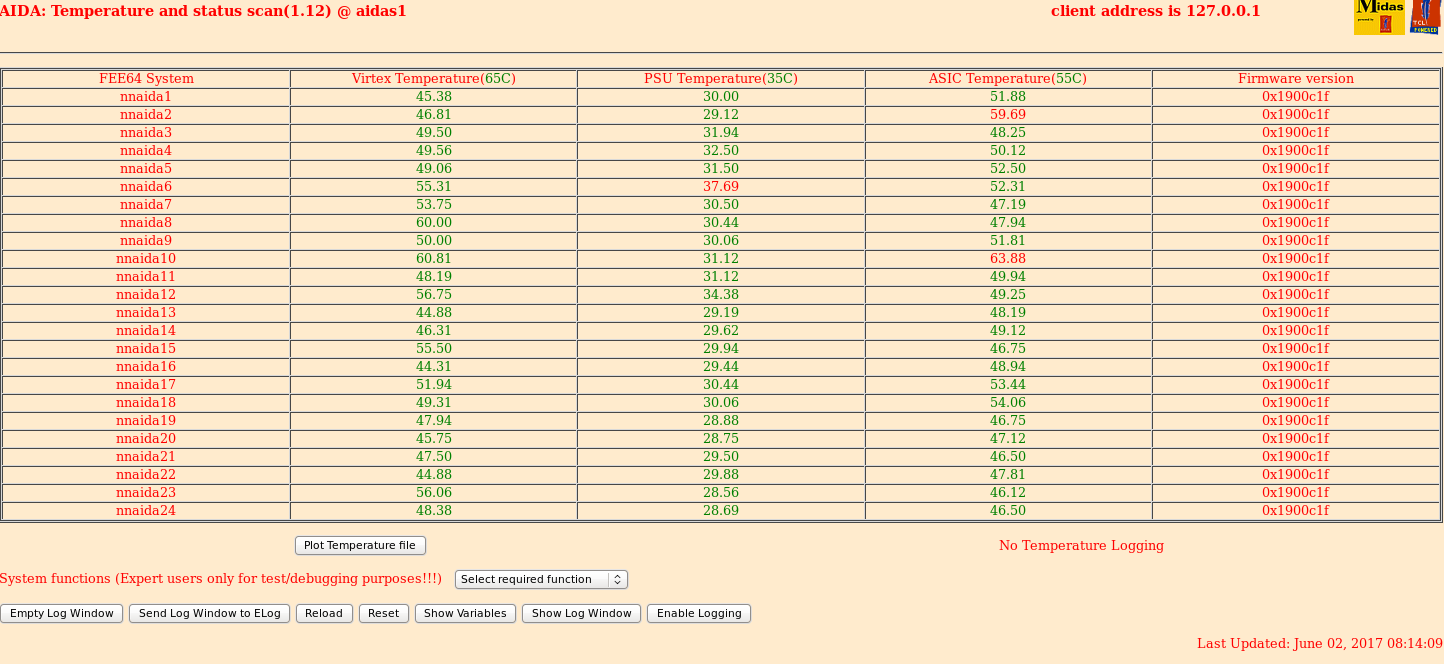

Attachment 1:

020617_feetemp0814.png Original size: 1444x664

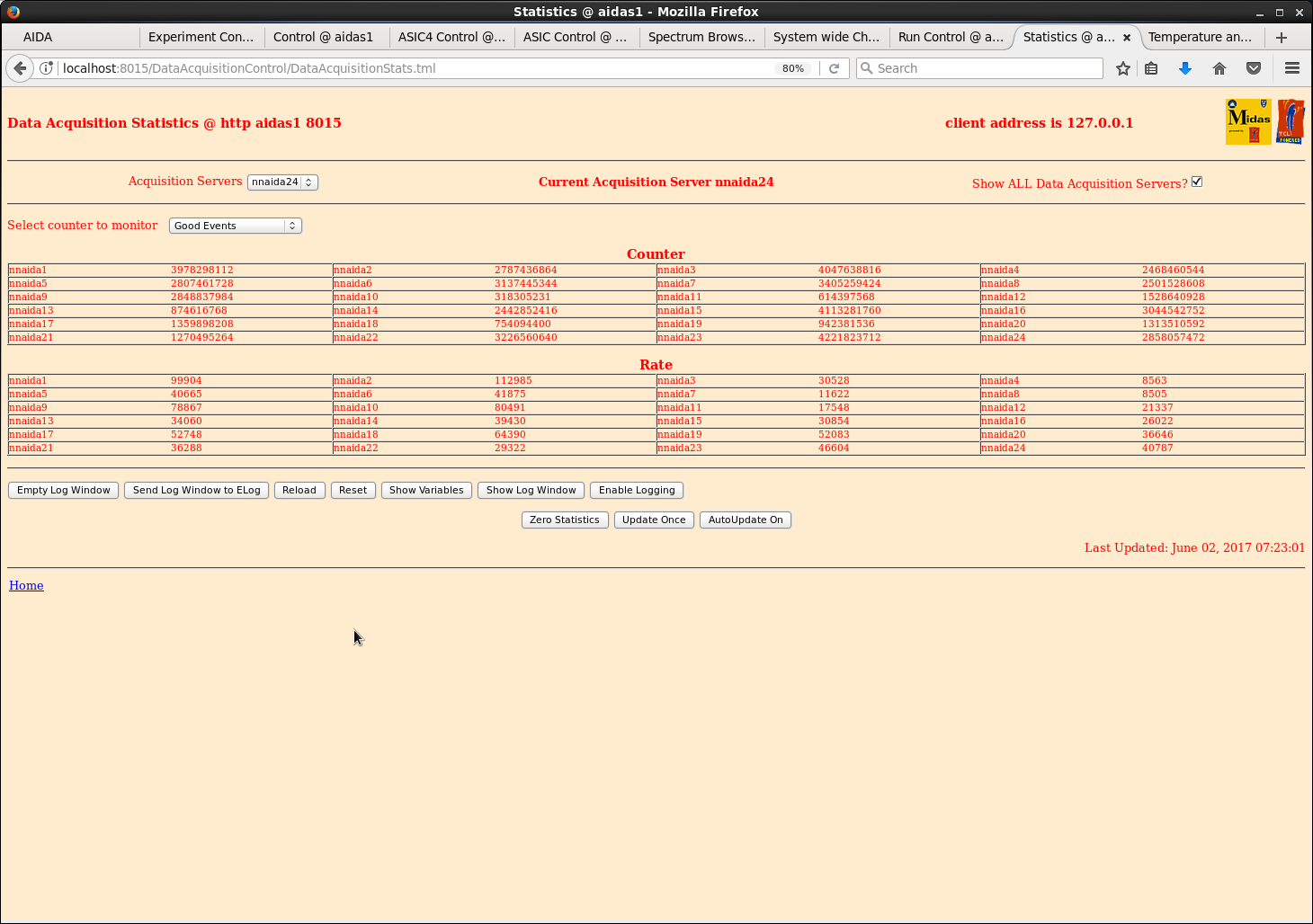

Attachment 2:

020617_eventstat0722.png Original size: 1460x1028

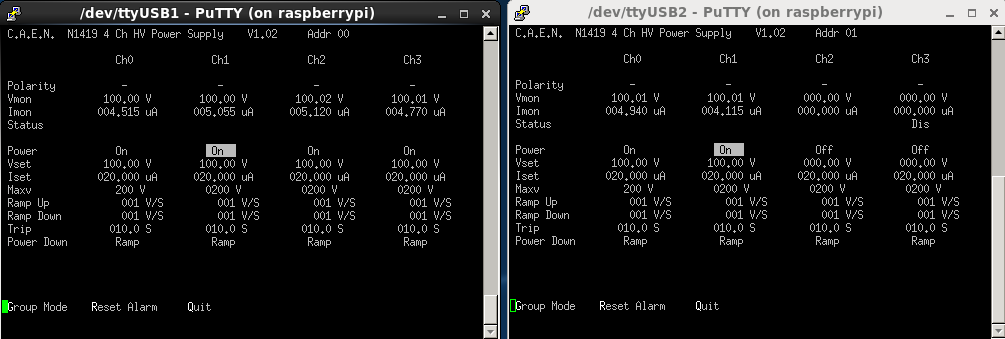

Attachment 3:

020617_bias0850.png Original size: 1005x339

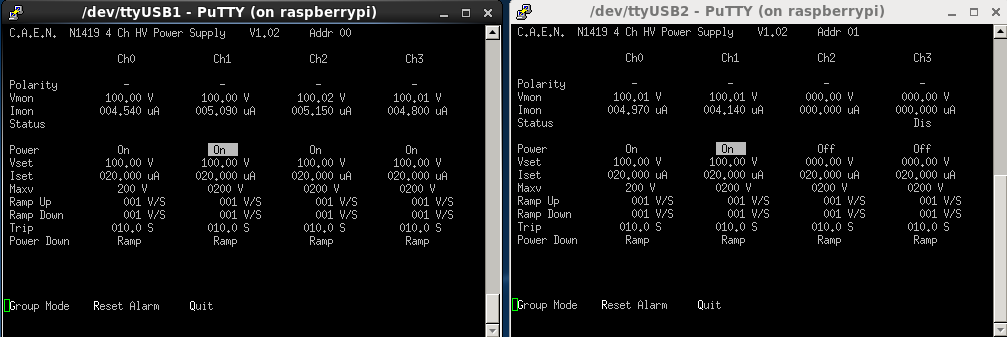

Attachment 4:

020617_bias1110.png Original size: 1007x337

Attachment 5:

1.png Original size: 1920x1030

Attachment 6:

analysis_1153.txt

 *** TDR format 3.3.0 analyser - TD - October 2016
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256040585 ( 1012323.7 Hz)
        Other data format:    5047415 (   19956.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        109 (       0.4 Hz)
                               RESUME:        109 (       0.4 Hz)
                              SYNC100:    2314546 (    9151.2 Hz)
                           FEE64 disc:    2666436 (   10542.5 Hz)
                             MBS info:      66215 (     261.8 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     314704 (    1244.3 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      252.924 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.526                0.524
  2                0.445                0.469
  3                0.000                0.000
  4                0.000                0.000
  5                0.059                0.000
  6                0.010                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.218                0.000
 10                0.157                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.008                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.236                0.000
 18                0.176                0.000
 19                0.037                0.000
 20                0.000                0.000
 21                0.001                0.000
 22                0.011                0.000
 23                0.032                0.000
 24                0.015                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   23985458     244077          0          0         12         12      96269     147784          0          0      29824
  2   26802817     280731          0          0          9          9      96302     184411          0          0      25051
  3    7527798     110024          0          0          0          0      96467      13557          0          0        318
  4    2020089     123828          0          0          0          0      96471      27357          0          0       1806
  5   10114936     113181          0          0         22         22      96450      16687          0          0        541
  6   10332323     193100          0          0          6          6      96464      30409      66215          0       3287
  7    2810029     134914          0          0          0          0      96469      38445          0          0       3809
  8    1993723     111957          0          0          0          0      96471      15486          0          0        620
  9   18424804     289149          0          0          7          7      96393     192742          0          0      18411
 10   19920587     200389          0          0          5          5      96409     103970          0          0      10800
 11    4102512     150815          0          0          0          0      96469      54346          0          0       5718
 12    5084755     204786          0          0          0          0      96473     108313          0          0      10799
 13    8326830     194347          0          0          0          0      96470      97877          0          0      10118
 14    9724640     266779          0          0          2          2      96466     170309          0          0      18431
 15    7498356     256371          0          0          0          0      96466     159905          0          0      17815
 16    6254181     179947          0          0          0          0      96468      83479          0          0      11108
 17   12957851     130957          0          0         20         20      96382      34535          0          0       2663
 18   16037621     114204          0          0          8          8      96405      17783          0          0        405
 19   12702017     261248          0          0          4          4      96459     164781          0          0      16566
 20    8757236     356658          0          0          0          0      96469     260189          0          0      20522
 21    8836733     223228          0          0          2          2      96461     126763          0          0      26693
 22   10664810     253608          0          0          3          3      96471     157131          0          0      30799
 23   11197221     362987          0          0          5          5      96459     266518          0          0      25482
 24    9963258     290130          0          0          4          4      96463     193659          0          0      23118
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** Program elapsed time:   17.930s ( 1784.750 blocks/s, 111.547 Mb/s)

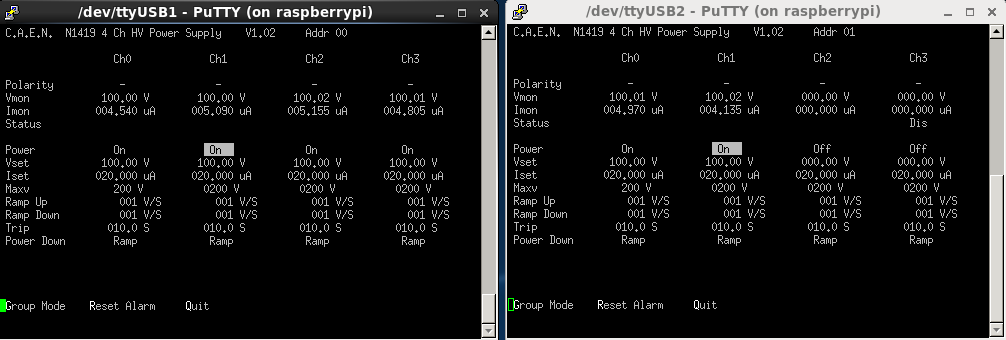

Attachment 7:

020617_bias1410.png Original size: 1006x340

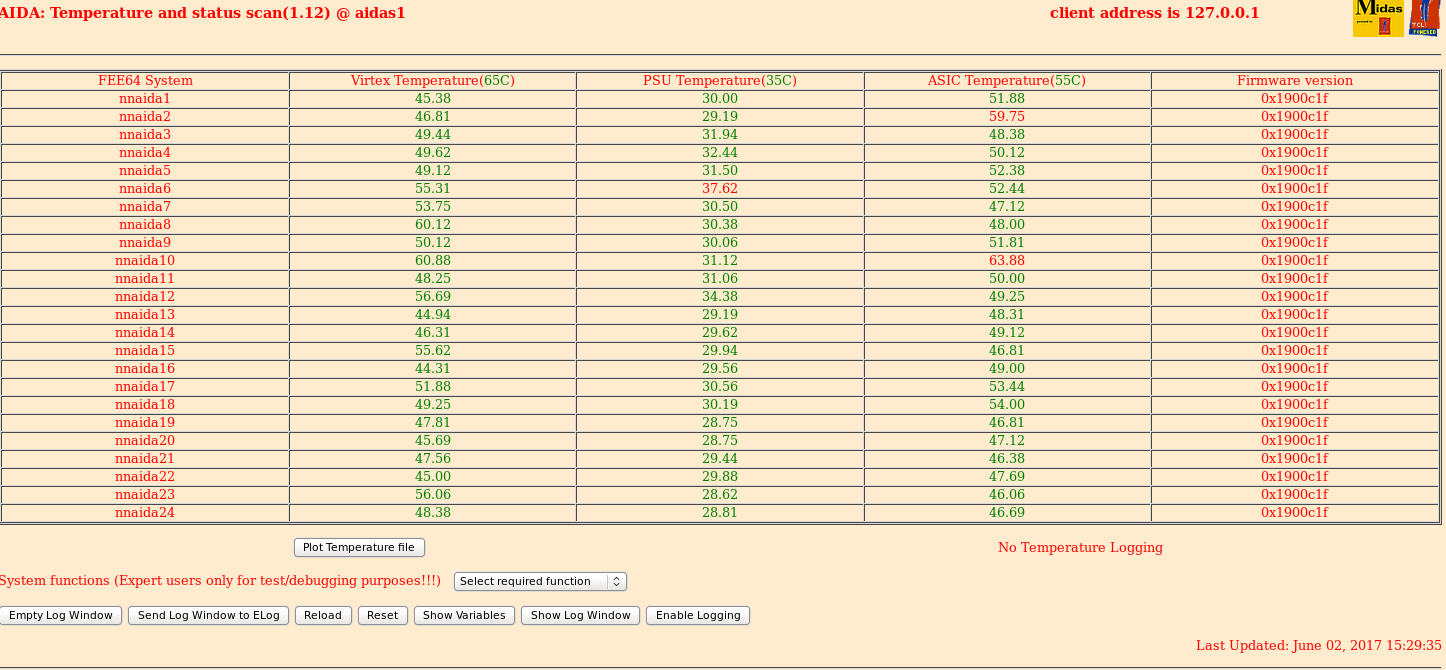

Attachment 8:

020617_feetemp1529.png Original size: 1446x670

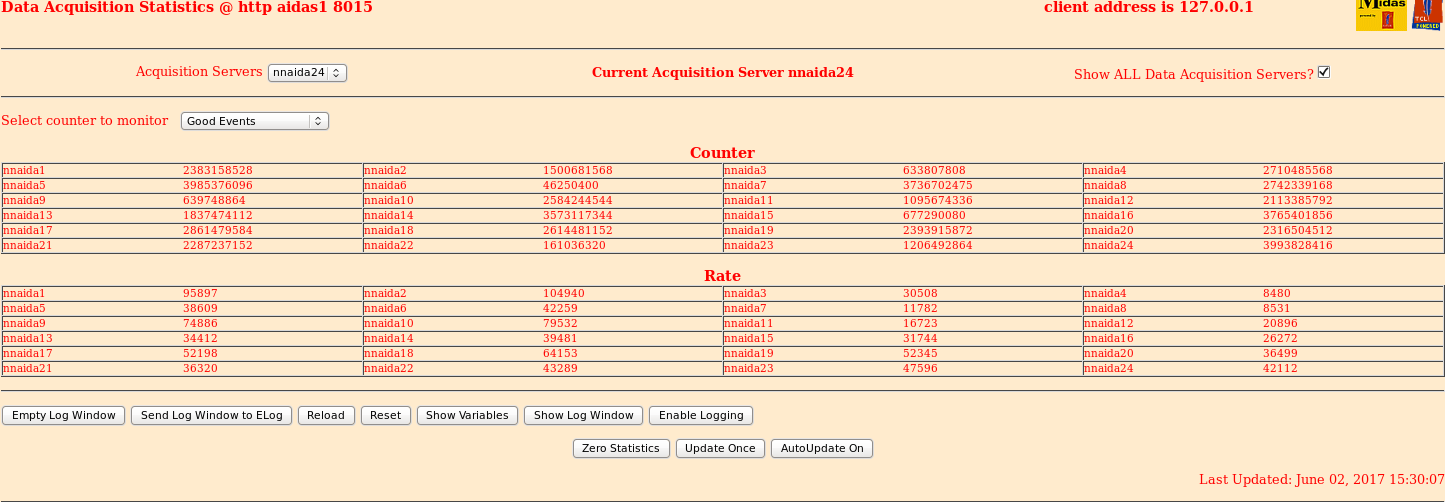

Attachment 9:

020617_goodevt1530.png Original size: 1445x502
