16.25  *All* system wide checks OK *except* ADC calibration of nnaida1, 21 and nnaida1 clock status (status=6)

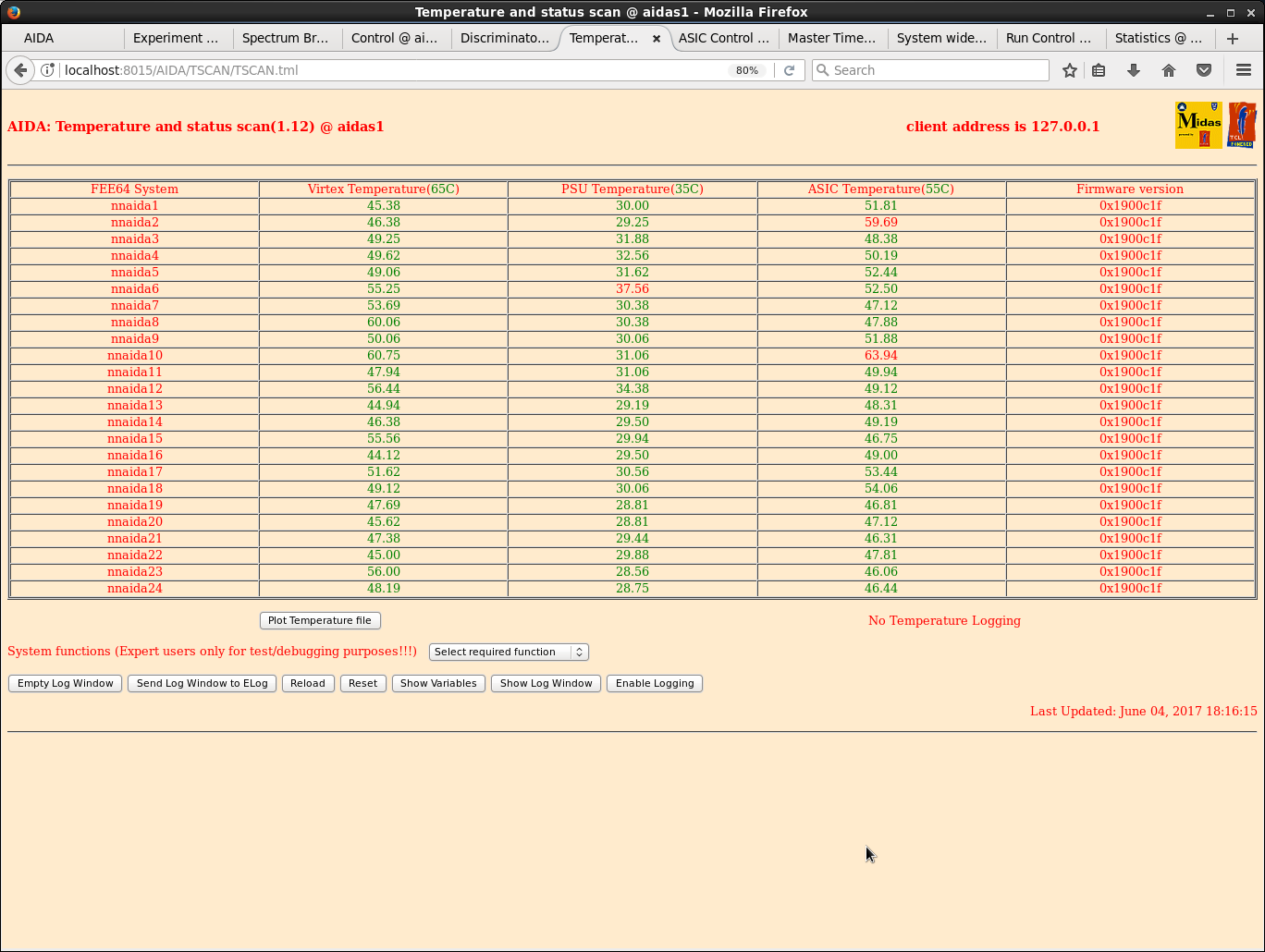

       FEE64 Temperatures OK - see attachment 1
       Good events statistics OK - see attachment 2

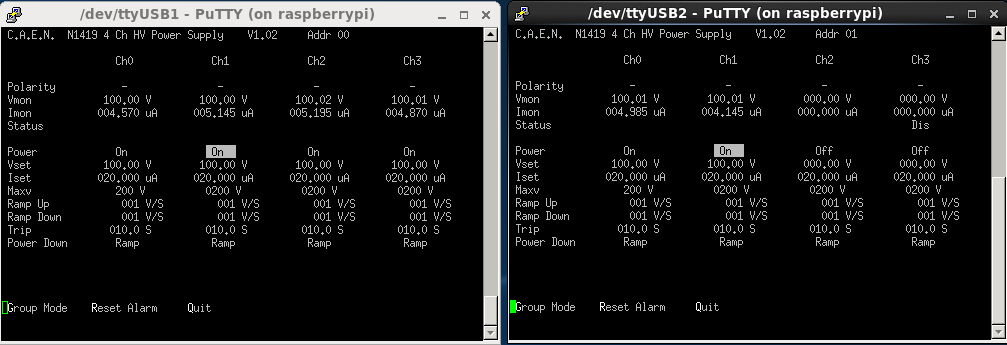

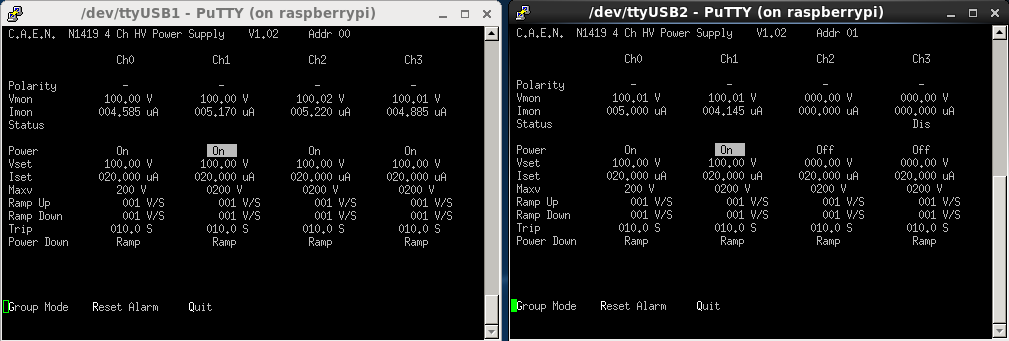

       Detector biases & leakage currents OK - see attachment 3

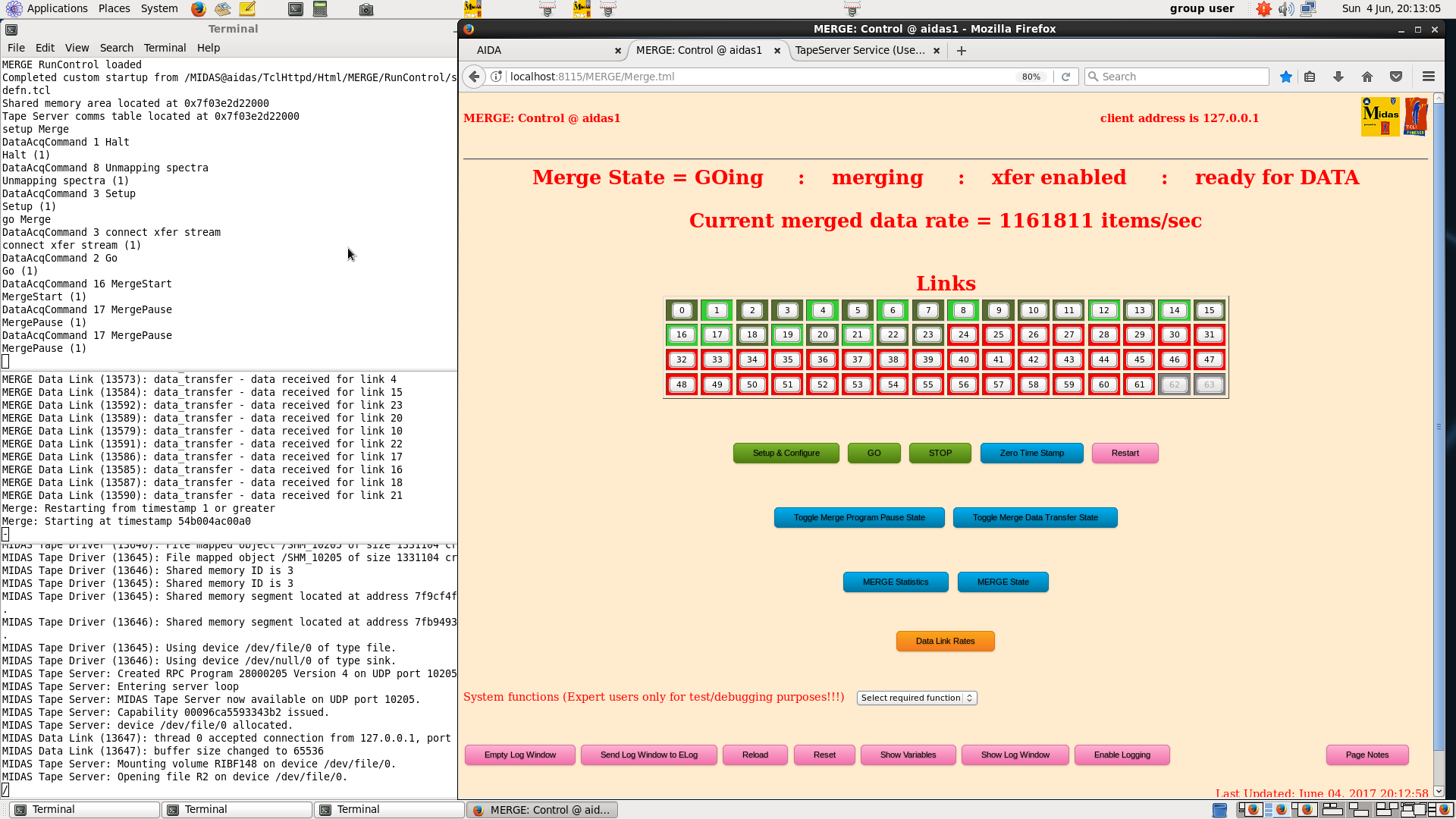

       No warnings/errors reported by merger since DAQ GO - see attachment 4

16.30  Analysis file RIBF148/R2_122 - nnaida2 deadtime 0.9%, all other deadtimes <0.3%, zero timewarps, one MBS
timewarp - see attachment 5

16.44  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_127

16.47  BRIKEN starts run 9
       BigRIPS starts run 2008
       AIDA on file R2_128

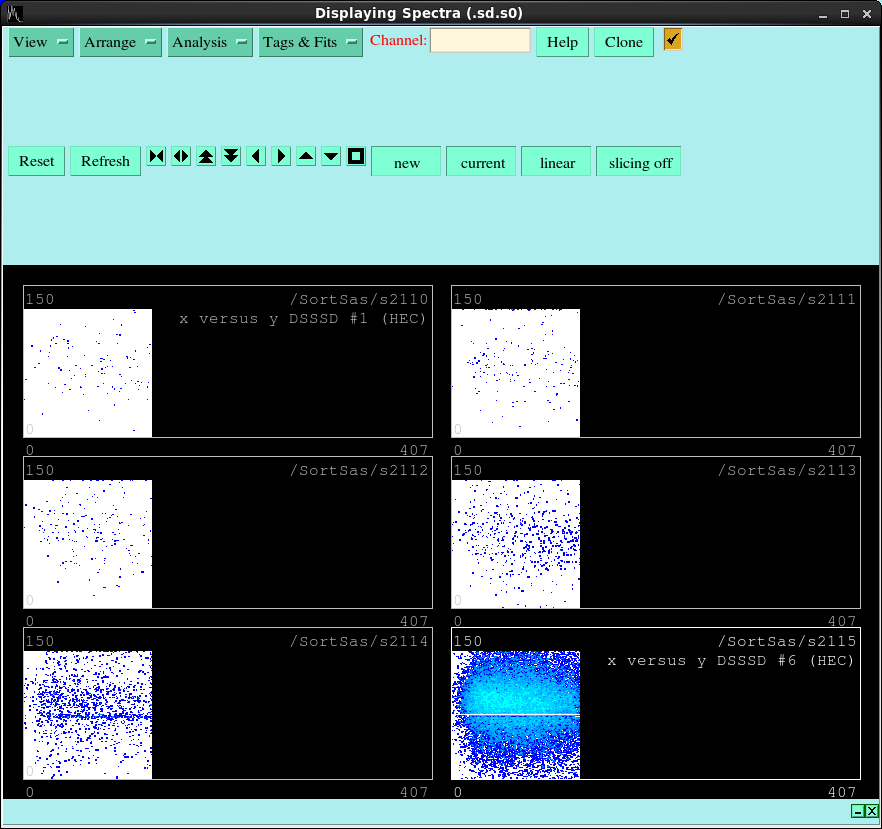

17.08  Online analysis - per DSSSD HEC x versus y attachment 6

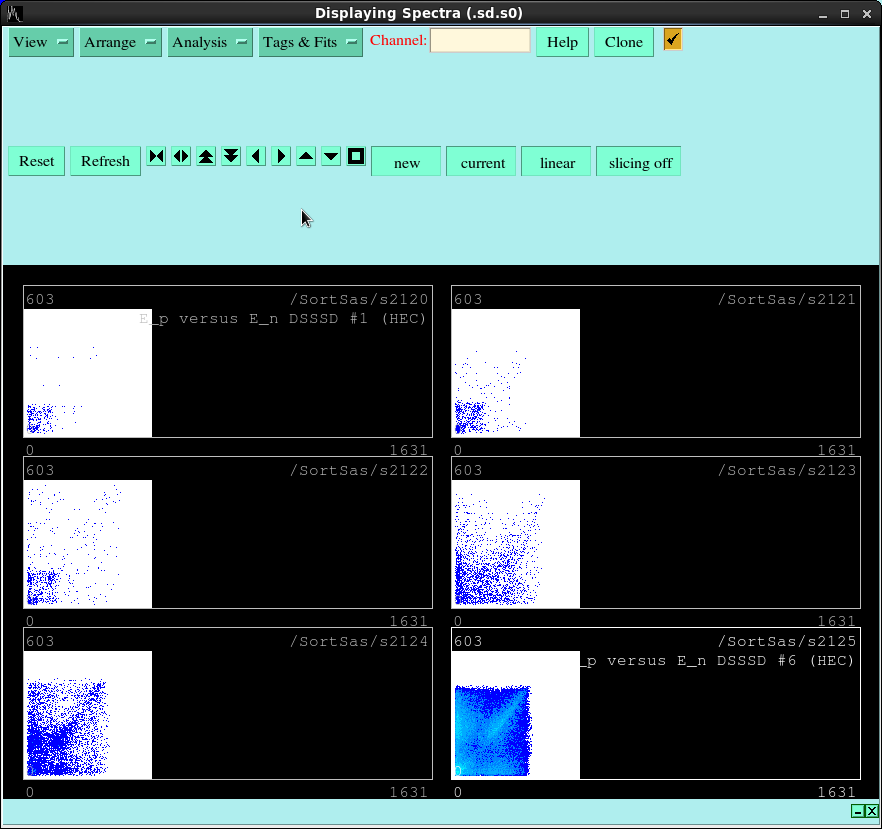

                         per DSSSD HEC E_p versus E_n - see attachment 7

17.44  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_143

17.46  BRIKEN starts run 10
       BigRIPS starts run 2009
       AIDA on file R2_144

18.00  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_147

18.02  BRIKEN starts run 11
       BigRIPS starts run 2010
       AIDA on file R2_148

18.15  *All* system wide checks OK *except* ADC calibration of nnaida1, 21 and nnaida1 clock status (status=6)
       FEE64 Temperatures OK - see attachment 8
       Good events statistics OK - see attachment 9
       Detector biases & leakage currents OK - see attachment 10
       No warnings/errors reported by merger since DAQ GO - see attachment 11

18.47  Online analysis - per DSSSD HEC x versus y attachment 12
                         per DSSSD HEC E_p versus E_n - see attachment 13
       Zero online sort spectra

18.50  Analysis of file RIBF148/R2_159 - all deadtimes <0.5%, zero timewarps, four MBS timewarps - see attachment 14

19.04  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_165

19.07  BRIKEN starts run 12
       BigRIPS starts run 2011
       AIDA on file R2_166

20:00  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_180

20.02  BRIKEN starts run 13
       BigRIPS starts run 2012
       AIDA on file R2_180
       Zero online sort spectra so we can monitor the influence on HEC x versus y due to the degrader just inserted.

20.15  *All* system wide checks OK *except* ADC calibration of nnaida1, 21 and nnaida1 clock status (status=6)
       FEE64 Temperatures OK - see attachment 15
       Good events statistics OK - see attachment 16
       Detector biases & leakage currents OK - see attachment 17
       No warnings/errors reported by merger since DAQ GO - see attachment 18

20.28  Analysis of file RIBF148/R2_185 - all deadtimes <0.4%, zero timewarps, three MBS timewarps - see attachment 19

20.58  Online analysis - per DSSSD HEC x versus y attachment 20
                         per DSSSD HEC E_p versus E_n - see attachment 21
       Zero online sort spectra

21.02  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_197

21.03  BRIKEN starts run 14
       BigRIPS starts run 2013
       AIDA on file R2_197

22.02  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_213

22.03  BRIKEN starts run 15
       BigRIPS starts run 2014
       AIDA on file R2_214

22.17  *All* system wide checks OK *except* ADC calibration of nnaida1, 21 and nnaida1 clock status (status=6)
       FEE64 Temperatures OK - see attachment 22
       Good events statistics OK - see attachment 23
       Detector biases & leakage currents OK - see attachment 24
       No warnings/errors reported by merger since DAQ GO - see attachment 25

22.22  Analysis of file RIBF148/R2_218 - all deadtimes <0.5%, zero timewarps, four MBS timewarps - see attachment 26

22.45  Online analysis - per DSSSD HEC x versus y attachment 27
                         per DSSSD HEC E_p versus E_n - see attachment 28
       Zero online sort spectra

23.04  BRIKEN and BigRIPS stop daqs
       AIDA on file R2_230

23.05  BRIKEN starts run 16
       BigRIPS starts run 2015
       AIDA on file R2_231
