00:03 BigRIPS starts run 3007
      BRIKEN starts run 007
      AIDA on file R5_146

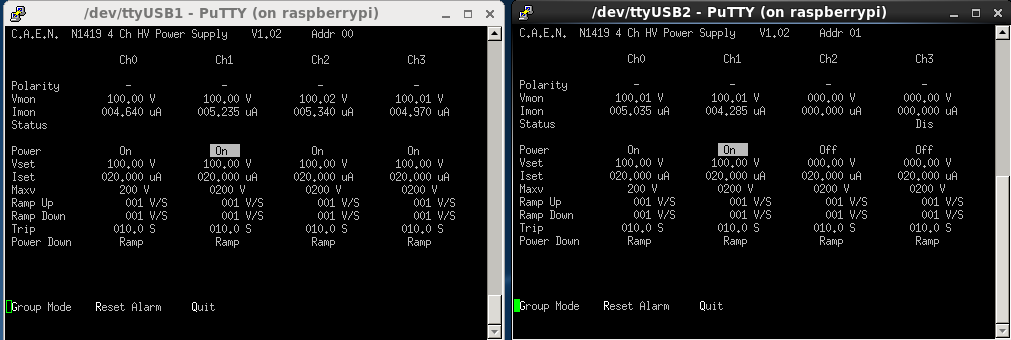

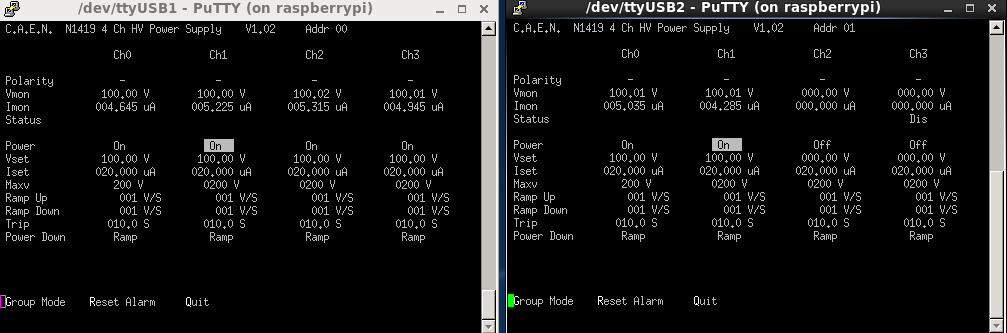

00:07 Bias and leakage currents ok - attachment 1
      System wide checks all ok

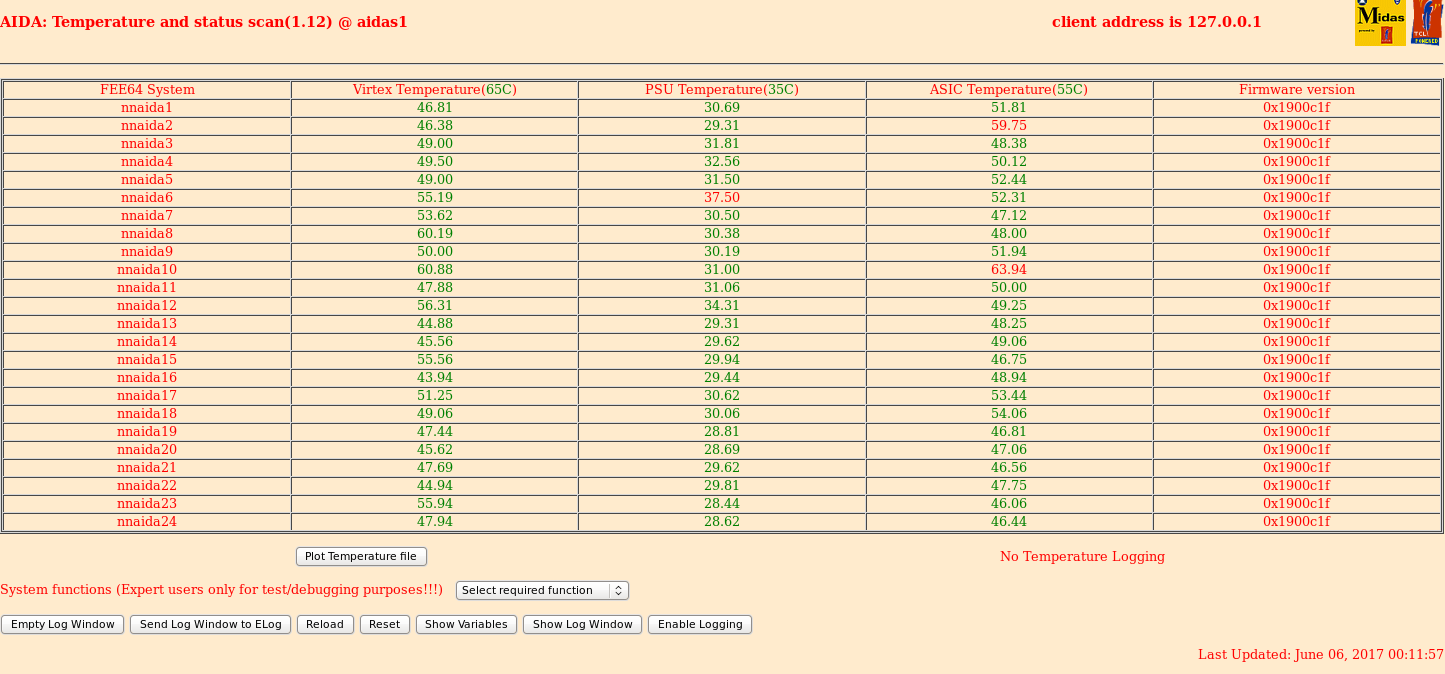

      FEE temperatures ok - attachment 2

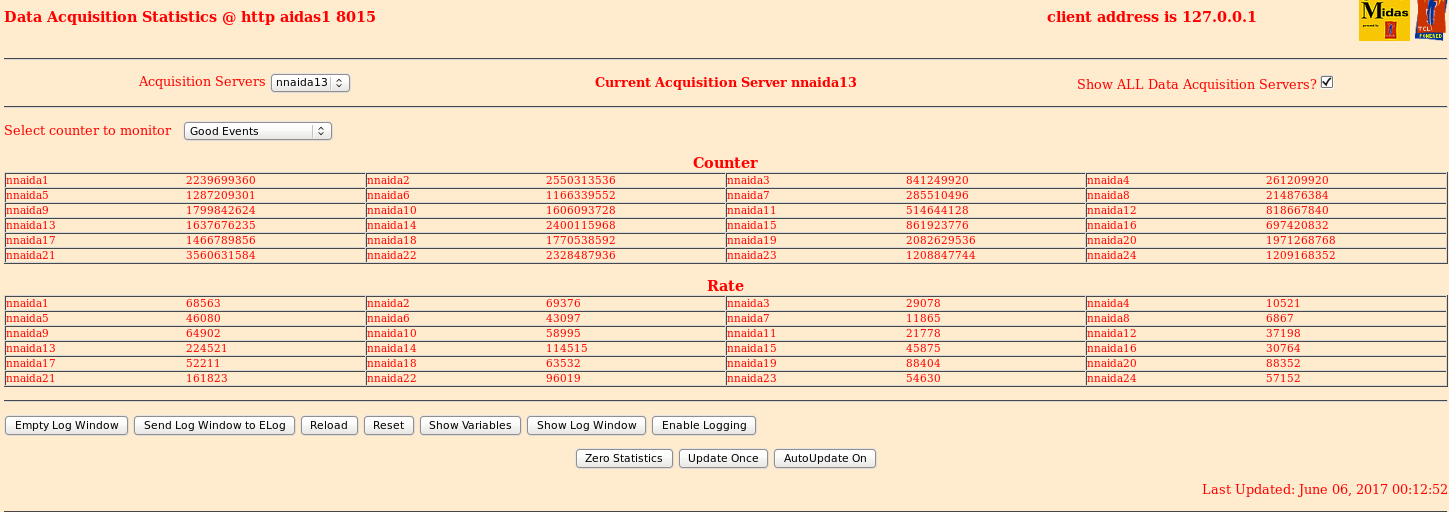

      Good evts still seeing noise on 13 and 14 - attachment 3
      No merger errors since GO

00:48 DSSD Rates from R5_160
 *** DSSSD # 1 count:    250904 old count:    163089 dt:      1.02 s  LEC rate:  86326.91 Hz
 *** DSSSD # 2 count:    335185 old count:    222784 dt:      1.02 s  LEC rate: 110496.28 Hz
 *** DSSSD # 3 count:    157445 old count:    103991 dt:      1.02 s  LEC rate:  52548.18 Hz
 *** DSSSD # 4 count:    102079 old count:     67878 dt:      1.02 s  LEC rate:  33621.44 Hz
 *** DSSSD # 5 count:     40500 old count:     26651 dt:      1.02 s  LEC rate:  13614.32 Hz
 *** DSSSD # 6 count:     64652 old count:     42396 dt:      1.02 s  LEC rate:  21878.85 Hz
 *** DSSSD # 1 count:         0 old count:         0 dt:      1.02 s  HEC rate:      0.00 Hz
 *** DSSSD # 2 count:        41 old count:        27 dt:      1.02 s  HEC rate:     13.76 Hz
 *** DSSSD # 3 count:       161 old count:       103 dt:      1.02 s  HEC rate:     57.02 Hz
 *** DSSSD # 4 count:       131 old count:        85 dt:      1.02 s  HEC rate:     45.22 Hz
 *** DSSSD # 5 count:        22 old count:        12 dt:      1.02 s  HEC rate:      9.83 Hz
 *** DSSSD # 6 count:         9 old count:         6 dt:      1.02 s  HEC rate:      2.95 Hz

01:02 Briken and BigRIPS daq stops

01:03 Briken Starts run 8
      BigRIPS starts run 3008

01:40 Phong noticed a significant difference in the noise in the (raw) low energy spectra a few of the FEEs when
      comparing the runs right before and right after the power-cycle  (See Attachment 12) required to recover
      the DAQ crash last afternoon (June 5th).
      NNAIDA 22, 21, 14, and 13 had a much higher count rate after the power cycle, and what seems like a lower
      threshold. We can't observe the pulser peak in any of those.

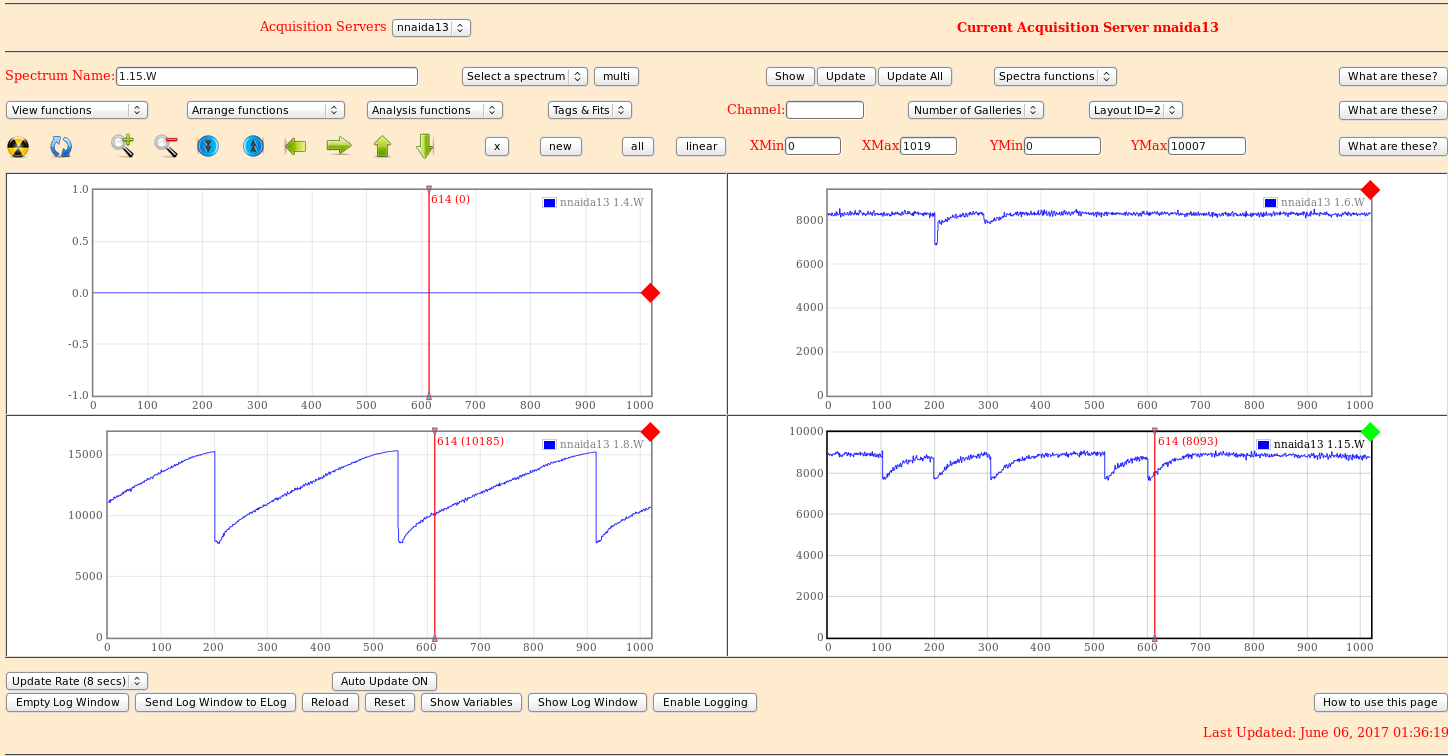

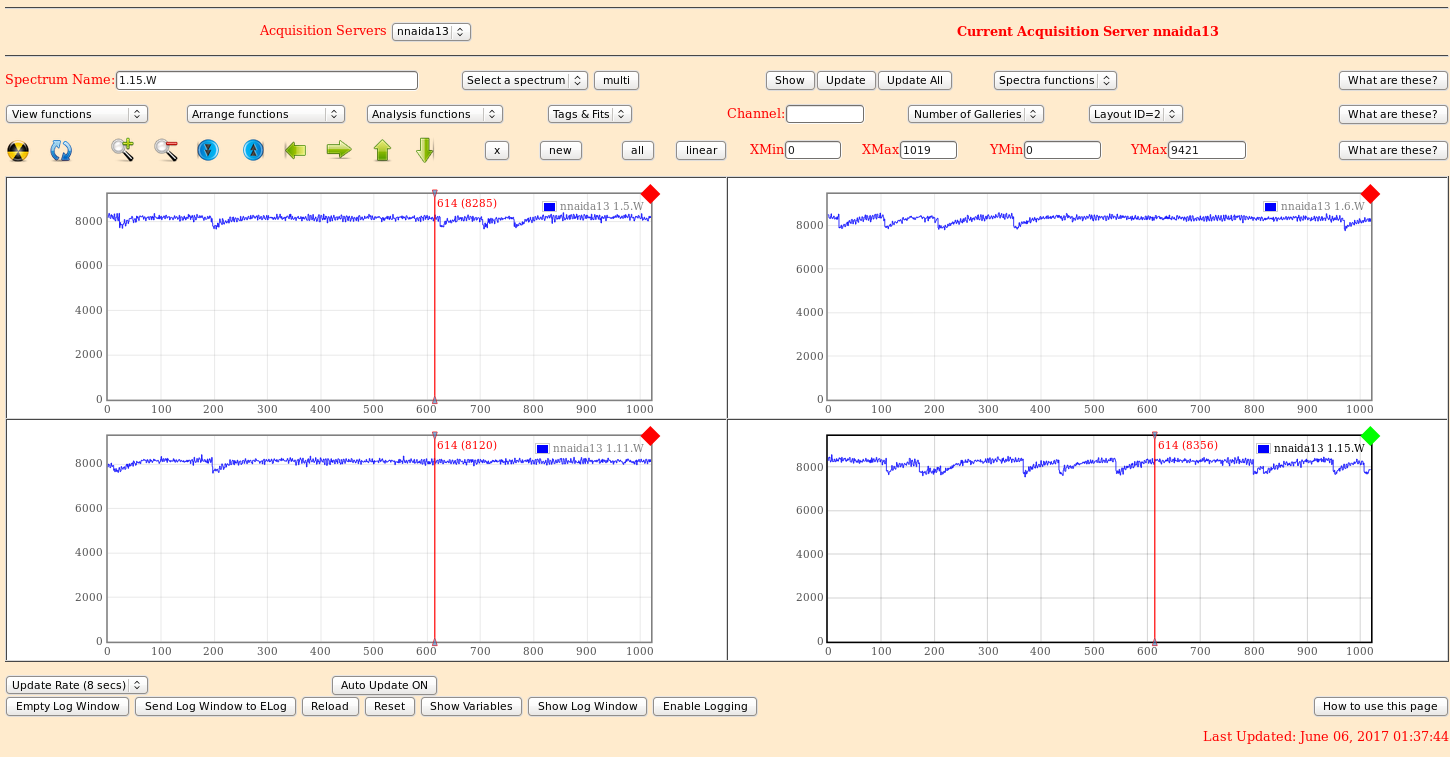

      NNAIDA 13 has the highest count rate, and the waveforms show what looks like noise with a regular
      frequency (attachments 4 - 7)

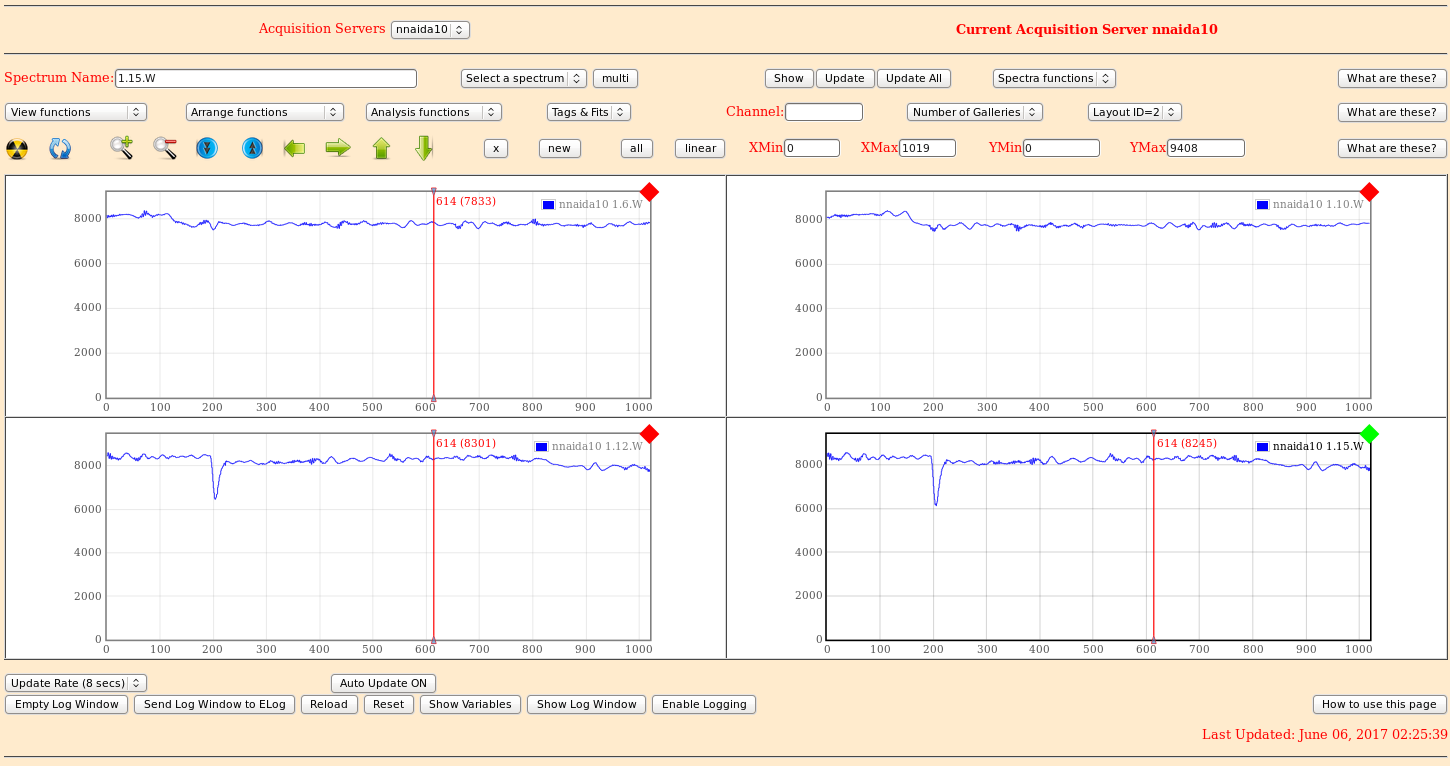

For reference, we include the waveform of other positive FEEs 8-11

02:51 Bias and leakages ok - attachment 13
      System wide checks ok

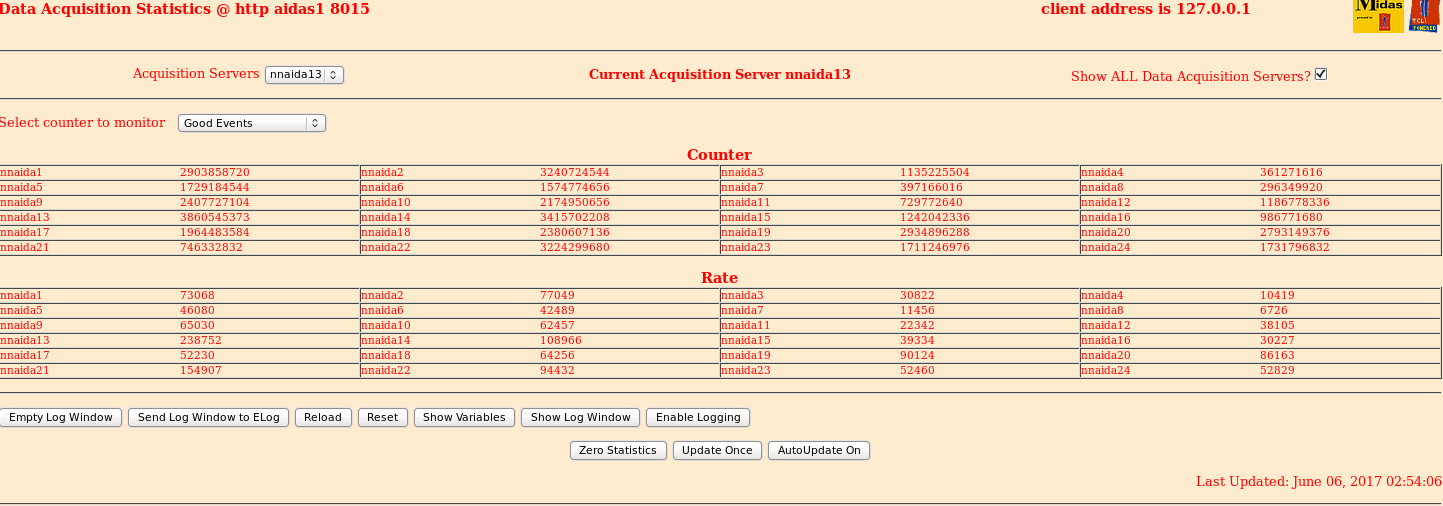

      Good Event statistics - attachment 14
      Fee Temperatures - attachment 15

03:03 BigRIPS and BRIKEN stop daqs
      AIDA on file R5_208

03:04 BigRIPS starts run 3009
      BRIKEN starts run 9
      AIDA on file R5_208

04:03 BigRIPS and BRIKEN stop daqs
      AIDA on file R5_230

04:04 BigRIPS starts run 3010
      BRIKEN starts run 10
      AIDA on file R5_230

04:09 System wide checks all ok
      Bias and leakages ok - attachment 16
      Fee Temperatures - attachment 17
      Good Event Statistics - attachment 18

04:48 DSSD rates from R5_244
 *** DSSSD # 1 count:   1239207 old count:   1155424 dt:      1.04 s  LEC rate:  80379.42 Hz
 *** DSSSD # 2 count:   1684042 old count:   1567549 dt:      1.04 s  LEC rate: 111760.61 Hz
 *** DSSSD # 3 count:    806937 old count:    752064 dt:      1.04 s  LEC rate:  52643.85 Hz
 *** DSSSD # 4 count:    505814 old count:    472642 dt:      1.04 s  LEC rate:  31824.43 Hz
 *** DSSSD # 5 count:    208086 old count:    193231 dt:      1.04 s  LEC rate:  14251.53 Hz
 *** DSSSD # 6 count:    335686 old count:    313190 dt:      1.04 s  LEC rate:  21582.13 Hz
 *** DSSSD # 1 count:         8 old count:         7 dt:      1.04 s  HEC rate:      0.96 Hz
 *** DSSSD # 2 count:       193 old count:       181 dt:      1.04 s  HEC rate:     11.51 Hz
 *** DSSSD # 3 count:       872 old count:       810 dt:      1.04 s  HEC rate:     59.48 Hz
 *** DSSSD # 4 count:       637 old count:       601 dt:      1.04 s  HEC rate:     34.54 Hz
 *** DSSSD # 5 count:        89 old count:        81 dt:      1.04 s  HEC rate:      7.68 Hz
 *** DSSSD # 6 count:        71 old count:        65 dt:      1.04 s  HEC rate:      5.76 Hz

05:01 BRIKEN and BigRIPS stop DAQs
      AIDA on file R5_250

05:02 BigRips starts run 3011
      BRIKEN starts run 11
      AIDA on file R5_250

06:02 BigRIPS and BRIKEN stop their daqs
      AIDA on file R5_272

06:03 BigRIPS starts run 3012
      BRIKEN starts run 12
      AIDA on file R5_272

06:06 System wide checks all ok
      Bias and leakage currents ok - attachment 19
      Good event statistics - attachment 20
      FEE temperatures ok - attachment 21

06:16 Analysis of R5_270 - attachment 22
      Three MBS errors

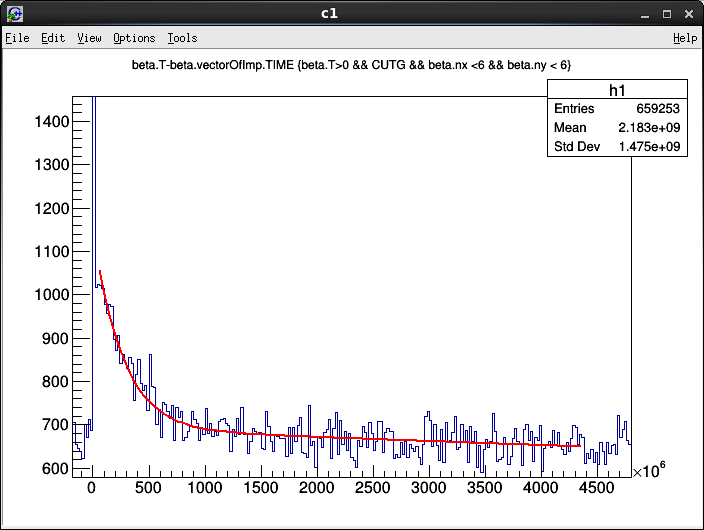

06:34 130Cd decay curve - attachments 22 and 23
      Despite the large amounts of noise in the detectors it is still possible to observe decay curves. They are
cleaned up a lot
      by applying a multiplicity cut (attachment 22 with attachment 23 without. Further cuts and vetos could be
applied to clean up further.
      The fit in attachment 22 gives a half life of 182ms which is not quite the expected 162ms but a reasonable
first fit.

07.14 Layout - 1.8.W waveforms - see attachments 24-27
      No significant change in intrinsic/extrinsic noise cf. previous screenshots

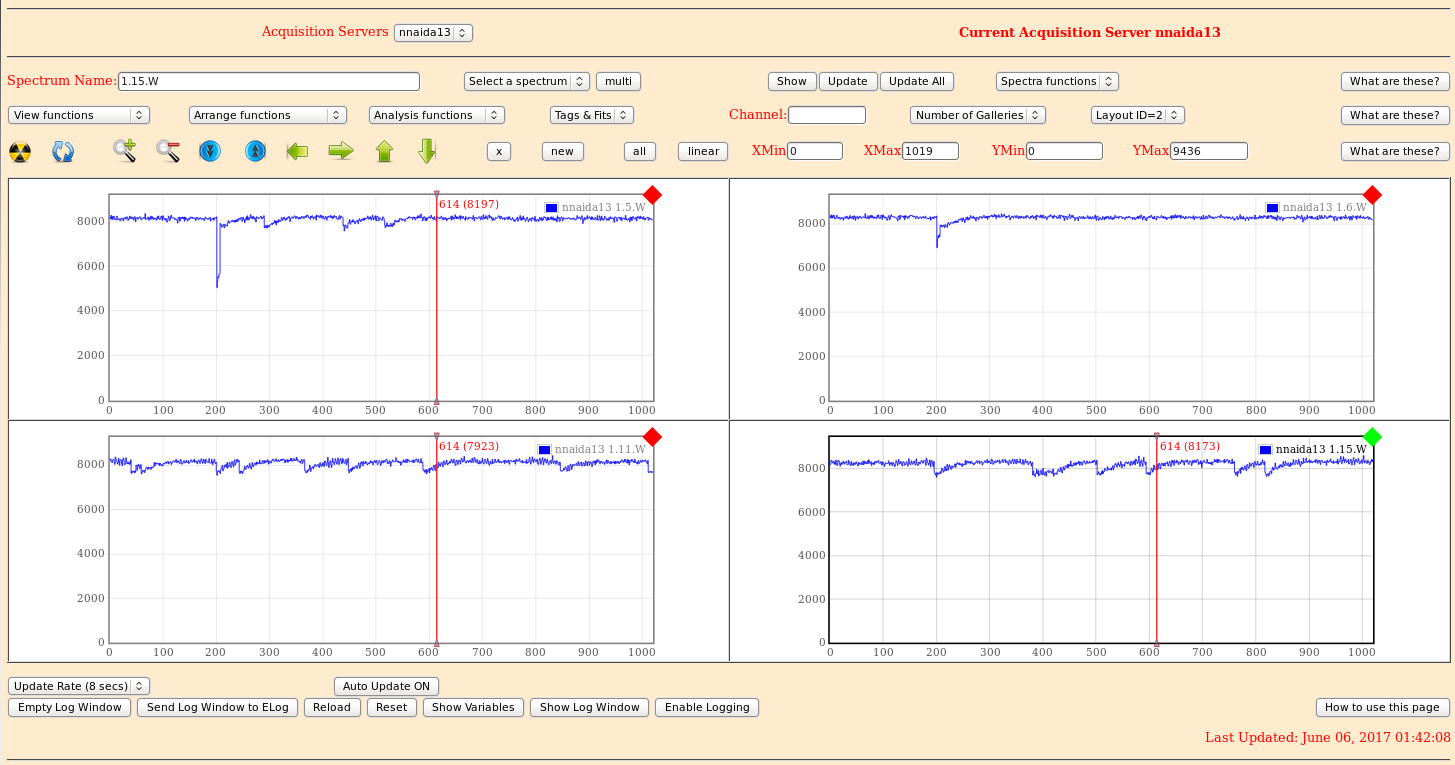

      nnaida13 ASIC 1-4 waveforms - see attachments 28-31 - range 100*20us

07.24 BRIKEN and BigRIPS stop DAQs
      AIDA on file R5_300

07.25 Stop AIDA DAQ
      Cycle detector biases
      Start AIDA DAQ

07.38 BigRips starts run 3014
      BRIKEN starts run 14
      AIDA on file R6_1

07.45 nnaida13 ASIC 1-4 waveforms - see attachments 32-35 - range 100*20us

08.07 all system wide checks OK
