08:12    Analysis of file RIBF128/R6_438 - zero timewarps, four MBS timewarps - see attachment 1

08:23    Online analysis (per DSSSD rates) of R6_443,  see attachment 2

08:35    BigRIPS and BRIKEN stop their DAQ
         AIDA run file R6_446

08:40    BRIKEN starts run 043
         BigRIPS starts run 3040
         AIDA on file R6_448

09:16    *All* system wide checks OK
         FEE64 Temperatures OK - see attachment 3
         Good events statistics OK - see attachment 4
         Detector biases & leakage currents OK - see attachment 5

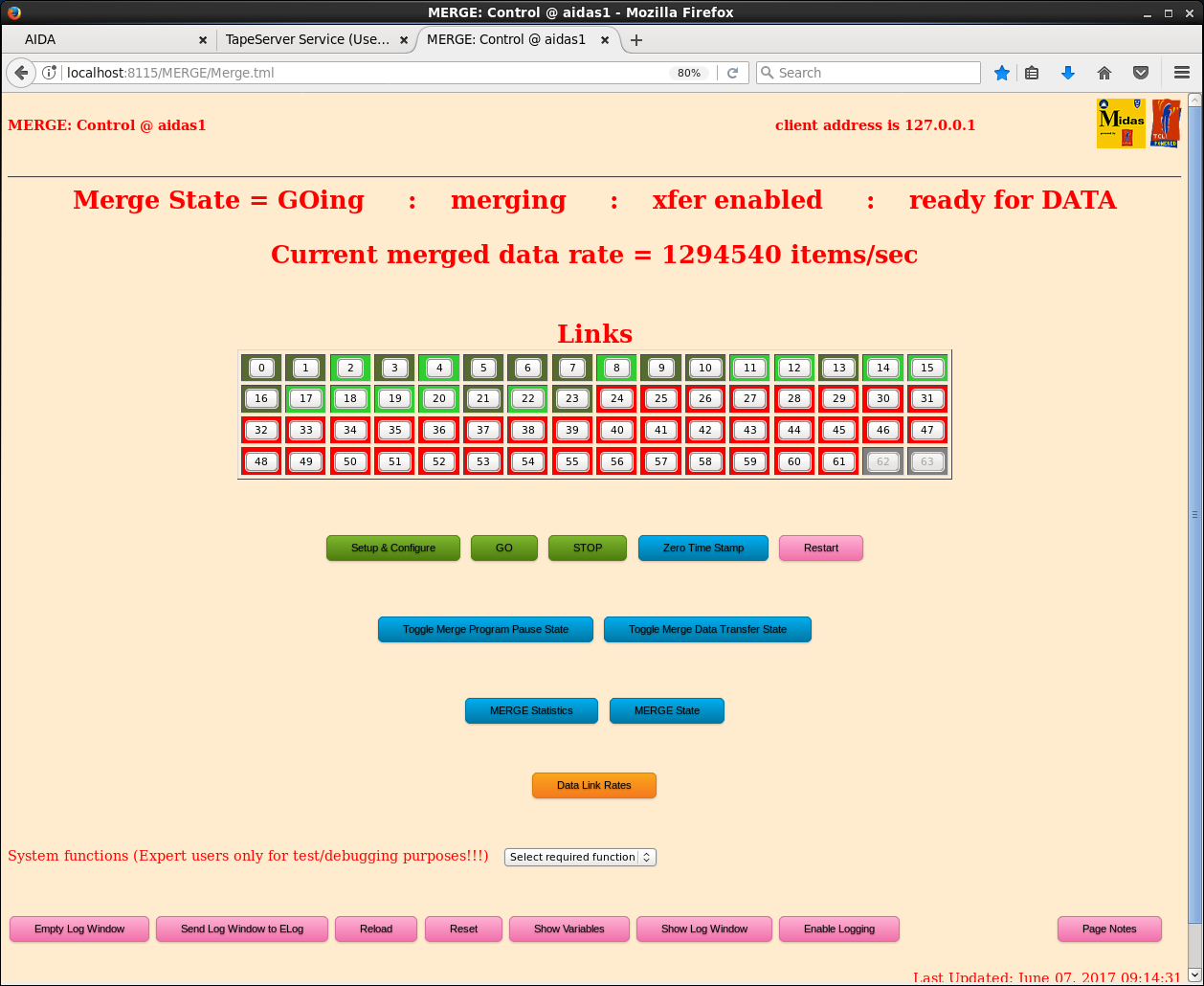

         Merger and tape server running - see attachment 6,7

09:51    Beam is OFF, RC is down

09:53    BigRIPS and BRIKEN stop their DAQ
         AIDA run file R6_470

10:00    Beam is ON

10:01    BRIKEN starts run 044
         BigRIPS starts run 3041
         AIDA on file R6_472

10:07    AIDA DAQ crashed (fuse blown)
         AIDA on file R6_474

10:14    BigRIPS and BRIKEN stop their QAD
         AIDA on file R6_474

10:25  E17/F11 ambient temperature +24.3 deg C, RH 42.7%, d.p. +10.9 deg C
       Julabo FL11006 set point +20 deg C, actual +20.0 deg C, water level OK (c. 75%)

BNC PB-4 analogue output BNC T replaced by BNC-Lemo00 adaptor and Lemo00 T

11:08    AIDA DAQ running (recovered)

11:10    BRIKEN starts run 045
         BigRIPS starts run 3043
         AIDA on file R7_1
         (BigRIPS run 3042 was used to check synchronization)

11:21    *All* system wide checks OK
         FEE64 Temperatures OK - see attachment 8

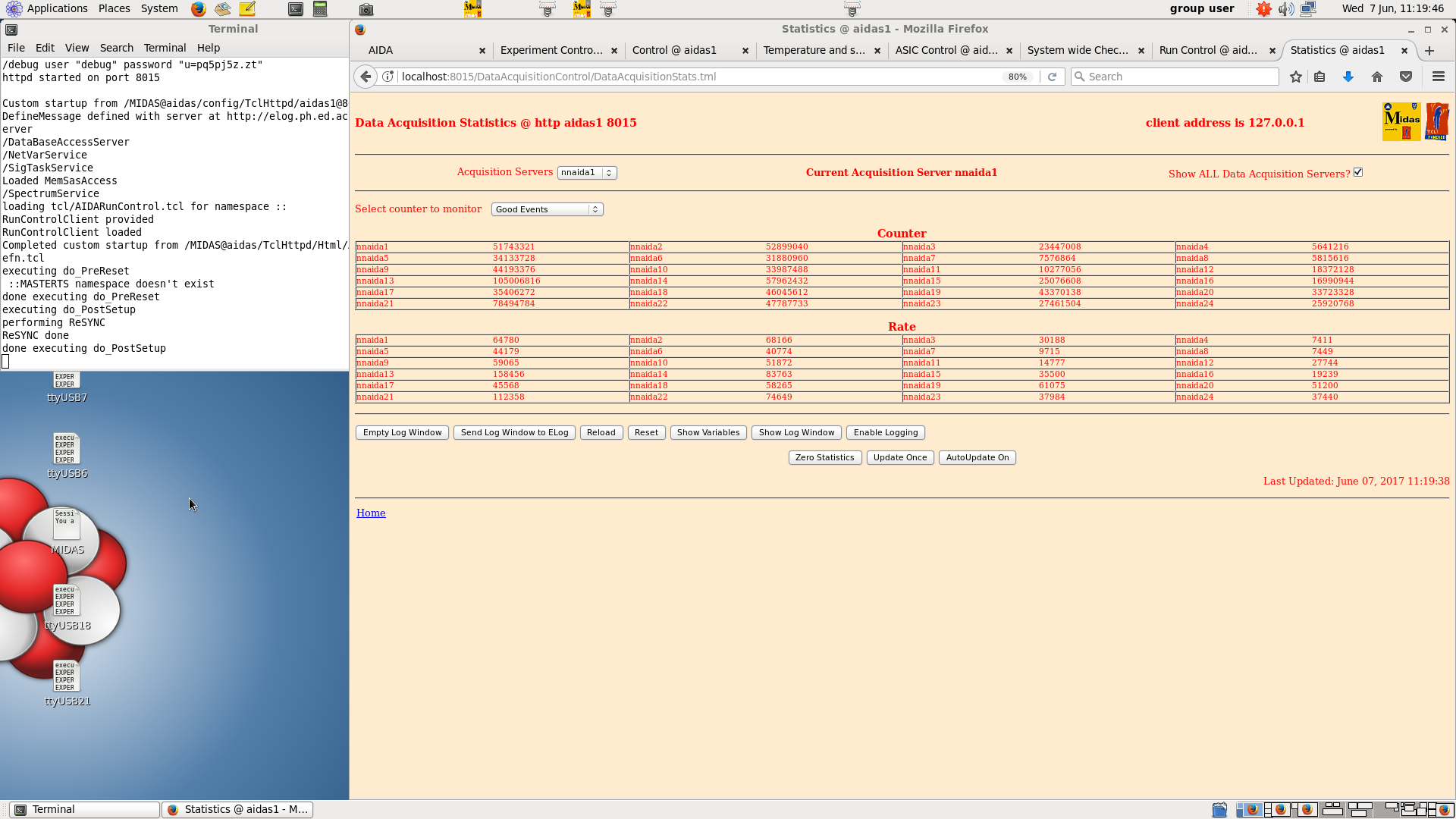

         Good events statistics OK - see attachment 9
         Detector biases & leakage currents OK - see attachment 10

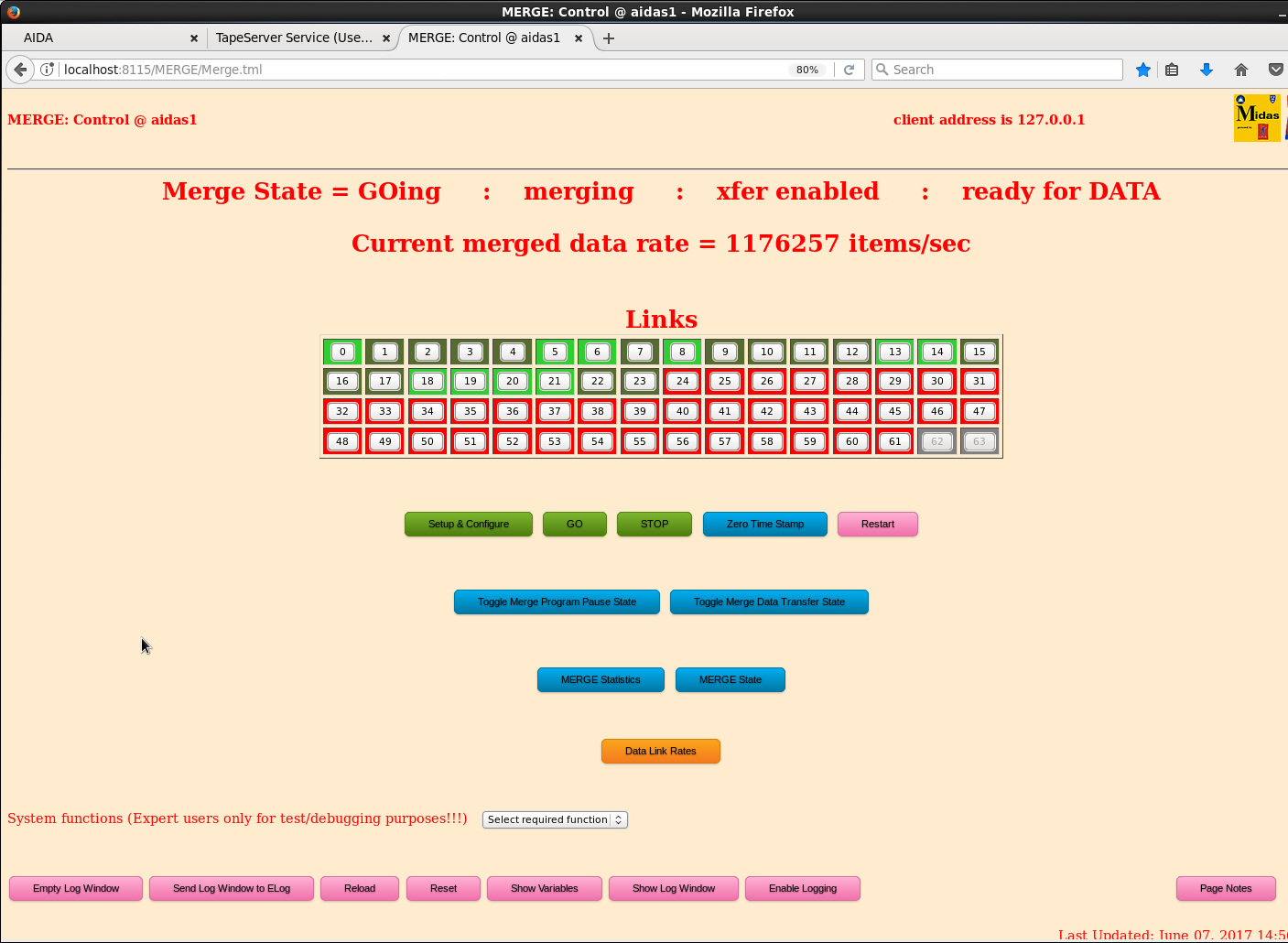

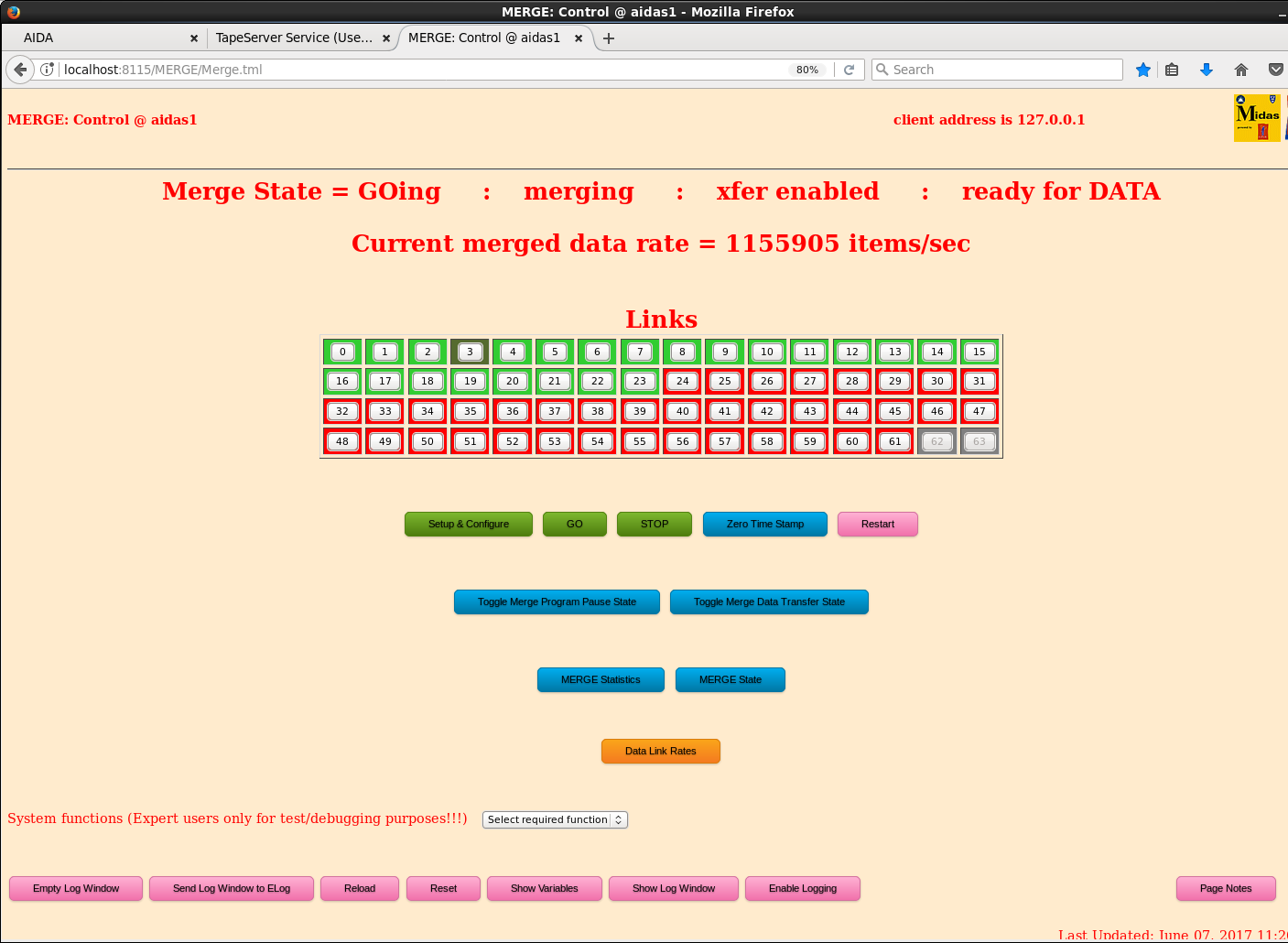

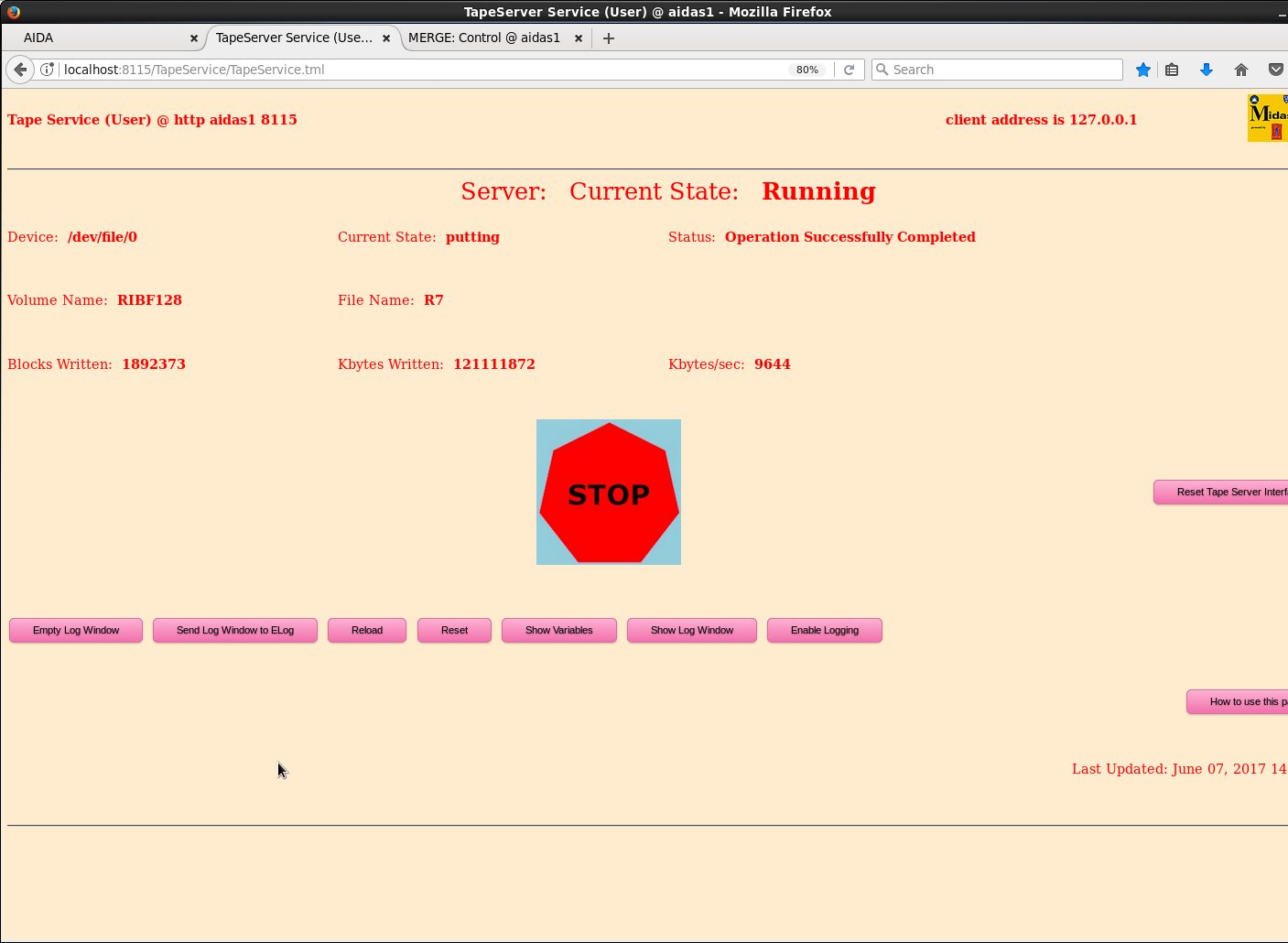

         Merger and tape server running - see attachment 11,12

11:28    Analysis of file RIBF128/R7_4 - zero timewarps, two MBS timewarps - see attachment 13

12:13    BigRIPS and BRIKEN stop their DAQ
         AIDA run file R7_16

12:13    BRIKEN starts run 046
         BigRIPS starts run 3044
         AIDA on file R7_17

12:21    Analysis of file RIBF128/R7_15 - zero timewarps, two MBS timewarps - see attachment 14

12:23    High Energy Correlation spectra - see attachment 15
         AIDA on file R7_20

13.00 Detector biases & leakage currents OK - see attachments 16 & 17
      FEE64 Temperatures OK - see attachment 18
      good events statistics OK - see attachment 19
      No warnings/errors reported by merger since DAQ GO - see attachment 20

*all* system wide checks OK

13.06 analysis of file RIBF128/R7_30 - dead time < 0.5%, 0 ts & 1 MBS timewarps - see attachment 21

13.10 online analysis - ADC data synchronised - see attachment 22

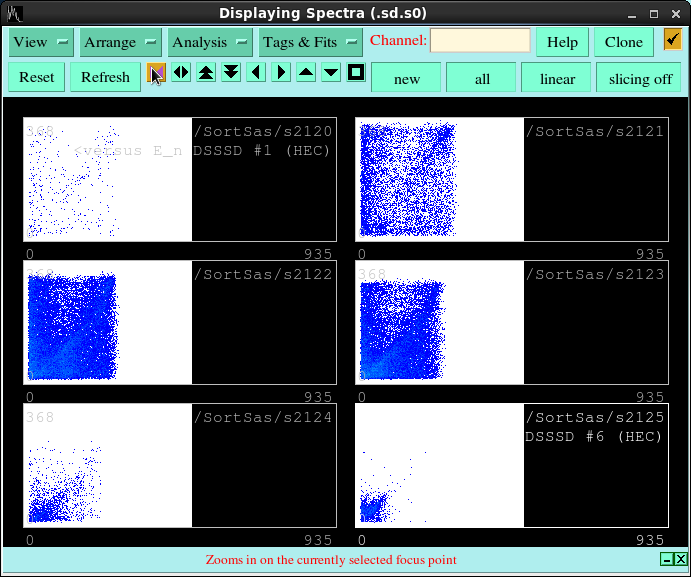

      per DSSSD HEC x versus y spectra - see attachment 23
      per DSSSD HEC E_p versus E_n spectra - see attachment 24

13.12 per DSSSD rates file RIBF128/R7_33

*** DSSSD # 1 count:    100283 old count:     52419 dt:      1.00 s  LEC rate:  47699.10 Hz
 *** DSSSD # 2 count:    143318 old count:     73956 dt:      1.00 s  LEC rate:  69123.04 Hz
 *** DSSSD # 3 count:     61925 old count:     31310 dt:      1.00 s  LEC rate:  30509.53 Hz
 *** DSSSD # 4 count:     42834 old count:     21364 dt:      1.00 s  LEC rate:  21396.03 Hz
 *** DSSSD # 5 count:     10974 old count:      5692 dt:      1.00 s  LEC rate:   5263.80 Hz
 *** DSSSD # 6 count:     29846 old count:     15307 dt:      1.00 s  LEC rate:  14488.91 Hz
 *** DSSSD # 1 count:         3 old count:         1 dt:      1.00 s  HEC rate:      1.99 Hz
 *** DSSSD # 2 count:        34 old count:        23 dt:      1.00 s  HEC rate:     10.96 Hz
 *** DSSSD # 3 count:        96 old count:        51 dt:      1.00 s  HEC rate:     44.84 Hz
 *** DSSSD # 4 count:        85 old count:        51 dt:      1.00 s  HEC rate:     33.88 Hz
 *** DSSSD # 5 count:         8 old count:         4 dt:      1.00 s  HEC rate:      3.99 Hz
 *** DSSSD # 6 count:         8 old count:         4 dt:      1.00 s  HEC rate:      3.99 Hz

all SortSas spectra & histograms zero'd

13.13  DAQ stop
       AIDA run file R7_33

13.15  BRIKEN starts run 47
       BigRIPS starts run 3045 *** N.B. by mistake BRIKEN DAQ not actually started ***
       AIDA on file R7_ 33

BNC PB-4
       Amplitude 90,000
       x5 attenuator IN
       t_r 100ns tau_d 50us
       - polarity
       frequency 25Hz range
       delay MIN, tail pulse, INT ref

ASIC settings 2017Mar27-16.12.39

84Zn BigRIPS setting, 130Ag degrader setting - 2mm Al (in F7) + 3mm fixed + 1mm variable (in F11) = 6 mm Al

13.23  Beam stop to fix problem with STQ
       DAQ stop
       AIDA file RIBF128/R7_35

14:00  Beam is ON
       AIDA file R7_43

14:01  BRIKEN starts run 48
       BigRIPS starts run 3046
       AIDA on file R7_ 44

14:48  Detector biases & leakage currents OK - see attachment 25

14:56  *All* system wide checks OK

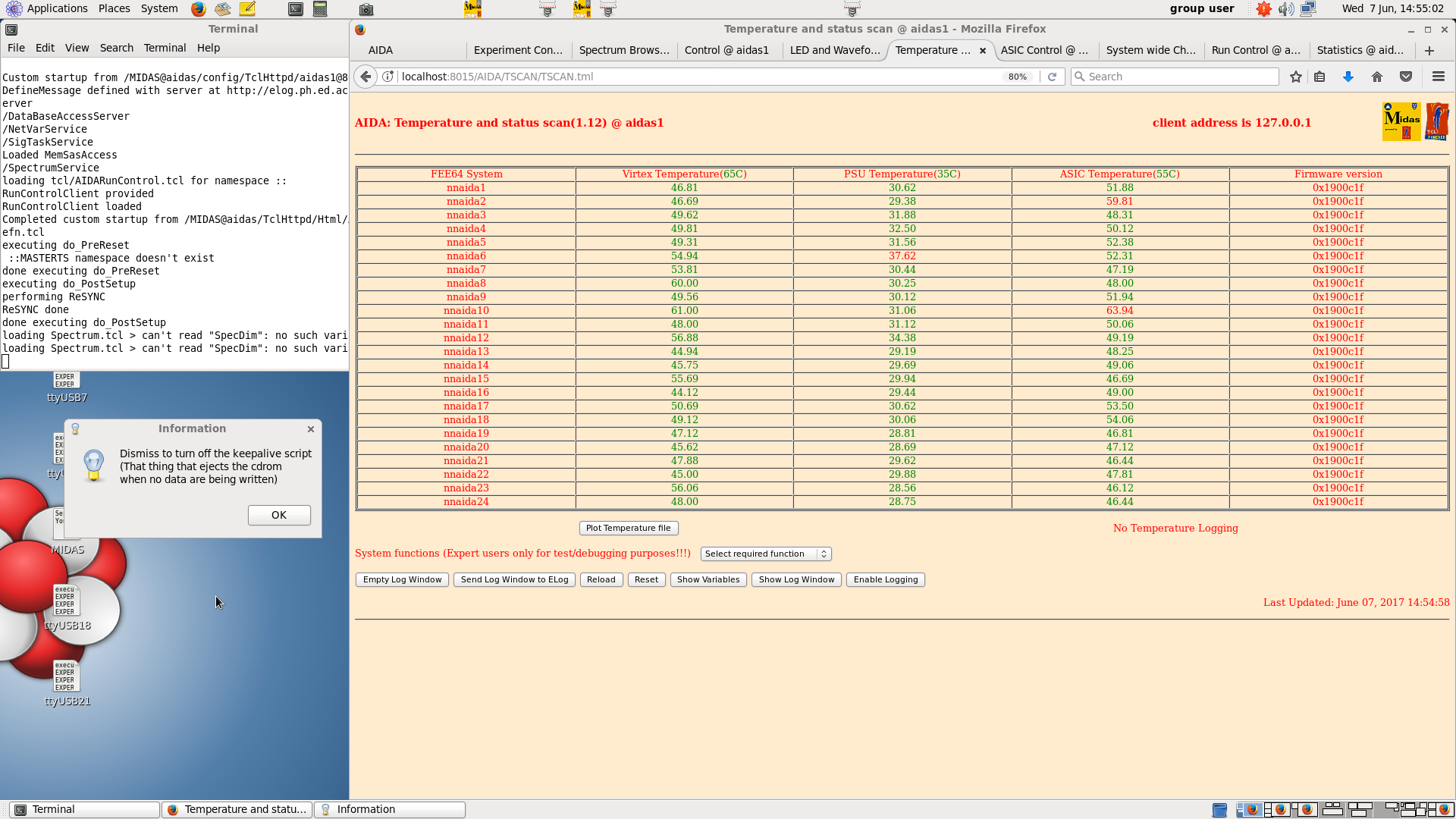

       FEE64 Temperatures OK - see attachment 26

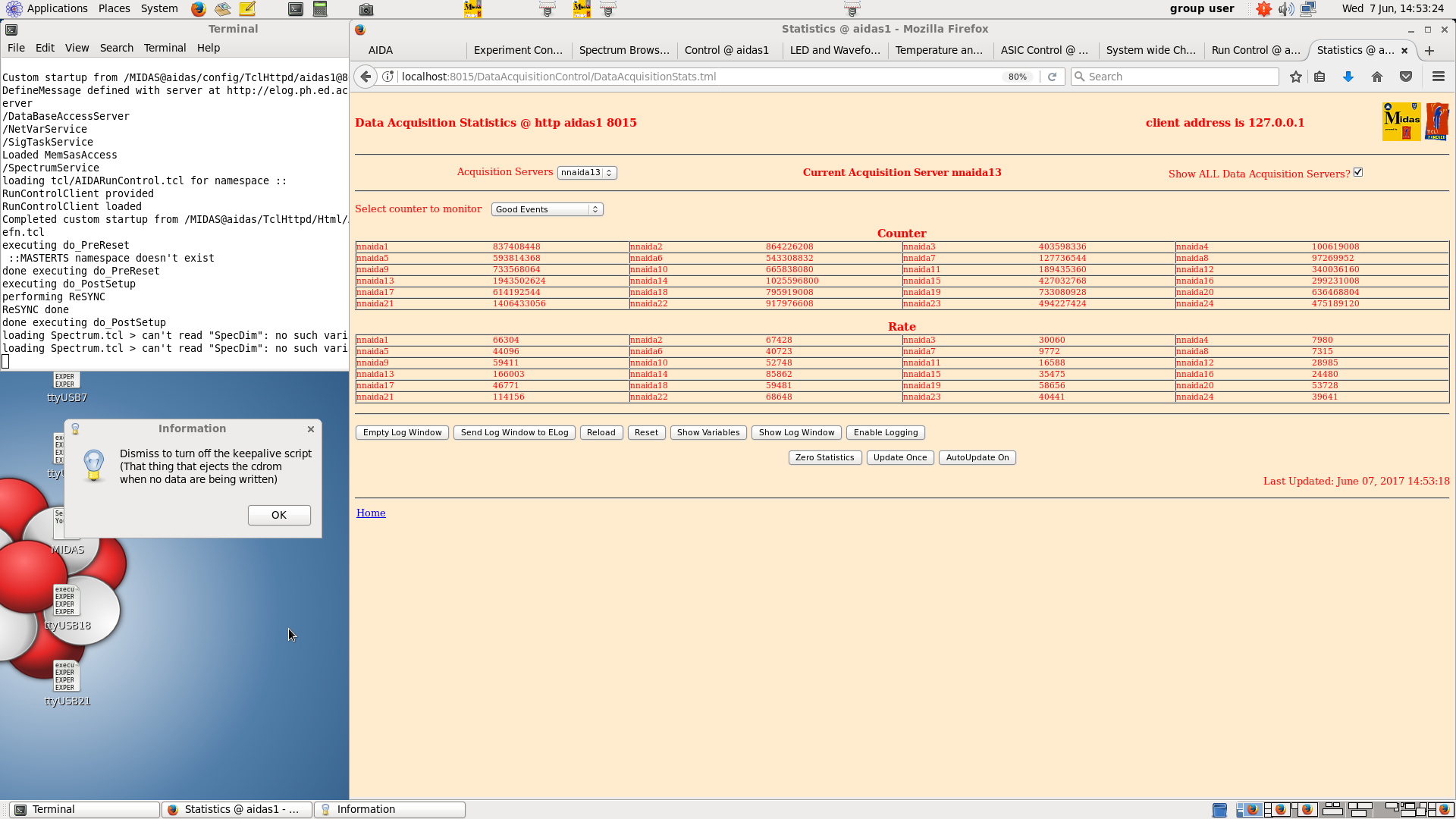

       Good events statistics OK - see attachment 27
       Merger and tape server running - see attachment 28,29

15:16  BigRIPS and BRIKEN stop their DAQ
       AIDA run file R7_64

15:25  Analysis of file RIBF128/R7_60 - zero timewarps, zero MBS timewarps - see attachment 30
