08:06 System wide checks all ok

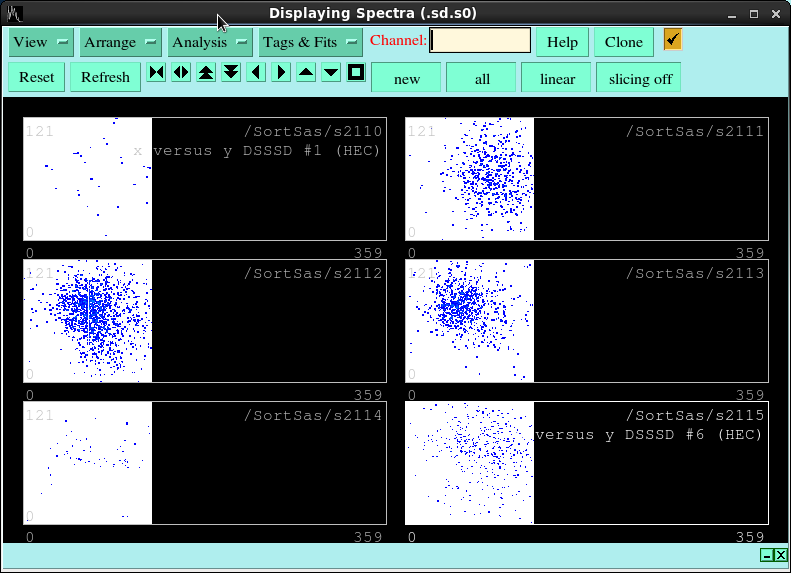

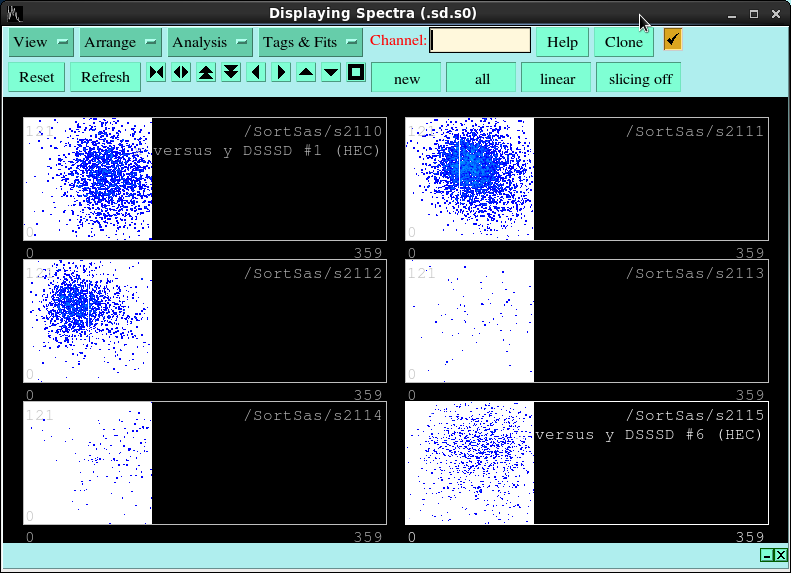

 implantation profile - attachment 1

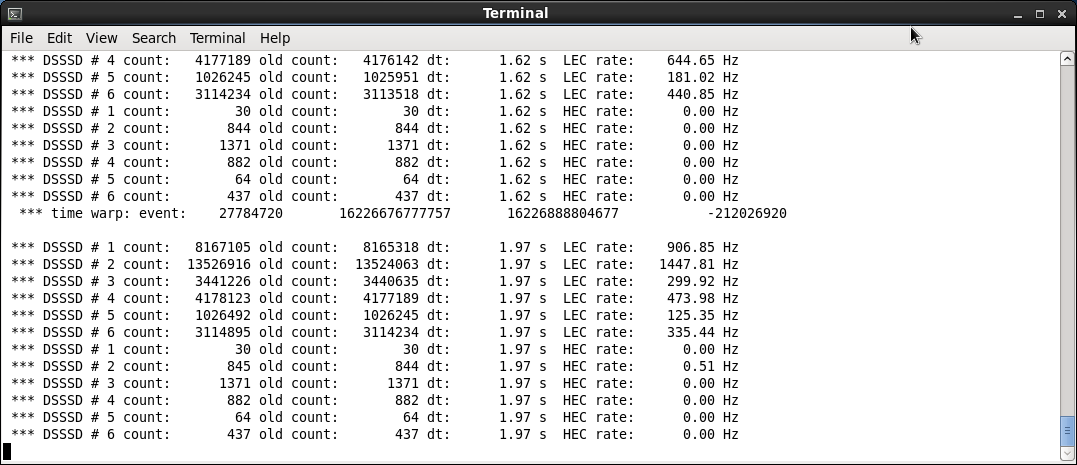

 count rate - attachment 2

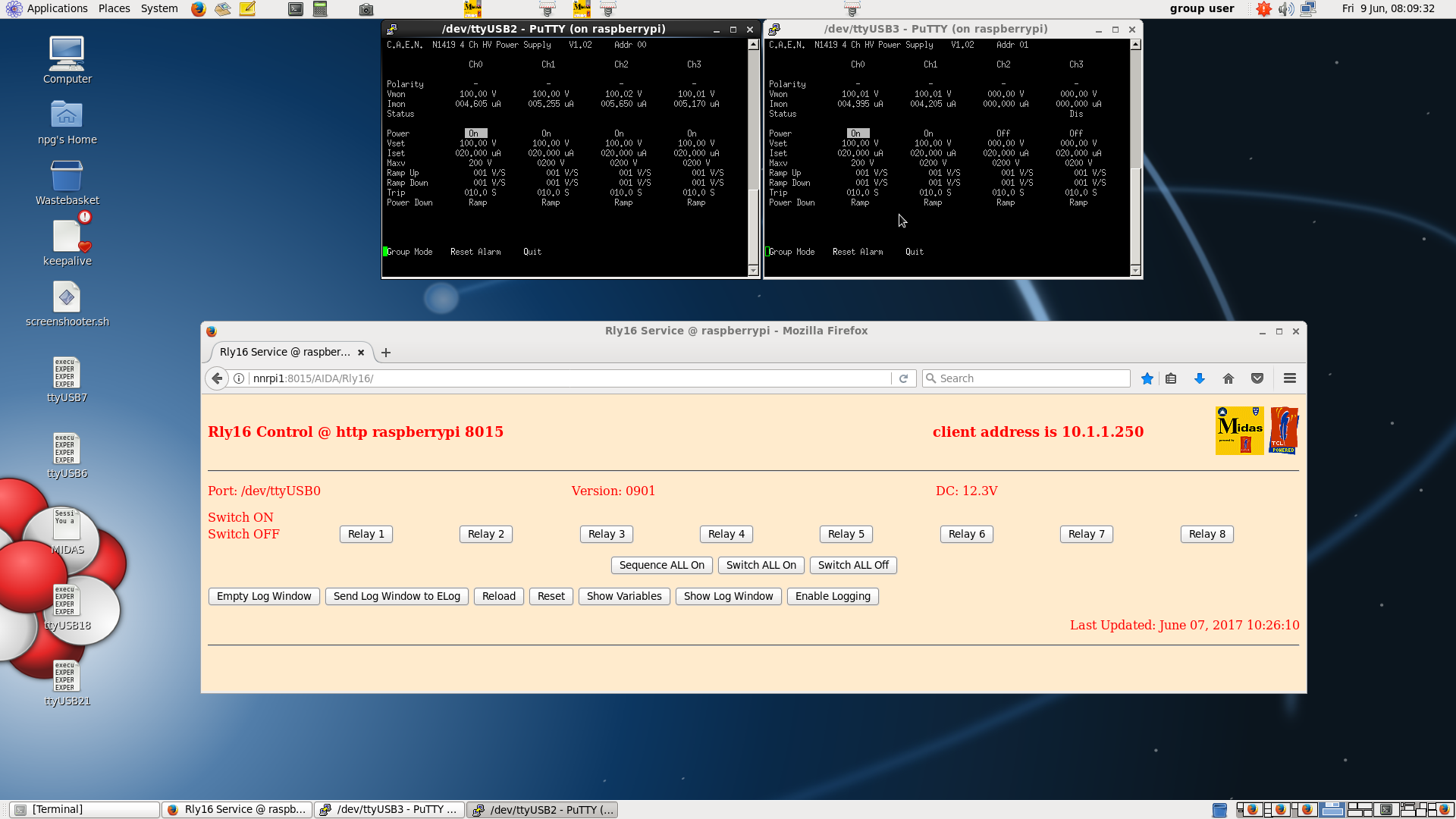

 Bias and leakage currents ok - attachment 3
 DAQstatistics

08:30 BRIKEN and BigRIPS stop their DAQs
      AIDA on file R7_604

08:32 BigRIPS starts run 3090
 BRIKEN starts run 85
 AIDA on file R7_604</pre>

08:44&nbsp;&nbsp; BRIKEN and BigRIPS stop their DAQs

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_607

08:49 &nbsp;&nbsp; BigRIPS starts run 3091

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp; &nbsp; BRIKEN starts run 86

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_608

09:42 &nbsp;&nbsp;&nbsp;&nbsp; BRIKEN and BigRIPS stop their DAQs

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_621

&nbsp;*** DAQ synchronisation reset ***

see BRIKEN 2017 Elog http://ribf-exp.riken.jp/elog/BRIKEN2017-June/323

09:51 &nbsp;&nbsp; BigRIPS starts run 3093

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp; &nbsp; BRIKEN starts run 87

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_623

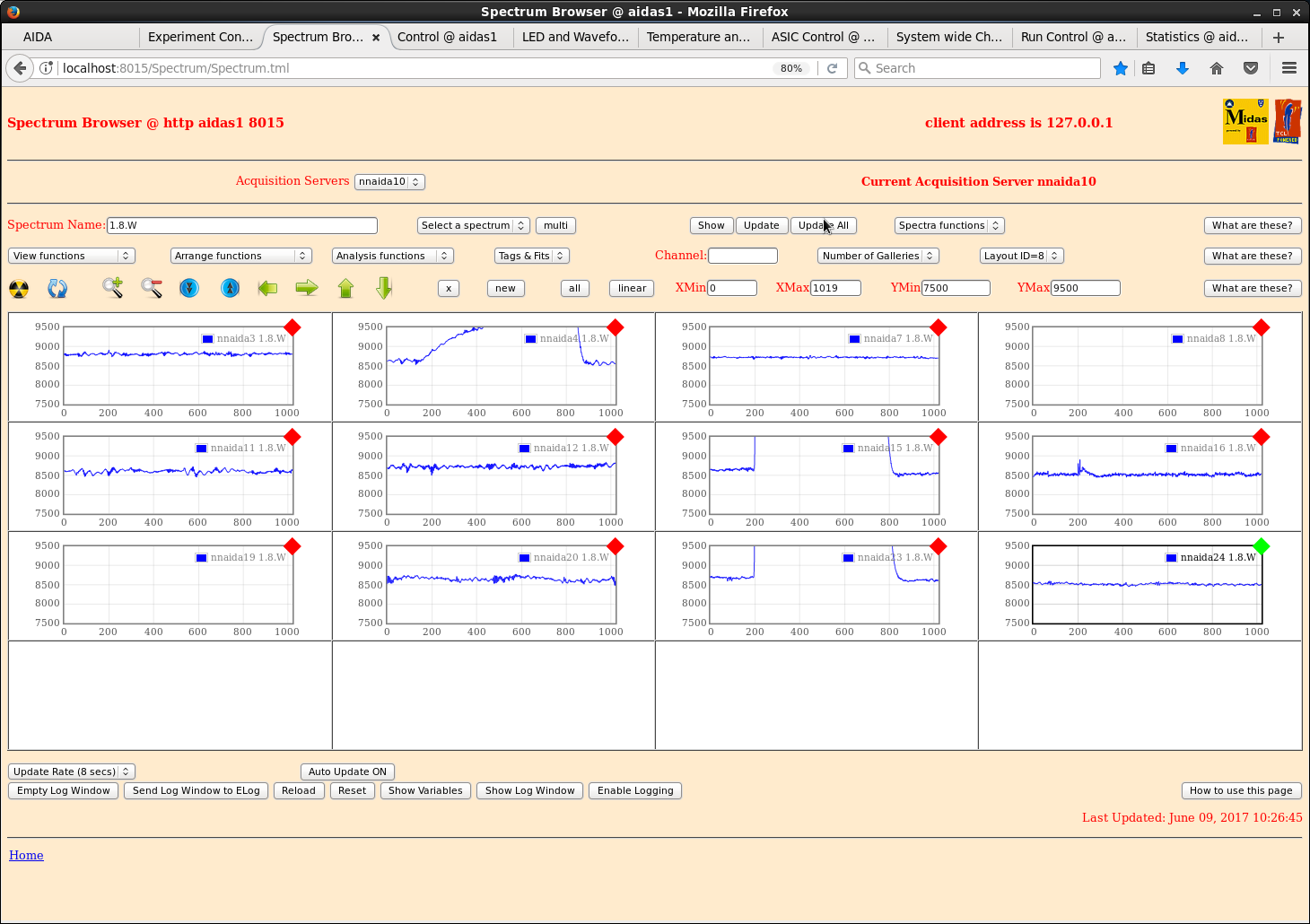

10:06 &nbsp; System wide checks all ok

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Bias and leakage currents ok - attachment 5

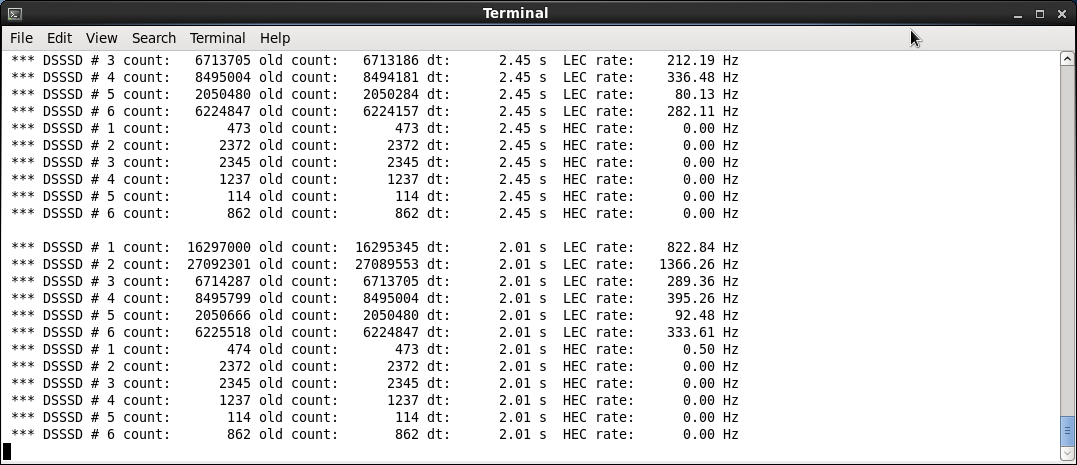

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp; count rate - attachment 6

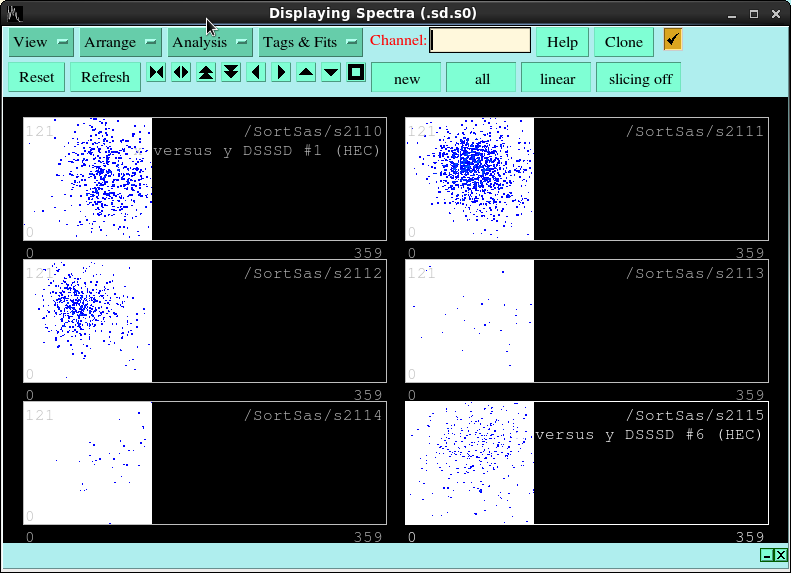

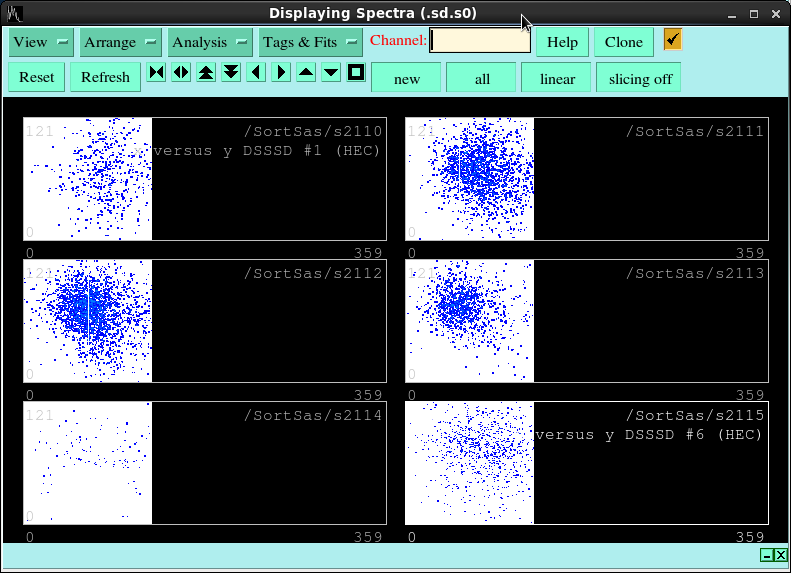

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; implantation profile -&nbsp;attachment 7

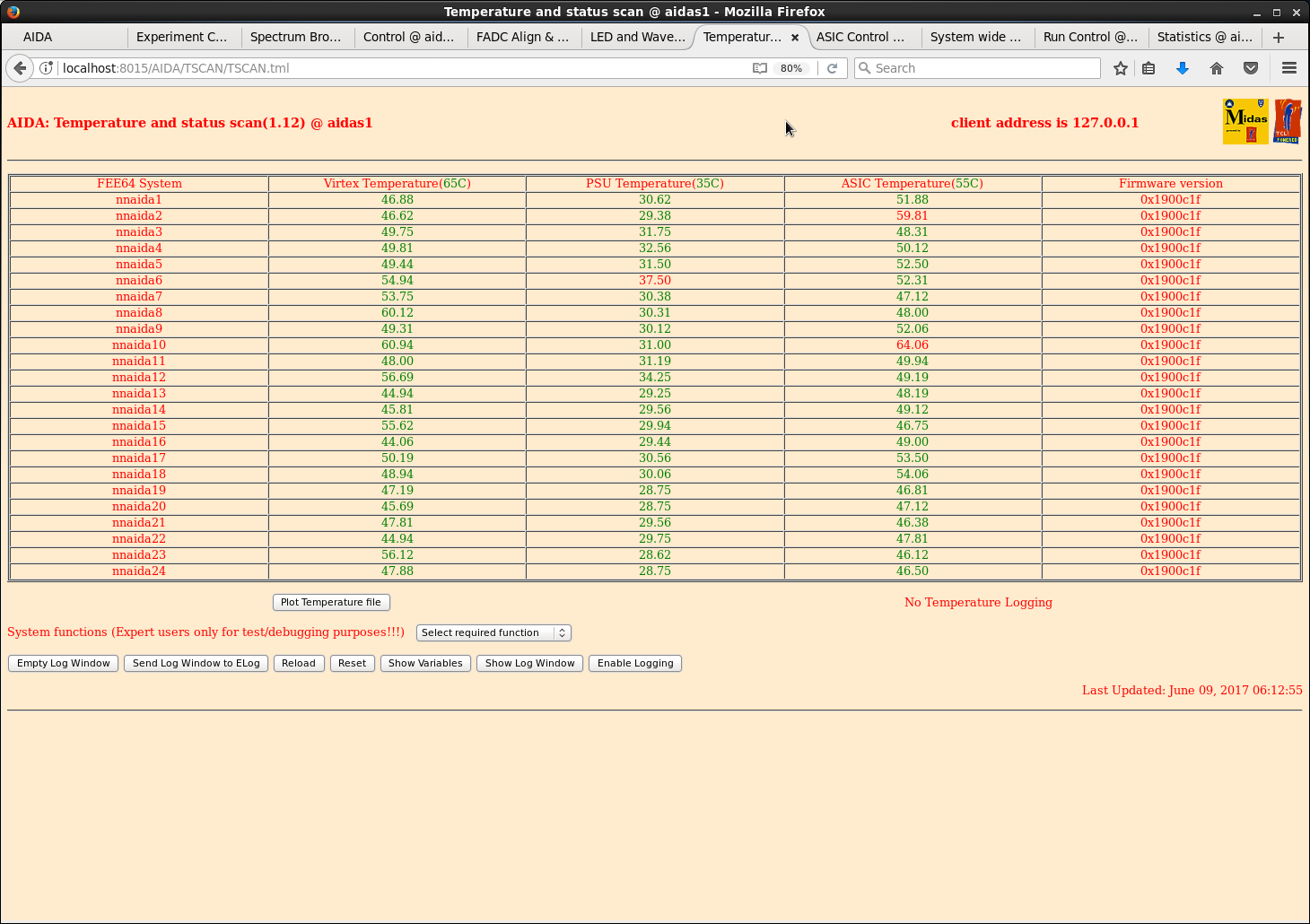

&nbsp;&nbsp;&nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp; FEE temperature - attachment 8
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

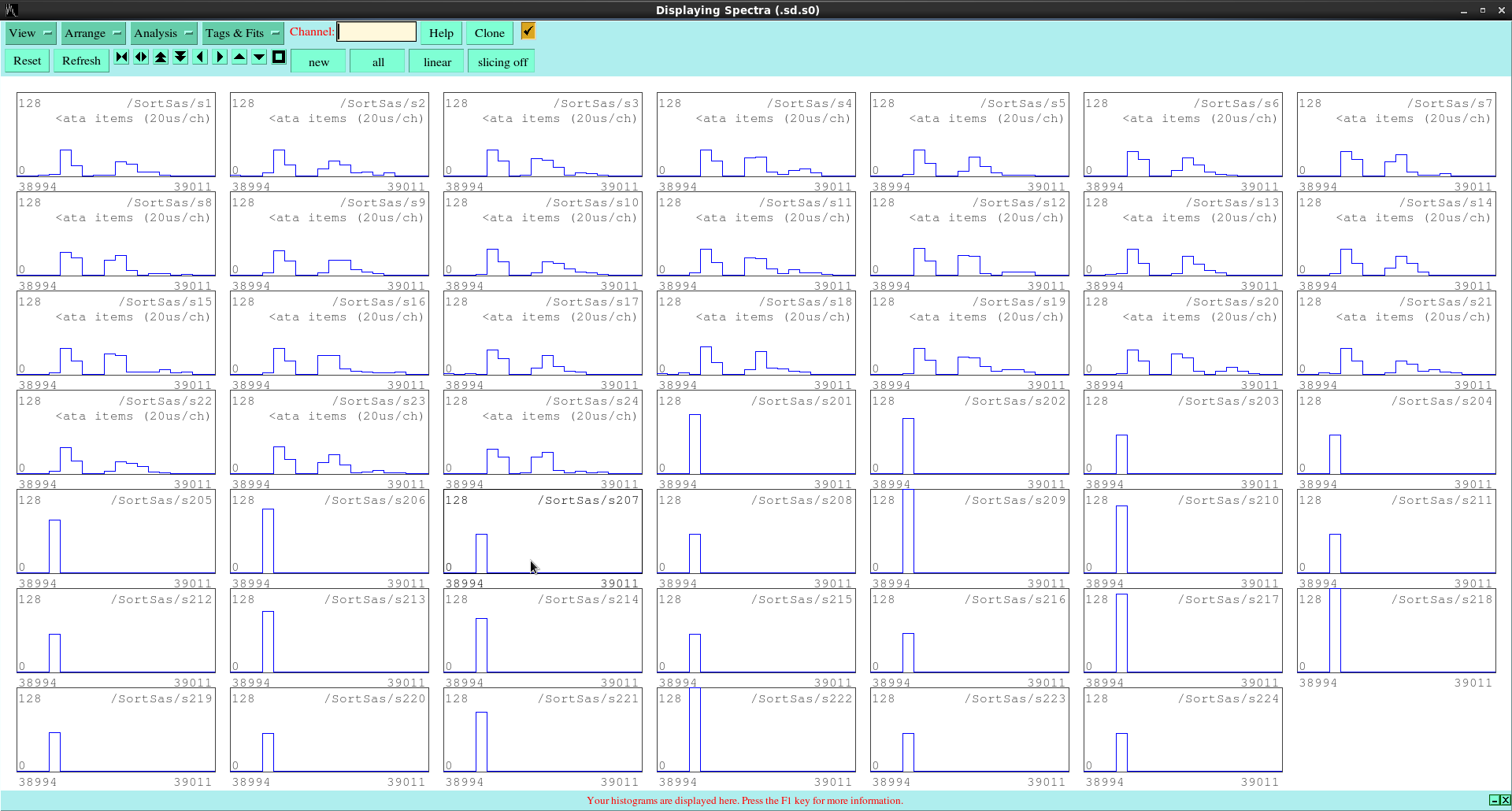

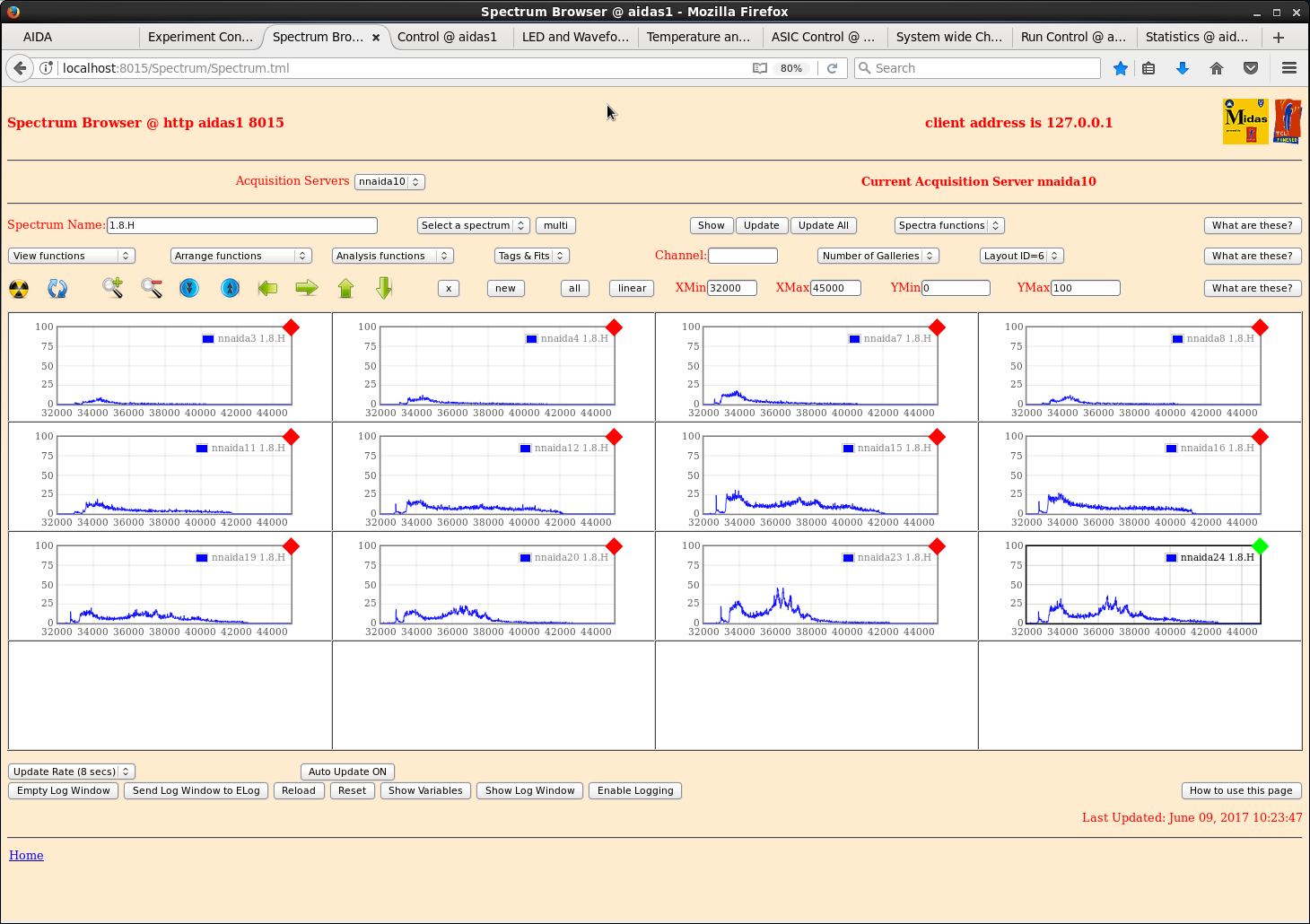

10.30 layout spectra - see attachments 9-18

analysis of RIBF128/R7_630 - deadtime &lt; 0.5%, no ts timewarps, 4x MBS timewarps - see attachment 19

online analysis - ADC &amp; disc data synchronsed - see attachment 20

10.36 all histograms and SortSas spectra zero&#39;d

&nbsp;

10:53 &nbsp; BRIKEN and BigRIPS stop their DAQs

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_636

10:54 &nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BigRIPS starts run 3094

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp; BRIKEN starts run 88

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_636

11:49&nbsp;&nbsp;&nbsp; BigRIPS and BRIKEN stop their DAQ

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_649

&nbsp;

11:49&nbsp;&nbsp; BigRIPS starts run 3095

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BRIKEN starts run 89

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_649

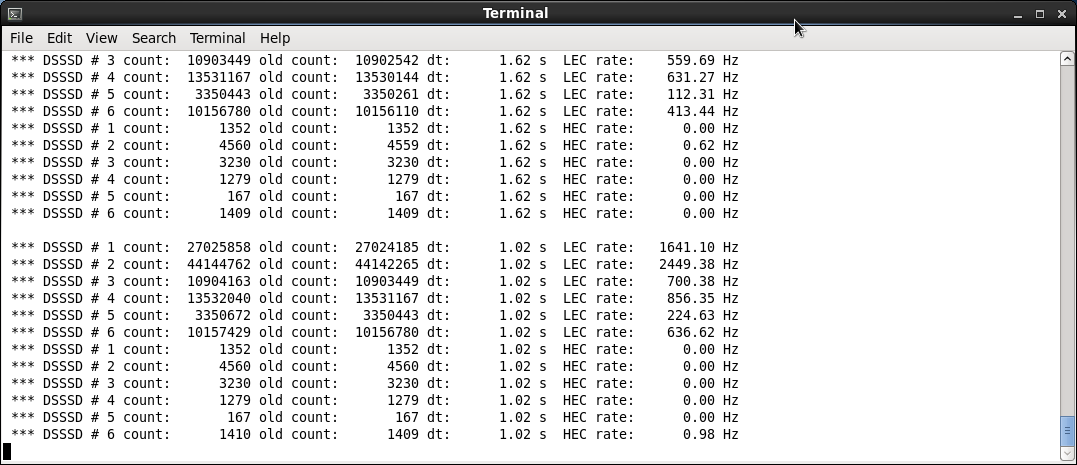

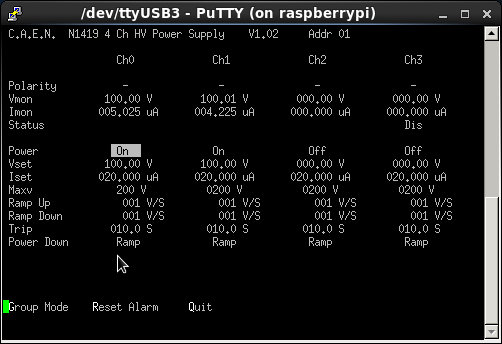

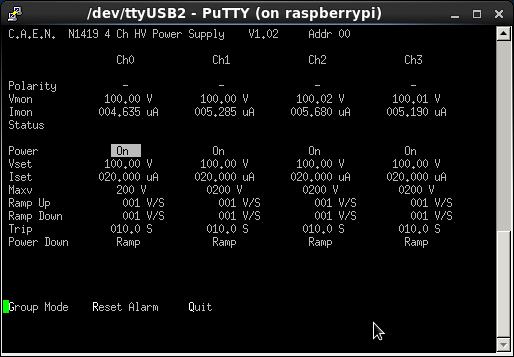

12:15 system wide checks -- OK

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; see attchments&nbsp; 21-26

12.54 DAQ stop

AIDA file RIBF128/R7_664

&nbsp;

12.55 DAQ start

AIDA file RIBF128/R7_664

BRIKEN file 3096

BigRIPS file 90

&nbsp;

13.55 BigRIPS team entered the beam line area to place a 1.5 mm Al degrader

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; DAQ stop

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA file on&nbsp; RIBF128/R7_679

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BRIKEN file 3096

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BigRIPS file 90

&nbsp;

14:03 &nbsp;&nbsp;&nbsp; BigRIPS starts run 3097

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BRIKEN starts run 91

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_680

&nbsp;

14:52&nbsp;&nbsp;&nbsp; beam stopped

&nbsp;

15:00 &nbsp; BRIKEN and BigRIPS stop their DAQs

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_694

15:02 &nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BigRIPS starts run 3098

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp; BRIKEN starts run 92

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_694

15:48&nbsp; beam stopped

15:52&nbsp; beam back

16:06&nbsp;&nbsp; BRIKEN and BigRIPS stop their DAQs

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_709

16:08 &nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BigRIPS starts run 3099

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp; BRIKEN starts run 93

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_710

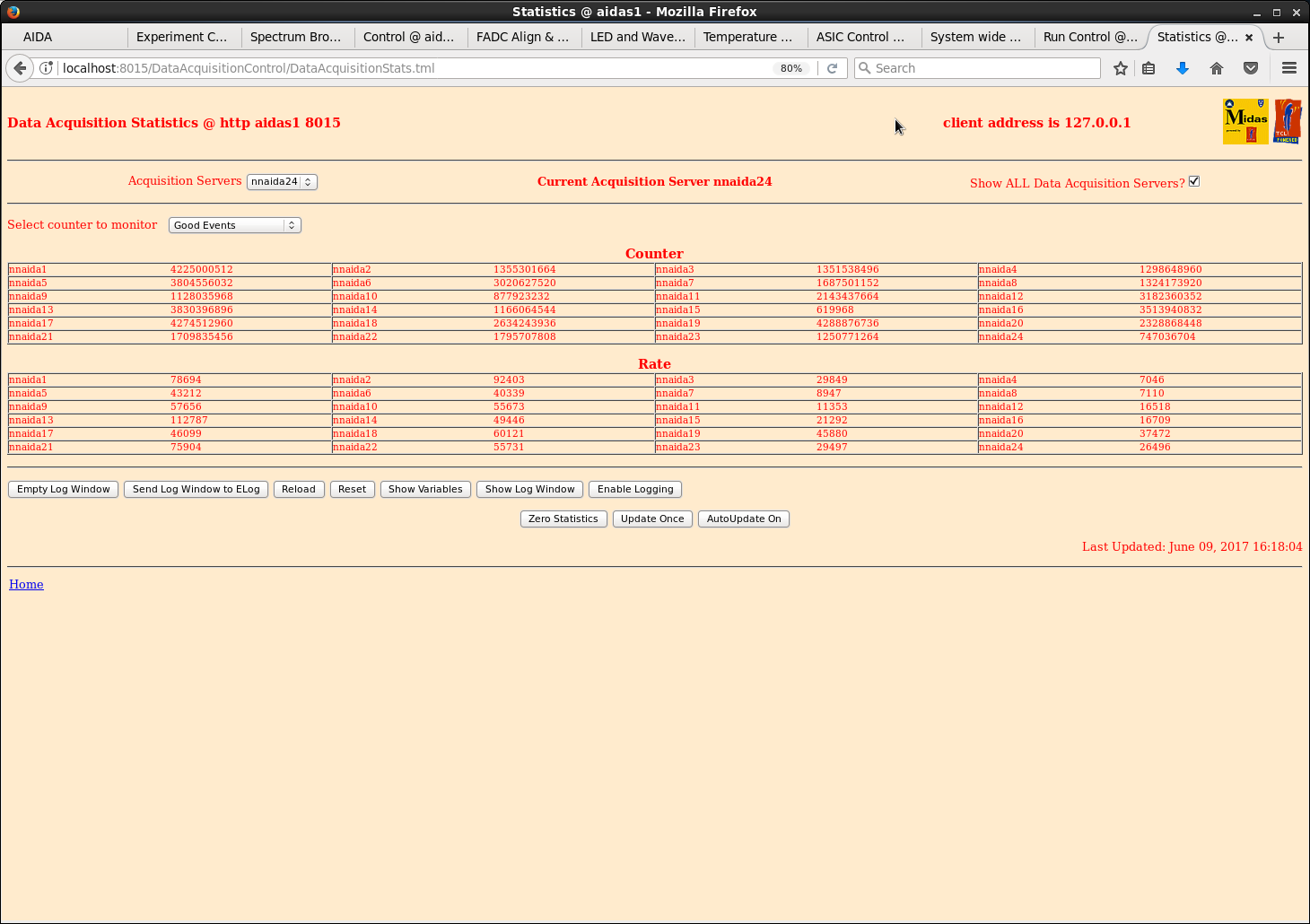

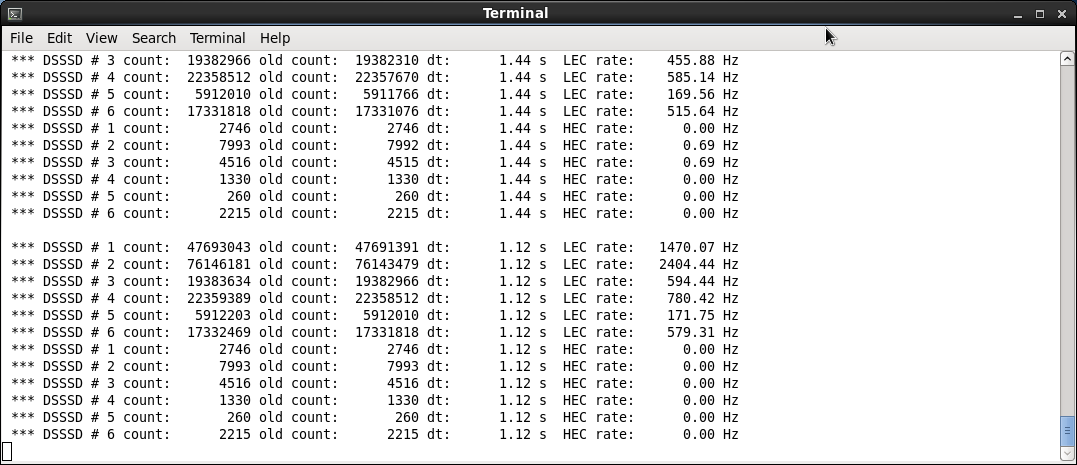

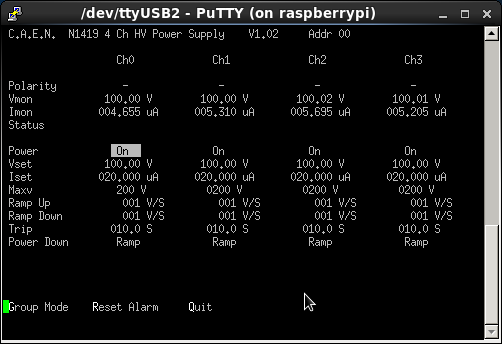

16:20&nbsp;&nbsp; system wide checks--OK

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; see attachments 27-32

&nbsp;

17:06&nbsp;&nbsp; BRIKEN and BigRIPS stop their DAQs

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_723

17:08 &nbsp; &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; BigRIPS starts run 3100

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; &nbsp;&nbsp; BRIKEN starts run 94

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; AIDA on file R7_724

Rich Text Editor, Text

Editor toolbars

Press ALT 0 for help

◢Elements path

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

Imp_profile_9June_8am.png Original size: 791x573

Attachment 2:

countrate_09June_8am.png Original size: 1077x465

Attachment 3:

leakage9June_8am.png Original size: 1920x1080

Attachment 4:

DAQstatistics_9June_8am.png Original size: 1460x1030

Attachment 5:

leakage9june10am.png Original size: 1920x1080

Attachment 6:

imp_profile_9june10am.png Original size: 791x573

Attachment 7:

countrate_9june10am.png Original size: 1077x465

Attachment 8:

FEEtemperature_9june10am.png Original size: 1460x1030

Attachment 9:

1.png Original size: 1460x1030

Attachment 10:

2.png Original size: 1460x1030

Attachment 11:

3.png Original size: 1460x1030

Attachment 12:

4.png Original size: 1460x1030

Attachment 13:

5.png Original size: 1460x1030

Attachment 14:

6.png Original size: 1460x1030

Attachment 15:

7.png Original size: 1460x1030

Attachment 16:

8.png Original size: 1460x1030

Attachment 17:

9.png Original size: 1460x1030

Attachment 18:

10.png Original size: 1460x1030

Attachment 19:

R7_630.txt

 *** TDR format 3.3.0 analyser - TD - June 2017
 ***     MBS information: block:  1884 ptr:     7 data: 0x8682000C module:  6 information type:  8 information field: 0x0002000C ts: 0x0F85A753AE84 OLD ts: 0x0F85A753AE84 MBS 0x:000C00001306 OLD MBS 0x:000CBF2C9BB3
 ***     MBS information: block:  5235 ptr:     7 data: 0x8682000C module:  6 information type:  8 information field: 0x0002000C ts: 0x0F864B4AA3C8 OLD ts: 0x0F864B4AA3C8 MBS 0x:000C0000D057 OLD MBS 0x:000CE83588E3
 ***     MBS information: block:  6207 ptr:     7 data: 0x8682000C module:  6 information type:  8 information field: 0x0002000C ts: 0x0F867A8EE318 OLD ts: 0x0F867A8EE318 MBS 0x:000C0000E02B OLD MBS 0x:000CF3F89B3F
 ***     MBS information: block: 31902 ptr:     7 data: 0x8682000E module:  6 information type:  8 information field: 0x0002000E ts: 0x0F8B777BDE48 OLD ts: 0x0F8B777BDE48 MBS 0x:000E00001EF7 OLD MBS 0x:000E333E388D
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  257610096 (  968538.6 Hz)
        Other data format:    3477904 (   13075.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         91 (       0.3 Hz)
                               RESUME:         91 (       0.3 Hz)
                              SYNC100:    2433935 (    9150.9 Hz)
                           FEE64 disc:    1003916 (    3774.4 Hz)
                             MBS info:      39871 (     149.9 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:      32314 (     121.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      265.978 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.067                0.000
  2                0.199                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.028                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.013                0.000
 10                0.125                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                1.038                1.080
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.203                0.000
 18                0.052                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.477                0.000
 22                0.046                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   17678232     167494          0          0          3          3     101419      66069          0          0       3191
  2   19646186     167878          0          0          8          8     101374      66488          0          0       2595
  3    7737932     112501          0          0          0          0     101451      11050          0          0        180
  4    1692054     111223          0          0          0          0     101446       9777          0          0        211
  5   11113696     148385          0          0          5          5     101441      46934          0          0        453
  6   10322349     191582          0          0          0          0     101452      50259      39871          0        474
  7    2201158     112102          0          0          0          0     101445      10657          0          0        401
  8    1723355     113617          0          0          0          0     101446      12171          0          0        582
  9   12844425     191045          0          0          2          2     101439      89602          0          0       1200
 10   12733576     155564          0          0         10         10     101404      54140          0          0        287
 11    2940674     112329          0          0          0          0     101446      10883          0          0        202
 12    4251873     113452          0          0          0          0     101454      11998          0          0        521
 13   31379371     141056          0          0         17         17     101056      39966          0          0        486
 14   12638605     158584          0          0          0          0     101451      57133          0          0        961
 15    5609595     121127          0          0          0          0     101455      19672          0          0       1384
 16    4735040     112816          0          0          0          0     101457      11359          0          0        396
 17   11781150     160058          0          0         26         26     101373      58633          0          0        198
 18   15509582     162694          0          0          3          3     101429      61259          0          0        253
 19   11911400     128233          0          0          0          0     101451      26782          0          0       1361
 20    9558420     136456          0          0          0          0     101447      35009          0          0       3598
 21   20800306     166284          0          0         13         13     101264      64994          0          0       2963
 22   14317928     212192          0          0          4          4     101433     110751          0          0       4322
 23    7598137     146810          0          0          0          0     101451      45359          0          0       3277
 24    6885052     134422          0          0          0          0     101451      32971          0          0       2818
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          4
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   26.527s ( 1206.302 blocks/s,  75.394 Mb/s)

Attachment 20:

11.png Original size: 1920x1030
