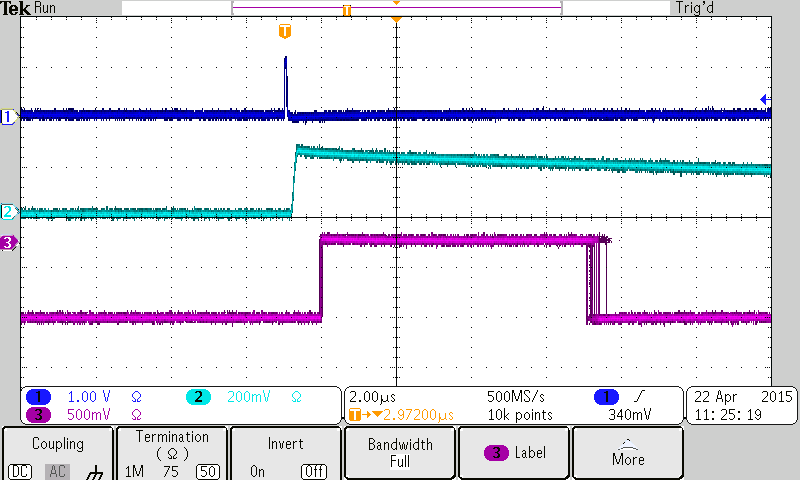

Illustration of the trigger timing of the AIDA FEE64 fast discriminator OR output via the MACB front panel Trigger outputs. Channel 1: BNC PB-4 Pulser Trigger Output Channel 2: BNC PB-4 Pulser Analogue Output Channel 3: MACB Trigger Output MACB Trigger Output: NIM complement width ~ 7us delay ~ 750ns (with respect to BNC PB_4 Pulser Analogue Output) Example illustrates MAC Trigger Output from nnaida5 with standard ASIC settings and LEC/MEC fast discriminator 0x40
