Entry time:

Sat Jun 17 05:47:58 2017

Author*:

Subject*:

13.47 DAQ continues
      AIDA file RIBF148/R10_39

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 100ns tau_d 50us
      - polarity
      frequency 25Hz range 2.6Hz
      delay MIN, tail pulse, INT ref

ASIC settings 2017Mar27-16.12.39
      *except*
      slow comparator 0x64
      LEC/MEC fast comparator 0x14

13.49 Detector biases & leakage currents OK - see attachments 1 & 2
      FEE64 Temperatures OK - see attachment 3
      good events statistics stable & OK - see attachment 4
      No warnings/errors reported by merger since start of RIBF148/R10  - see attachment 5
      No changes to PLL and DCM clock Lock monitor - see attachment 6
      *all* system wide checks OK (zero fails)

14.00 analysis file RIBF148/R8_39 - zero deadtime, zero MBS and zero ts timewarps - see attachment 7

14.03 online analysis

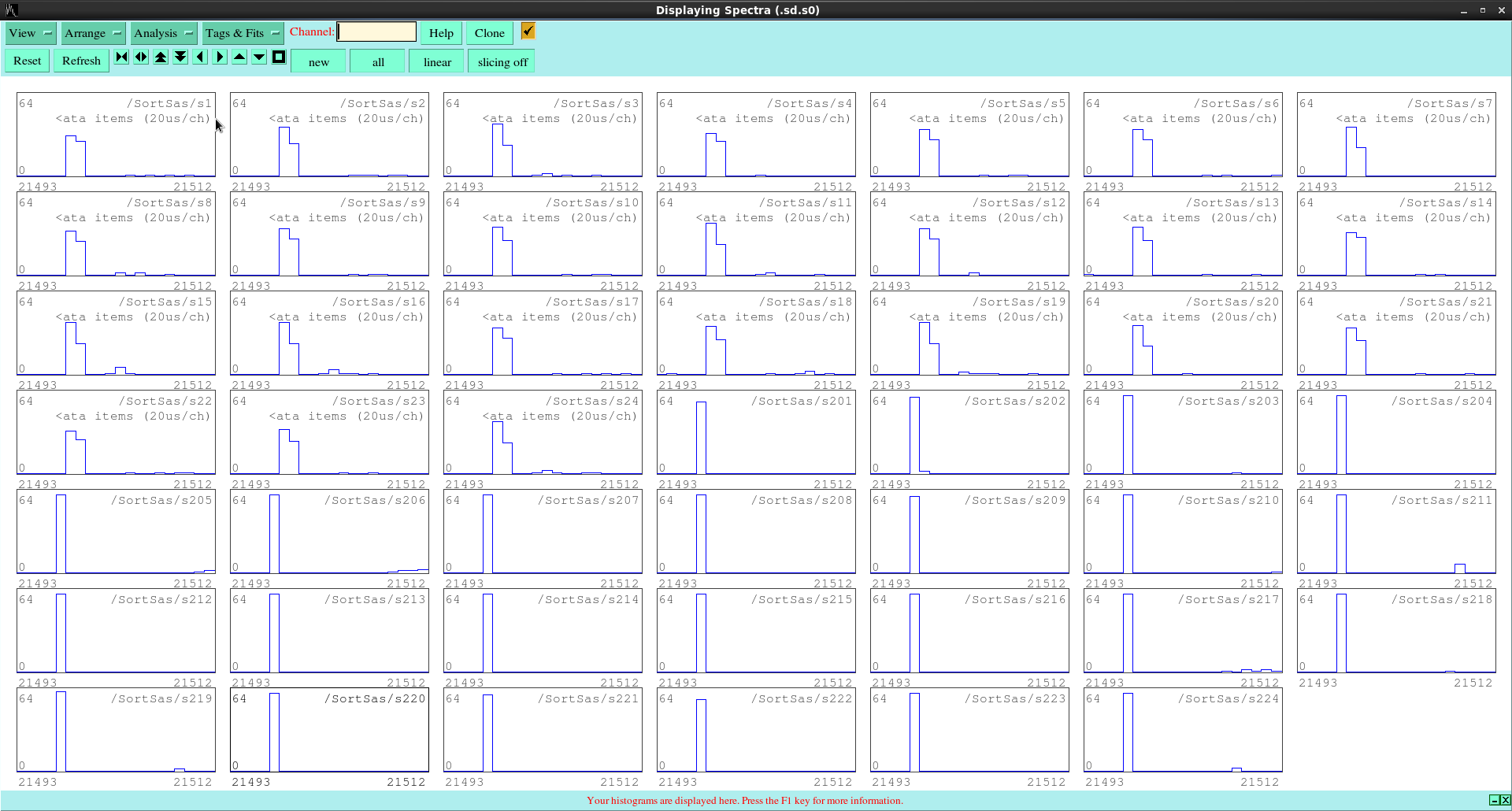

      ADC & disc data synchronised - see attachment 8
      per DSSSD m_p versus m_n (LEC) - see attachments 9
      per DSSSD x versus y (LEC) - see attachment 10
      per DSSSD E_p versus E_n (LEC) - 512x512 spectra - nominal 20keV per channel - see attachment 11
      per DSSSD side ADC ts - event ts - see attachment 12

14.17 Layout per FEE64 Rate, HitRate and 1.8.* spectra - see attachments 13-18
      nnaida11 & nnaida13 1.*.W spectra - see attachments 19-20

3kHz modulated HF noise positive input FEE64s
      BRIKEN and Clovers on

14.32 Ambient temperature +24.3 deg C, d.p. +8.7 deg C, RH 37.5%
      Julabo FL11006 set point +20.0 deg C actual +20.0 deg C - water level c. 75%

14.34 DAQ stop
      AIDA file RIBF148/R10_40

14.45 nnaida13 1*W spectra
      Ibias LF feedback  attachment
      0x8 (default)      21
      0x0                22 & 23
      0xf                24

0x0 preamp o/p -> V rail
      0x8 - 0xf no obvious difference

14.52 slow comparator 0x64 -> 0xa
      Ibias LF feedback  attachment
      0x8 (default)      25 27
      0xf                26 28

0xf appears to reduce (but not eliminate) frequency and amplitude of saw tooth transients
      no obvious effect on good event rate

for nnaida13 combination of Ibias LF feedback 0x8 -> 0xf and slow comparator 0xa -> 0xf
      largely eliminates saw tooth except for noisiest strips e.g. 1.1.W 'edge' strip
      good events 280k -> 61k

17.12 DAQ start
      AIDA file RIBF148/R11

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 100ns tau_d 50us
      - polarity
      frequency 25Hz range 2.6Hz
      delay MIN, tail pulse, INT ref

ASIC settings 2017Mar27-16.12.39
      *except*
      slow comparator 0xf
      LEC/MEC fast comparator 0x14
      Ibias LF feedback 0x8 -> 0xf

Layout Rate, HitRate and 1.8.* spectra -see attachments 29-35
      Merged data rate c. 500k data items/s, 4Mb/s

17.50 DAQ stop
      AIDA file RIBF148/R11_4

17.54 DAQ start
      AIDA file RIBF148/R12

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 100ns tau_d 50us
      - polarity
      frequency 25Hz range 2.6Hz
      delay MIN, tail pulse, INT ref

ASIC settings 2017Mar27-16.12.39
      *except*
      slow comparator 0xf -> 0xa
      LEC/MEC fast comparator 0x14
      Ibias LF feedback 0xf

good events statistics - see attachment 36

18.14 DAQ stop
      AIDA file RIBF148/R12_6

DSSSD bias cycled 100->0->100V

18.21 DAQ start
      AIDA file RIBF148/R13

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 100ns tau_d 50us
      - polarity
      frequency 25Hz range 2.6Hz
      delay MIN, tail pulse, INT ref

ASIC settings 2017Mar27-16.12.39
      *except*
      slow comparator 0xa
      LEC/MEC fast comparator 0x14
      Ibias LF feedback 0xf -> 0x8

good events statistics - see attachment 37

18.40 DAQ stop
      AIDA file RIBF148/R13_5

18.42 Detector biases & leakage currents OK - see attachments 38 & 39

18.59 analysis file RIBF148/R13_5 -c. 1% deadtime, zero MBS and zero ts timewarps - see attachment 40

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1460x1030

Attachment 4:

4.png Original size: 1460x1030

Attachment 5:

5.png Original size: 1920x1080

Attachment 6:

6.png Original size: 1460x1030

Attachment 7:

R10_39.txt

 *** TDR format 3.3.0 analyser - TD - June 2017
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  204236052 (   53541.2 Hz)
        Other data format:   56851948 (   14903.9 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:   34919118 (    9154.2 Hz)
                           FEE64 disc:   21932830 (    5749.8 Hz)
                             MBS info:          0 (       0.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     263054 (      69.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     3814.560 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   21537679    1600744          0          0          0          0    1454965     145779          0          0       9222
  2   13756151    2774333          0          0          0          0    1454946    1319387          0          0          0
  3     677368    1567651          0          0          0          0    1454982     112669          0          0       3924
  4     637641    1546895          0          0          0          0    1454964      91931          0          0      42146
  5   12234700    3023770          0          0          0          0    1454965    1568805          0          0          0
  6    8060028    7088178          0          0          0          0    1454968    5633210          0          0       5978
  7     629746    1542812          0          0          0          0    1454963      87849          0          0      56423
  8     662207    1590499          0          0          0          0    1454939     135560          0          0      24175
  9   19909085    1579809          0          0          0          0    1454979     124830          0          0          0
 10   18392953    1632309          0          0          0          0    1454959     177350          0          0          0
 11     664541    1613272          0          0          0          0    1454960     158312          0          0       4186
 12     644804    1545511          0          0          0          0    1454960      90551          0          0         72
 13   21397013    1613337          0          0          0          0    1454978     158359          0          0          1
 14   20703921    1574318          0          0          0          0    1454961     119357          0          0      18433
 15     697738    1549734          0          0          0          0    1454962      94772          0          0        456
 16     698908    1551245          0          0          0          0    1454967      96278          0          0         10
 17    7422601    6460840          0          0          0          0    1454982    5005858          0          0       3314
 18   10270221    6279605          0          0          0          0    1454975    4824630          0          0          0
 19     671091    1681290          0          0          0          0    1454975     226315          0          0        107
 20     631237    1545288          0          0          0          0    1454960      90328          0          0      78567
 21   22718076    2767226          0          0          0          0    1454947    1312279          0          0       3640
 22   19886447    1586931          0          0          0          0    1454952     131979          0          0       1457
 23     640596    1546103          0          0          0          0    1454961      91142          0          0      10164
 24     691300    1590248          0          0          0          0    1454948     135300          0          0        779
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   36.410s (  878.876 blocks/s,  54.930 Mb/s)

Attachment 8:

8.png Original size: 1920x1030

Attachment 9:

9.png Original size: 1920x1030

Attachment 10:

10.png Original size: 1920x1030

Attachment 11:

12.png Original size: 1920x1030

Attachment 12:

13.png Original size: 1920x1030

Attachment 13:

14.png Original size: 1460x1030

Attachment 14:

15.png Original size: 1460x1030

Attachment 15:

16.png Original size: 1460x1030

Attachment 16:

17.png Original size: 1460x1030

Attachment 17:

18.png Original size: 1460x1030

Attachment 18:

19.png Original size: 1460x1030

Attachment 19:

30.png Original size: 1460x1030

Attachment 20:

31.png Original size: 1460x1030

Attachment 21:

40.png Original size: 1460x1030

Attachment 22:

41.png Original size: 1460x1030

Attachment 23:

42.png Original size: 1460x1030

Attachment 24:

43.png Original size: 1460x1030

Attachment 25:

50.png Original size: 1460x1030

Attachment 26:

51.png Original size: 1460x1030

Attachment 27:

52.png Original size: 1460x1030

Attachment 28:

53.png Original size: 1460x1030

Attachment 29:

60.png Original size: 1460x1030

Attachment 30:

61.png Original size: 1460x1030

Attachment 31:

62.png Original size: 1460x1030

Attachment 32:

63.png Original size: 1460x1030

Attachment 33:

64.png Original size: 1460x1030

Attachment 34:

65.png Original size: 1460x1030

Attachment 35:

66.png Original size: 1460x1030

Attachment 36:

67.png Original size: 1460x1030

Attachment 37:

68.png Original size: 1460x1030

Attachment 38:

70.png Original size: 502x344

Attachment 39:

71.png Original size: 502x344

Attachment 40:

R13_5.txt

 *** TDR format 3.3.0 analyser - TD - June 2017
 *** ERROR: READ I/O error:       5002
                   blocks:      17450
          ADC data format:  141190111 ( 1396720.6 Hz)
        Other data format:    1184405 (   11716.7 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         47 (       0.5 Hz)
                               RESUME:         47 (       0.5 Hz)
                              SYNC100:     924582 (    9146.4 Hz)
                           FEE64 disc:     229403 (    2269.4 Hz)
                             MBS info:      30326 (     300.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       6642 (      65.7 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      101.087 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.083                0.000
  2                0.112                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.059                0.000
  6                0.007                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.015                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.538                0.564
 14                0.067                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.048                0.000
 19                0.084                0.045
 20                0.122                0.045
 21                0.908                0.920
 22                0.035                0.000
 23                0.000                0.000
 24                0.006                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1    6973314      41709          0          0          4          4      38527       3174          0          0        201
  2    8615702      43145          0          0          3          3      38516       4623          0          0          0
  3    2971890      42069          0          0          0          0      38558       3511          0          0         99
  4     996046      41462          0          0          0          0      38555       2907          0          0       1079
  5    4264699      48844          0          0         12         12      38537      10283          0          0          0
  6    4055860     155347          0          0          2          2      38554      86463      30326          0        156
  7     889140      40919          0          0          0          0      38559       2360          0          0       1491
  8     685849      42077          0          0          0          0      38557       3520          0          0        641
  9    5567324      42393          0          0          0          0      38557       3836          0          0          0
 10    4912560      43304          0          0          1          1      38552       4750          0          0          0
 11    1456487      42245          0          0          0          0      38558       3687          0          0         98
 12    2638160      41214          0          0          0          0      38558       2656          0          0          0
 13   25382680      42858          0          0          9          9      38353       4487          0          0          0
 14    9061973      41654          0          0          2          2      38531       3119          0          0        353
 15    2089005      44847          0          0          0          0      38556       6291          0          0         18
 16    1882555      43540          0          0          0          0      38556       4984          0          0          0
 17    2796171      41077          0          0          0          0      38557       2520          0          0         87
 18    5574762      87515          0          0          3          3      38540      48969          0          0          0
 19    9289574      47721          0          0          2          2      38525       9192          0          0          7
 20    9143906      42227          0          0          3          3      38513       3708          0          0       2000
 21   14708397      43061          0          0          4          4      38210       4843          0          0         94
 22    9397609      41540          0          0          1          1      38544       2994          0          0         31
 23    3730354      41180          0          0          0          0      38552       2628          0          0        267
 24    4106094      42457          0          0          1          1      38557       3898          0          0         20
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   13.219s ( 1320.095 blocks/s,  82.506 Mb/s)

Attachment 41:

Drop attachments here...

ELOG V3.1.4-unknown
