Entry time:

Sun Oct 22 02:10:03 2017

Author*:

Subject*:

10:10 DAQ found crashed
      Stopped writing to file at 05:31
      System wide checks ok

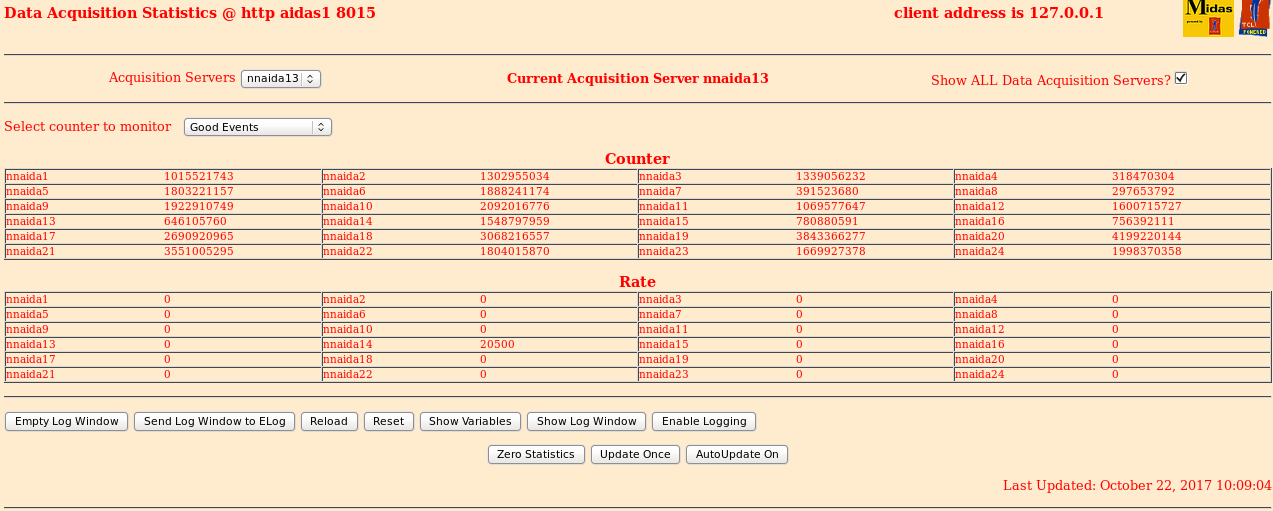

      Statistics - Attachment 1
      FEE temperatures - Attachment 2

Error message when stopping the DAQ - Attachment 3

Bias and leakage currents ok - Attachment 4

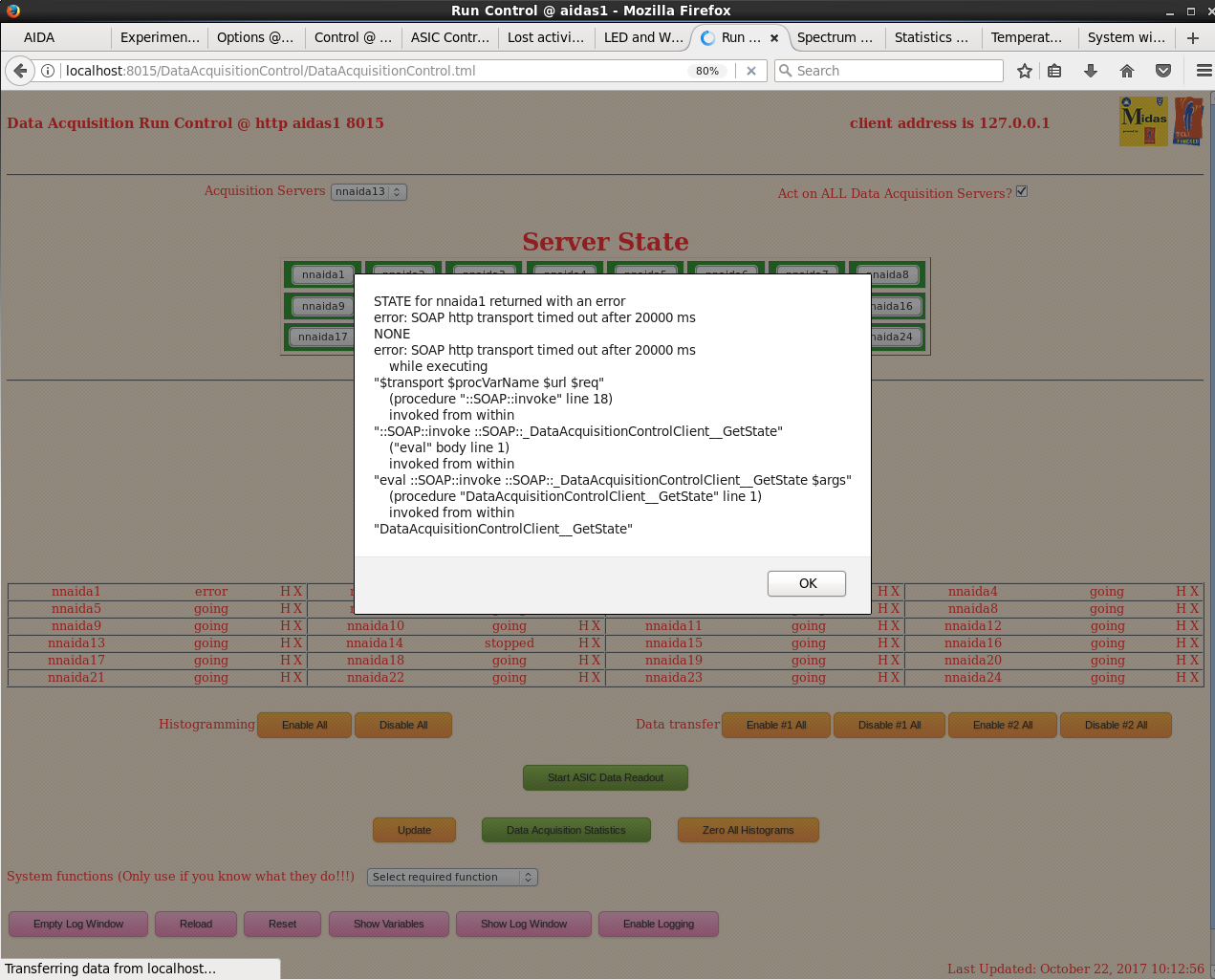

10:18 Error when trying to reset and setup DAQ - Attachment 5

Followed by:
STATE for nnaida1 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida1:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida1:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida2 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida2:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida2:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida3 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida3:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida3:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida4 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida4:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida4:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida5 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida5:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida5:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida6 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida6:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida6:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida7 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida7:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida7:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida8 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida8:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000
-query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida8:8015/DataAcquisitionControlServer -headers {} -type text/xml
-timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout
$timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControl

10:26 Unable to recover from crash by restarting the merger
      FEEs turned off. Will leave off whilst changing the adapter boards

11.28 Power up all FEE64s - 20s between each relay

11.46 Pi Monitor Browser reports all FEE64s 'Finished OK', all FEE64s '0 panics'

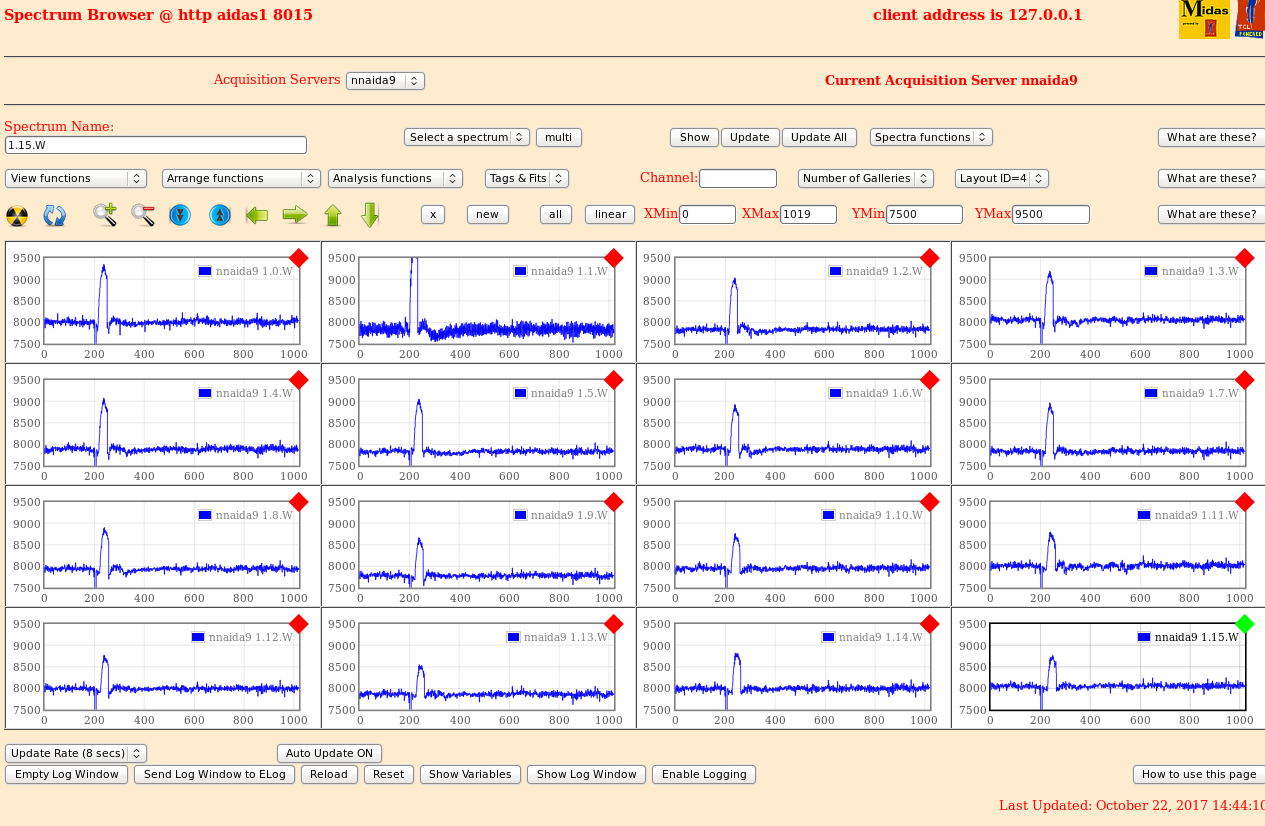

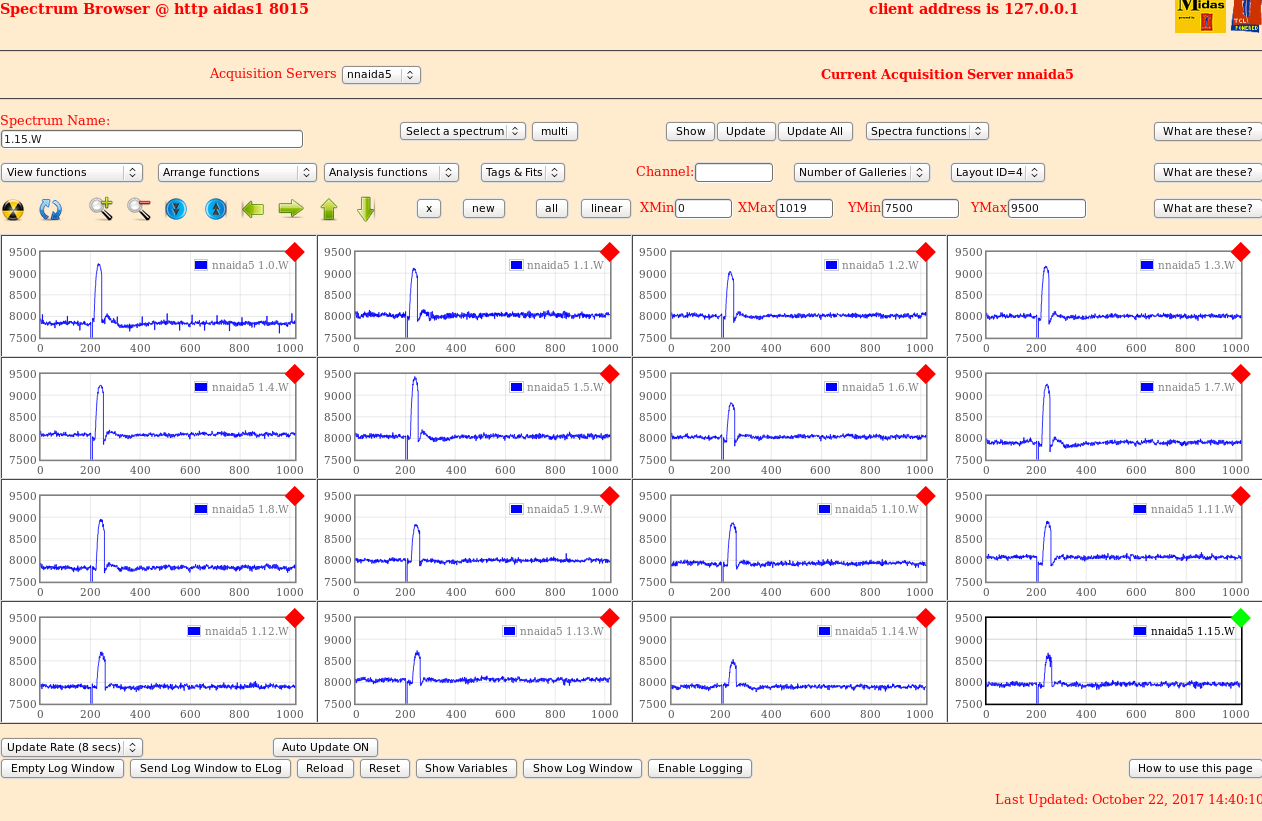

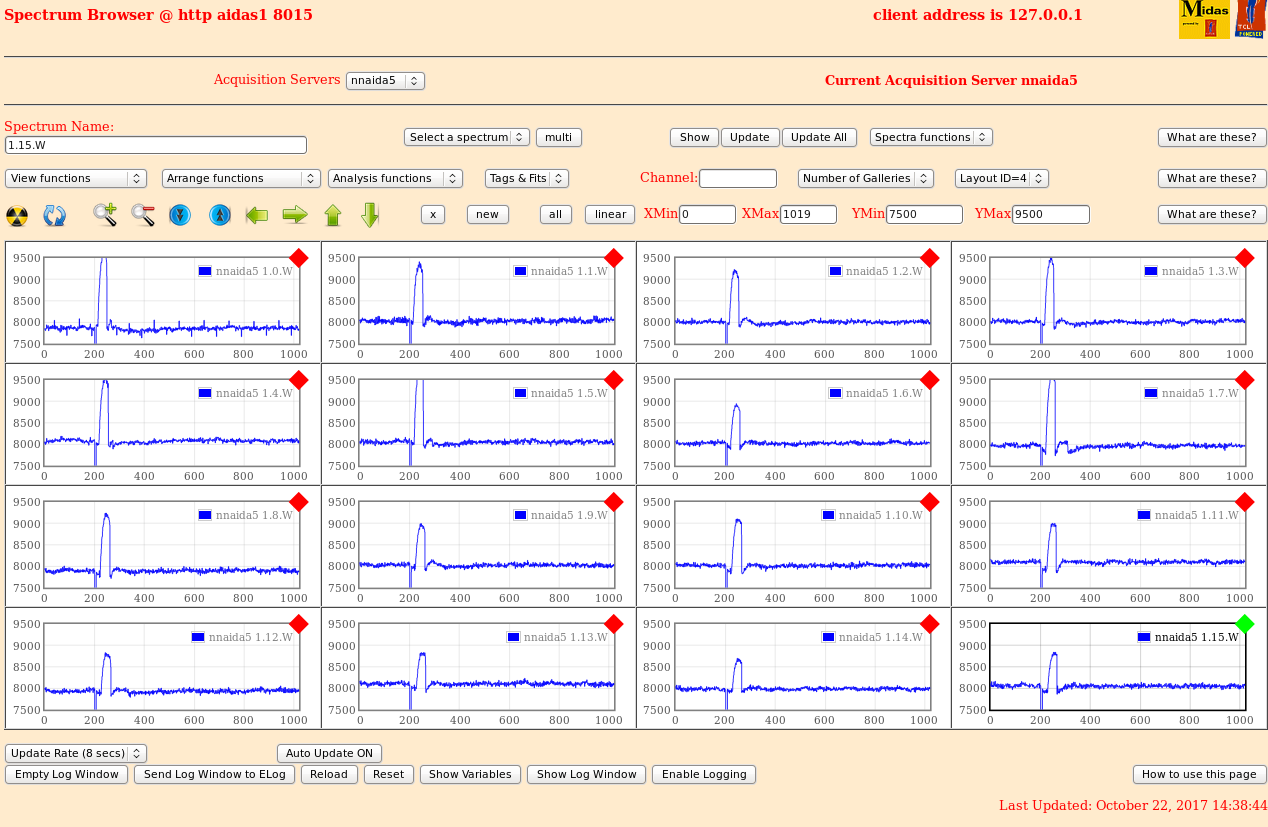

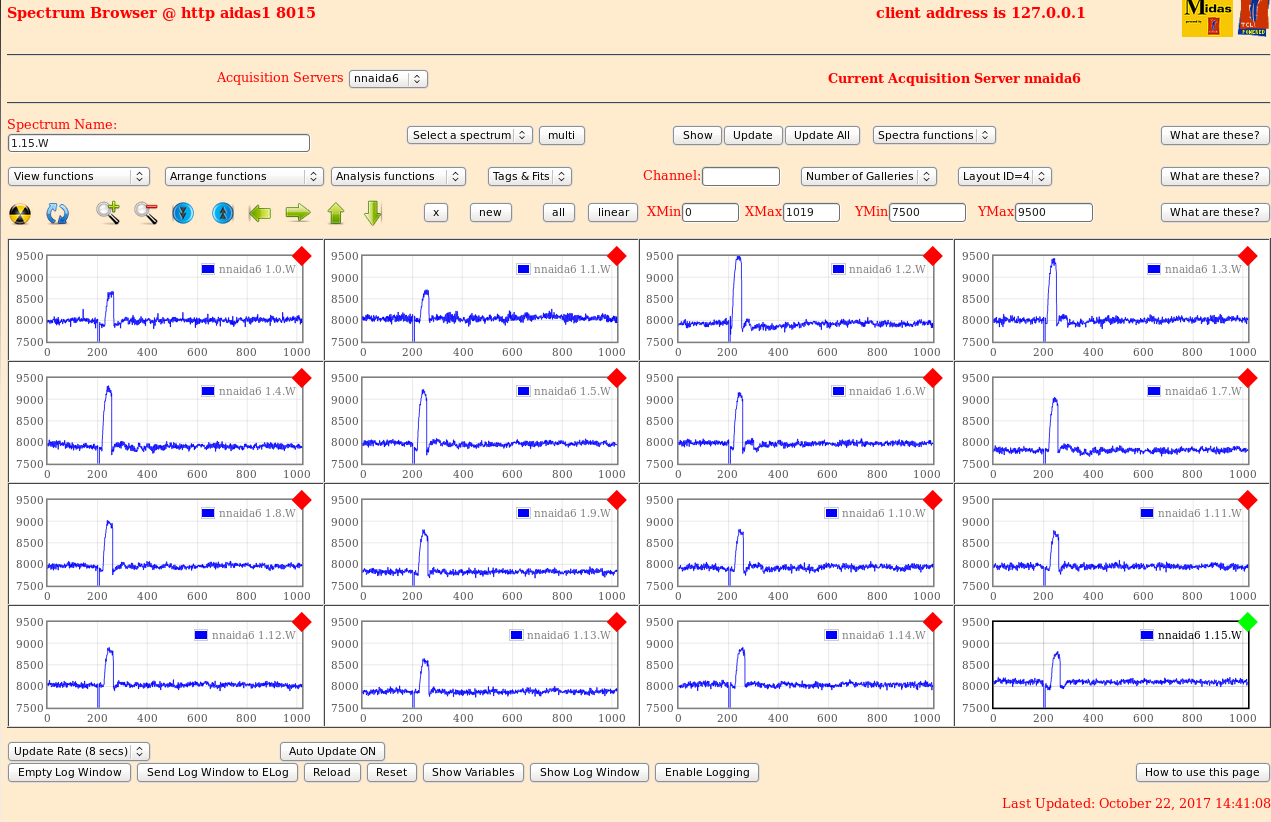

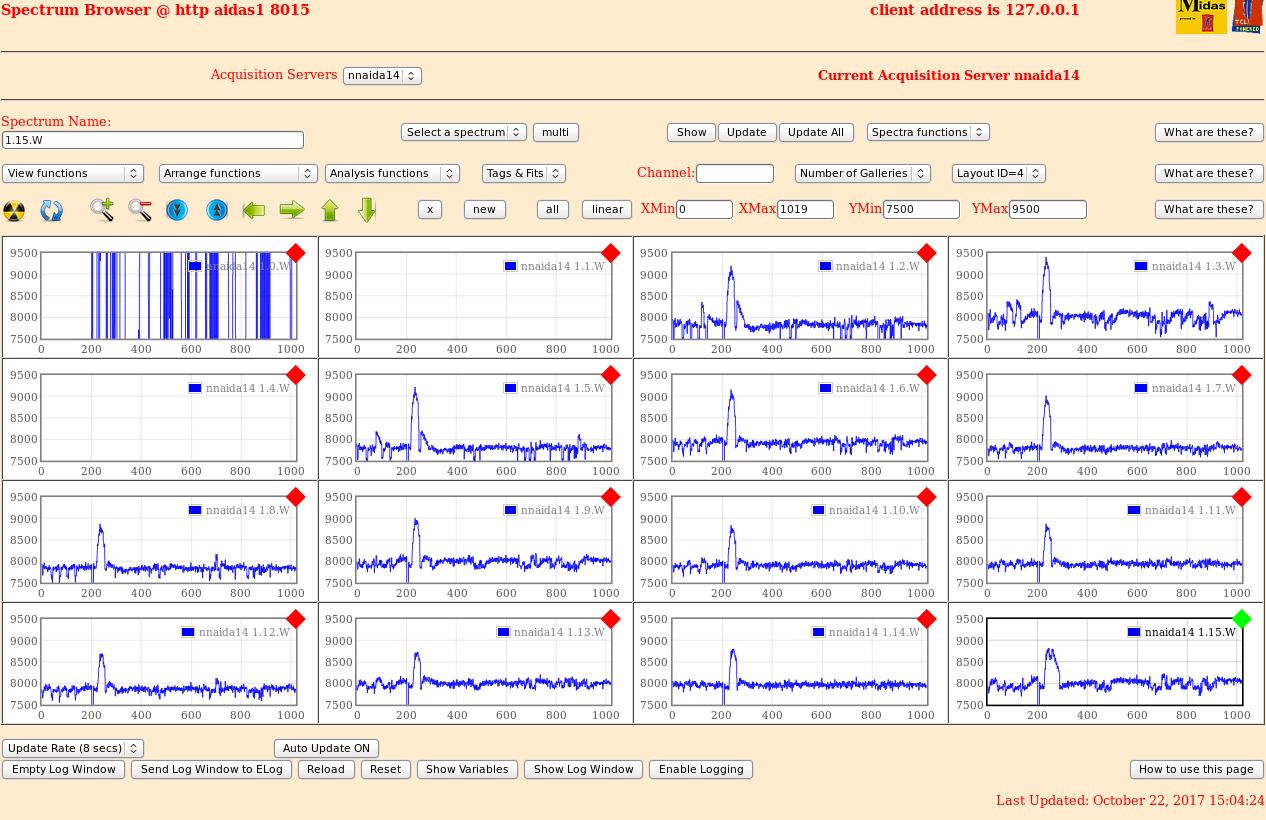

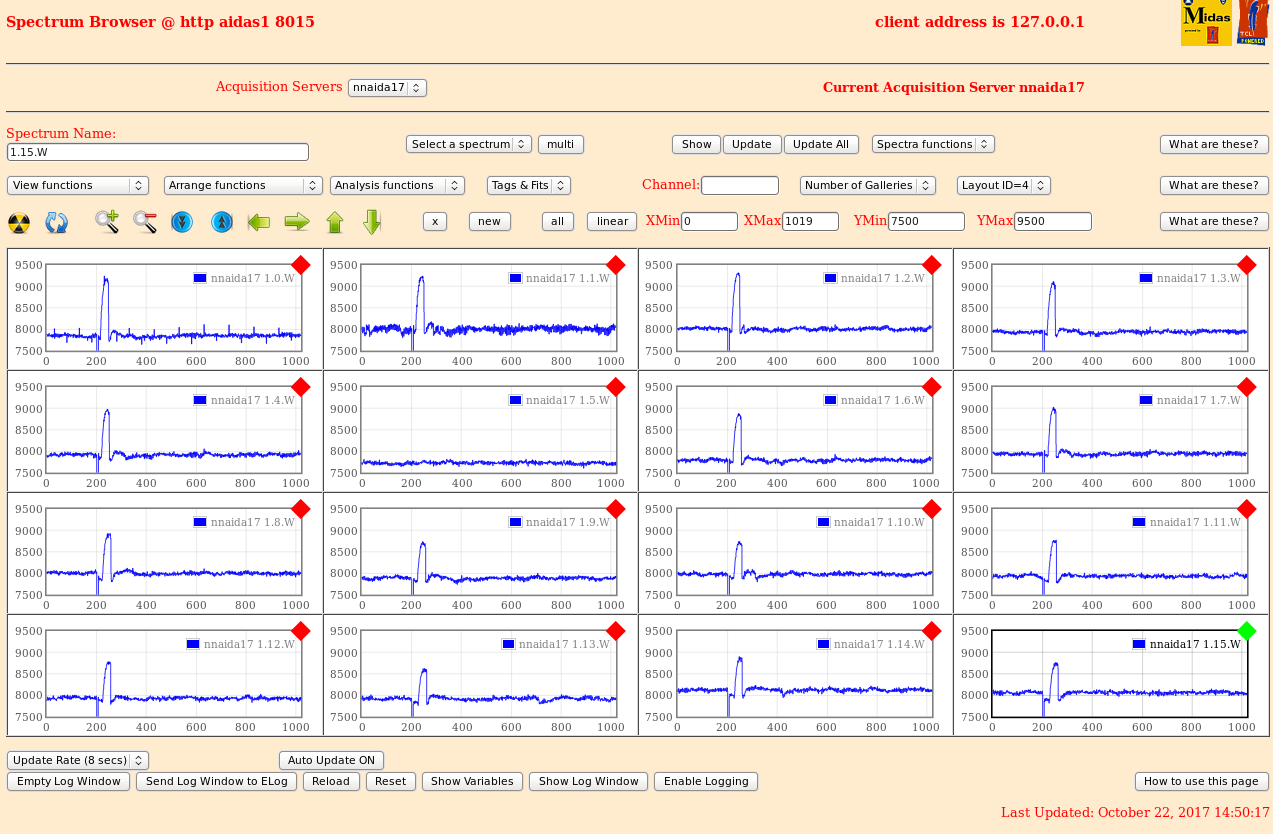

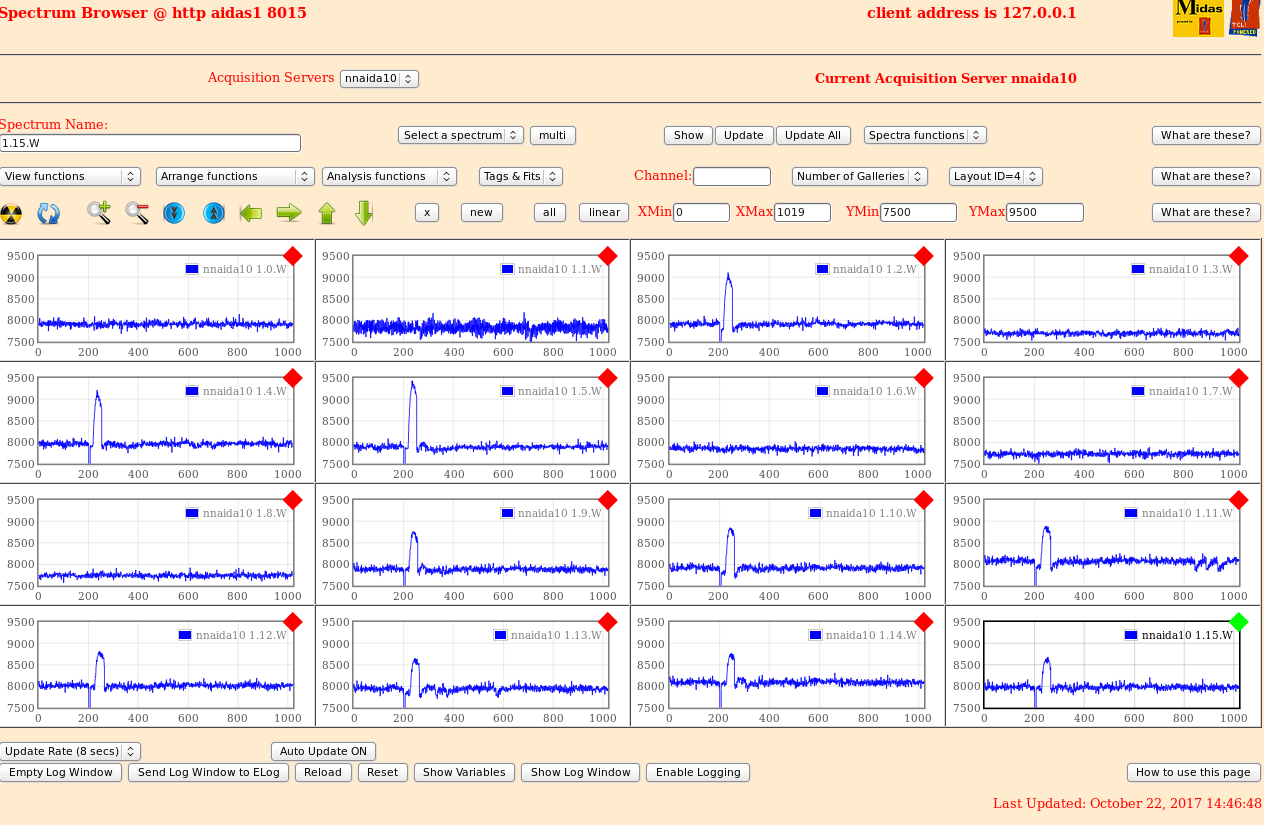

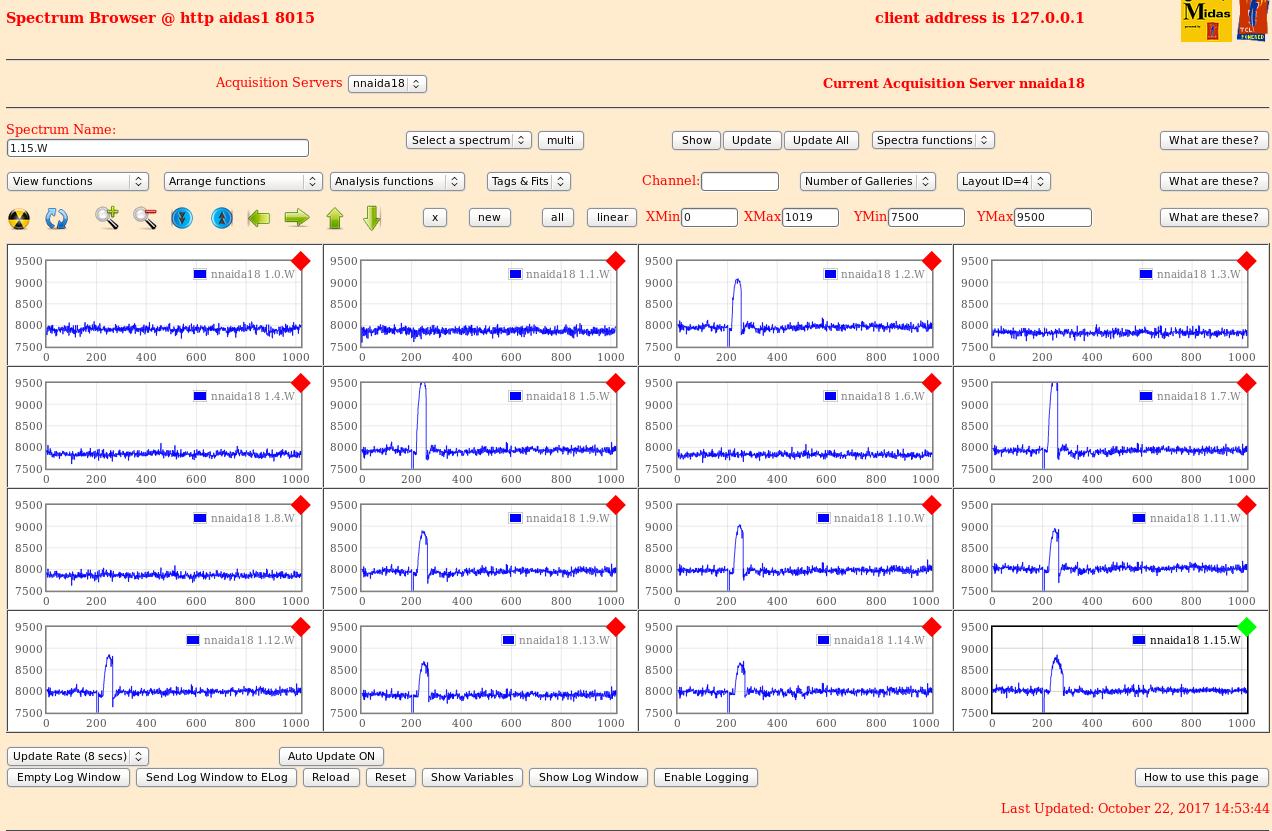

15:12 Waveforms of FEEs 5,6,9,10,17,18,13,14 showing the change in Ibias LF feedback value
      First attachment will be waveform with LF 0x8 and second will be 0xF
      FEE13 has only one as was on the rails at anything above 0x8 - Attachments 6-20

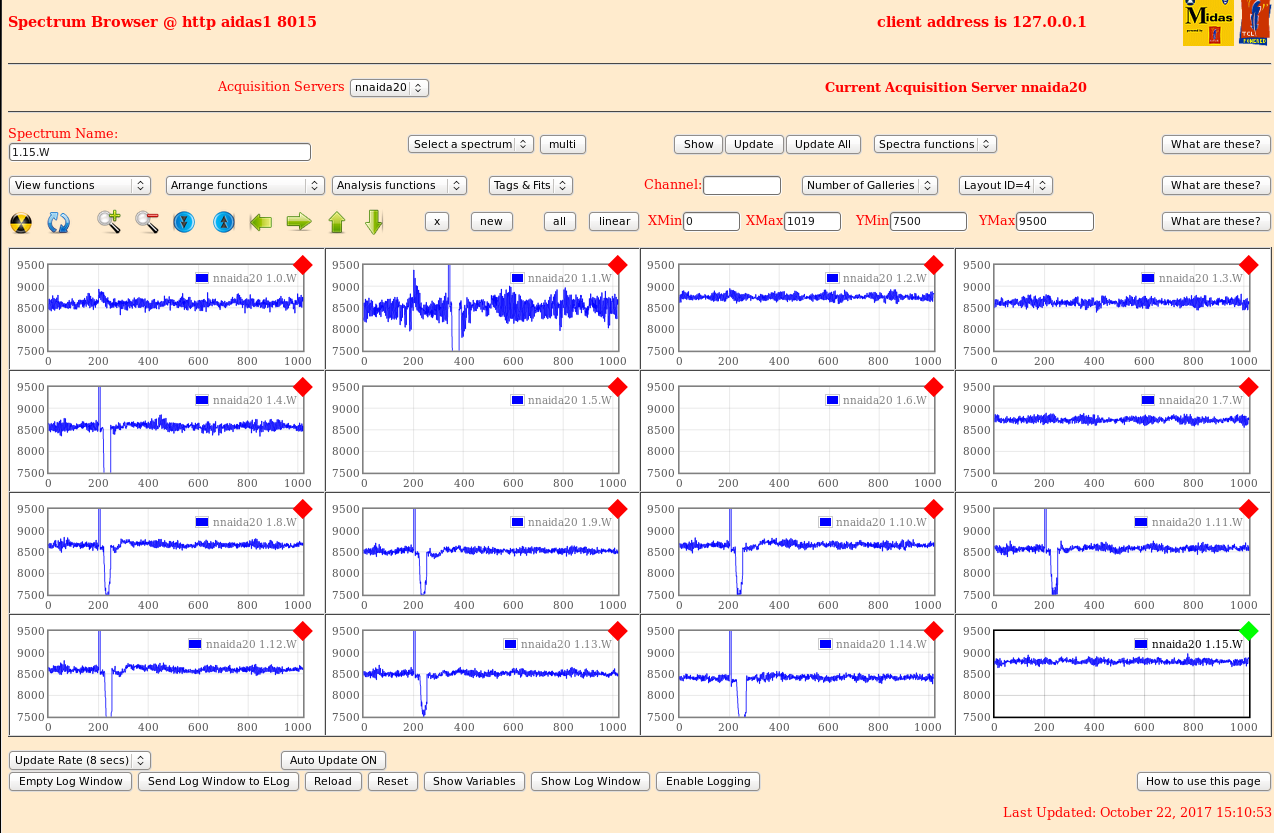

Waveforms for FEEs 19 and 20 for comparisons - Attachments 21 & 22

Attachment      FEE       Change
           6           5        default
           7           5        LF 0xf
           8           6        default
           9           6        LF 0xf
           10          9        default
           11          9        LF 0xf
           12          10       default
           13          10       LF 0xf
           14          17       default
           15          17       LF 0xf
           16          18       default
           17          18       LF 0xf
           18          13       default
           19          14       default
           20          14       LF 0xf
           21          19       default
           22          20       default

16:02 New ASIC settings folder 2017Oct22-15.59.25
      Settings changed related to A and C FEEs in which Ibias LF Feedback has been changed to LF0x8 for all
      with the exception of FEE 2 which is set to 0xC and 14 which is set to 0x8
      ASIC 1 of nnaida14 has a SC threshold of 0x20
      All of nnaida 13 has a SC threshold of 0xf

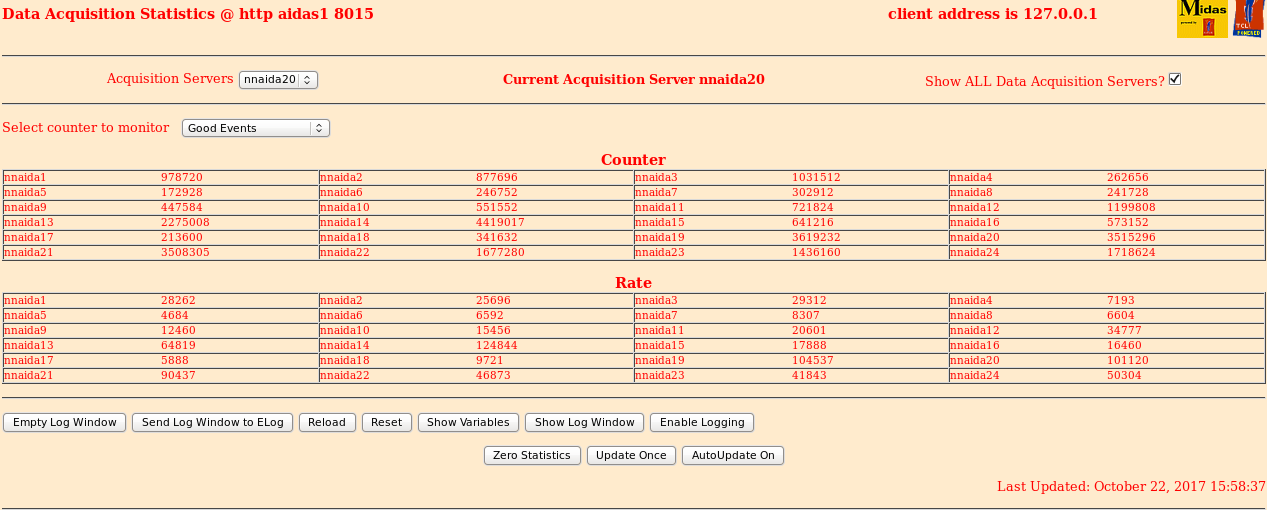

Stats running in these setting - Attachment 23
      System wide checks ok
      FEE temperatures ok - Attachment 24

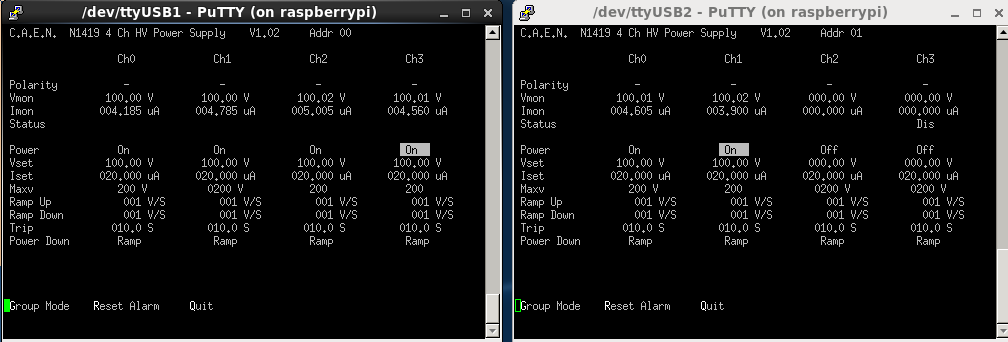

      Leakage and bias ok - Attachment 25

16.16 Start Oct17/R7

Background alpha activity

BNC PB-4 Pulser OFF

ASIC settings per 2017Oct22-15.59.25
