11.33 DAQ running OK - date transfer not enabled

BNC PB-4
      Amplitude 90,000
      x5 attenuator IN
      t_r 100ns tau_d 50us
      - polarity
      frequency range 25Hz
      delay MIN, tail pulse, INT ref

ASIC settings 2017Oct23-14.38.03
      *all* FEE64s slow comparators 0xa *except* nnaida13 0xe, nnaida19-22 0xc

Detector biases & leakage currents OK - see attachments 1 & 2
      FEE64 Temperatures OK - see attachment 3
      DAQ statistics OK - see attachment 4
      *all* system wide checks OK *except* nnaida21 fails ADC calibration
      Julabo FL11006 recirculating chiller set point +20 deg C, actual +20.0 deg C
      Ambient temperature +26.2 deg C, d.p. +6.2 deg C, RH 28.3%

14.40 Detector biases & leakage currents OK - see attachments 5 & 6
      FEE64 Temperatures OK - see attachment 7
      DAQ statistics OK - see attachment 8
      *all* system wide checks OK *except* nnaida21 fails ADC calibration

14.50 DAQ starts
      AIDA data file Oct17/R18

14.53 per FEE64 rates (20us/channel) - see attachment 9
      No indication of c. 400us period noise as indicated by DAQ statistics attachment 8

15.46 DAQ stopped

DAQ start - data tranfser disabled

19.40 Detector biases & leakage currents OK - see attachments 10 & 11
      FEE64 Temperatures OK - see attachment 12

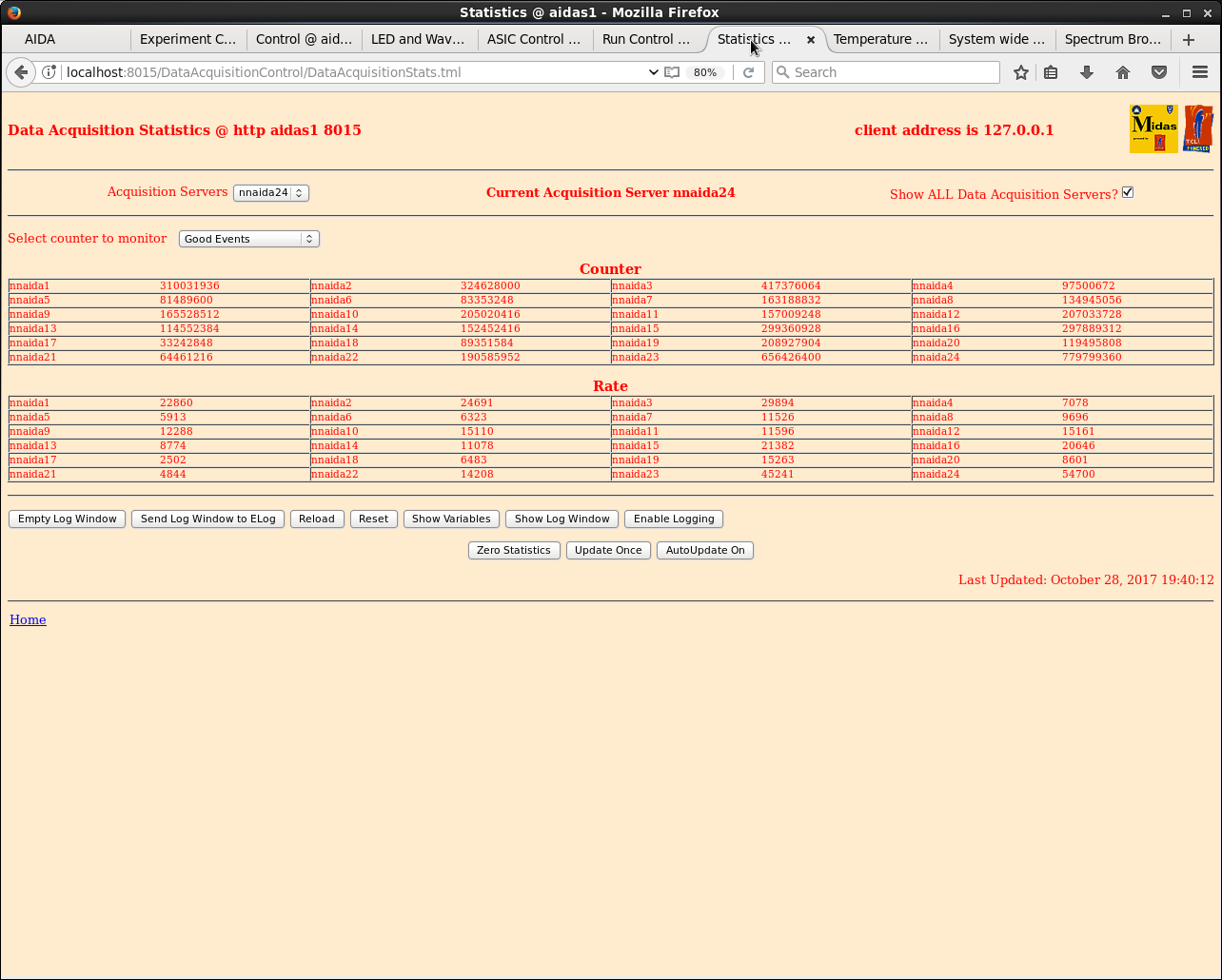

      DAQ statistics OK - see attachment 13
      *all* system wide checks OK *except* nnaida21 fails ADC calibration
