Entry time:

Fri Oct 26 03:28:10 2018

Author*:

Subject*:

October 25th:
In anticipation of losing access in the evening on arrival at RIKEN the following was done:
- Chiller was refilled
- All power cables reconnected after being removed in October for the RIKEN power down
- All NIM bins, fan trays and RPis were turned on
- 50MHz AIDA clock was set up and connected
- Remote connections to AC Mains relay and RPi for CAEN bias was tested
- Chiller was powered up

October 26th:

11:31 Still have access to the F11 area due to a bigRIPS delay.
      Double checked wiring from yesterday and all still seems good
      Chiller is still running with set point at +20 deg C

11:36 FEEs powered up. All 24 mounted

11:57 Bias and leakage currents all ok - attachment 1

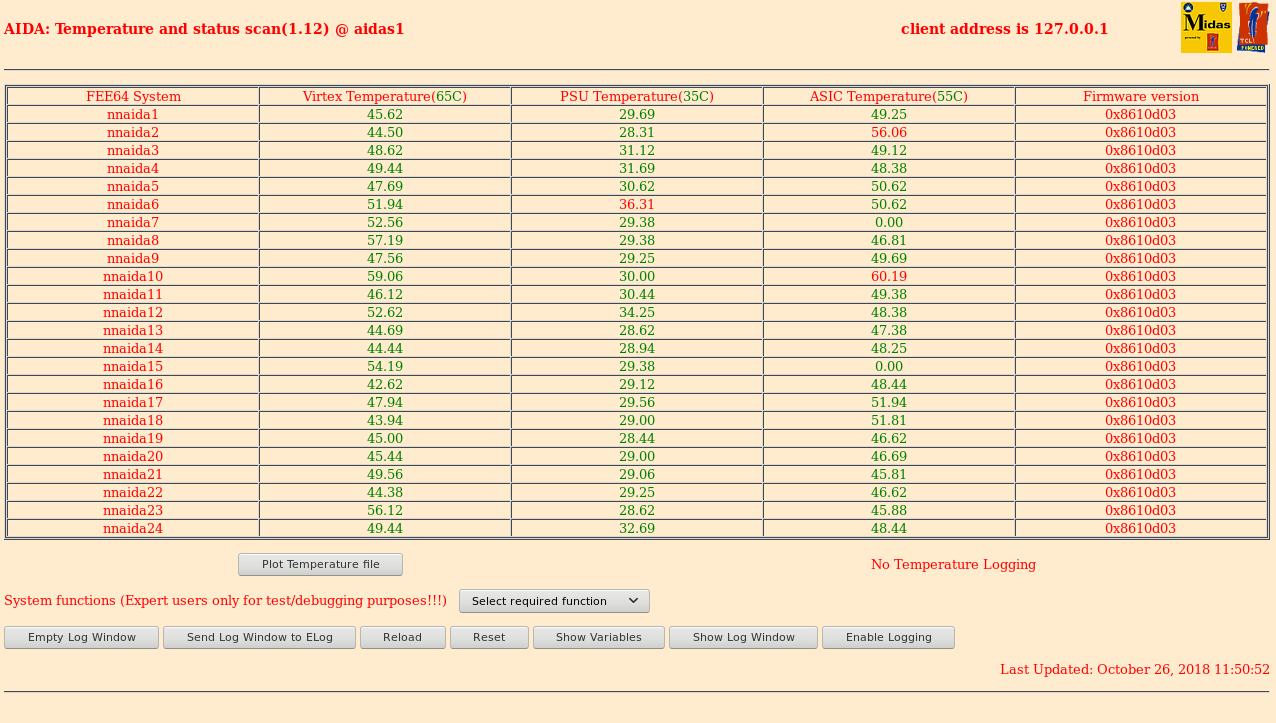

      FEE temperatures all ok - attachment 2
      System wide checks all ok

13:26 Bias and leakage currents ok - attachment 3
      FEE temperatures all ok - attachment 4
      System wide checks all ok

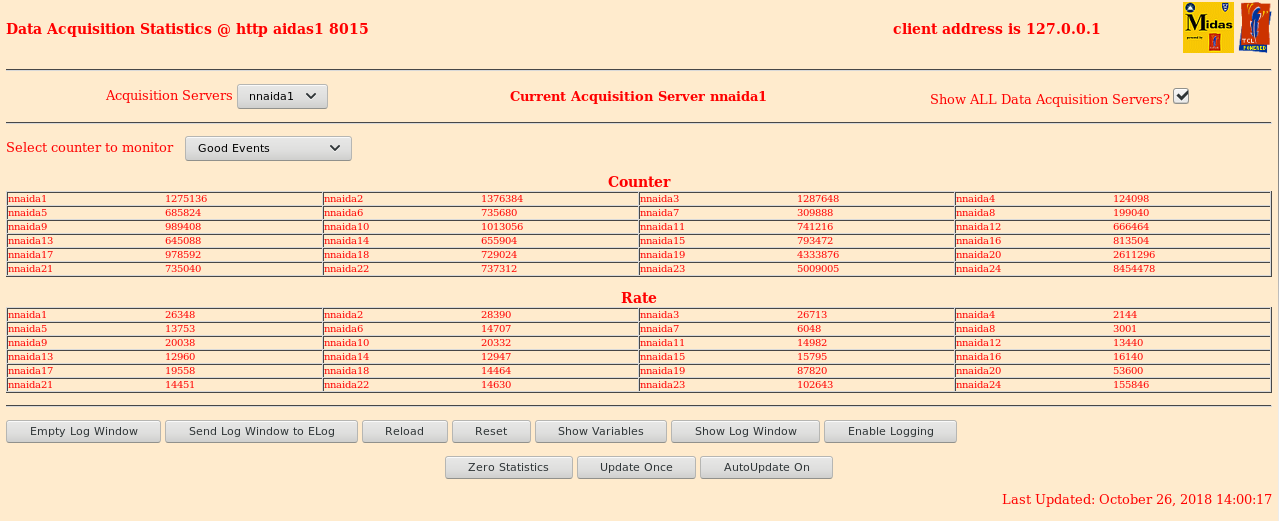

14:00 Stats are ok - attachment 5
      Appear similar to last time: https://elog.ph.ed.ac.uk/AIDA/747
      However FEE24 and 24 appear much noisier than last time with rates around 100k

19:24 Pulser walkthrough run from 90000 to 10000 in steps of 10000 for R2
      Opened file Oct18/R3, alpha run, threshold at 100kev, pulser on.

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:
