ELOG AIDA

AIDA GELINA BRIKEN nToF CRIB ISOLDE CIRCE nTOFCapture DESPEC DTAS EDI_PSA 179Ta CARME StellarModelling DCF K40

AIDA

Fields marked with * are required

Entry time:

Wed Nov 7 01:00:58 2018

Author*:

Subject*:

10.02 DAQ still running, on file Oct18/R27_9
      Merger and TapeServer ok, no error warnings in terminals

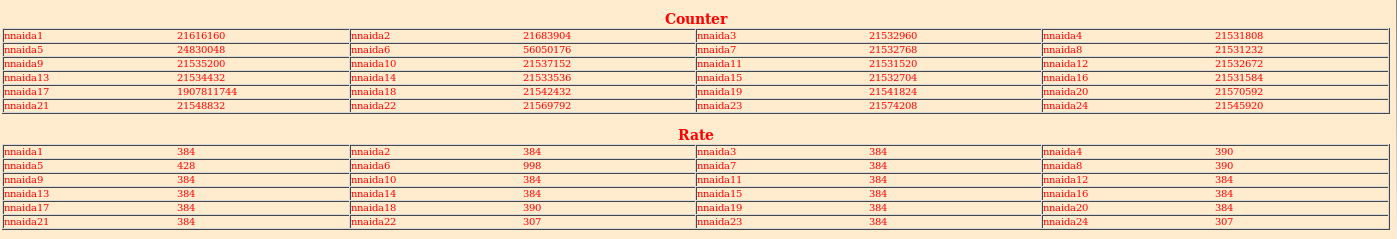

10.07 Good event statistics ok, except nnaida6 rate being high (attachment 1)
      nnaida17 rate ok, but counts very high. May have run fast at some point overnight.
      System wide checks ok, except nnaida7 failure in ADC calibration

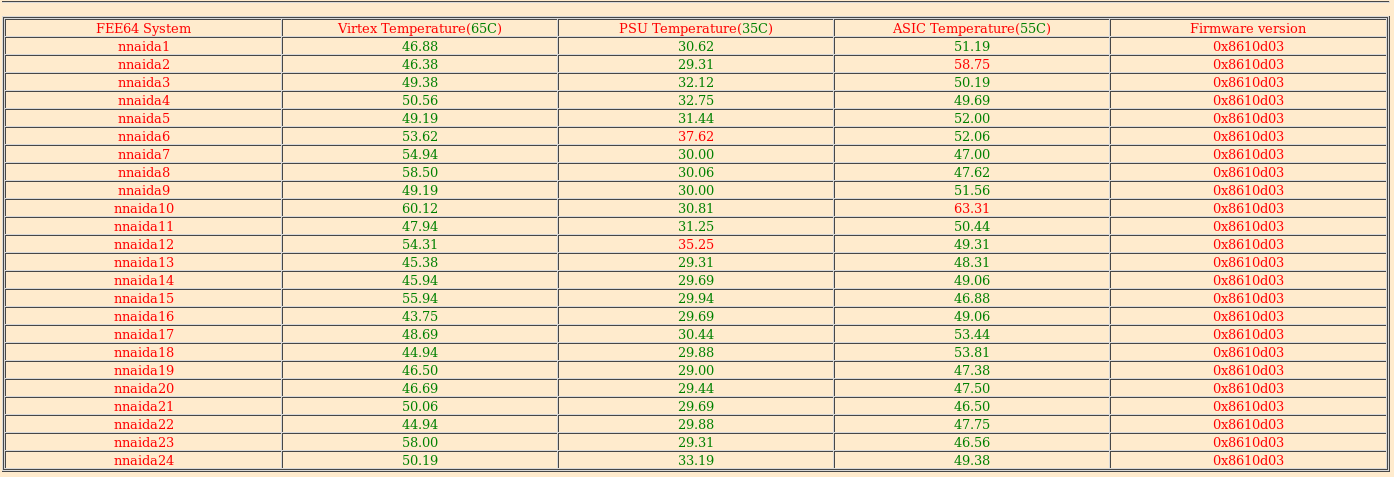

      FEE64 temperatures ok (attachment 2)

10.13 Bias/leakage currents slightly higher, but ok (attachment 3)

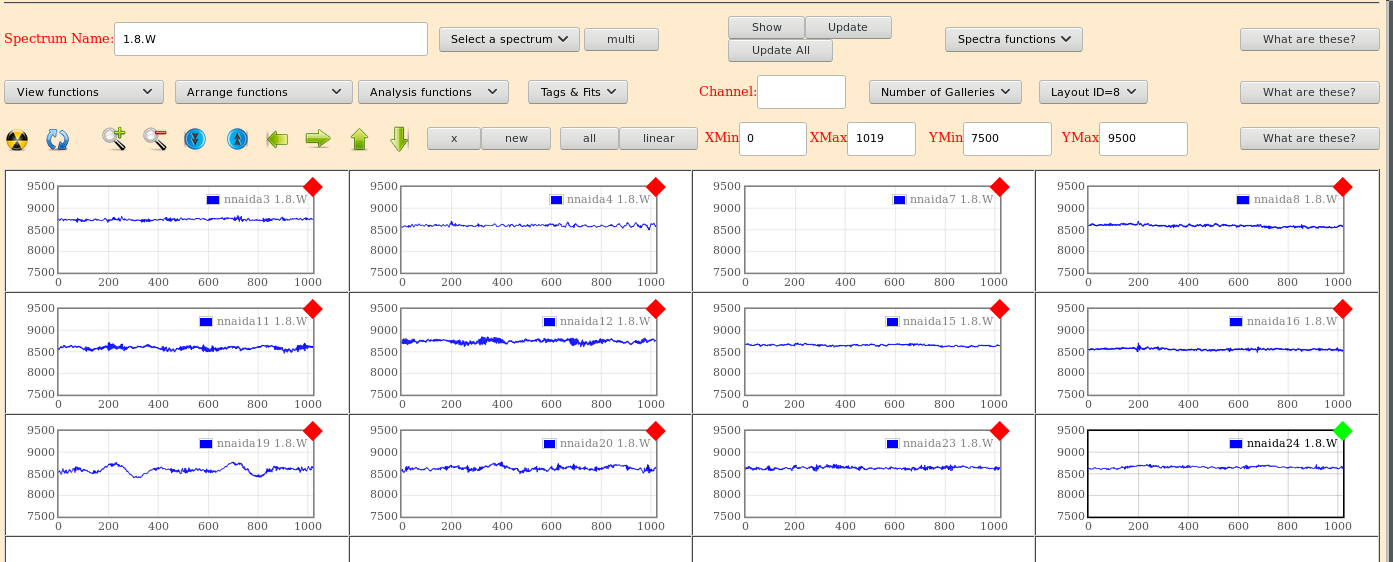

10:30 1.8.W spectra (attachment 4)

11.10 Stopped the DAQ (R27_9)
      Checked ASIC control - ok
      Started the DAQ again (Oct18/R28_0)

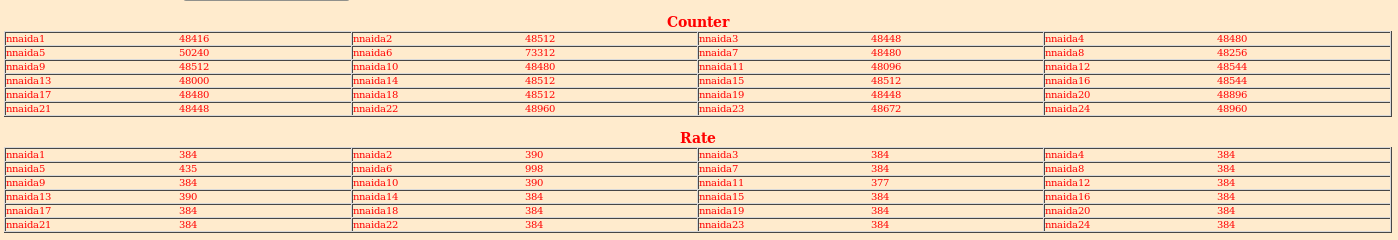

      good event statistics ok, aside from nnaida6 running slightly fast (attachment 5)

15.07 DAQ stop - file Oct18/R28_2

Detector bias OFF

Move AIDA downstream to check position of Clover G7

16.05 Move back upstream into BRIKEN (CH2)n moderator assembly

Detector bias ON

16.12 all system wide checks OK *except* nnaida7 fails ADC calibration
      sync all ASIC clocks using ReSYNC
      detector biases & leakage currents OK - see attachments 6 & 7
      FEE64 temperatures OK - see attachment 8
      good event statistics OK *except* nnaida2 - see attachment 9

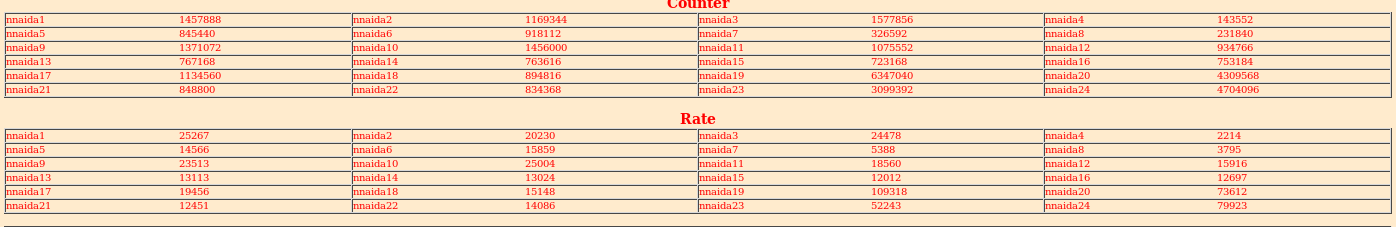

                                                  see attachment 10 for comparison to statistics 5.1.18

16.41 1.8.W spectra 20us FSR - see attachments 11 & 12

16.55 slow comparator thresholds raised from 10 to 100
      DAQ start (Oct18/R29_0)
      Merger and TapeServer ok - no error warnings in terminals

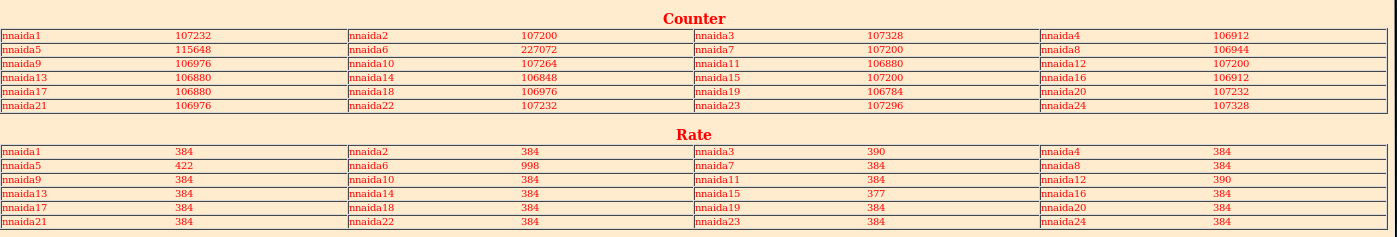

      good event statistics ok, except nnaida6 running fast (attachment 13)

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:
