Entry time:

Thu Nov 8 00:55:18 2018

Author*:

Subject*:

09.57 DAQ still running (R29_29)
      System wide checks ok, except nnaida7 ADC calibration failure

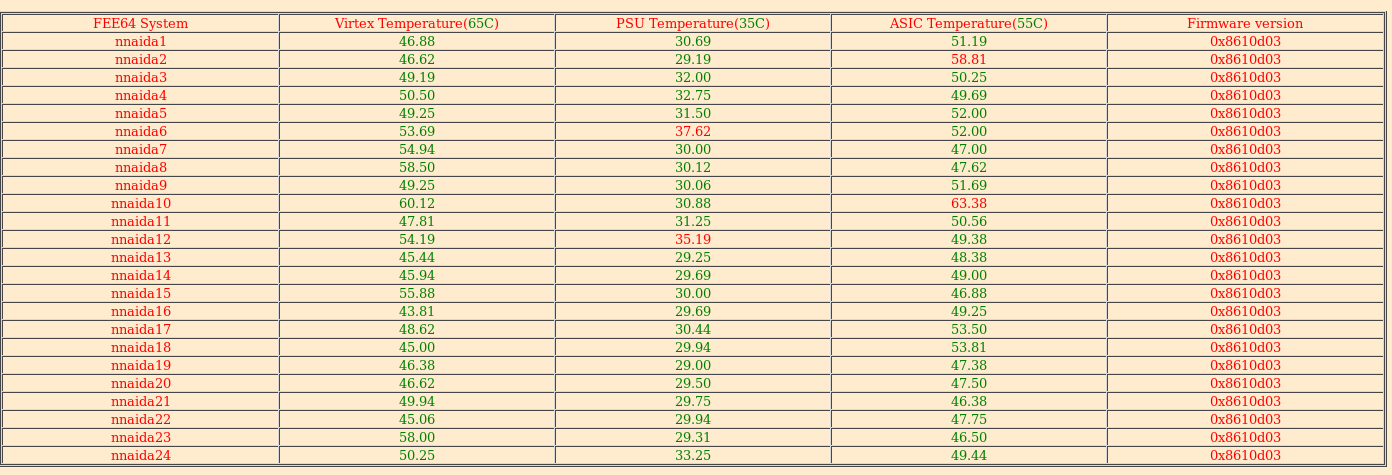

09.59 FEE64 temperatures ok (attachment 1)
      TapeServer ok
      Link16 error reported in Merger (attachment 2)

10.04 Bias/Leakage currents ok (attachment 3)

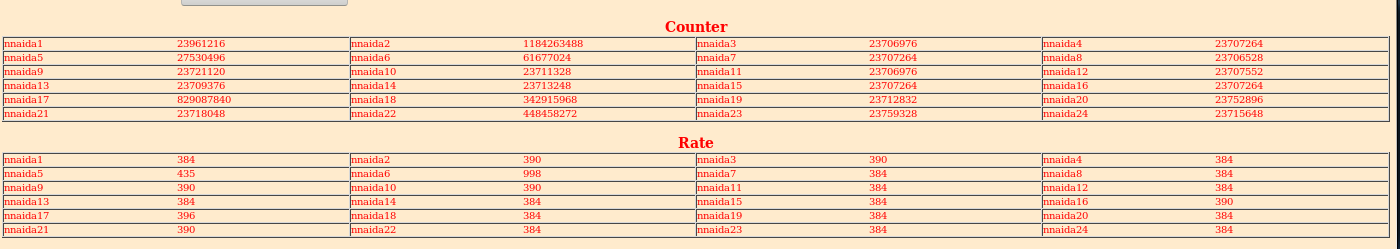

10.07 Good event statistics ok, except nnaida17, 18, 22 which appears to intermittently run fast overnight, and
      nnaida2 which runs fast due to hot channel (attachment 4)

10.11 1.8.W spectrum (attachment 5)

10.56 2.15.H spectra - show hot high energy channel in nnaida2 (attachment 6)

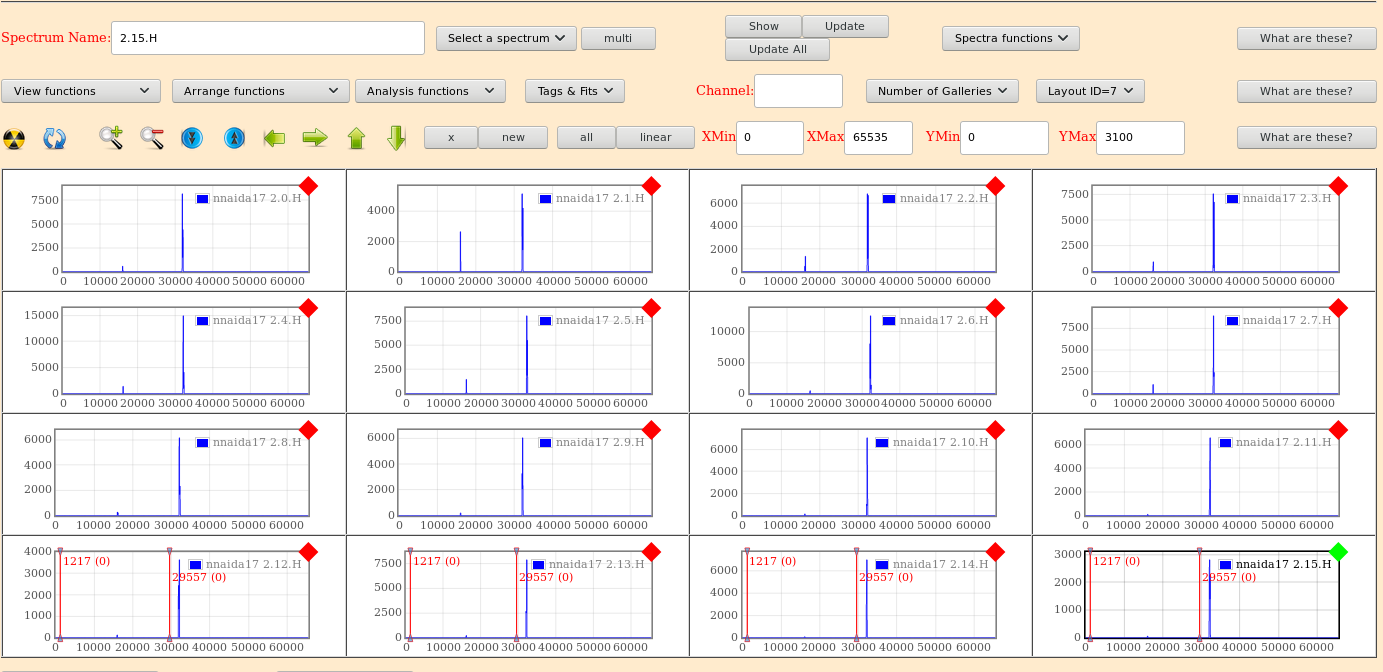

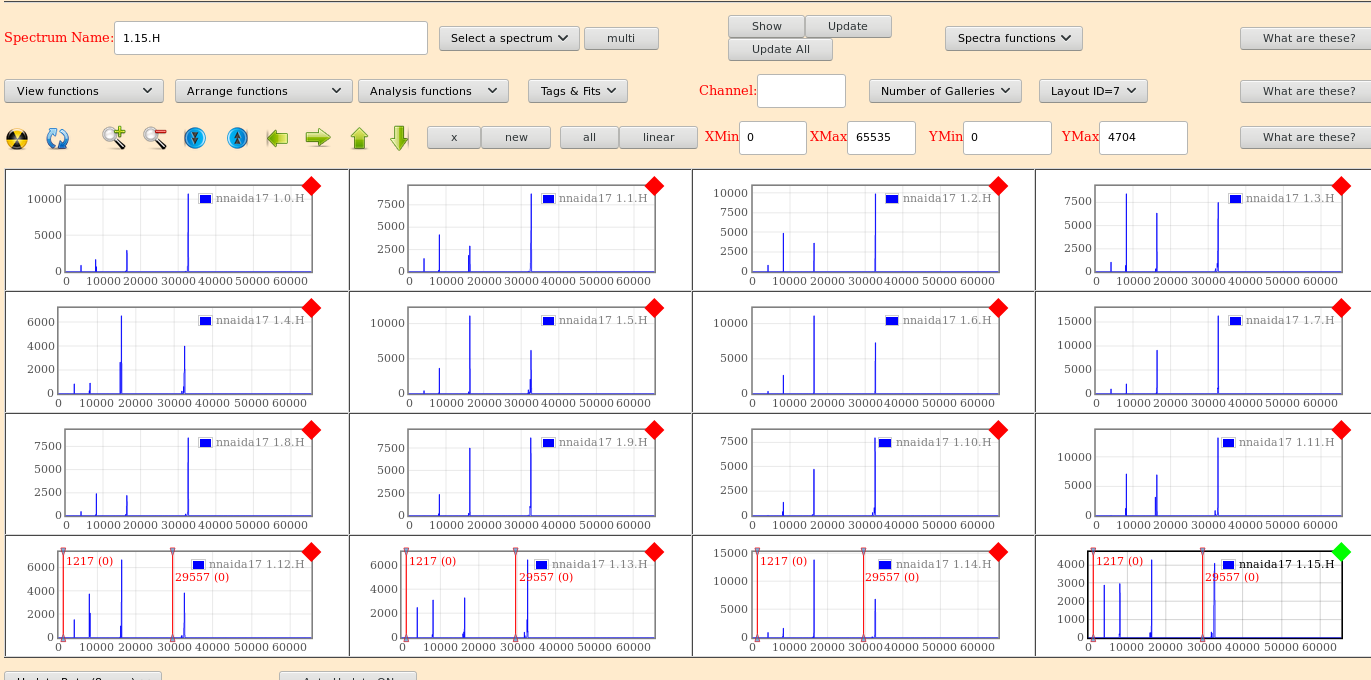

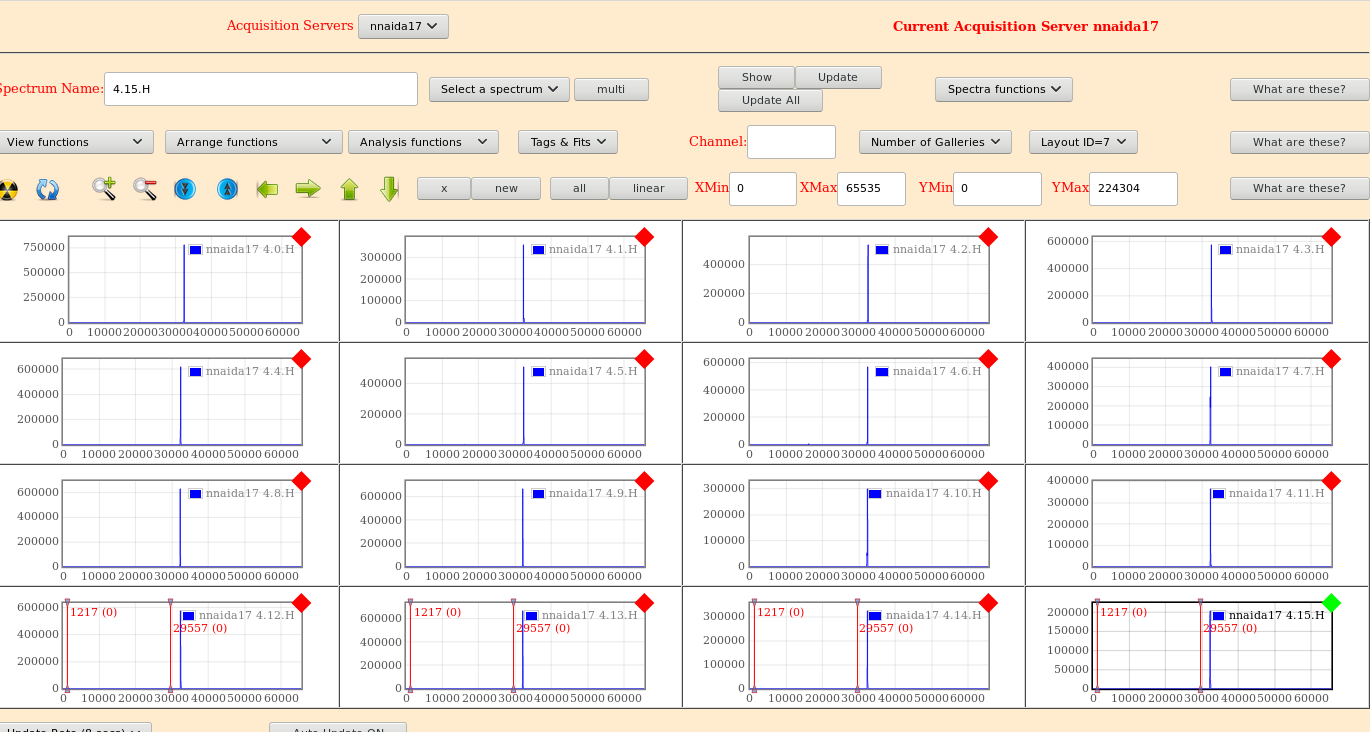

11.09 attachments 7,8,9 - High energy channels spectra, show hot channel in nnaida17

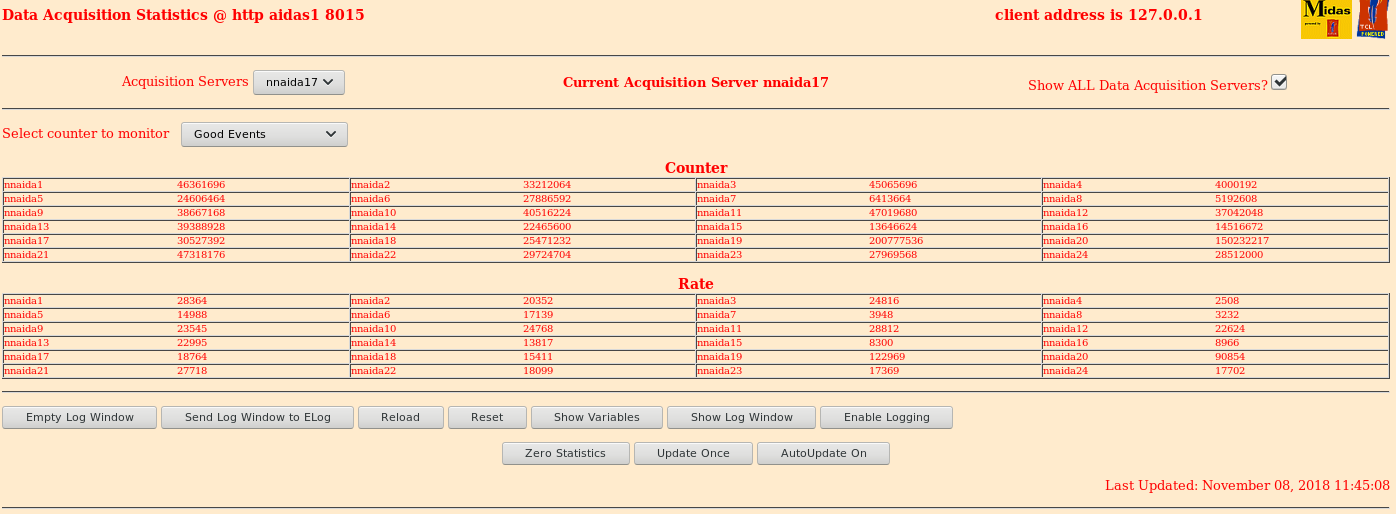

11.45 Stats - Attachment 10

15.07 analysis RIBF/R1_1 - see attachment 11
      <1% deadtime for high rate FEE64s nnaida19 & nnaida20

15.14 AIDA shield (c. 3" Pb) in position between F11 and upstream BRIKEN (CH2)n shield - checked by TD & GK
      Julabo FL11006 chiller set point +20 deg C actual +20.0 deg C, water added to 80% level (L-H) or 2/3 (M-H)

16:41 DAQ stopped
      slow comparator threshold at 10
      DAQ restarted (\RIBF148\R2)
      DAQ stopped (\RIBF148\R2_3)
      slow comparator threshold raised back to 100
      DAQ start (\RIBF148\R3_0)
17.10 DAQ stop (\RIBF148\R3_0)
      slow comparator threshold lowered back to 10
      DAQ start (not writing to file)

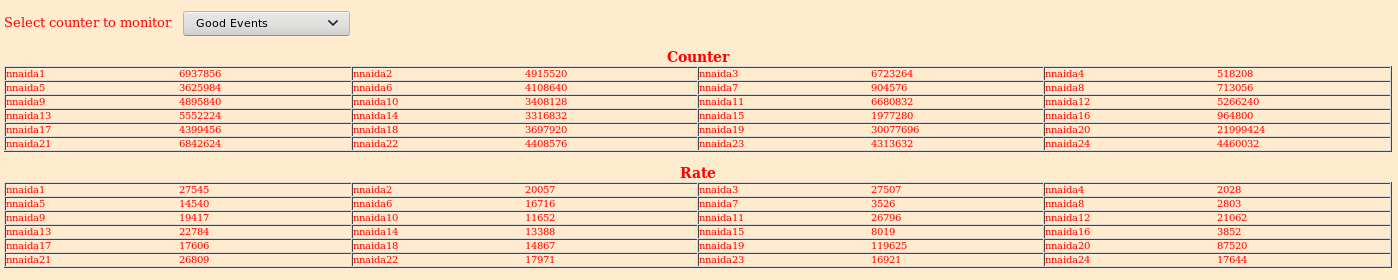

      good event statistics ok (attachment 12)

17.15 system wide checks ok

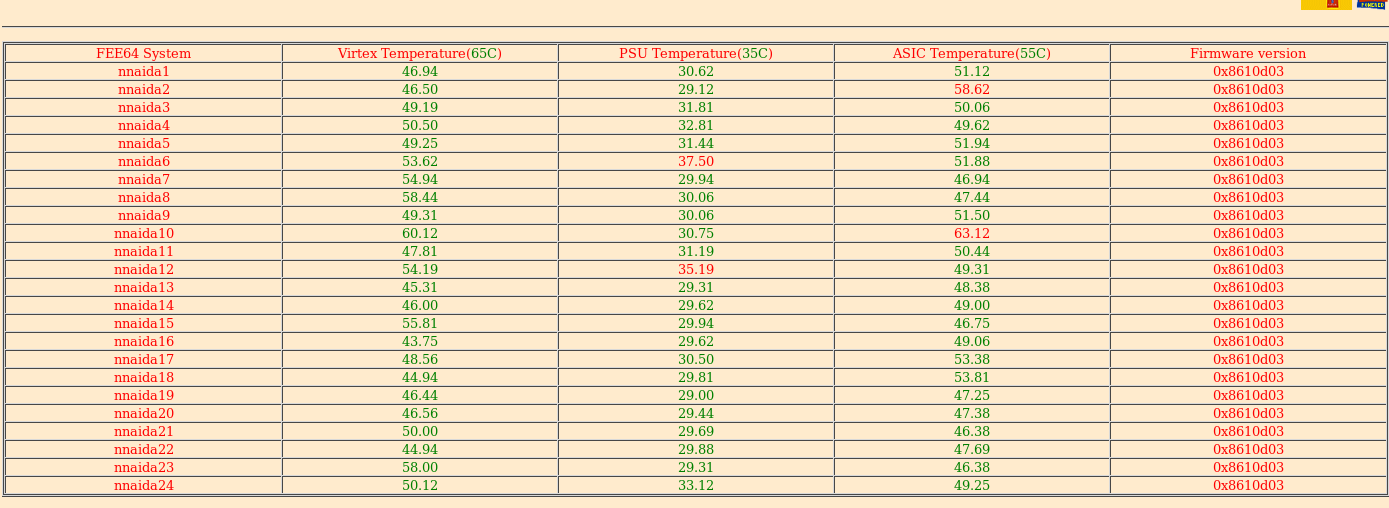

      FEE64 temperatures ok (attachment 13)

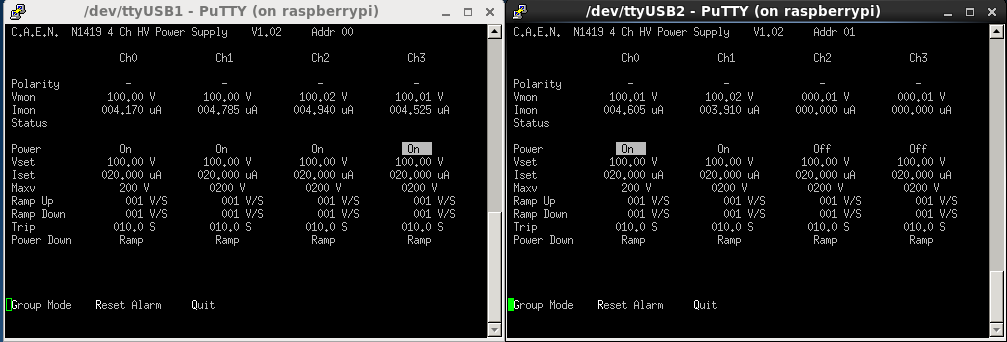

      bias/leakage currents ok (attachment 14)

18:35 R4_0 started for background measurement for Phong.
      R4_0 should be discarded as FEE1 was running fast at start. recovered with ASIC check

18:51 R1_2 stopped

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

181108_0959_temp.png Original size: 1392x475

Attachment 2:

181108_1006_merger.png Original size: 1920x1080

Attachment 3:

181108_1004_bias.png Original size: 1003x340

Attachment 4:

181108_1009_goodeventstats.png Original size: 1400x249

Attachment 5:

8_W7.png Original size: 1375x668

Attachment 6:

15_H.png Original size: 1400x1032

Attachment 7:

15_H_17.png Original size: 1371x680

Attachment 8:

15_H_17.png Original size: 1383x672

Attachment 9:

15_H_17.png Original size: 1370x732

Attachment 10:

181108_1145_stats.png Original size: 1396x514

Attachment 11:

R1_1

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256477039 (  582231.4 Hz)
        Other data format:    4642961 (   10540.0 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         42 (       0.1 Hz)
                               RESUME:         42 (       0.1 Hz)
                              SYNC100:    4032191 (    9153.5 Hz)
                           FEE64 disc:     346386 (     786.3 Hz)
                             MBS info:     264300 (     600.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       4692 (      10.7 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      440.507 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.003                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                1.585                1.654
 20                0.497                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   12121742     180738          0          0          0          0     168041      12697          0          0          0
  2    8601884     185471          0          0          0          0     168041      17430          0          0          0
  3   11778313     183189          0          0          0          0     168041      15148          0          0          0
  4     893588     180395          0          0          0          0     168041      12354          0          0        135
  5    6360988     186189          0          0          0          0     168041      18148          0          0          0
  6    6962098     443377          0          0          0          0     168041      11036     264300          0         37
  7    1523757     179280          0          0          0          0     168041      11239          0          0        152
  8    1196607     182456          0          0          0          0     168041      14415          0          0          1
  9   10022964     179617          0          0          0          0     168041      11576          0          0          0
 10   10449262     186272          0          0          0          0     168041      18231          0          0          0
 11   12253237     183107          0          0          0          0     168041      15066          0          0          0
 12    9597811     180132          0          0          0          0     168041      12091          0          0          1
 13   10184591     184387          0          0          2          2     168040      16343          0          0          0
 14    5812899     180391          0          0          0          0     168041      12350          0          0        206
 15    3424506     179384          0          0          0          0     168041      11343          0          0        123
 16    3655969     182161          0          0          0          0     168041      14120          0          0          0
 17    7835045     178014          0          0          0          0     168041       9973          0          0       1766
 18    6576923     186480          0          0          0          0     168041      18439          0          0          0
 19   53536647     190303          0          0         27         27     167437      22812          0          0          0
 20   39259113     180728          0          0         13         13     167853      12849          0          0       1335
 21   12050482     187766          0          0          0          0     168041      19725          0          0          0
 22    7684974     179393          0          0          0          0     168041      11352          0          0        936
 23    7244057     180626          0          0          0          0     168041      12585          0          0          0
 24    7449582     183105          0          0          0          0     168041      15064          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   19.090s ( 1676.284 blocks/s, 104.768 Mb/s)

Attachment 12:

181108_1712_goodstats.png Original size: 1398x280

Attachment 13:

181108_1716_temp.png Original size: 1389x508

Attachment 14:

181108_1717_bias.png Original size: 1007x342

Attachment 15:
