Entry time:
Tue Apr 28 06:25:13 2015
Author
*
:
Subject
*
:

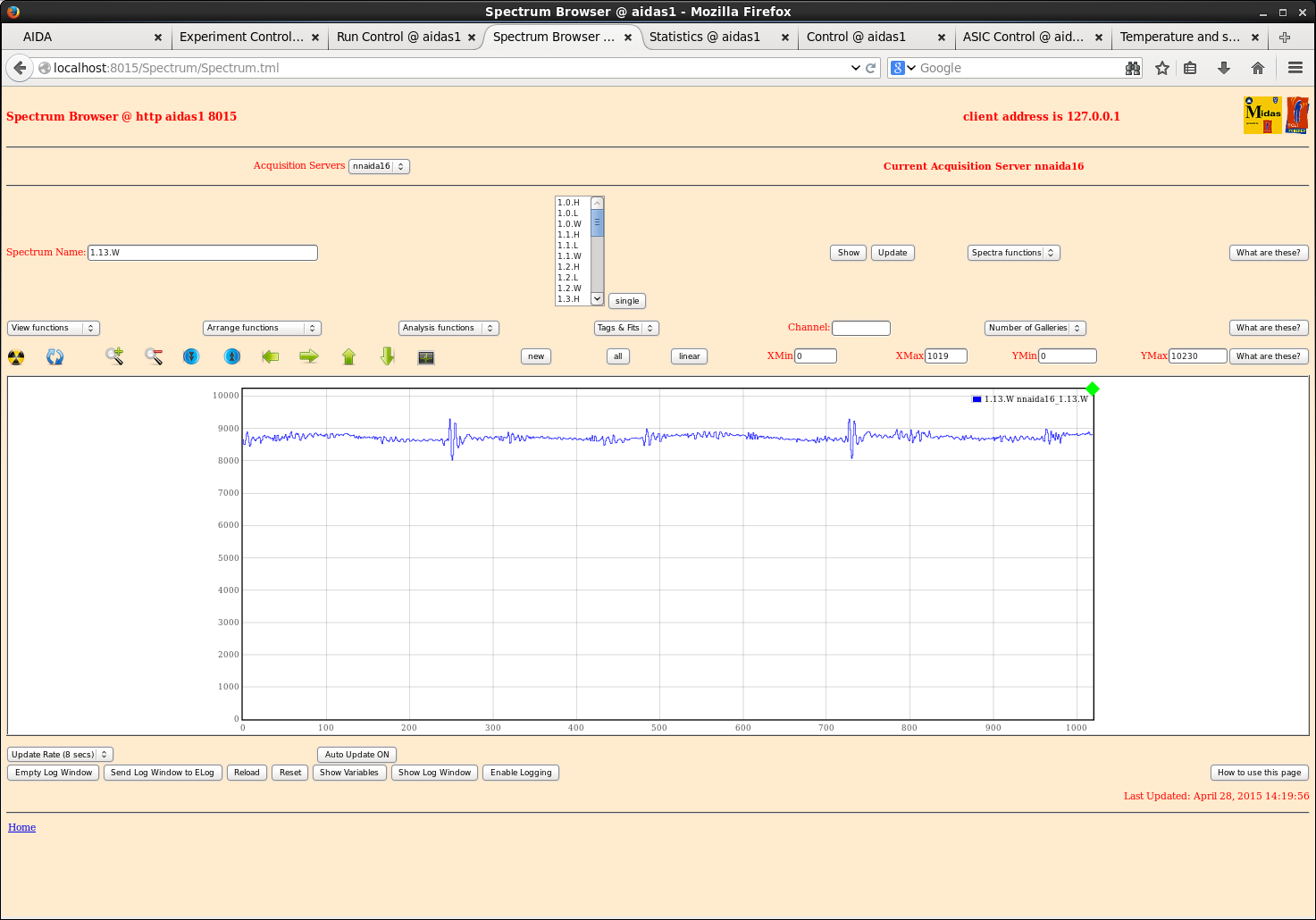

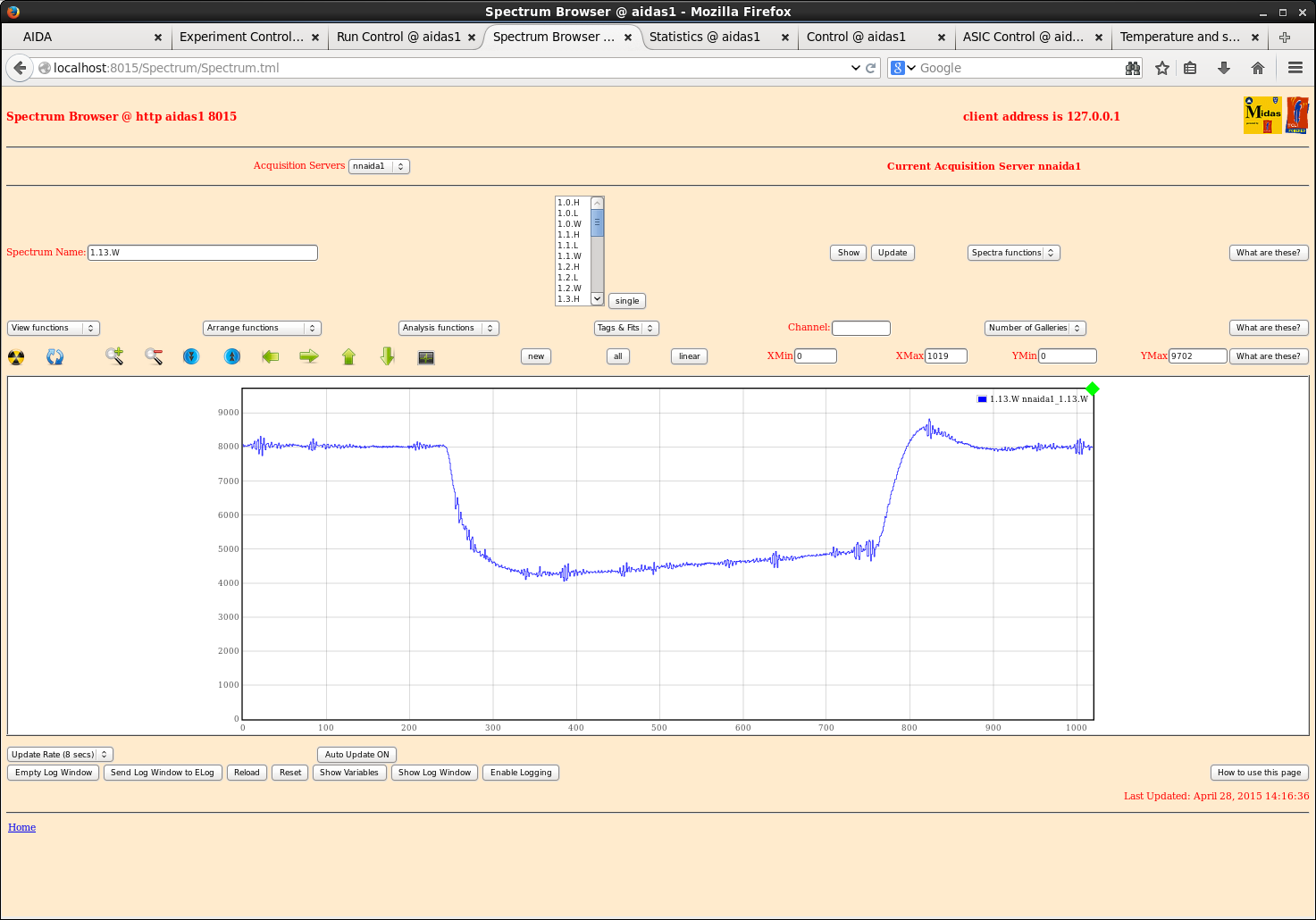

<p>28/04/15</p> <p>1420: Carried out ASIC optimisation tests to find best shaping time. Chose system wide shaping time of 0x6.</p> <p> Waveforms of example FEEs/channels attachments 1-6.</p> <p> </p> <p>20.34 Pulser walkthough - data file /TapeData/May2015/R14_0</p> <p> </p> <p> BNC PB_4 settings</p> <p> 90,000 - 10,0000 @ 10,000 step</p> <p> t_r = 50ns, tau_d = 50us</p> <p> - polarity</p> <p> x10 attenuator in</p> <p> tail pulse, delay min, int ref</p> <p> frequency 250Hz</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1473x1030
Attachment 2:
Original size: 1473x1030
Attachment 3:
Original size: 1473x1030
Attachment 4:
Original size: 1473x1030
Attachment 5:
Original size: 1473x1030
Attachment 6:
Original size: 1473x1030
