17:59 DAQ continues OK
      Stats OK - attachment 1
      FEE temperatures OK - attachment 2

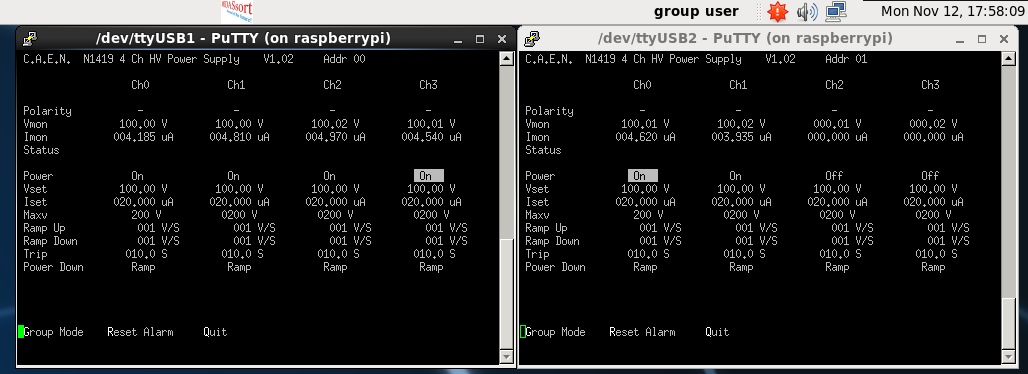

      Bias and leakage currents OK - attachment 3
      System-wide checks OK *except* nnaida7 fails ADC calibration

19:07 DAQ continues OK

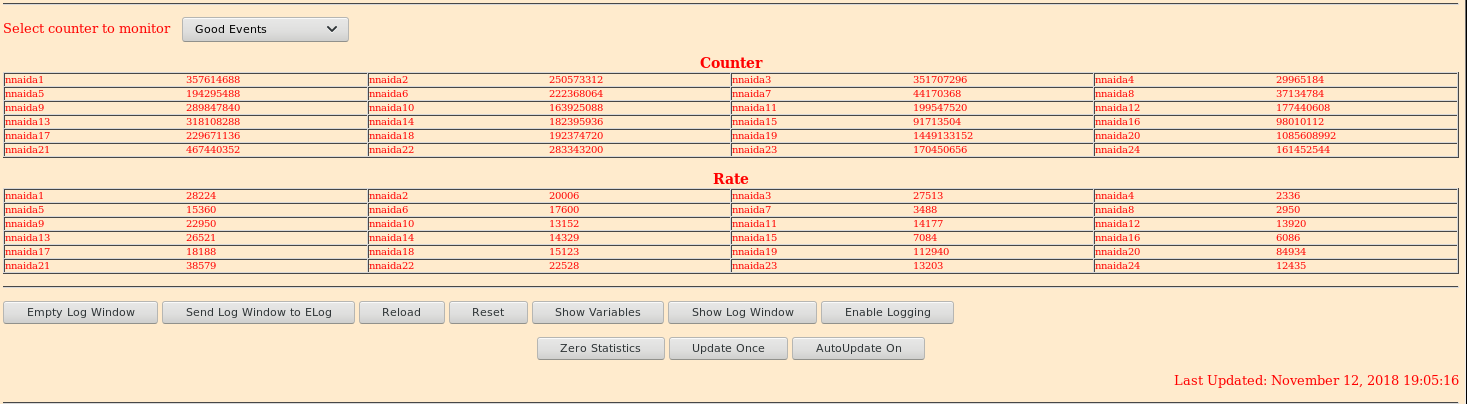

      Stats OK - attachment 4
      FEE temperatures OK - attachment 5

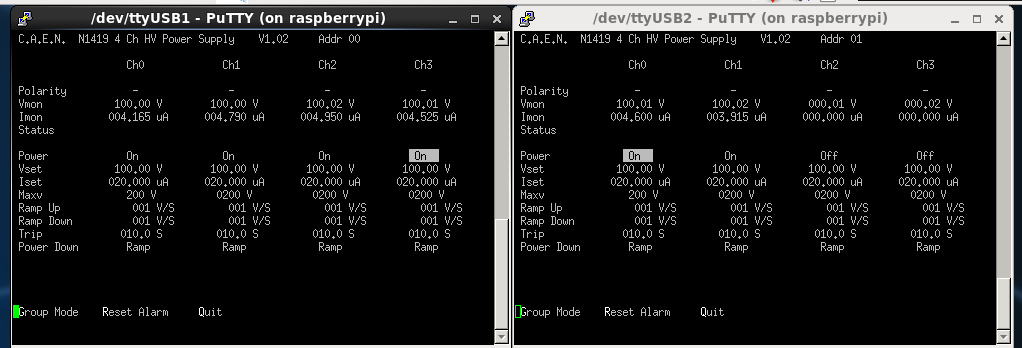

      Bias and leakage currents OK - attachment 6
      System-wide checks OK *except* nnaida7 fails ADC calibration

20.19 DAQ starts
      AIDA file RIBF148/R5_4
      BRIKEN file 16
      BigRIPS 1001

165Pm setting + 3mm Al degrader

20.21 all online & MIDASsort histograms zero'd

20.23 FEE64 good event statistics - see attachment 7
      Merger - see attachment 8
      TapeServer - see attachment 9

HEC x versus y spectra - see attachment 10
       SN thinks DSSSD #3 are the ions of interest, #4 are the ions of interest at different charge state
       and #5 & #6 are lighter ions which do not stop in DSSSD #1-6

21.21 DAQ stops

DAQ starts
      AIDA file RIBF148/R5_14
      BRIKEN file 18
      BigRIPS 1003

21.26 HEC x vs y multiplicity spectra - attachment 11

21.29 HEC Ex vs Ey spectra - attachment 12
      FEE64 rate spectra - attachment 13

21.31 1.8.L front/rear energy spectra (attachments 14/15) LEC

21.33 1.8.H front/rear energy spectra (attachments 16/17) HEC

21.46 system wide checks ok, except nnaida7 ADC calibration failure
      FEE64 good event statistics ok (attachment 18)
      FEE64 temperatures ok (attachment 19)
      Leakage currents/detector bias ok (attachment 20)

21.49 Merger and TapeServer ok, no error messages in terminal
      DAQ still running (RIBF148/R5_18)

22.10 attachment 21 - pulser spectra in all channels fired at same time
                    - FEE64 in sync

22.12 SYNC100 at 9153.8 Hz
      FEE64 discriminator at ~15000 Hz - higher than expected
      ~1 second deadtime in FEE19 - due to nnaida12 running fast
      no timewarps observed in FEE64
      all of above in attachment 22

22:32 DAQ continues OK
      Stats OK - attachment 24

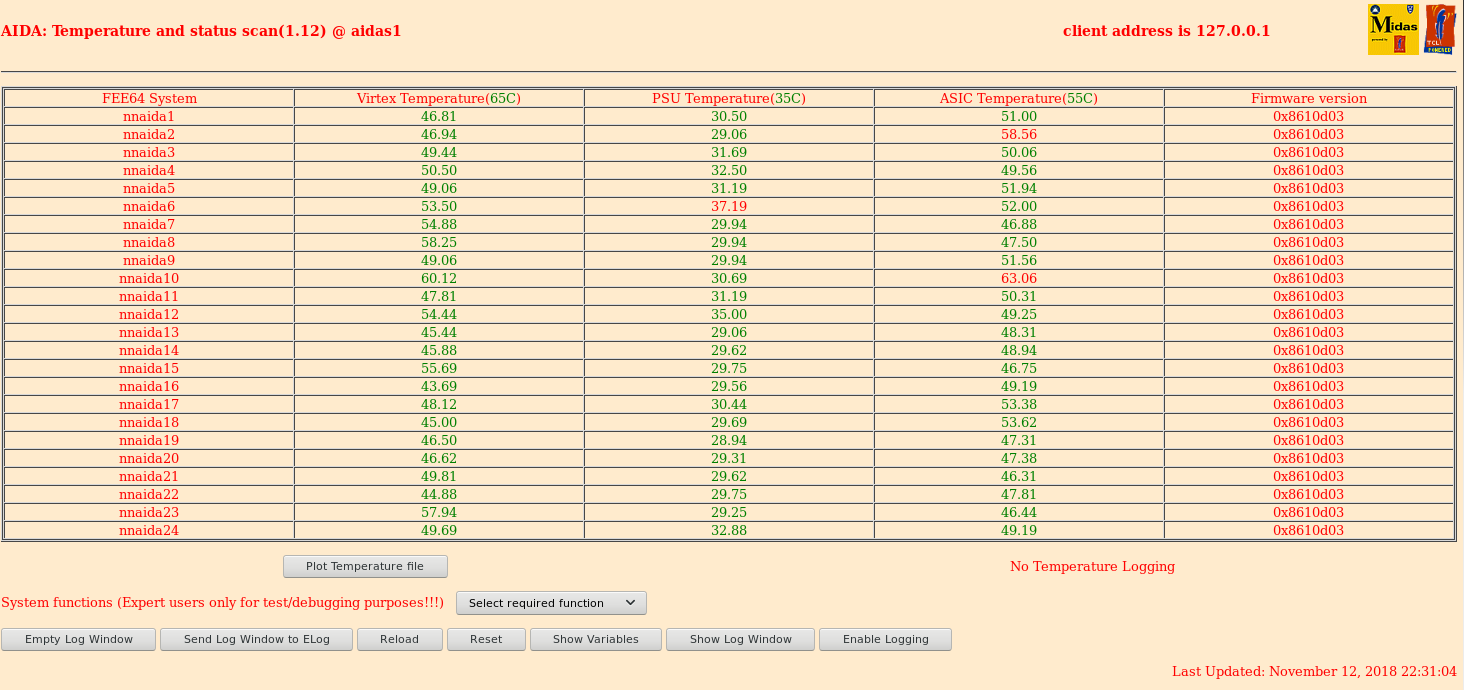

      FEE temperatures OK - attachment 23

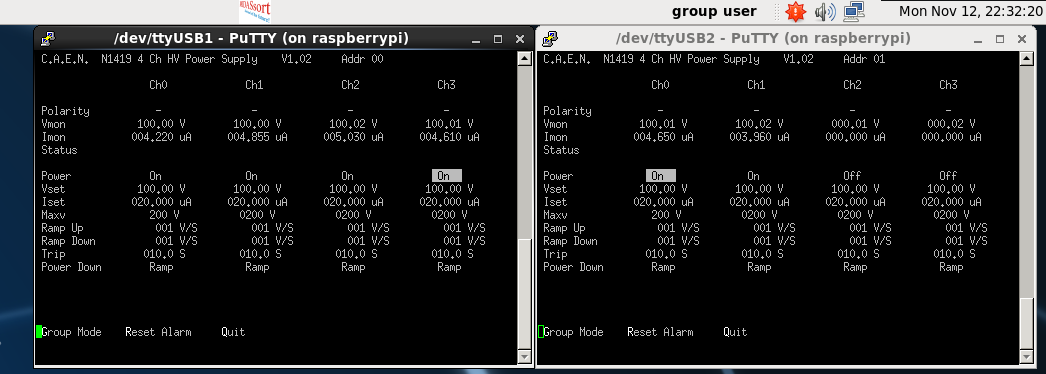

      Bias and leakage currents OK - attachment 25
      System-wide checks OK *except* nnaida7 fails ADC calibration

23:30 DAQ continues OK

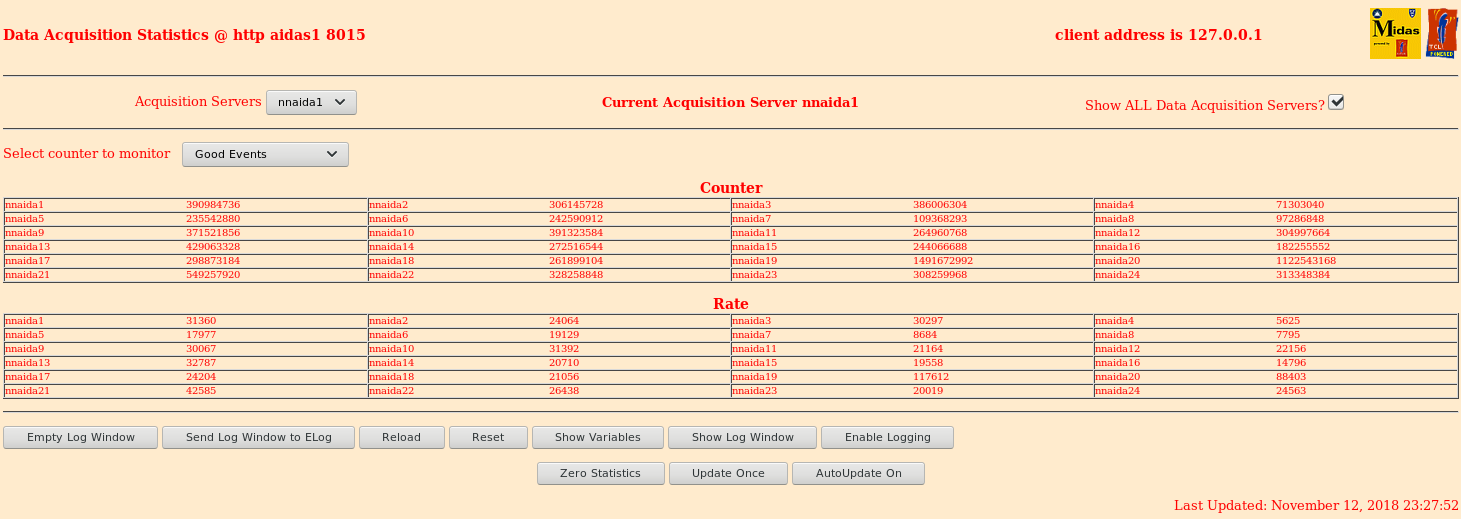

      Stats OK - attachment 26

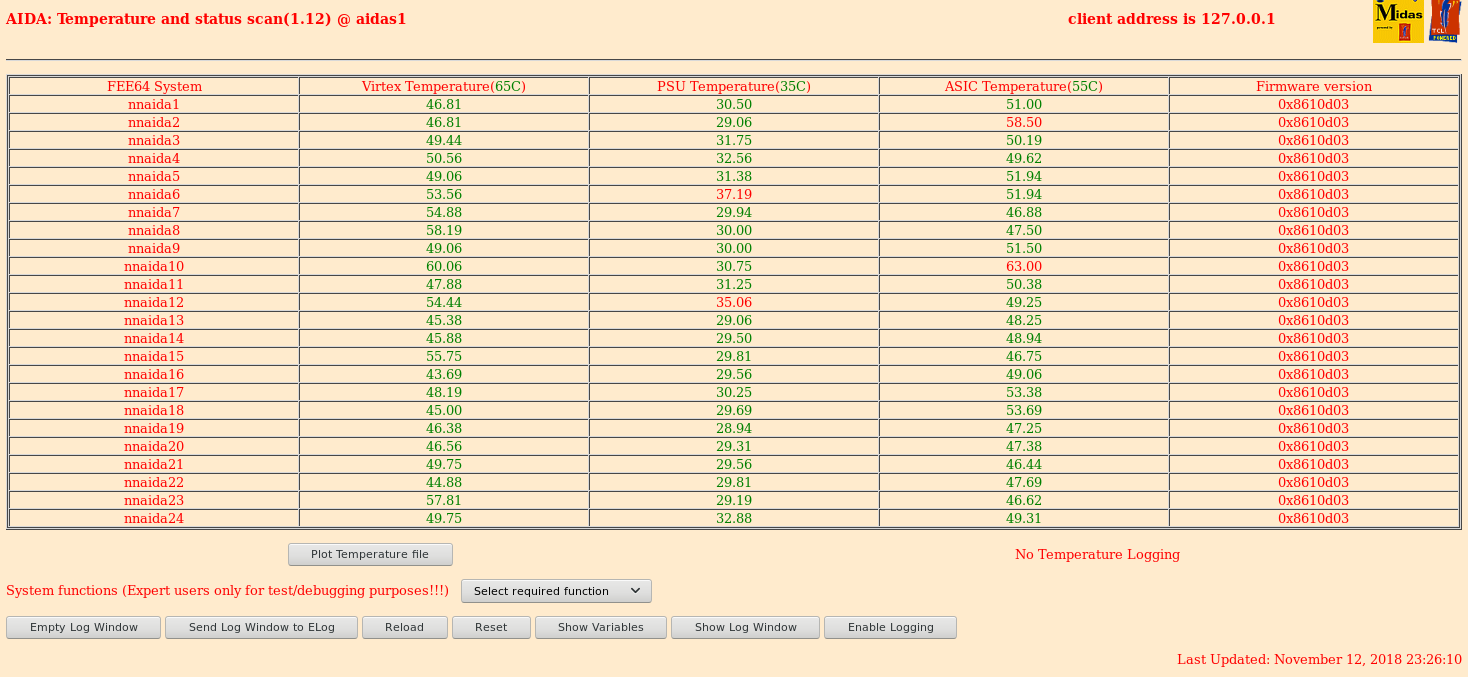

      FEE temperatures OK - attachment 27

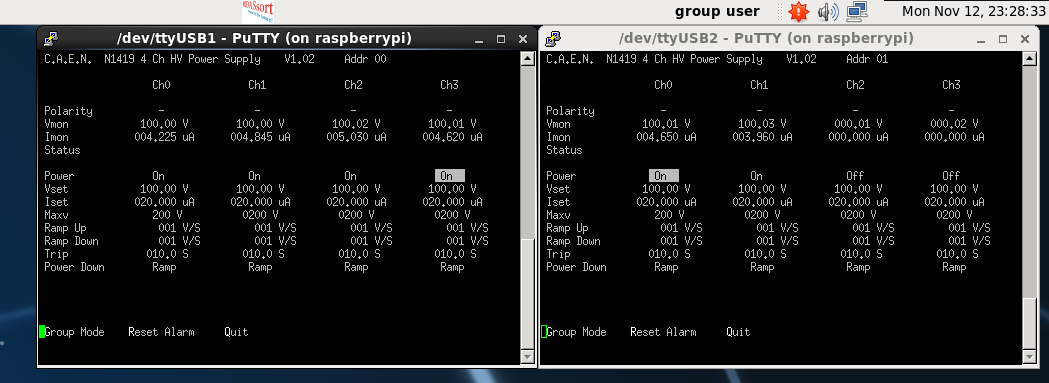

      Bias and leakage currents OK - attachment 28
      System-wide checks OK *except* nnaida7 fails ADC calibration

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

181112_1757_temp.png Original size: 1462x684

Attachment 2:

181112_1757_stats.png Original size: 1467x507

Attachment 3:

181112_1758_bias.png Original size: 1028x374

Attachment 4:

181112_1905_stats.png Original size: 1467x404

Attachment 5:

181112_1904_temp.png Original size: 1463x645

Attachment 6:

181112_1906_bias.png Original size: 1022x348

Attachment 7:

1.png Original size: 1472x1030

Attachment 8:

2.png Original size: 1920x1080

Attachment 9:

3.png Original size: 1249x1030

Attachment 10:

4.png Original size: 849x676

Attachment 11:

5.png Original size: 849x676

Attachment 12:

6.png Original size: 849x676

Attachment 13:

10.png Original size: 1472x1030

Attachment 14:

11.png Original size: 1472x1030

Attachment 15:

12.png Original size: 1472x1030

Attachment 16:

13.png Original size: 1472x1030

Attachment 17:

14.png Original size: 1472x1030

Attachment 18:

181112_2145_stats.png Original size: 1463x390

Attachment 19:

181112_2144_temp.png Original size: 1468x641

Attachment 20:

181112_2146_bias.png Original size: 1007x375

Attachment 21:

7.png Original size: 849x676

Attachment 22:

R5_19

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  251785471 (  674265.2 Hz)
        Other data format:    9334529 (   24997.3 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         38 (       0.1 Hz)
                               RESUME:         38 (       0.1 Hz)
                              SYNC100:    3418240 (    9153.8 Hz)
                           FEE64 disc:    5692161 (   15243.2 Hz)
                             MBS info:     224052 (     600.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     652043 (    1746.1 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      373.422 s
