00:00 AIDA currently on file R5_38
      BRIKEN on file 181112_2321_165Pm_019.dlt (AIDA file at start R5_33)
      BigRIPS run 1004

00:23 BRIKEN stop file
      AIDA Currently on file R5_43

00:26 BRIKEN start 181113_0025_165Pm_020.dlt
      BigRIIPS start 1005
      AIDA Currently on file R5_43

System wide checks ok

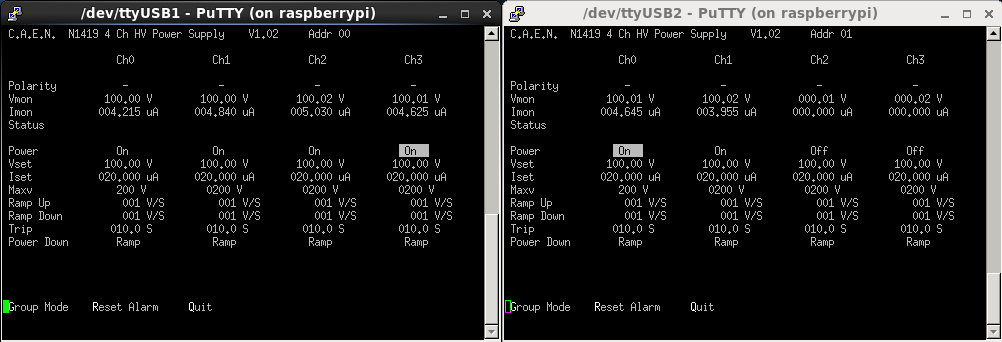

01:13 Bias and leakage currents ok - attchment 1

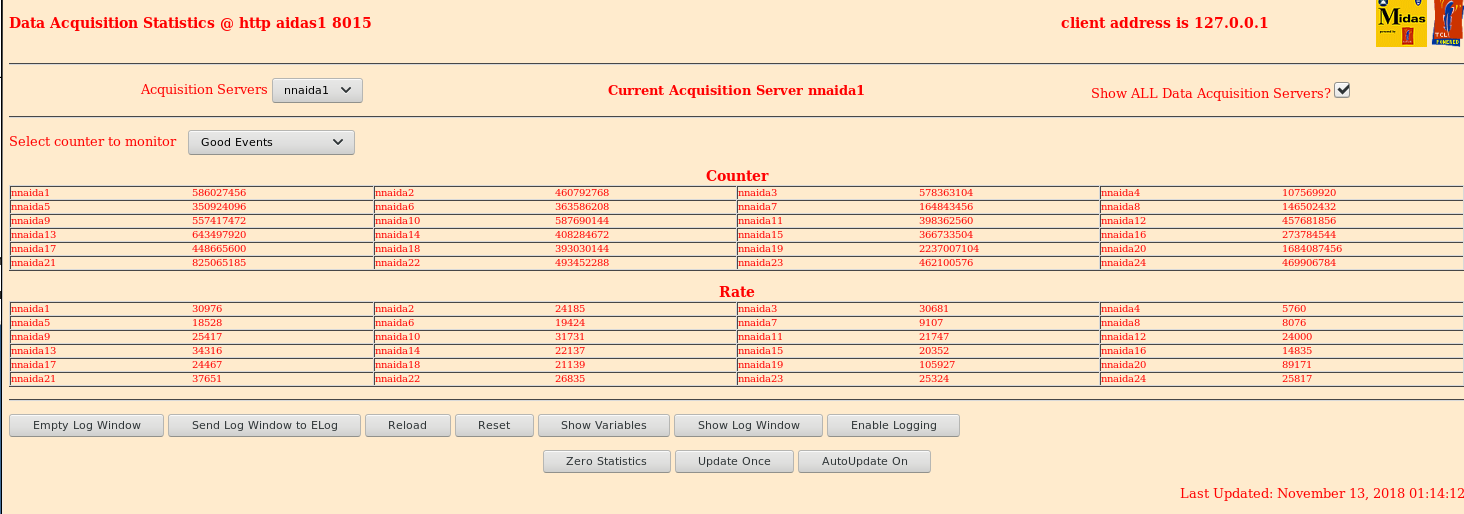

      Stats ok - attachment 2
      FEE Temps ok - attachment 3

01:21 BigRIPS and BRIKEN stop
      AIDA on file R5_52

01:25 BigRIPS starts run 1006
      BRIKEN starts run 181113_0123_165Pm_021.dlt
      AIDA on file R5_53

02:21 BigRIPS and BRIKEN stop
      AIDA on file R5_62

02:23 BigRIPS starts run 1007
      BRIKEN starts run 181113_0222_165Pm_022.dlt
      AIDA on file R5_62

ASIC load check ok

03:15 Beam dropped out unsure for how long but is now back

03:21 BigRIPS and BRIKEN stopped
      AiDA on file R5_71

03:23 BigRIPS starts run 1008
      BRIKEN starts run 181113_0320_165Pm_023.dlt
      AIDA on file R5_71

03:45 Output of analyser on R5_70 - attachment 4

03:59 System wide checks ok

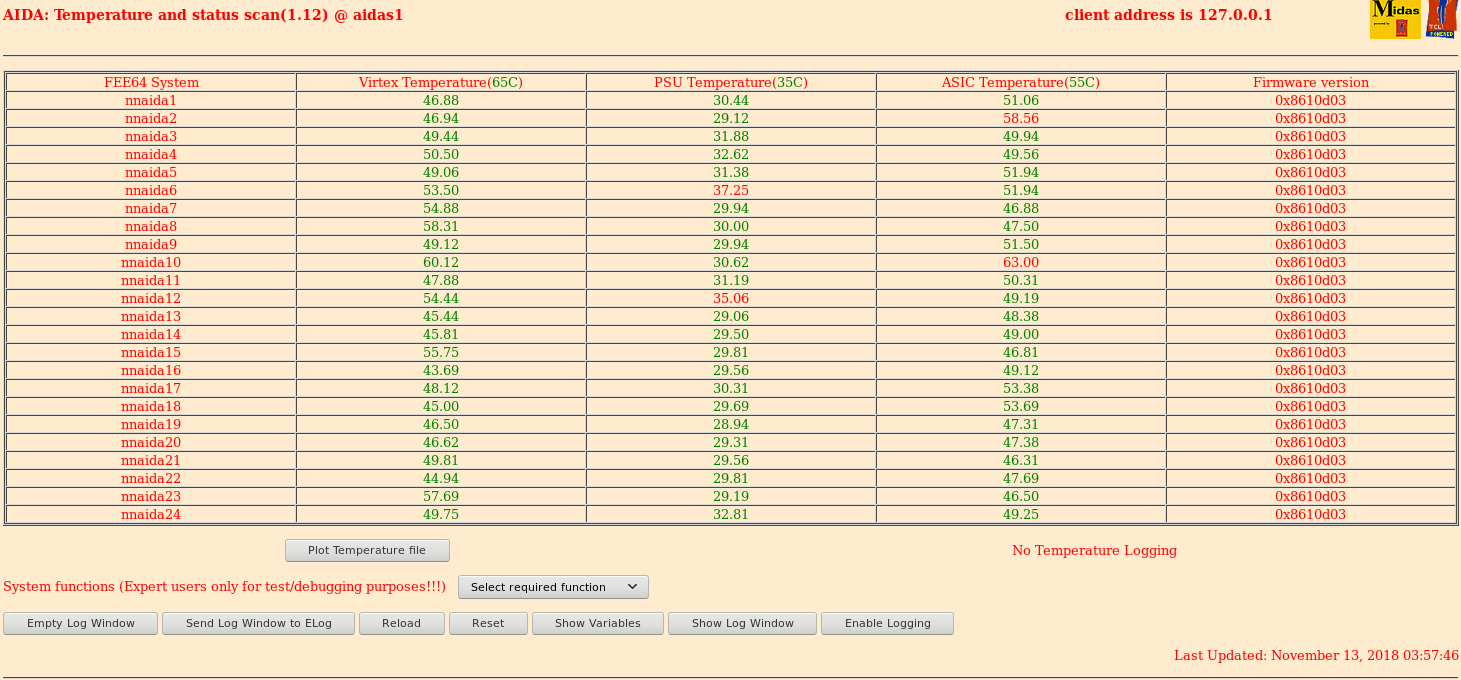

      FEE Temps ok - attachment 5
      Statistics ok - attachment 6

04:21 BigRIPS and BRIKEN stop
      AIDA on file R5_81

04:23 BigRIPS starts run 1009
      BRIKEN starts run 181113_0421_165Pm_024.dlt
      AIdA on file R5_81

05:19 BigRIPS and BRIKEN stop
      AIDA on file R5_90

05:20 BigRIPS start run 1010
      BRIKEN starts run 181113_0520_165Pm_025.dlt
      AIDA on file R5_90

05:49 System wide checks all ok
      Stats ok - attachment 7
      FEE Temps ok - attchment 8
      Bias and leakage currents ok - attachment 9

High energy hit pattern per dssd - attachment 10

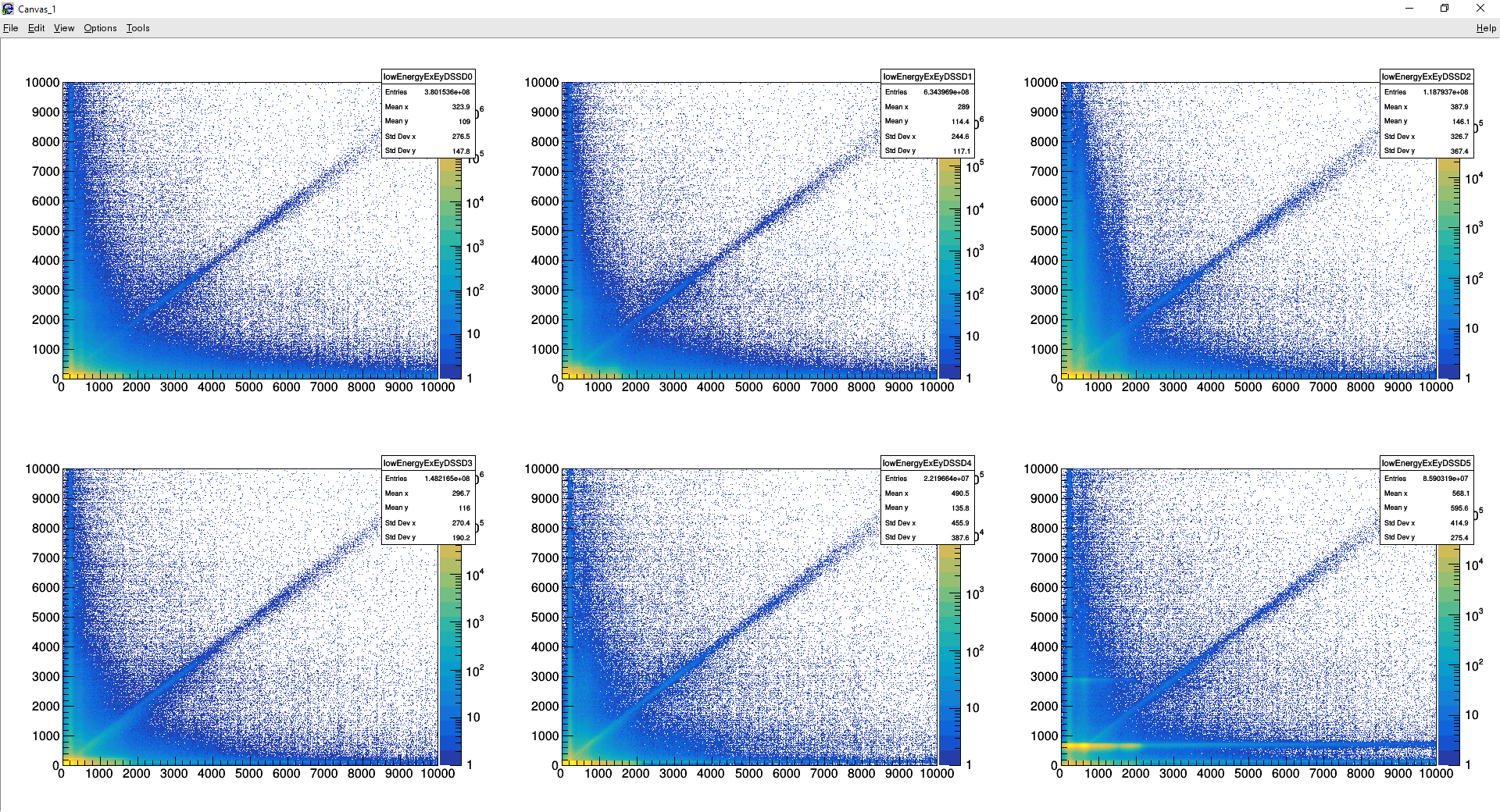

      Low energy Ex vs Ey plot per dssd - attachment 11

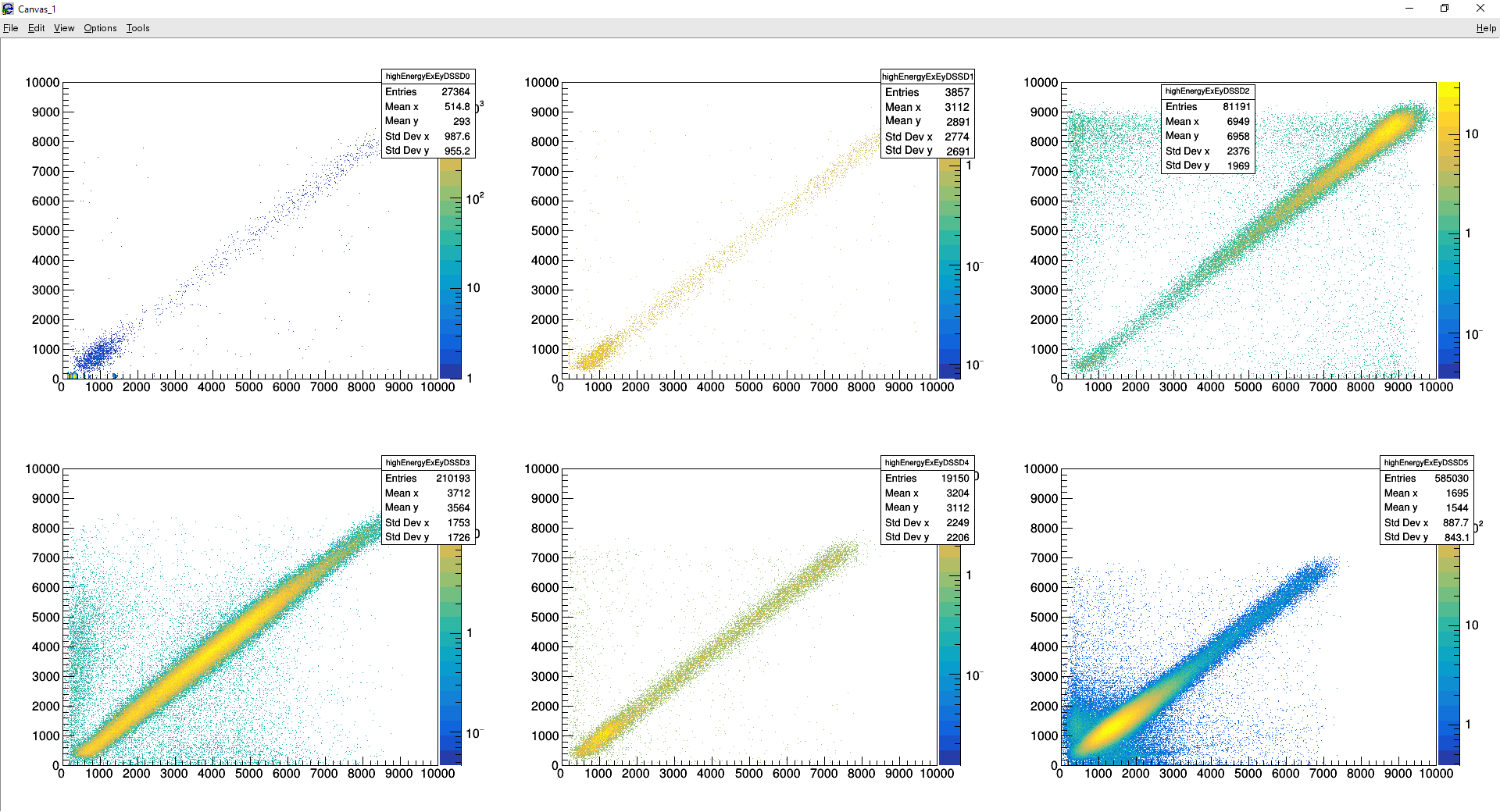

      High energy Ex vs Ey plot per dssd - attachment 12
      Also using the previously merged files produced from Phong's sort have confirmed that there is no to
      little punch through on DSSD3
      Did this through the use of a 2d plot of energy DSSD 3 vs the velocity

06:21 BigRIPS and BRIKEN stop
      AIDA on file R5_100

06:23 BigRIPS starts run 1011
      BRIKEN starts run 181113_0622_165Pm_026.dlt
      AIDA on file R5_100

07:19 BigRIPS and BRIKEN stop
      AIDA on file R5_110

07:20 BigRIPS starts run 1012
      BRIKEN starts run
      AIDA on file R5_110

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

181113_0113_Bias.png Original size: 1002x342

Attachment 2:

181113_0114_Stats.png Original size: 1464x514

Attachment 3:

181113_0115_Temp.png Original size: 1463x676

Attachment 4:

181113_0343_R5_70.txt

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  255020124 (  576847.6 Hz)
        Other data format:    6099876 (   13797.7 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         45 (       0.1 Hz)
                               RESUME:         45 (       0.1 Hz)
                              SYNC100:    4046896 (    9154.0 Hz)
                           FEE64 disc:    1787636 (    4043.6 Hz)
                             MBS info:     265254 (     600.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     178156 (     403.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      442.093 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.783                0.823
 20                0.672                0.000
 21                0.073                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   12406355     232043          0          0          0          0     168645      63398          0          0       9960
  2    8986162     233984          0          0          0          0     168645      65339          0          0       9586
  3   12139137     210266          0          0          0          0     168645      41621          0          0       2460
  4    1145949     213541          0          0          0          0     168645      44896          0          0       2686
  5    6765414     208449          0          0          0          0     168645      39804          0          0       2848
  6    7332649     464458          0          0          0          0     168645      30559     265254          0       3151
  7    1860957     269180          0          0          0          0     168645     100535          0          0       7248
  8    1562482     248554          0          0          0          0     168645      79909          0          0       6969
  9   10504276     253087          0          0          0          0     168645      84442          0          0      11953
 10   10849480     243925          0          0          0          0     168645      75280          0          0      10451
 11    7297362     226918          0          0          0          0     168645      58273          0          0       4373
 12    6879164     274914          0          0          0          0     168645     106269          0          0       4698
 13   11570583     220045          0          0          0          0     168645      51400          0          0       6116
 14    6641505     231973          0          0          0          0     168645      63328          0          0       8576
 15    4202435     286480          0          0          0          0     168645     117835          0          0       9652
 16    3966020     258319          0          0          0          0     168645      89674          0          0       9412
 17    8204690     244426          0          0          0          0     168645      75781          0          0      10715
 18    6878399     249037          0          0          0          0     168645      80392          0          0      11670
 19   49171041     255605          0          0         15         15     168346      87229          0          0       4440
 20   36235951     248774          0          0         20         20     168390      80344          0          0       5800
 21   16235537     229747          0          0         10         10     168615      61112          0          0       8140
 22    9552576     218609          0          0          0          0     168645      49964          0          0       8639
 23    7303523     296622          0          0          0          0     168645     127977          0          0       9319
 24    7328477     280920          0          0          0          0     168645     112275          0          0       9294
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   47.653s (  671.517 blocks/s,  41.970 Mb/s)
