08.03 DAQ continues - AIDA file RIBF148/R5_117
      165Pm BigRIPS setting + 3mm Al degrader

08.10 all system wide checks OK *except* nnaida7 fails ADC calibration

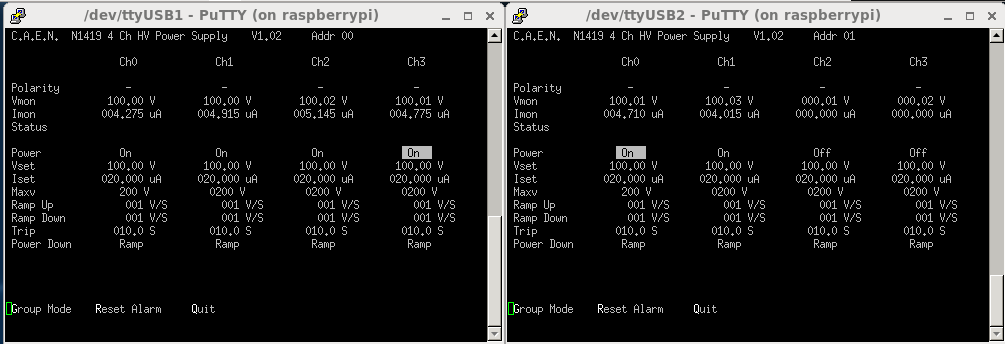

detector biases & leakage currents OK - see attachments 1 & 2

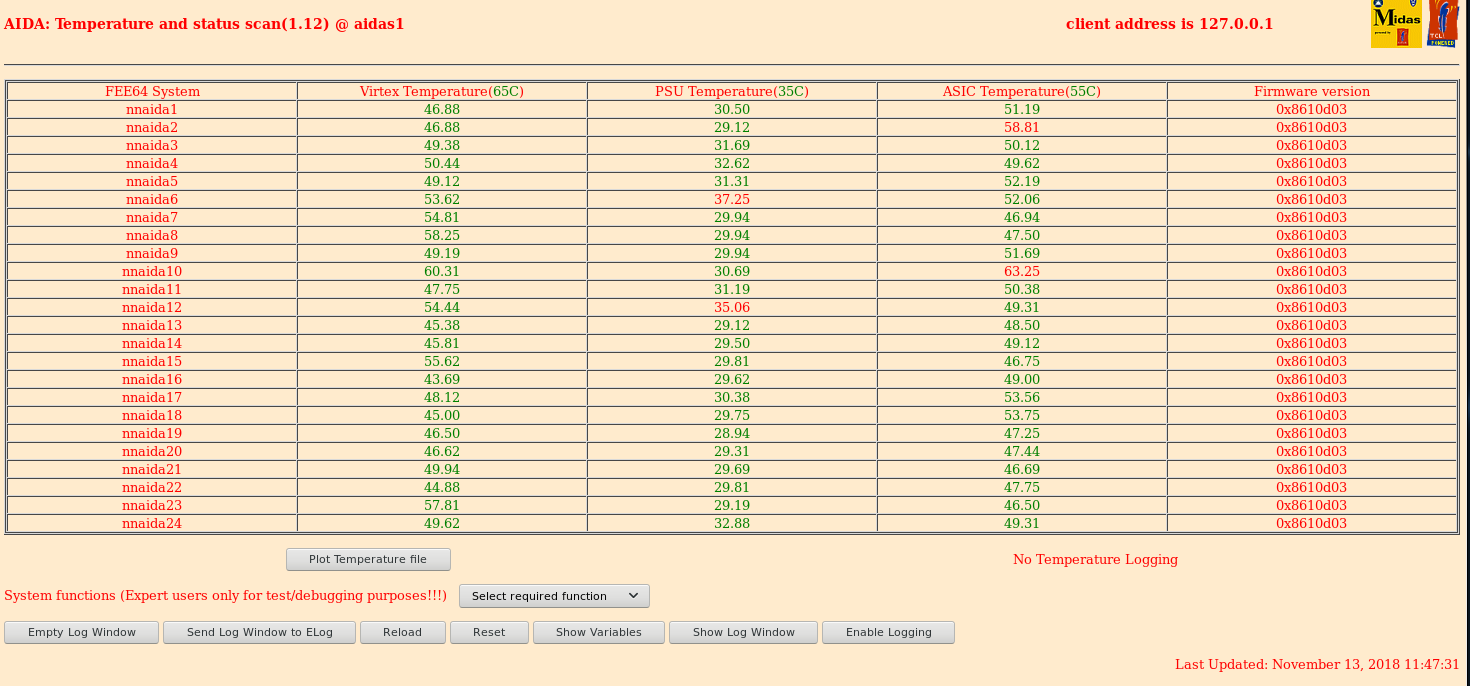

FEE64 temperatures OK - see attachment 3

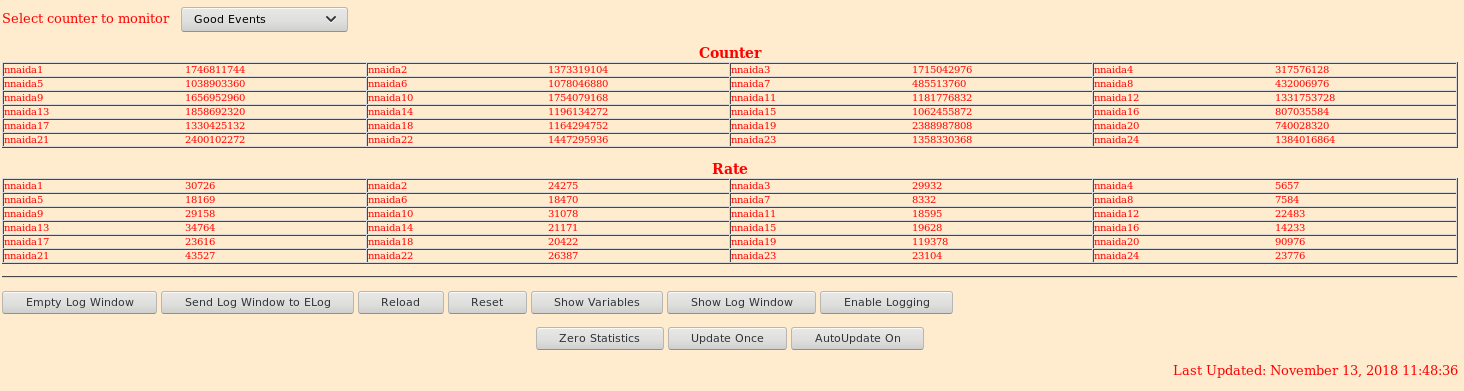

      good event & AIDA discriminator statistics OK - see attachments 4 & 5

Merger OK - see attachment 6
      TapeServer OK - see attachment 7
      no errors or warnings shown by server terminal sessions

08.16 analysis of file RIBF148/R5_116 - see attachment 8
      max deadtime nnaida19 ~ 1/420 ~ 0.25%, no timewarps

08.20 BRIKEN stop file
      AIDA file RIBF148/R5_119

08.22 BRIKEN start file
      AIDA file RIBF148/R5_120
      BRIKEN file 28
      BigRIPS file 1013

08.44 MIDASsort online spectra zero'd

08.56 1.8.W spectra 20ms FSR - see attachments 16 & 17
      observe slow transient recovery per 33nF a.c. coupling but 'sawtooth' transients appear to be absent/rare

09.25 BRIKEN stop file
      AIDA file RIBF148/R5_129

09.28 BRIKEN start file
      AIDA file RIBF148/R5_130
      BRIKEN file 29
      BigRIPS file 1014

10.09 per FEE64 hit pattern (rate) - see attachment 9
      per FEE64 1.8.L spectra - see attachments 10-13
       nnaida1 pulser peak width 76 ch FWHM
      per FEE64 1.8.H spectra - see attachments 14 & 15

10.25 BRIKEN stop file
      AIDA file RIBF148/R5_139

10.27 Beam off - enter F11 to change BRIKEN amp gain
      Correlation scaler pulser trigger frequency changed from 100Hz to 10Hz to minimise BigRIPS DAQ deadtime
      Note - we will observe both edges of pulser trigger doubling the apparent frequency and the TDR data format
      analyser reports each 16-bit word of the 48-bit correlation scaler so weill observe 6x frequency or 600Hz
(previously)
      or 60Hz (now).

10.37 BRIKEN start file
      AIDA file RIBF148/R5_141
      BRIKEN file 30
      BigRIPS file 1015

10.25 BRIKEN stop file
      AIDA file RIBF148/R5_144

BRIKEN reloading DAQ configuration, will send correlation scaler reset

10.56 BRIKEN start file
      AIDA file RIBF148/R5_145
      BRIKEN file 31
      BigRIPS file 1016

BRIKEN reload DAQ configuration again

11.00 BRIKEN stop file
      AIDA file RIBF148/R5_145

11.06 BRIKEN start file
      AIDA file RIBF148/R5_145
      BRIKEN file 32
      BigRIPS file 1017

11.50 system wide checks ok, except nnaida7 ADC calibration failure
      FEE64 temperatures ok (attachment 18)
      good event statistics ok (attachment 19)
      detector bias/leakage currents ok (attachment 20)

12.05 BRIKEN stop file
      AIDA file RIBF148/R5_155

12.07 BRIKEN start file
      BRIKEN file 33
      BigRIPS file 1018
      AIDA file RIBF148/R5_155

13.06 BRIKEN stop file
      AIDA file RIBF148/R5_165

13.08 BRIKEN start file
      BRIKEN file 34
      BigRIPS file 1019
      AIDA file RIBF148/R5_165

13.35 BRIKEN stop file
      AIDA file RIBF148/R5_169

BighRIPS DAQ reset required

13.38 BRIKEN start file
      BRIKEN file 35
      BigRIPS file 1020
      AIDA file RIBF148/R5_170

14.39 BRIKEN stop file
      AIDA file RIBF148/R5_179

14.40 BRIKEN start file
      BRIKEN file 36
      BigRIPS file 1021
      AIDA file RIBF148/R5_179

15.38 BRIKEN stop file
      AIDA file RIBF148/R5_189

15.49 System wide checks ok - except nnaida7 ADC calibration failure
      FEE64 temperatures ok - attachment 21

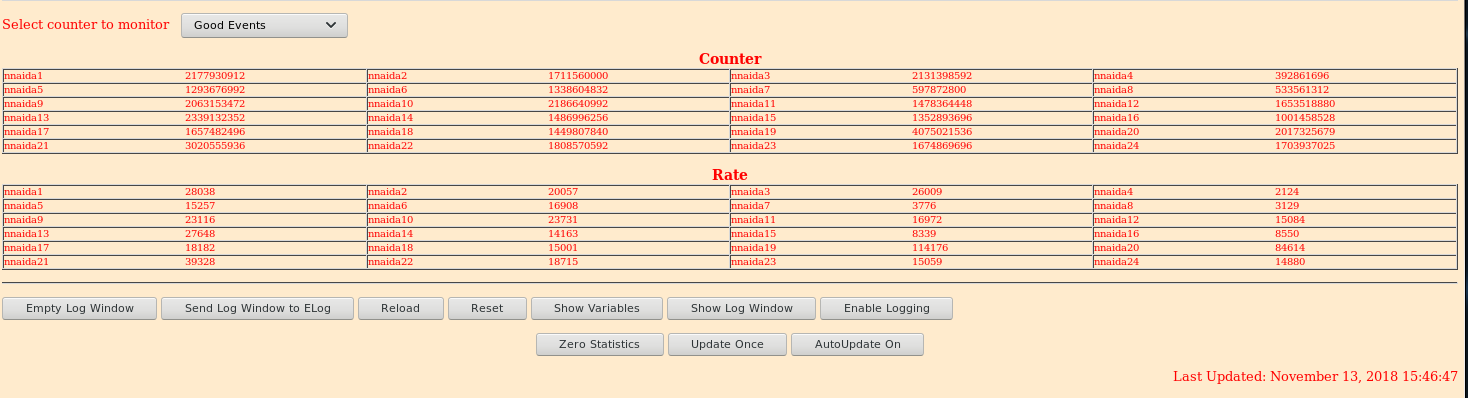

      good event statistics ok - attachment 22
      detector bias/leakage currents ok - attachment 23

15.51 BRIKEN start file
      BRIKEN file 37
      BigRIPS file 1022
      AIDA file RIBF148/R5_191

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1472x1030

Attachment 4:

4.png Original size: 1472x1030

Attachment 5:

5.png Original size: 1472x1030

Attachment 6:

6.png Original size: 1920x1080

Attachment 7:

7.png Original size: 1249x1030

Attachment 8:

R5_116
