Entry time:

Tue Nov 13 22:58:49 2018

Author*:

Subject*:

08:01 BigRips and BRIKEN stop
      AIDA on file R5_346

08:02 BigRIPS starts run 1038
      BRIKEN starts run 181114_0800_165Pm_053.dlt
      AIDA on file R5_346

System wide checks ok * except nnaida 7 fails adc*

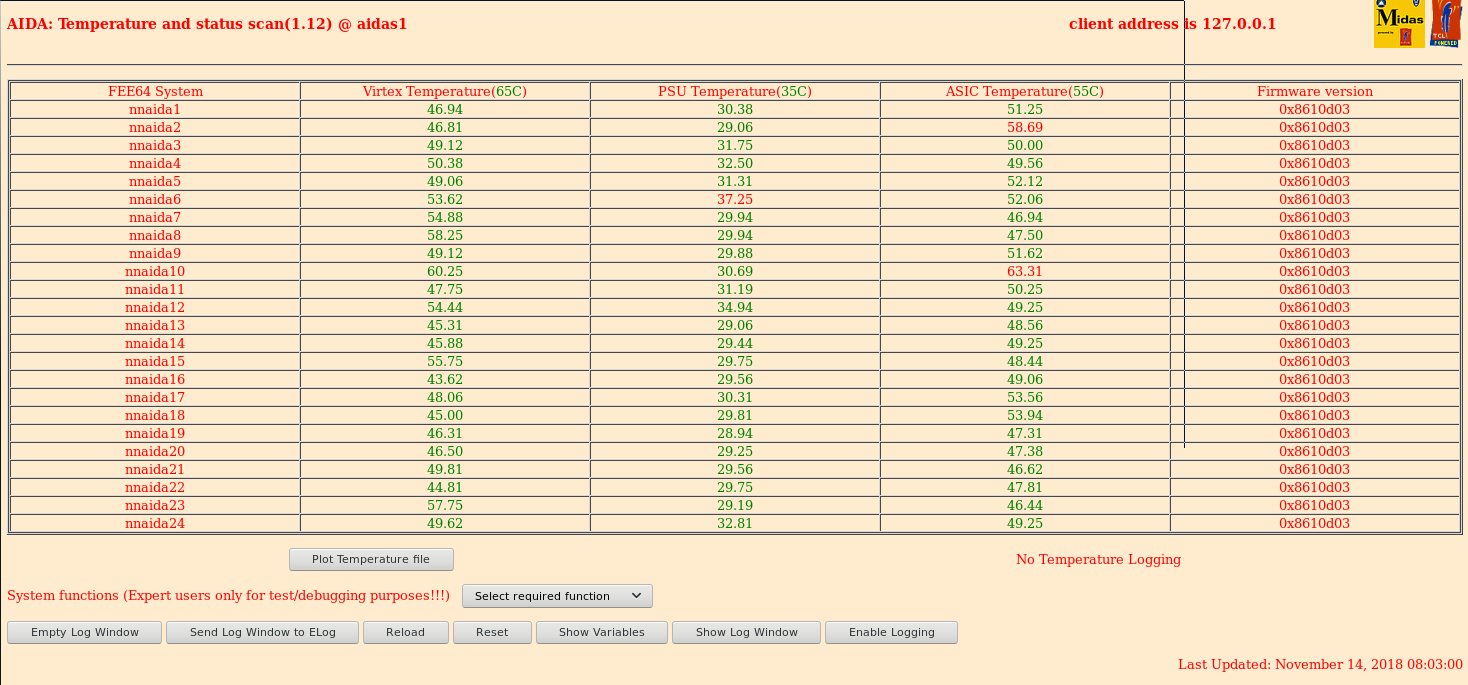

      FEE Temps ok - attachment 1

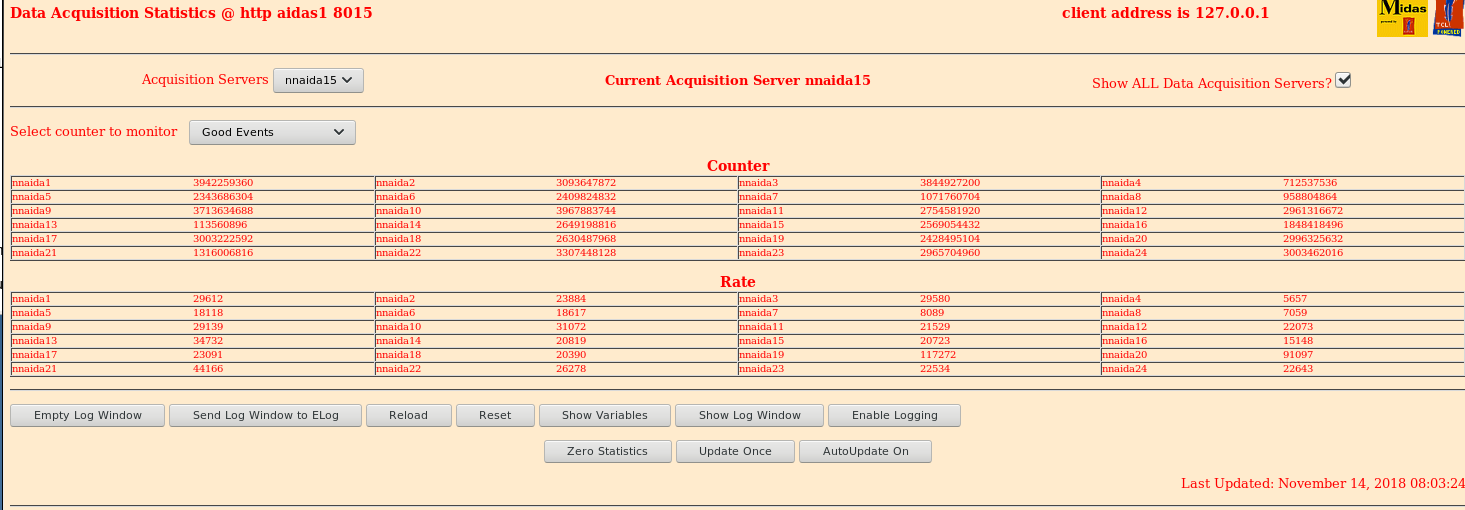

      Stats ok - attachment 2

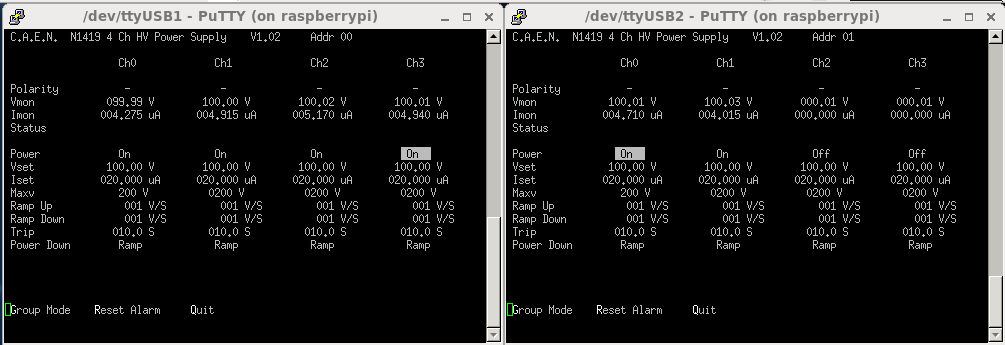

      Leakage currents ok - attachment 3

09:15 BigRIPS and BRIKEN stop
      AIDA on file R5_358

09:16 BigRIPS starts run 1039
      BRIKEN starts run 181114_0915_165Pm_054.dlt
      AIDA on file R5_358

10:15 BigRIPS and BRIKEN stop
      AIDA on file R5_368

10:15 BigRIPS starts run 1040
      BRIKEN starts run 181114_1015_165Pm_055.dlt
      AIDA on file R5_368

10:36 Analyser output of R5_368 - attachment 4

11:15 BugRIPS and BRIKEN stop
      AIDA on File R5_378

11:16 BigRIPS starts run 1041
      BRIKEN starts run
      AIDA on file R5_378

08.03 DAQ continues - AIDA file RIBF148/R5_384
      165Pm BigRIPS setting + 2.8mm Al degrader

ASIC settings 2018Oct03-13.26.58
       from c. 09.00 13.11.18
       n+n FEE64s Ibias LF feedback 0xb -> 0xd
       HEC fast comparator threshold 0x20 -> 0xff

11.50 all system wide checks OK *except* nnaida7 fails ADC calibration

detector biases & leakage currents OK - see attachments 5 & 6

FEE64 temperatures OK - see attachment 7
      good event & AIDA discriminator statistics OK - see attachments 8

Merger OK - see attachment 9
      TapeServer OK - see attachment 10
      no errors or warnings shown by server terminal sessions

per FEE64 Rate spectra - attachment 11
      per FEE64 HitRate spectraq - attachment 12
      1.8.L spectra - attachments 13-16
        some evidence of pulser peak shifts, notably nnaida5, 11 & 15
        nnaida1 pulser peak width 78 ch FWHM
      1.8.H spectra - attachments 17 & 18

      1.8.W spectra 20us FSR - attachments 19 & 23
      1.8.W spectra 200us FSR - attachments 20 & 24
      1.8.W spectra 2ms FSR - attachments 21 & 25
      1.8.W spectra 20ms FSR - attachments 22 & 26

12.15 BugRIPS and BRIKEN stop
      AIDA on File R5_388

12.16 BigRIPS starts run 1042
      BRIKEN starts run 57
      AIDA on file R5_388

12.22 *all* online and MIDASsort spectra zero'd

13:15 BigRIPS and BRIKEN stop
      AIDA on file R5_398

13:16 BigRIPS starts run 1043
      BRIKEN starts run58
      AIDA on file R5_398

13:28 BigRIPS and BRIKEN stop
      AIDA on file
      beam halted to give access to F11 area

13.44 beam started
      BigRIPS and BRIKEN start
      AIDA file RIBF148/R5_402
      BRIKEN run 59
      BigRIPS run 1043

14.45 BRIKEN and BigRIPS stop
      AIDA file RIBF148/R5_412

14.47 BRIKEN and BigRIPS start
      AIDA file RIBF148/R5_413
      BRIKEN run 60
      BigRIPS run 1044

15.43 BRIKEN and BigRIPS stop
      AIDA file RIBF148/R5_422

BRIKEN Resets the timestamp

15:44 BRIKEN and BigRIPS start
      AIDA file RIBF148/R5_422
      BRIKEN run 61
      BigRIPS run 1045

16:02 System wide checks all ok *Except nnaida7 fails adc calibration*
      Leakage currents ok - attachment 27

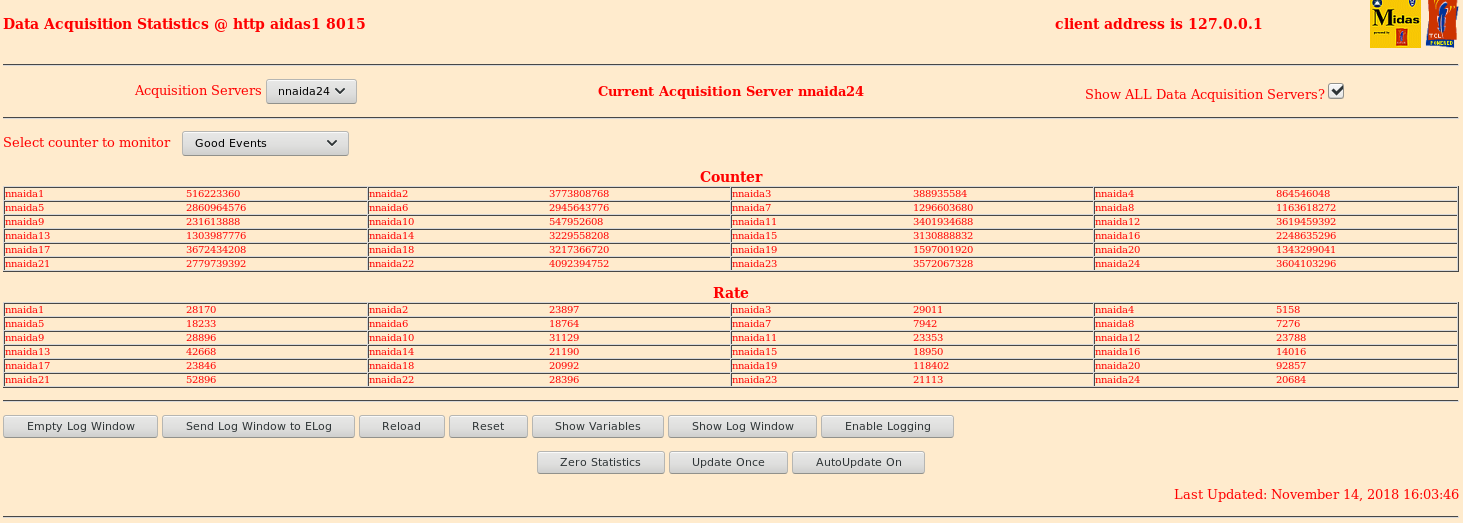

      Stats ok - attachment 28
      FEE Temps ok - attachment 29

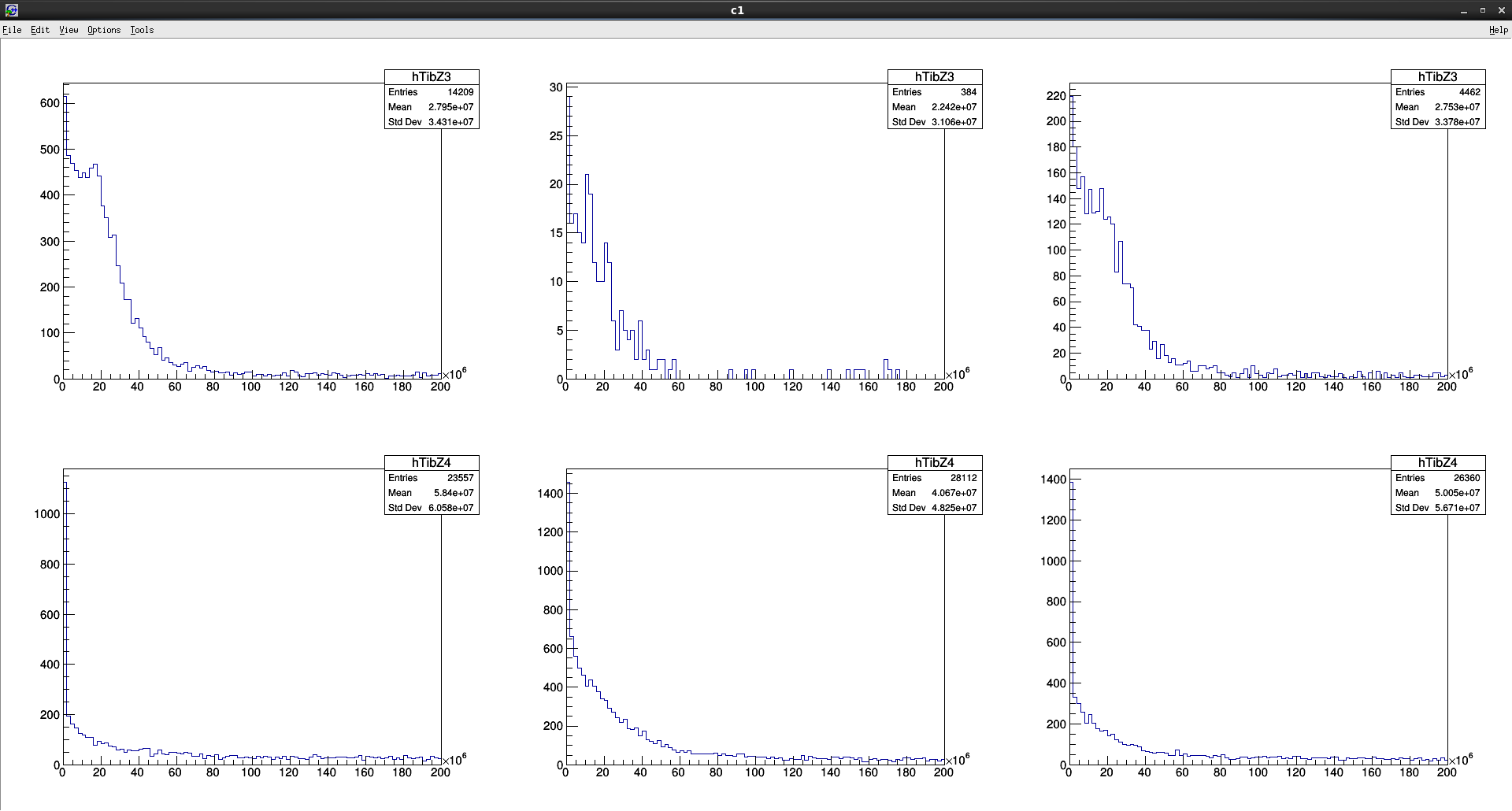

16:27 First 200ms of decay correlations in DSSD 3 and 4 for the 3 degrader settings - attachment 30
      DSSD 3 along the top row and DSSD 4 along the bottom.
      Dgrader settings are 3mm, 2.3mm and 2.8mm
      1 hour data in each

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

181114_0803_Temps.png Original size: 1468x685

Attachment 2:

181114_0804_Stats.png Original size: 1465x510

Attachment 3:

181114_0804_Bias.png Original size: 1005x345

Attachment 4:

181114_1031_R5_368.txt

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256461904 (  706521.7 Hz)
        Other data format:    4658096 (   12832.5 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         33 (       0.1 Hz)
                               RESUME:         33 (       0.1 Hz)
                              SYNC100:    3322732 (    9153.7 Hz)
                           FEE64 disc:    1313518 (    3618.6 Hz)
                             MBS info:      21780 (      60.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     643761 (    1773.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      362.992 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                1.101                1.148
 20                0.283                0.134
 21                0.118                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   10726615     208876          0          0          0          0     138471      70405          0          0      37065
  2    8407185     213530          0          0          0          0     138471      75059          0          0      35818
  3   10476733     157305          0          0          0          0     138471      18834          0          0       9419
  4    1818211     155622          0          0          0          0     138471      17151          0          0      10020
  5    6380735     165281          0          0          0          0     138471      26810          0          0      10909
  6    6596510     183736          0          0          0          0     138471      23485      21780          0      12001
  7    2712077     185138          0          0          0          0     138471      46667          0          0      26194
  8    2443575     187317          0          0          0          0     138471      48846          0          0      26041
  9   10069449     227362          0          0          0          0     138471      88891          0          0      44355
 10   10901815     218729          0          0          0          0     138471      80258          0          0      40567
 11    8044117     174331          0          0          0          0     138471      35860          0          0      17256
 12    8220834     172999          0          0          0          0     138471      34528          0          0      16656
 13   14946487     190378          0          0          0          0     138471      51907          0          0      24956
 14    6974436     192596          0          0          0          0     138471      54125          0          0      29018
 15    7335716     206892          0          0          0          0     138471      68421          0          0      34725
 16    4880686     206834          0          0          0          0     138471      68363          0          0      35955
 17    8251564     243079          0          0          0          0     138471     104608          0          0      33279
 18    7242529     223181          0          0          0          0     138471      84710          0          0      43101
 19   43595390     171906          0          0         19         19     138052      33816          0          0      16209
 20   33316232     170202          0          0          7          7     138363      31825          0          0      16034
 21   18502909     191733          0          0          7          7     138426      53293          0          0      28652
 22    9806748     191052          0          0          0          0     138471      52581          0          0      27381
 23    7438051     212900          0          0          0          0     138471      74429          0          0      34092
 24    7373300     207117          0          0          0          0     138471      68646          0          0      34058
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   19.258s ( 1661.663 blocks/s, 103.854 Mb/s)

Attachment 5:

1.png Original size: 502x344
