Entry time:

Wed Nov 14 07:43:35 2018

Author*:

Subject*:

16.44 DAQ continues OK - AIDA file RIBF148/R5_432
      165Pm BigRIPS setting + 2.8mm Al degrader

ASIC settings 2018Oct03-13.26.58
       from c. 09.00 13.11.18
       n+n FEE64s Ibias LF feedback 0xb -> 0xd
       HEC fast comparator threshold 0x20 -> 0xff

BNC PB-4 pulser
      Amplitude 90,000, x5 attenuator IN
      t_r 50ns tau_d 1ms
      Frequency min
      Delay min

16.45 BigRIPS and BRIKEN stop
      AIDA on File R5_432

16.48 BigRIPS starts run 1047
      BRIKEN starts run 62
      AIDA on file R5_433

16.57 online MIDASsort

m_p versus m_n (LEC) - attachment 1
      x versus y (LEC) - attachment 2
      E_p versus E_n (LEC) - attachment 3
      m_p versus m_n (HEC) - attachment 4
      x versus y (LEC) - attachment 5

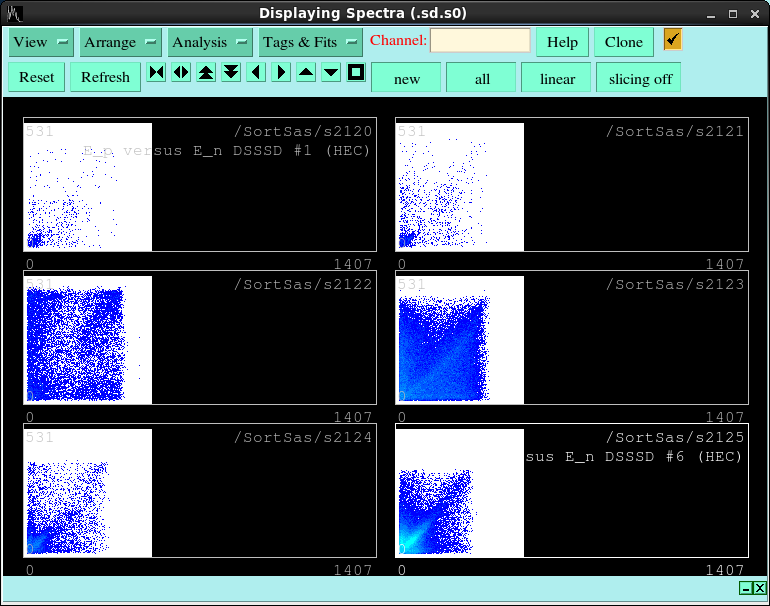

      E_p versus E_n (LEC) - attachment 6

all MIDASsort spectra zero'd

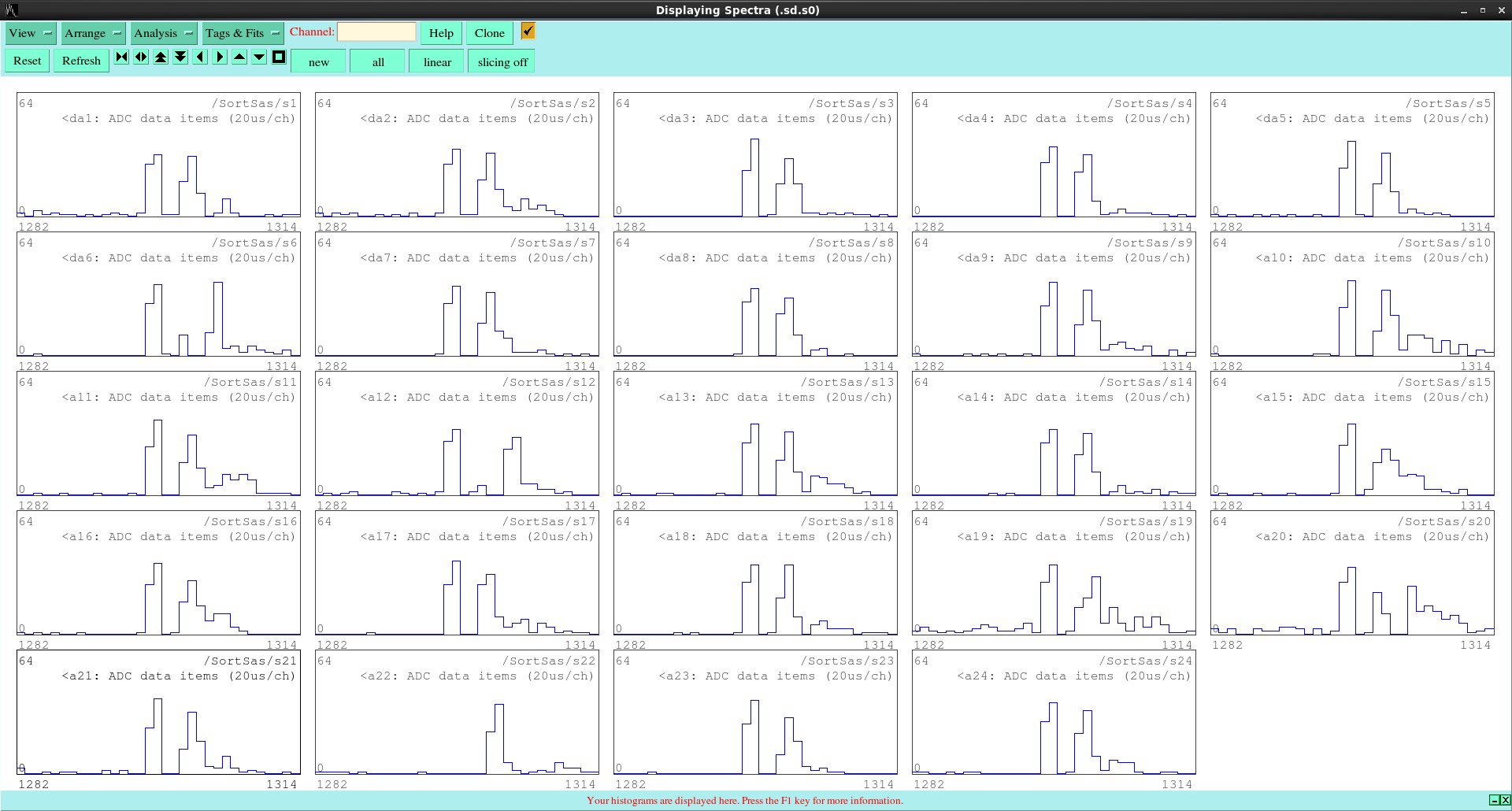

17.17 file RIBF128/R5_436 ADC data synchronised - attachment 7
      analysis of RIBF148/R5_436 - attachment 8
       max dead time nnaida19 ~0.25%

17.48 BigRIPS and BRIKEN stop
      AIDA on File R5_443

17.48 BigRIPS starts run 1048
      BRIKEN starts run 63
      AIDA on file R5_443

18.45 BigRIPS and BRIKEN stop
      AIDA on File R5_452

18.47 BigRIPS starts run 1049
      BRIKEN starts run 64
      AIDA on file R5_453

19.45 BigRIPS and BRIKEN stop
      AIDA on File R5_463

19.46 BigRIPS starts run 1050
      BRIKEN starts run 65
      AIDA on file R5_463

20.49 BigRIPS and BRIKEN stop
      AIDA on File R5_473

20.49 BigRIPS starts run 1051
      BRIKEN starts run 66
      AIDA on file R5_473

21.49 BigRIPS and BRIKEN stop
      AIDA on File R5_483

ASIC check load

21.50 BigRIPS starts run 1052
      BRIKEN starts run 67
      AIDA on file R5_484

22.00 all system wide checks OK *except* nnaida7 fails ADC calibration

detector biases & leakage currents OK - see attachments 9 & 10

FEE64 temperatures OK - see attachment 11
      good event statistics OK - see attachments 12

Merger OK - see attachment 13

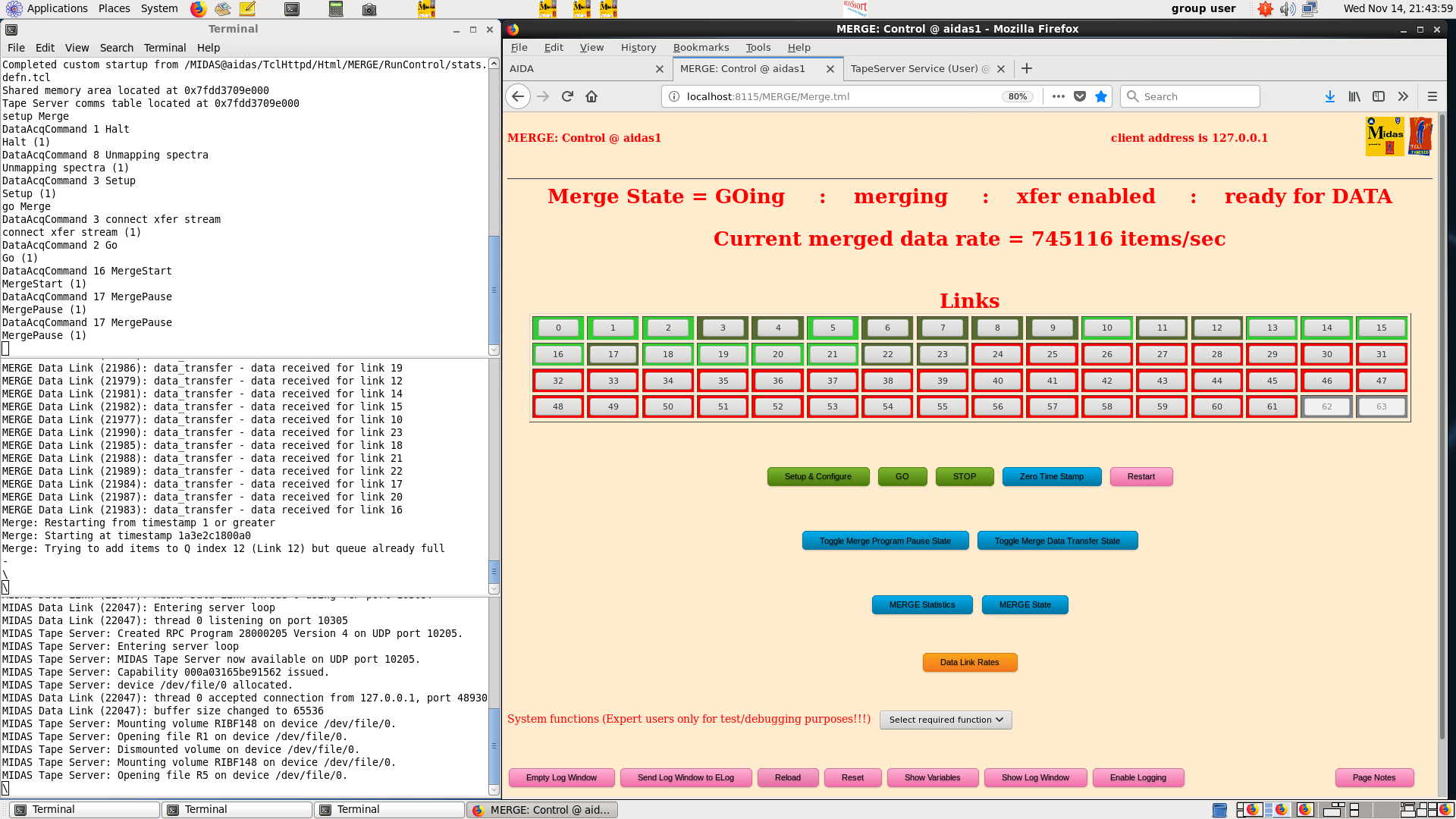

      TapeServer OK - see attachment 14
      1x merger error message reported - trying to add items to Q index 12 (Link 12) but queue alreday full

per FEE64 Rate spectra - attachment 15

1.8.L spectra - attachments 16 & 17
       nnaida1 pulser peak width 73 ch FWHM
      1.8.H spectra - attachments 18 & 19
      1.8.W spectra 20ms FSR - attachments 20 & 21

22.48 BigRIPS and BRIKEN stop
      AIDA on File R5_493

22.50 BigRIPS starts run 1053
      BRIKEN starts run 68
      AIDA on file R5_493

23.24 BRIKEN DAQ found stopped - no sync check data - BigRIPS DAQ stopped and restarted
      AIDA on File R5_499

23.26 BigRIPS starts run 1054
      BRIKEN starts run 69
      AIDA on file R5_499

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 770x606

Attachment 2:

2.png Original size: 770x606

Attachment 3:

3.png Original size: 770x606

Attachment 4:

4.png Original size: 770x606

Attachment 5:

5.png Original size: 770x606

Attachment 6:

6.png Original size: 770x606

Attachment 7:

7.png Original size: 1920x1030

Attachment 8:

R5_436

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256447245 (  711631.1 Hz)
        Other data format:    4672755 (   12966.7 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         36 (       0.1 Hz)
                               RESUME:         36 (       0.1 Hz)
                              SYNC100:    3298697 (    9153.8 Hz)
                           FEE64 disc:    1352365 (    3752.8 Hz)
                             MBS info:      21621 (      60.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:     661921 (    1836.8 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      360.365 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.004                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.862                0.899
 20                0.456                0.000
 21                0.147                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   10770548     207657          0          0          0          0     137469      70188          0          0      36984
  2    8473890     212933          0          0          0          0     137469      75464          0          0      35853
  3   10397373     156185          0          0          0          0     137469      18716          0          0       9335
  4    1780133     154314          0          0          0          0     137469      16845          0          0       9867
  5    6352283     164059          0          0          0          0     137469      26590          0          0      10713
  6    6547243     182223          0          0          0          0     137469      23133      21621          0      11822
  7    2668233     184060          0          0          0          0     137469      46591          0          0      26121
  8    2435700     186218          0          0          0          0     137469      48749          0          0      26012
  9   10049954     226668          0          0          0          0     137469      89199          0          0      44850
 10   10856564     218791          0          0          0          0     137469      81322          0          0      40878
 11    8623388     176119          0          0          0          0     137469      38650          0          0      18542
 12    8569123     174060          0          0          0          0     137469      36591          0          0      17590
 13   15209523     193328          0          0          1          1     137467      55859          0          0      26741
 14    7161713     195769          0          0          0          0     137469      58300          0          0      31638
 15    6550584     208133          0          0          0          0     137469      70664          0          0      35739
 16    4844223     208243          0          0          0          0     137469      70774          0          0      37225
 17    8263868     247032          0          0          0          0     137469     109563          0          0      33723
 18    7238281     222890          0          0          0          0     137469      85421          0          0      43498
 19   43563850     172765          0          0         15         15     137141      35594          0          0      17030
 20   33226392     171141          0          0         12         12     137295      33822          0          0      16961
 21   18452729     195097          0          0          8          8     137414      57667          0          0      31075
 22    9716735     193918          0          0          0          0     137469      56449          0          0      29618
 23    7408691     213394          0          0          0          0     137469      75925          0          0      35131
 24    7286224     207758          0          0          0          0     137469      70289          0          0      34975
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   20.398s ( 1568.748 blocks/s,  98.047 Mb/s)

Attachment 9:

10.png Original size: 502x344
