Entry time:

Fri May 10 05:58:01 2019

Author*:

Subject*:

11.00 - chiller refilled and switched on
        set to 20 degrees celsius

AIDA stand moved and secured in F11
        clock connected -> 50 MHz square wave at 5.0 V

AIDA connected to power box
        network cables attached
        NIM modules switched on

Raspberry Pis switched on
        Detector bias switched on for detectors 1-6



13.58 - AIDA power relay 1,2,5,6 sequenced on
       bias/leakage currents ok (attachment 1)
       DAQ setup
       System wide checks ok, except naida07 fails ADC calibration, and clock status check returns error in
nnaida06, 5.

Above issue with clock no longer present

FEE temperatures ok (attachment 2)

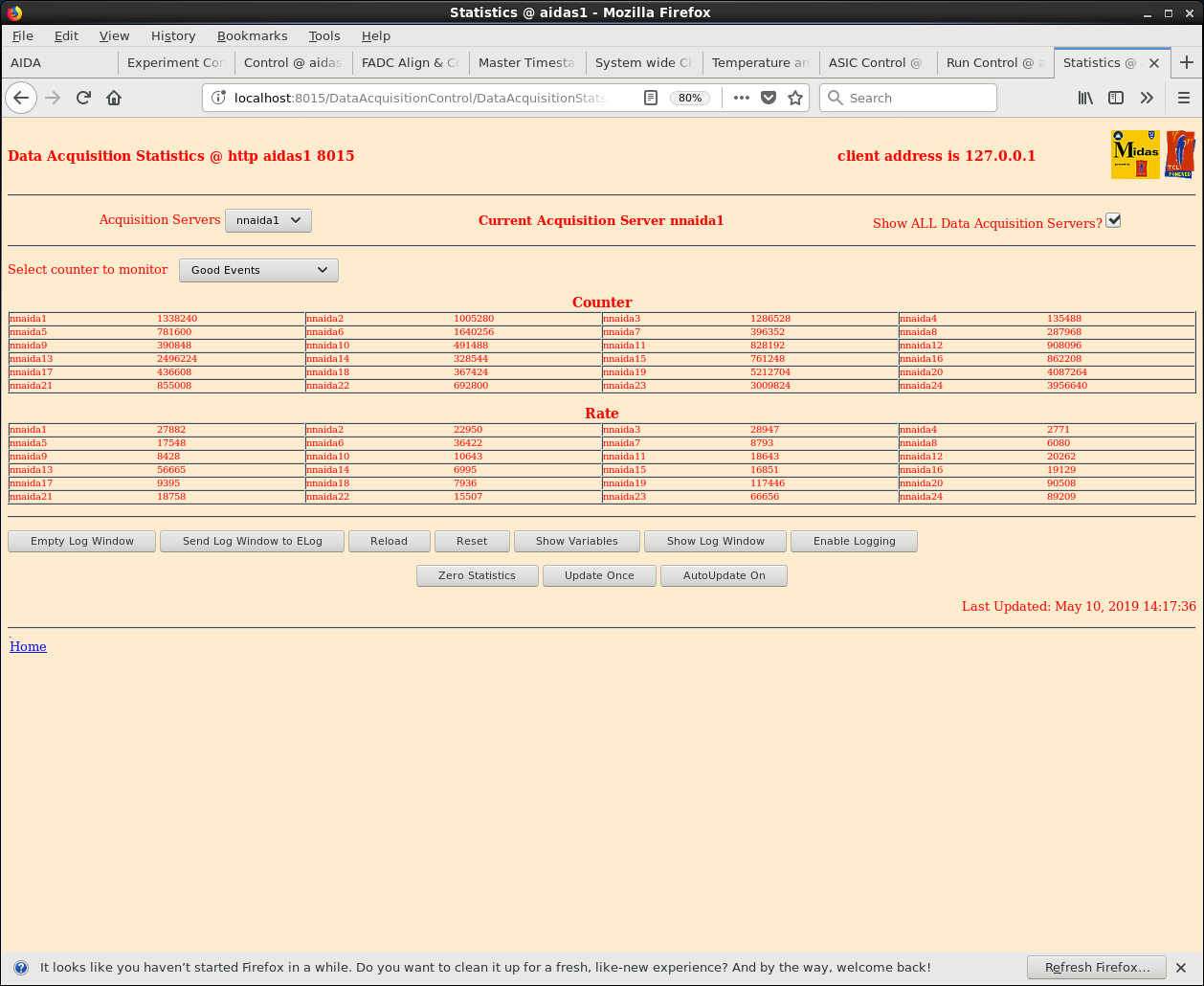

       good event statistics (attachment 3)

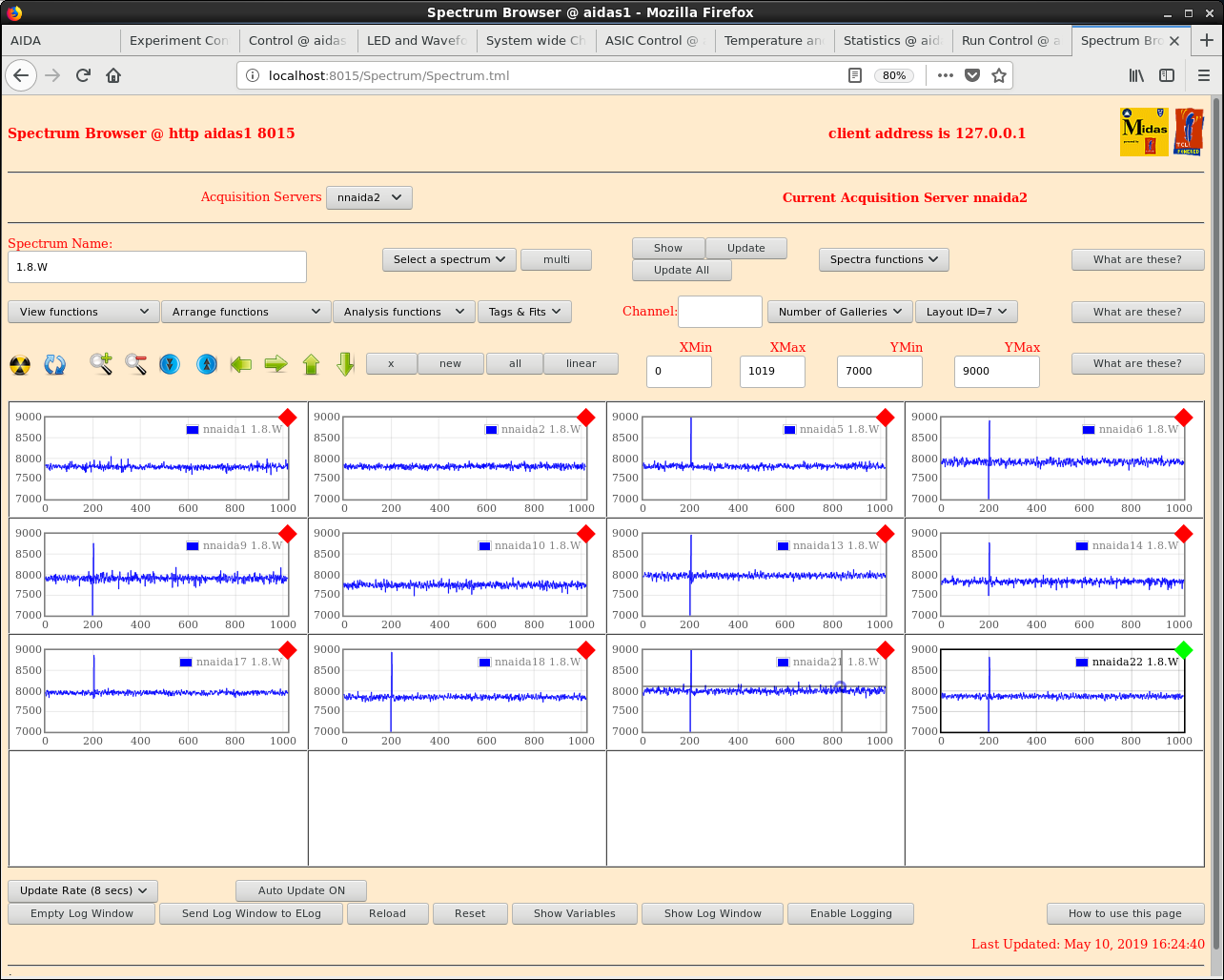

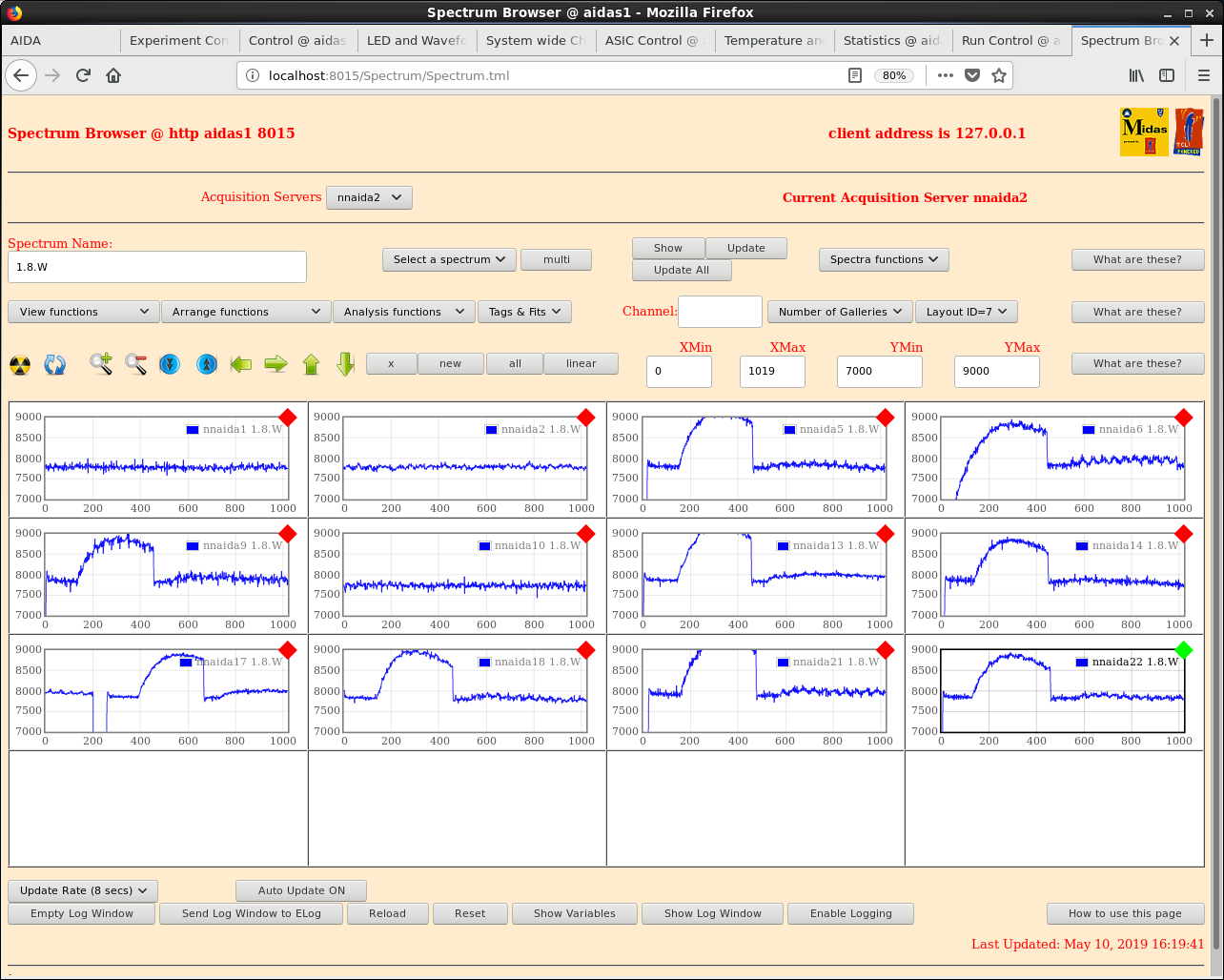

16.30 1.8.W spectra n+n strips
      FSR 20us, 200us, 2ms, 20ms attachments 4-7

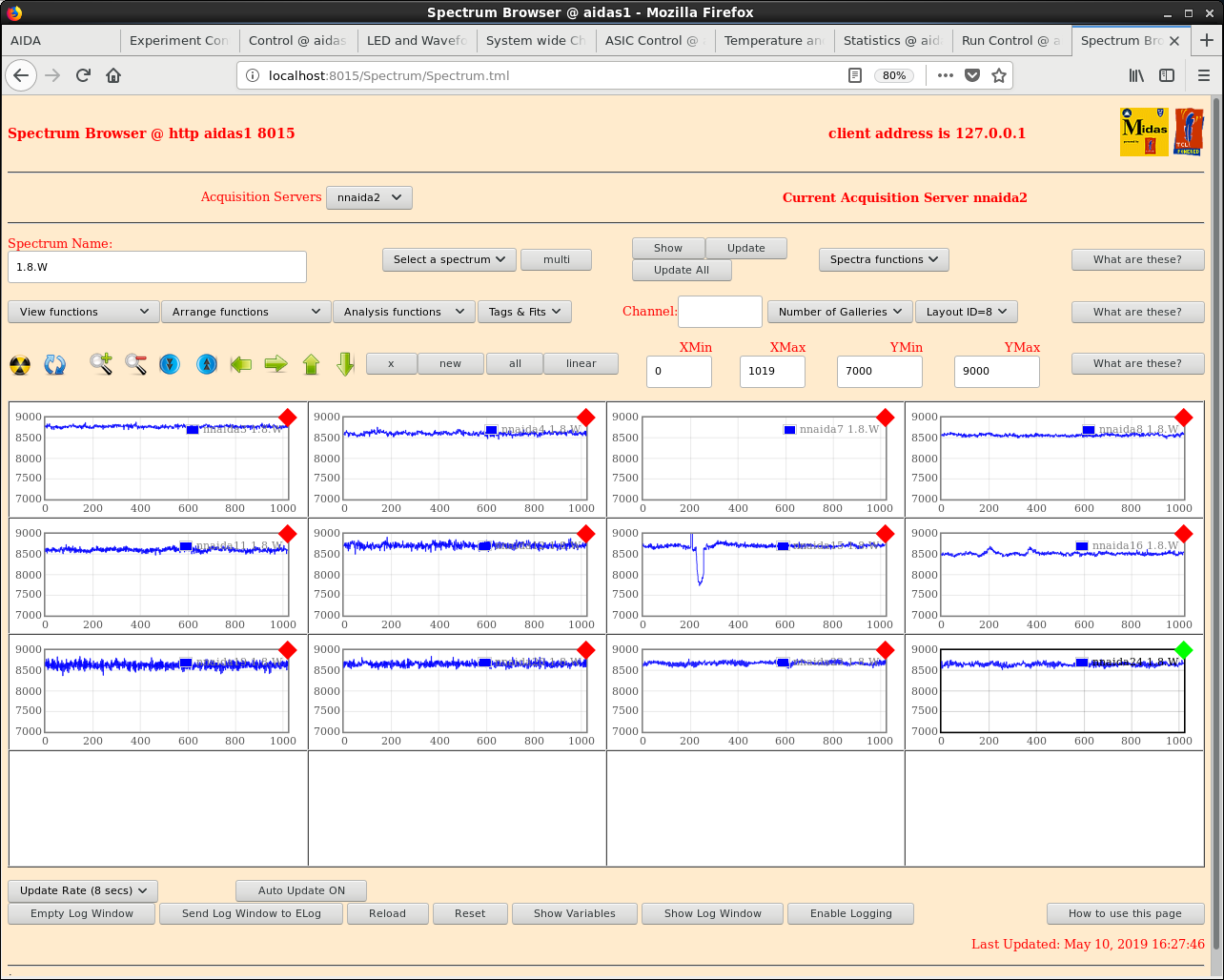

1.8.W spectra p+n strips
      FSR 20us, 200us, 2ms, 20ms attachments 8-11

      compare with https://elog.ph.ed.ac.uk/AIDA/746

naida19, naida20, naida23 show low frequency noise structure, worse than in above elog entry

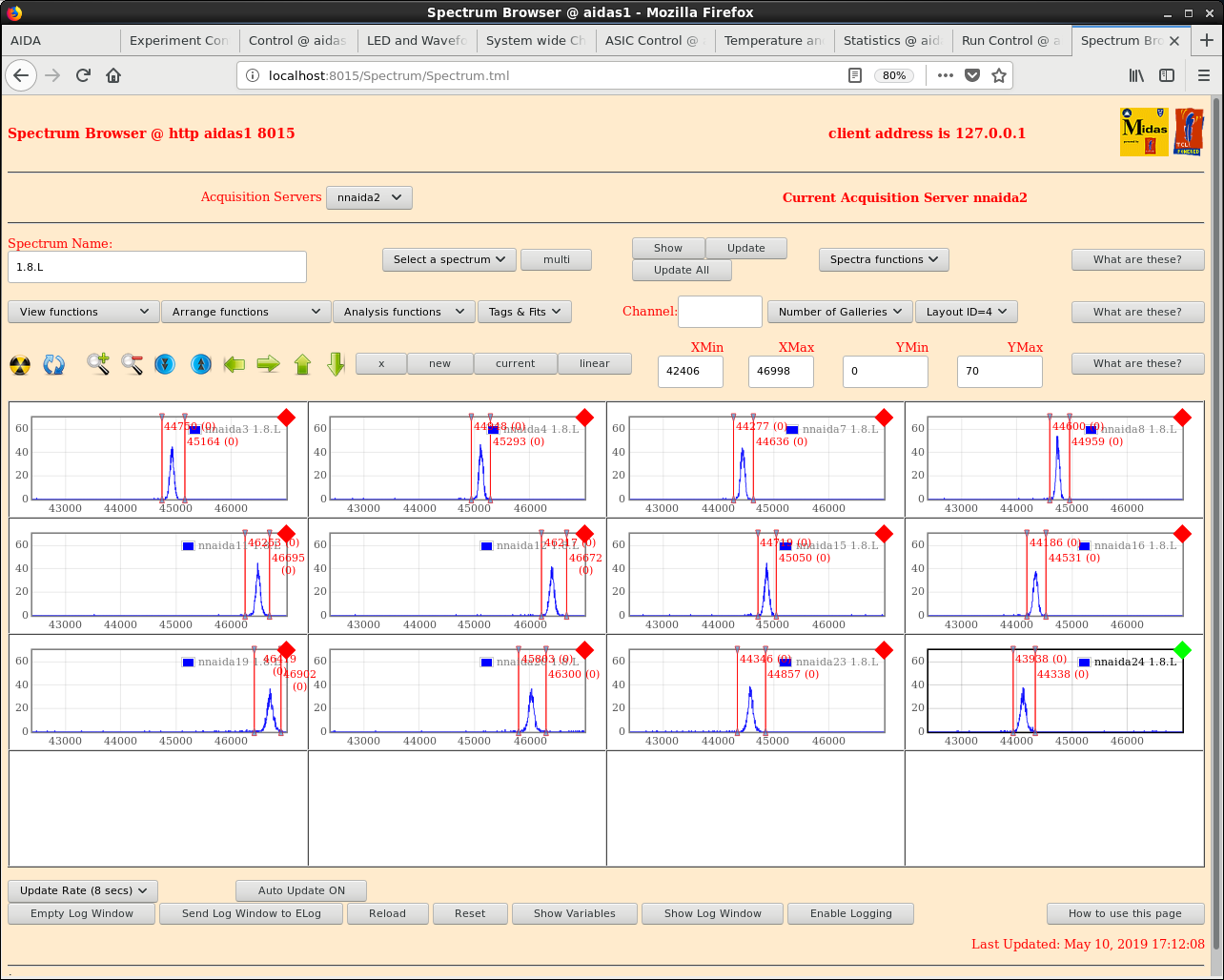

17.22 1.8.L spectra p+n strips

peaks:

aida01 72
      aida02 112
      aida03 80
      aida04 78
      aida05 74
      aida06 95
      aida07 78
      aida08 71
      aida09 82
      aida10 85
      aida11 93
      aida12 96
      aida13 101
      aida14 70
      aida15 87
      aida16 87
      aida17 69
      aida18 83
      aida19 127
      aida20 116
      aida21 84
      aida22 74
      aida23 108
      aida24 117
