Entry time:

Tue May 14 02:19:20 2019

Author*:

Subject*:

10.20 System wide checks ok (except naida07 ADC calibration failure)

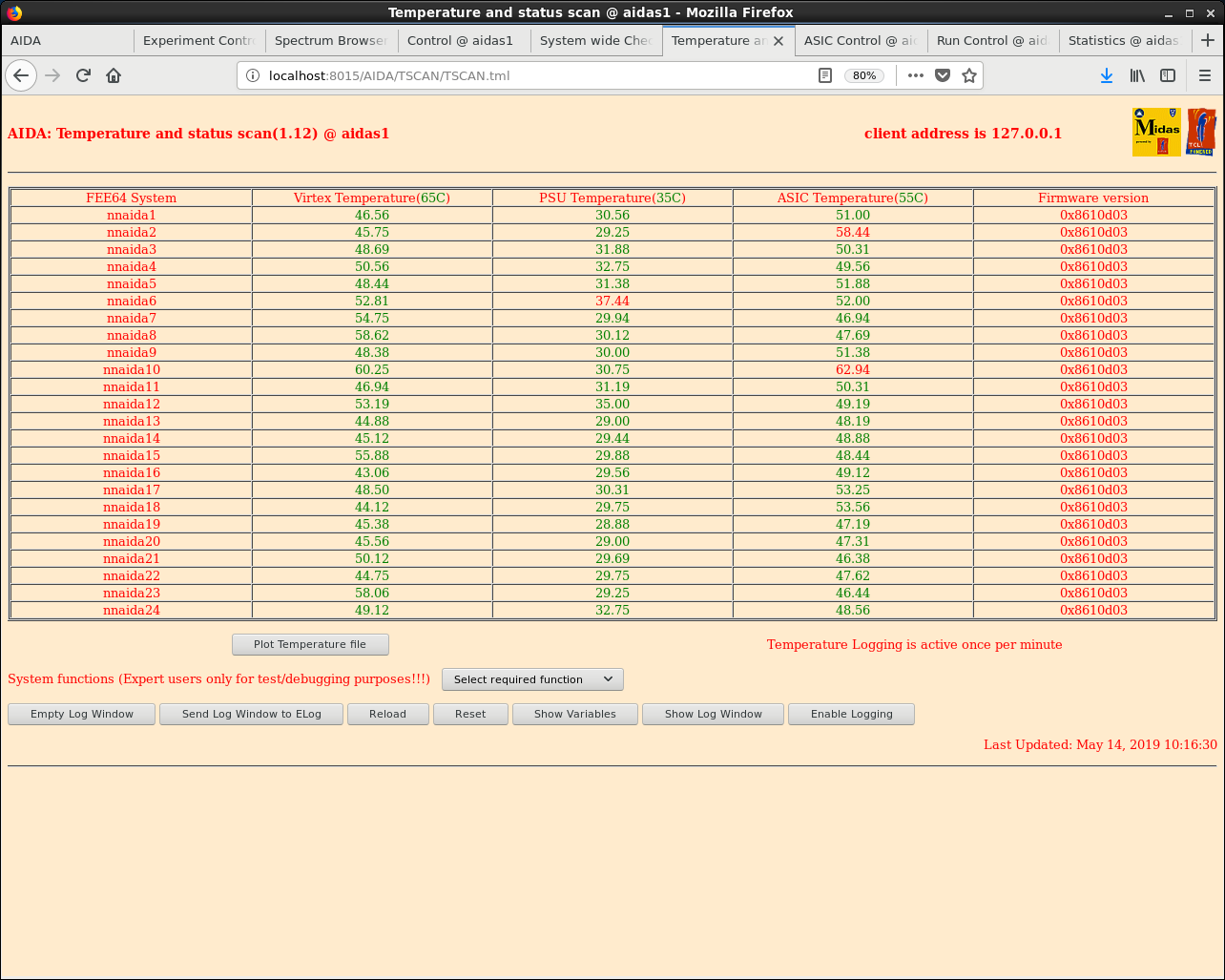

FEE temperatures ok (attachment 1)

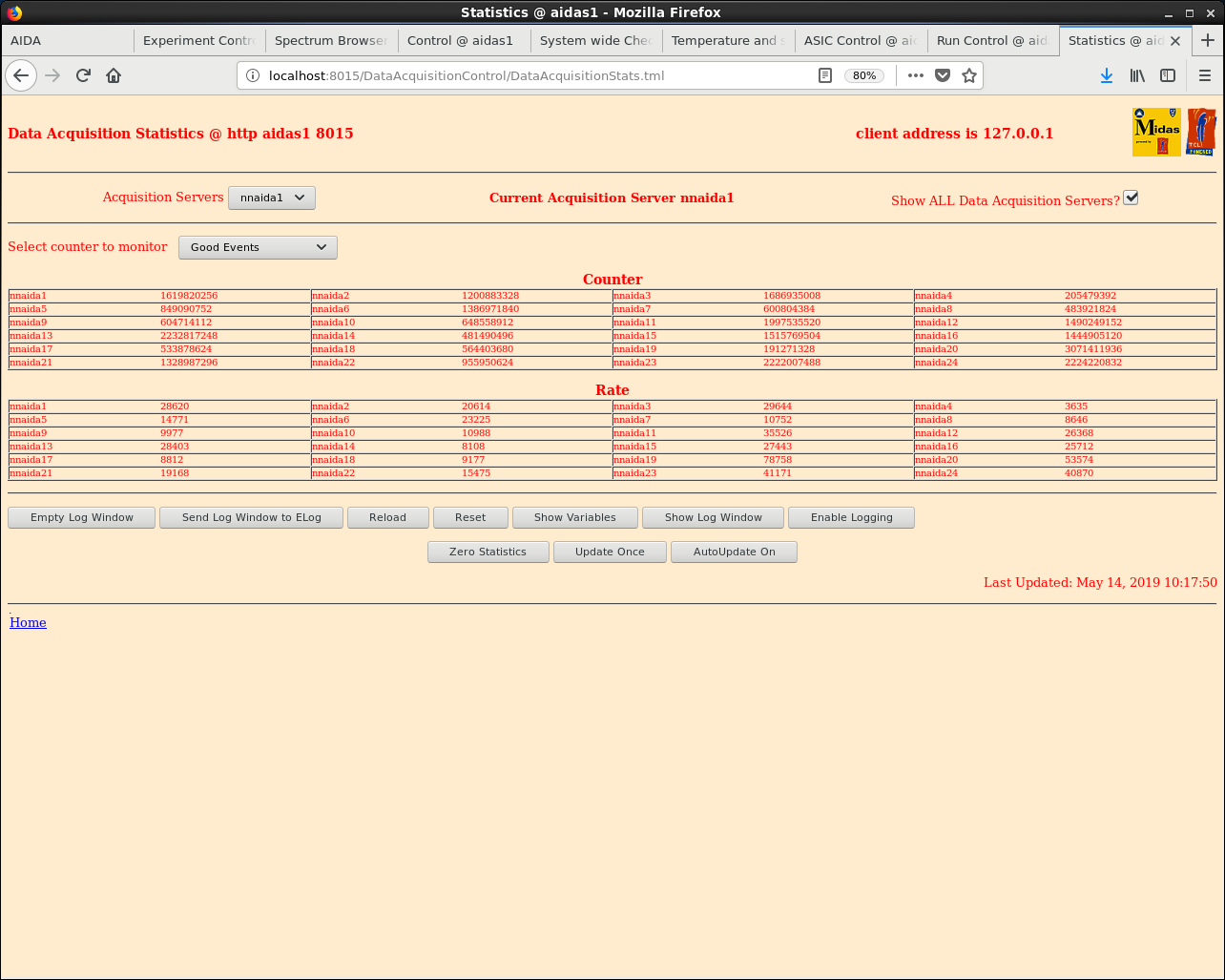

good event statistics ok (attachment 2)

detector bias and leakage currents ok (attachment 3)

DAQ stopped

10.40 pulser switched off

slow comparator threshold raised to 0x64

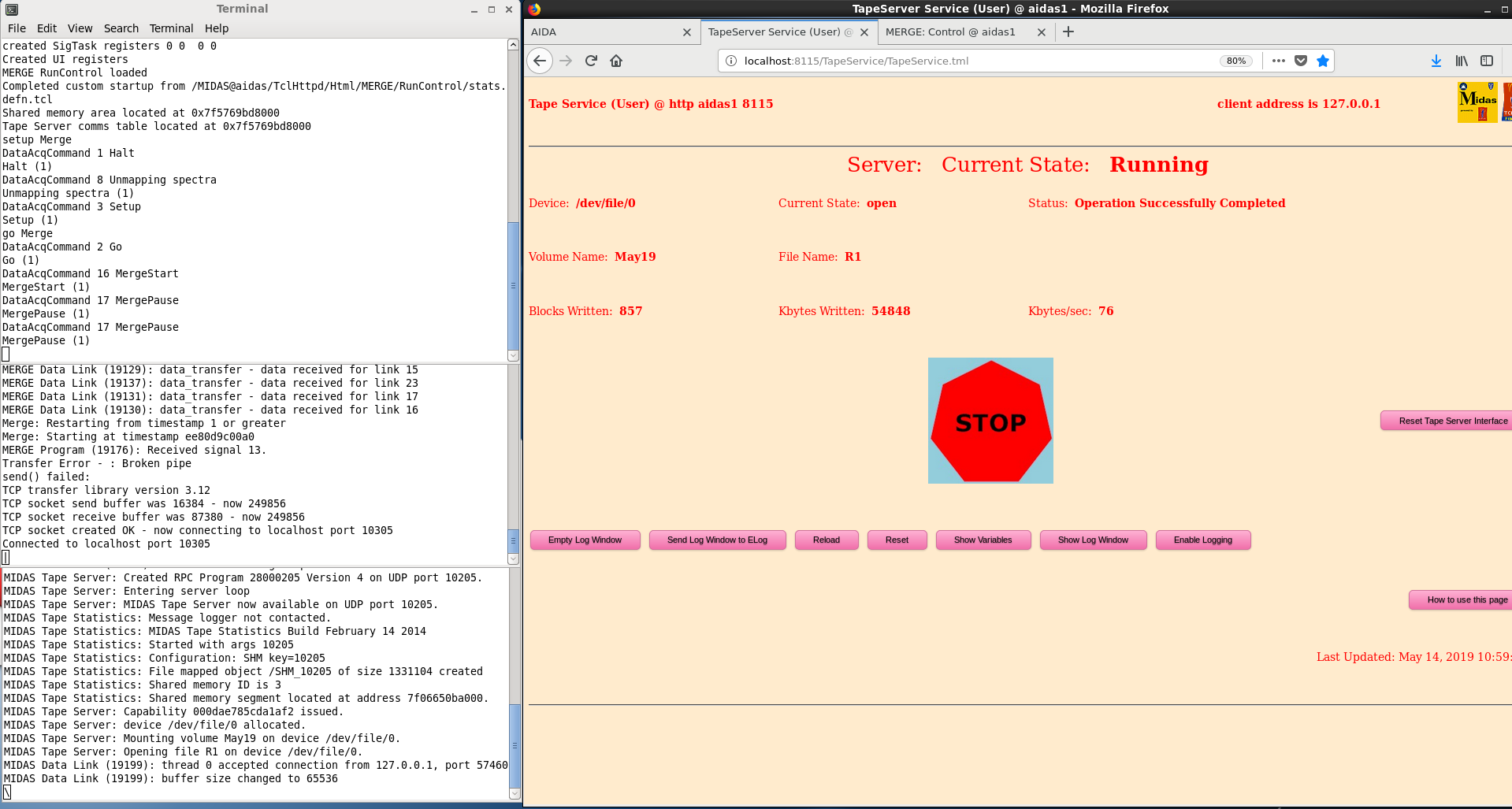

      DAQ, merger, TapeServer started - all ok (attachments 4 and 5)

writing to file R1 in TapeData/May19 at 70 kb/s

good event statistics (attachment 6)

16:11 Tapeserver and merger still ok
      DAQ still running
      System wide checks all ok *except nnaida7 fails ADC calibration*
      Bias and leakage currents ok - attachment 7
      FEE Temperatures ok - attachment 8
      Statistics still ok

      Spectrum are showing alpha events (Layout 4) - attachment 9

18:25 Tektronix clock accidentally unplugged. DAQ has stalled as a result.
      Clock reset to 50MHz 5V TTL signal

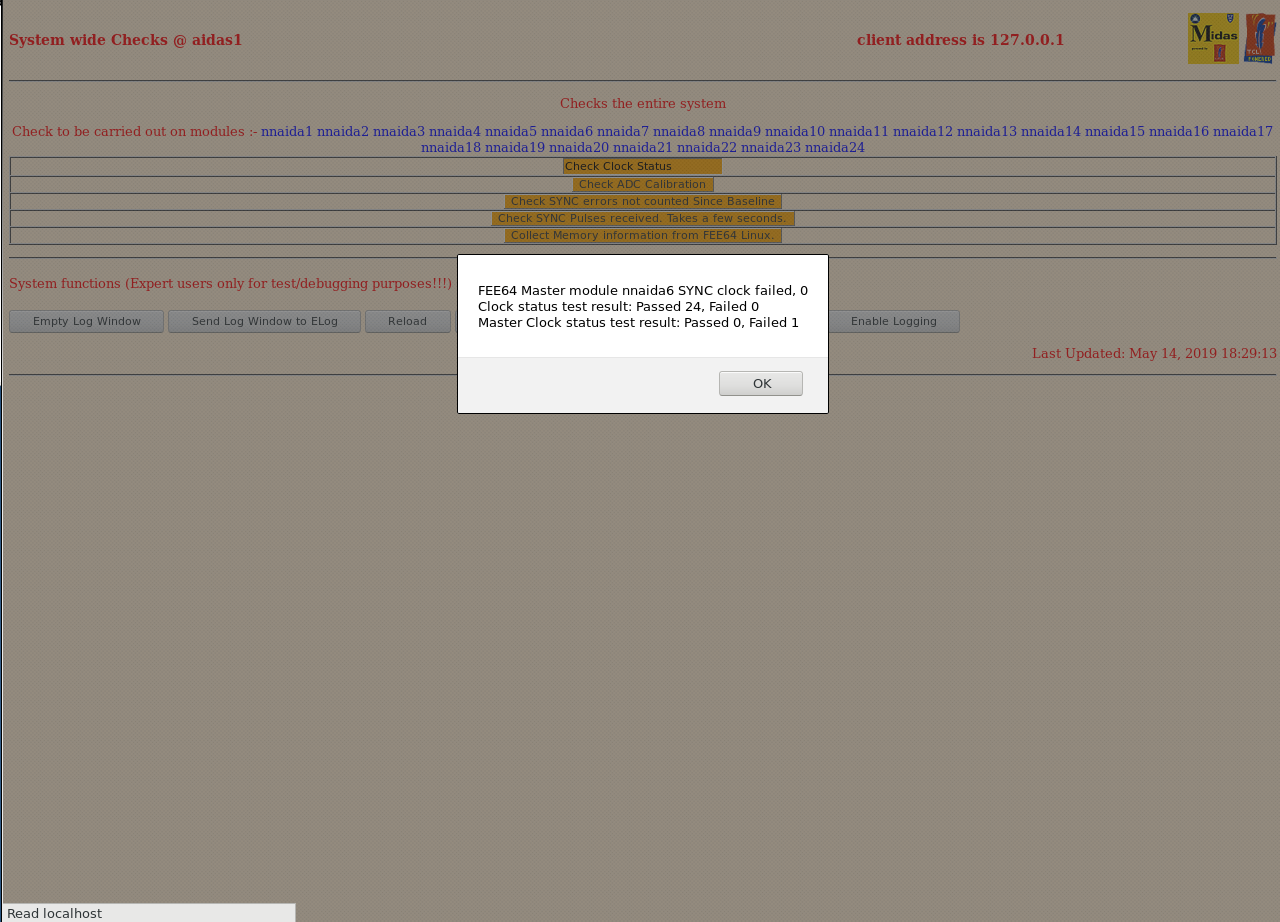

18:29 System wide check of clock status shows error message in attachment 10

DAQ Reset

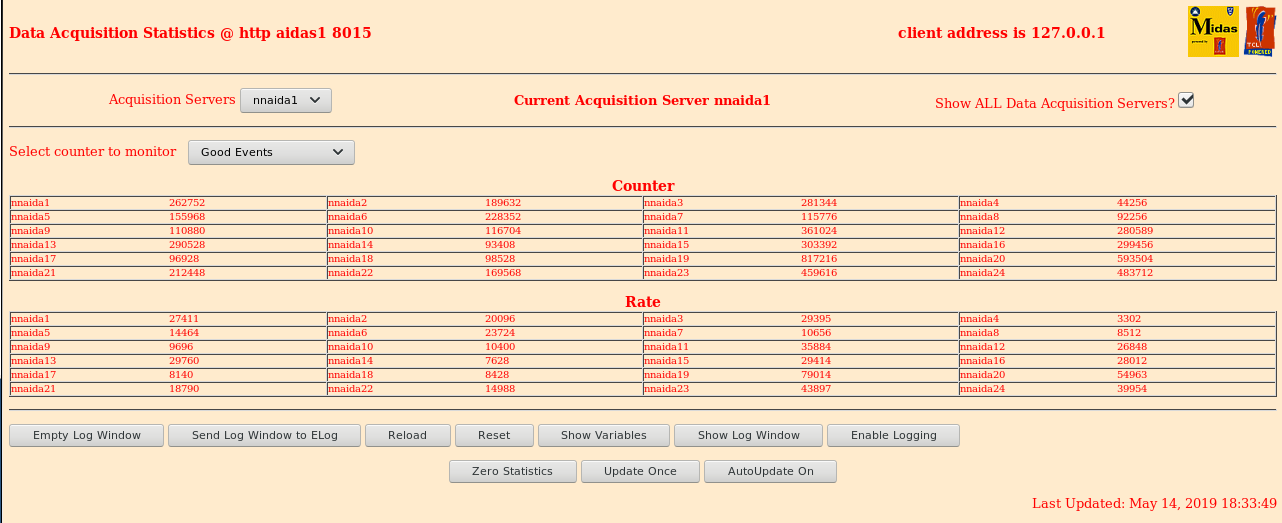

      With slow comp at oxa statistics are still good - attachment 11
      System wide checks all ok *except nnaida7 fails ADC calibration*
      Resync to the ASIC clock
      All histograms zeroed

18:37 Slow comp threshold raised to 0x64 for alpha run
      Writing to file:
      May19/R2_0
