Entry time:

Wed May 15 02:17:23 2019

Author*:

Subject*:

10.18 DAQ continues OK to file May19/R2

alpha background

ASIC settings 2018Oct03-13.26.58
      *except* slow comparator 0xa -> 0x64

BNC PB-4 Pulser OFF

all system wide checks OK *except* nnaida7 fails ADC calibration

detector biases & leakage currents OK - see attachments 1 & 2

FEE64 temperatures OK - see attachment 3

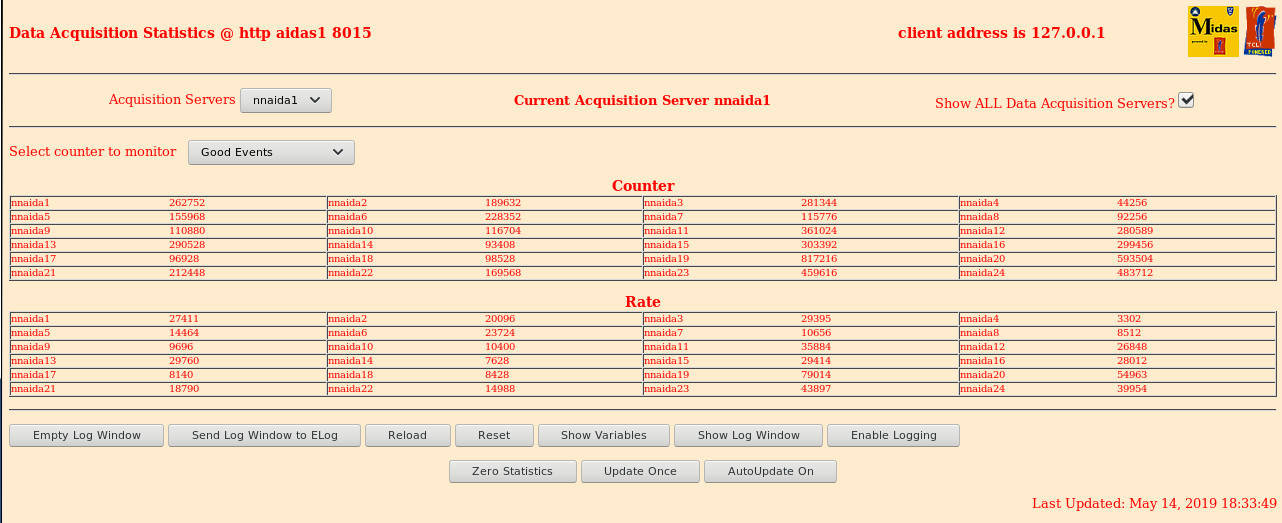

      good event statistics OK - see attachments 4

Merger OK - see attachment 5
      TapeServer OK - see attachment 6

1.8.L spectra - attachments 7 & 8
      1.8.W spectra 20us FSR - attachments 10 & 11
      1.8.W spectra 20ms FSR - attachments 10 & 11

Julabo FL11006 chiller set point +20 deg C actual +20.0 deg C - water topped up
      Temperature + deg 24.7C dew point +7.5 deg C RH 33.3%

FEE64 nnaida1-4 temperature logs - see attachments 12-15
      all FEE64 temperatures appear to be stable

11.05 check ASIC control *all* FEE64s and ASICs

11.13 analysis of file May19/R2_1 - see attachment 16
      ADC rate c. 72Hz dominated by same, single hot channel (Stat spectrum ch# 104) in each of FEE64s nnaida1,
2, 5 & 6 otherwise looks OK
      sync pulser rate 10Hz confirmed by JA

17.25 all system wide checks OK *except* nnaida7 fails ADC calibration

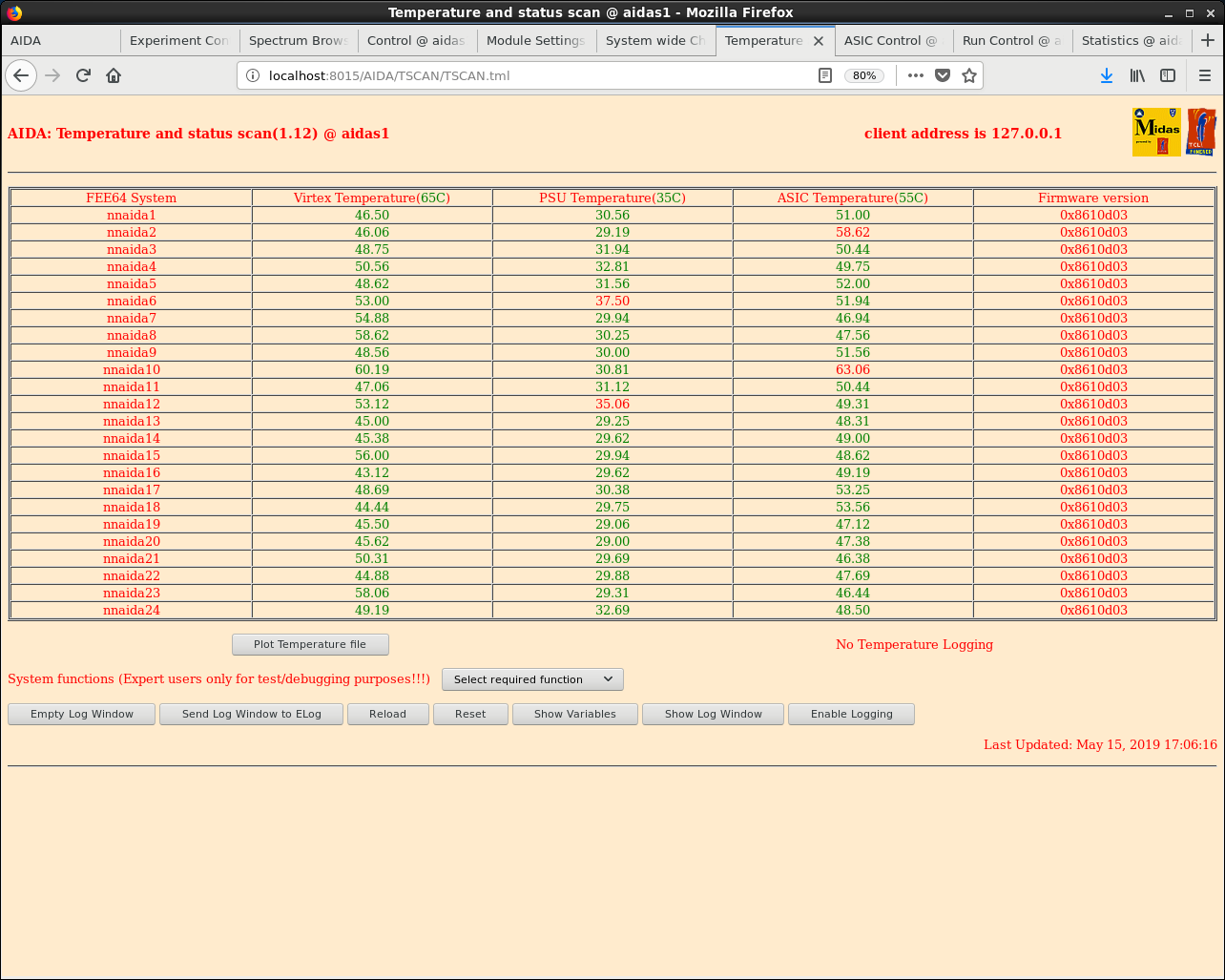

FEE64 temperatures OK - see attachment 18

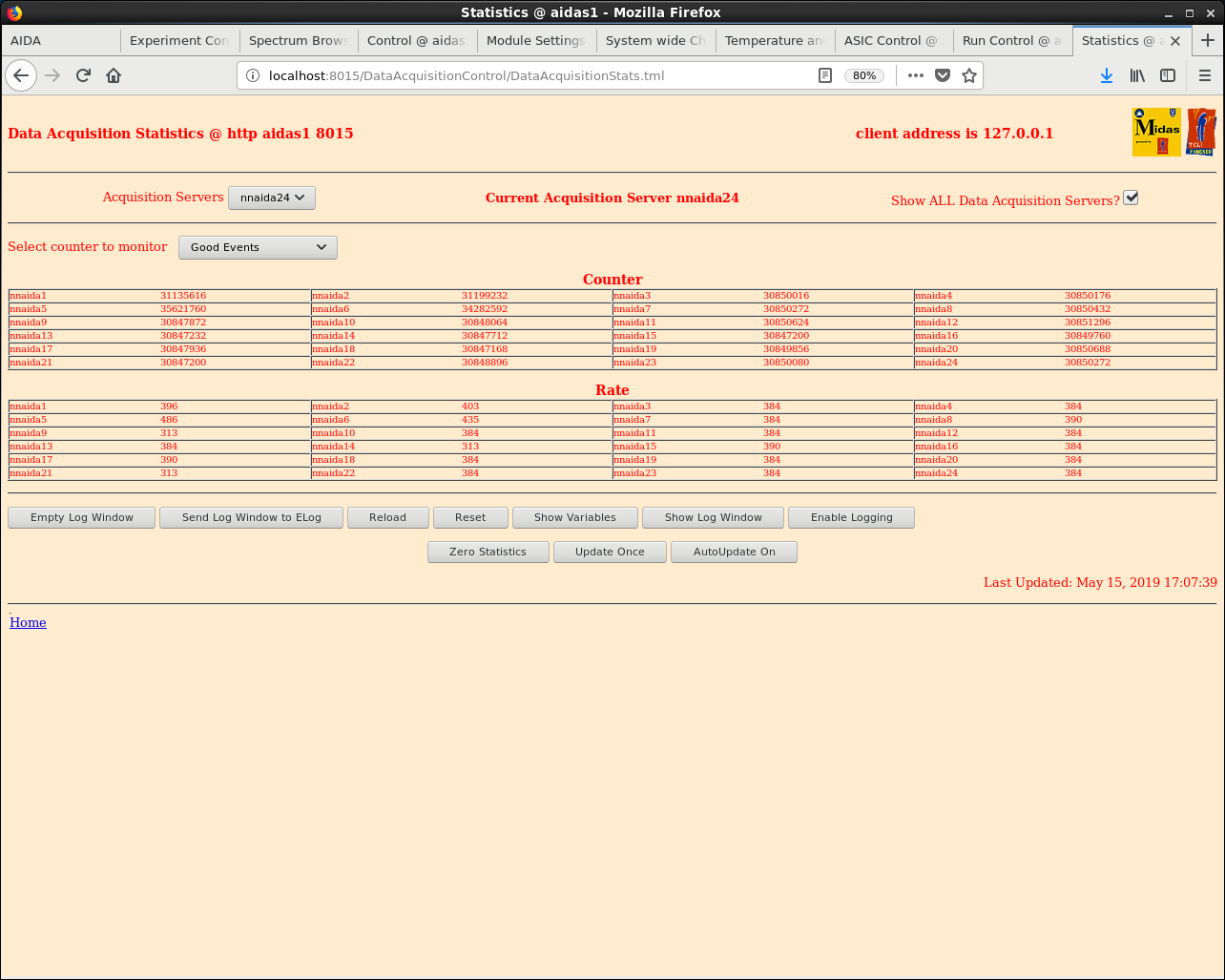

      good event statistics OK - see attachments 19

detector biases & leakage currents OK - see attachment 20

Temperature + deg 24.5C dew point +8.2 deg C RH 34.1%

Merger and TapeServer ok

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1284x1027

Attachment 4:

190514_1834_Stats.png Original size: 1282x523

Attachment 5:

5.png Original size: 1920x1080

Attachment 6:

6.png Original size: 1257x1027

Attachment 7:

7.png Original size: 1284x1027

Attachment 8:

8.png Original size: 1284x1027

Attachment 9:

10.png Original size: 1284x1027

Attachment 10:

11.png Original size: 1284x1027

Attachment 11:

12.png Original size: 1284x1027

Attachment 12:

13.png Original size: 1284x1027

Attachment 13:

1.png Original size: 1284x1027

Attachment 14:

2.png Original size: 1284x1027

Attachment 15:

3.png Original size: 1284x1027

Attachment 16:

4.png Original size: 1284x1027

Attachment 17:

R2_1

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:    2056849 (      72.9 Hz)
        Other data format:  259063151 (    9185.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:  258208982 (    9155.3 Hz)
                           FEE64 disc:       8079 (       0.3 Hz)
                             MBS info:     846090 (      30.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          0 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:    28203.305 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1      81457   10765234          0          0          0          0   10758707       6527          0          0          0
  2     115328   10758862          0          0          0          0   10758707        155          0          0          0
  3         83   10758755          0          0          0          0   10758707         48          0          0          0
  4        109   10758773          0          0          0          0   10758707         66          0          0          0
  5    1558907   10758768          0          0          0          0   10758707         61          0          0          0
  6     297802   11604852          0          0          0          0   10758708         54     846090          0          0
  7         97   10758755          0          0          0          0   10758708         47          0          0          0
  8         85   10758769          0          0          0          0   10758708         61          0          0          0
  9        267   10758856          0          0          0          0   10758708        148          0          0          0
 10        233   10758894          0          0          0          0   10758708        186          0          0          0
 11         84   10758762          0          0          0          0   10758708         54          0          0          0
 12         92   10758777          0          0          0          0   10758708         69          0          0          0
 13        242   10758744          0          0          0          0   10758708         36          0          0          0
 14        270   10758759          0          0          0          0   10758708         51          0          0          0
 15         86   10758708          0          0          0          0   10758708          0          0          0          0
 16         89   10758739          0          0          0          0   10758708         31          0          0          0
 17        281   10758804          0          0          0          0   10758708         96          0          0          0
 18        270   10758752          0          0          0          0   10758708         44          0          0          0
 19         96   10758741          0          0          0          0   10758708         33          0          0          0
 20        155   10758791          0          0          0          0   10758707         84          0          0          0
 21        208   10758759          0          0          0          0   10758707         52          0          0          0
 22        347   10758792          0          0          0          0   10758707         85          0          0          0
 23        157   10758777          0          0          0          0   10758707         70          0          0          0
 24        104   10758728          0          0          0          0   10758707         21          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   13.602s ( 2352.671 blocks/s, 147.042 Mb/s)

Attachment 18:

150519_1707_temp.png Original size: 1284x1027

Attachment 19:

150519_1708_stats.png Original size: 1284x1027

Attachment 20:

150519_1709_bias.png Original size: 1009x349

Attachment 21:
